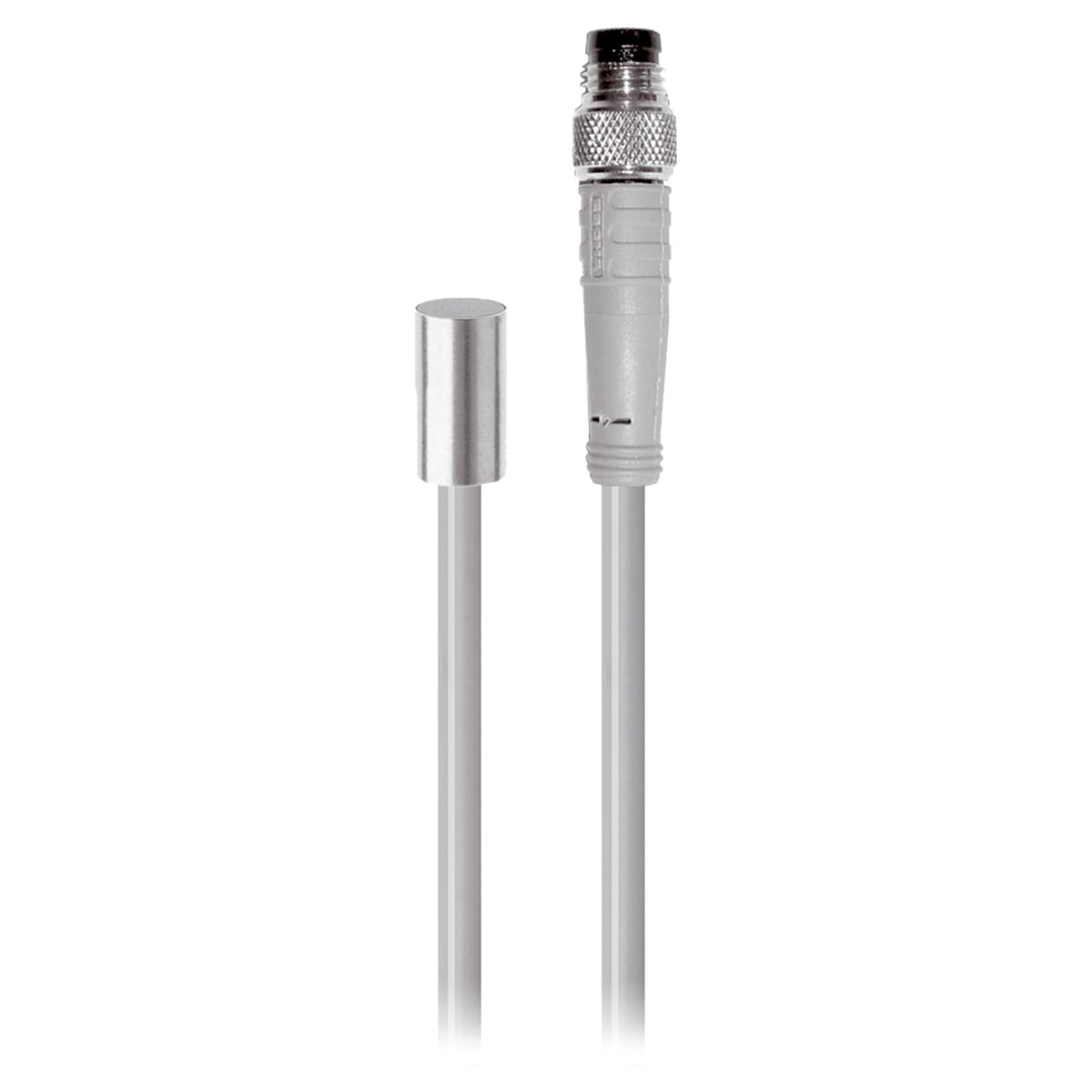

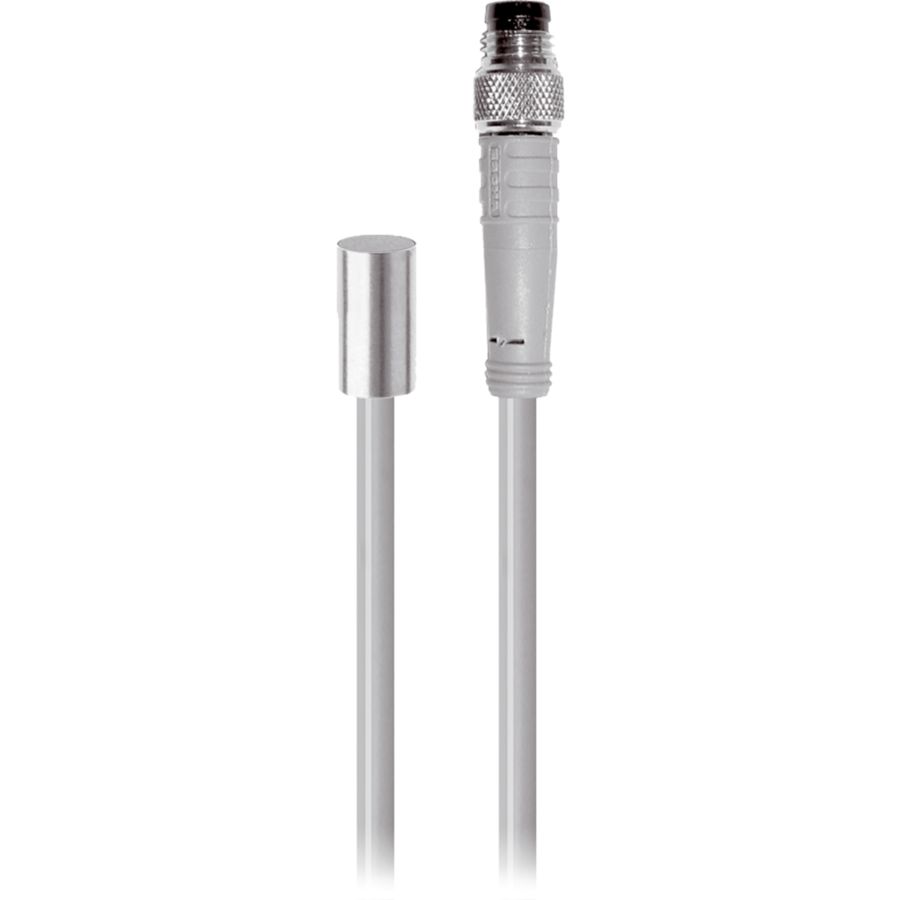

Inductive Proximity Sensor - DCC 8.0 M 02 PSK-KR-TSL
Part Number: DCC 8.0 M 02 PSK-KR-TSL
Article Number: 203474
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|
| Characteristics | increased operating distance |
| Connection | Pigtail 0.2 m M8 3-pin |
| Design | Cylinder |
| Diameter | 8 mm |
| Evaluation | digital |
| Housing length | 16.0 mm |
| Housing Material | Brass chromium-plated |
| Illumination Time Pulse | 1.0 |
| Installation Type | Flush |
| Insulation Voltage Endurance | According to IEC 60947-5-2 (7.2.3.1) |
| Internal Power Consumption | 10 < mA |
| Operating Principle | inductive |
| Product Series | INE Extended |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Service Voltage | 10 ... 30.0V DC |
| Standardized Measuring Plate | 8 x 8 x 1 mm |
| Switching Distance (SN) | 2.0 mm |
| Switching Frequency | 3000.0 Hz |
| Switching Hysteresis (max.) | 10.0 < % |
| Switching Output | pnp 200.0 mA NO |
| Voltage Drop (max.) | 2.0 V 200 mA |
