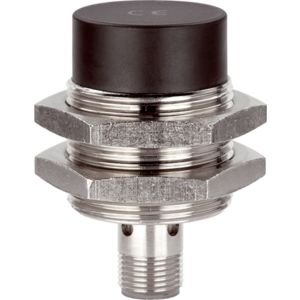

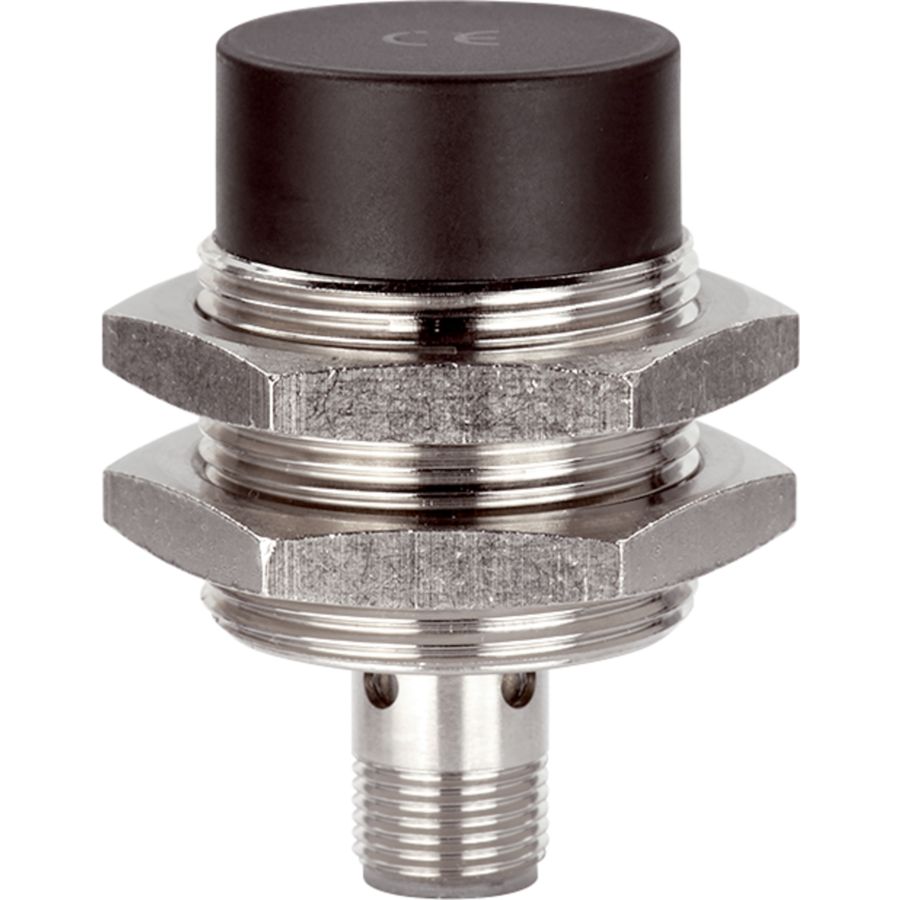

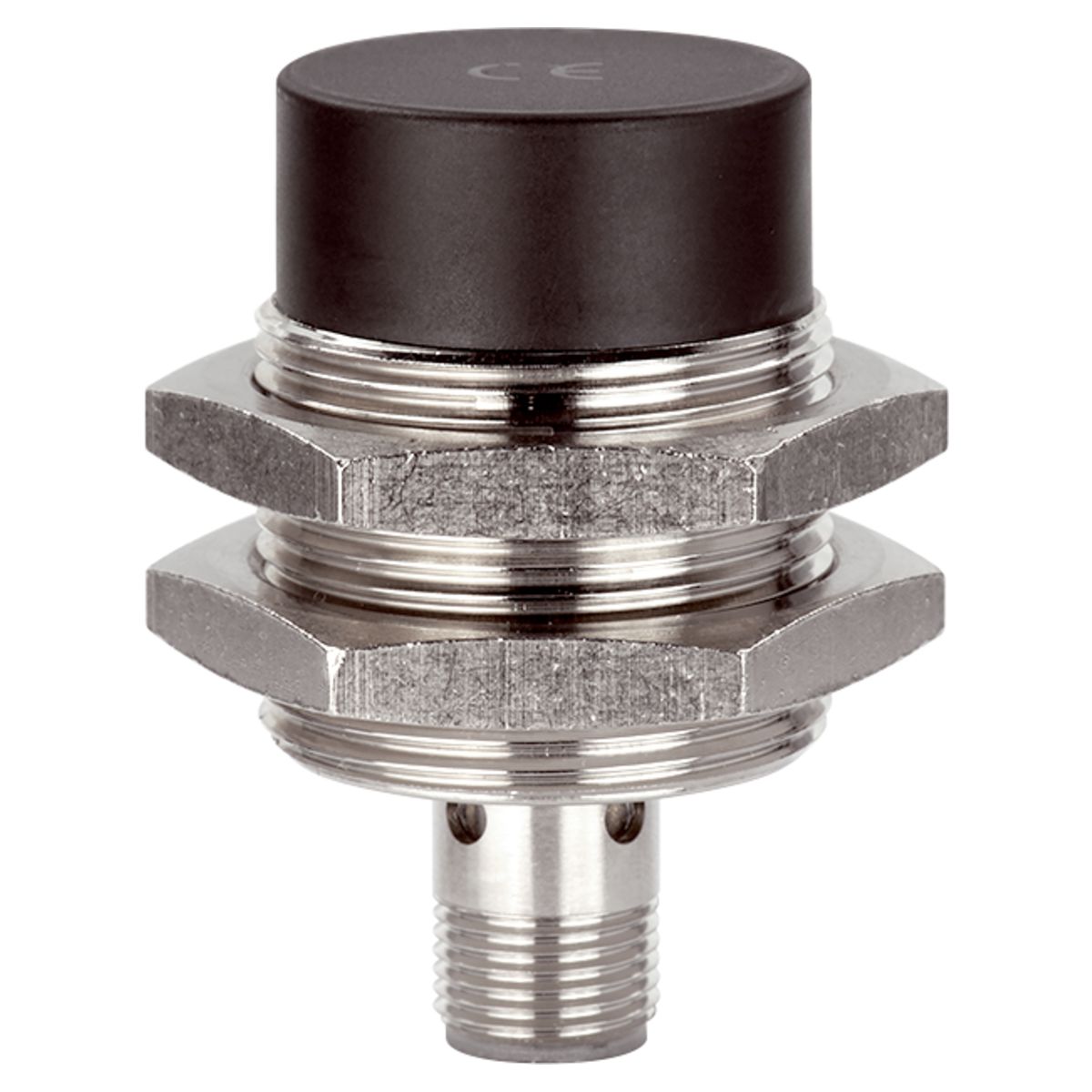

Inductive Proximity Sensor - DCCK 30 M 15 PSK-IBSL
Part Number: DCCK 30 M 15 PSK-IBSL
Article Number: 208101
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|
| Connection | Connector M12 4-pin |
| Connection Cable | VK ... |
| Design | Thread |
| Evaluation | digital |
| Housing length | 50.0 mm |
| Housing Material | Brass nickel-plated |
| Illumination Time Pulse | 1.0 |
| Installation Type | non-flush |
| Insulation Voltage Endurance | 500.0 V |
| Internal Power Consumption | 10 < mA |
| Operating Principle | inductive |
| Product Series | IND-100 Short design |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Screw In Length MAX UNIT | mm |
| Sensitivity Adjustment | Yes |
| Service Voltage | 10.0 ... 30.0V DC |
| Standardized Measuring Plate | 45 x 45 x 1 mm |
| Switching Distance (SN) | 15.0 mm |
| Switching Frequency | 300 Hz |
| Switching Hysteresis (max.) | 15.0 < % |

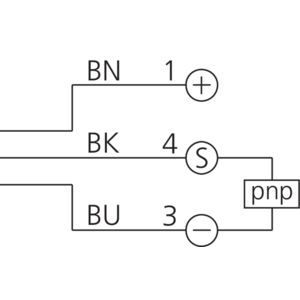

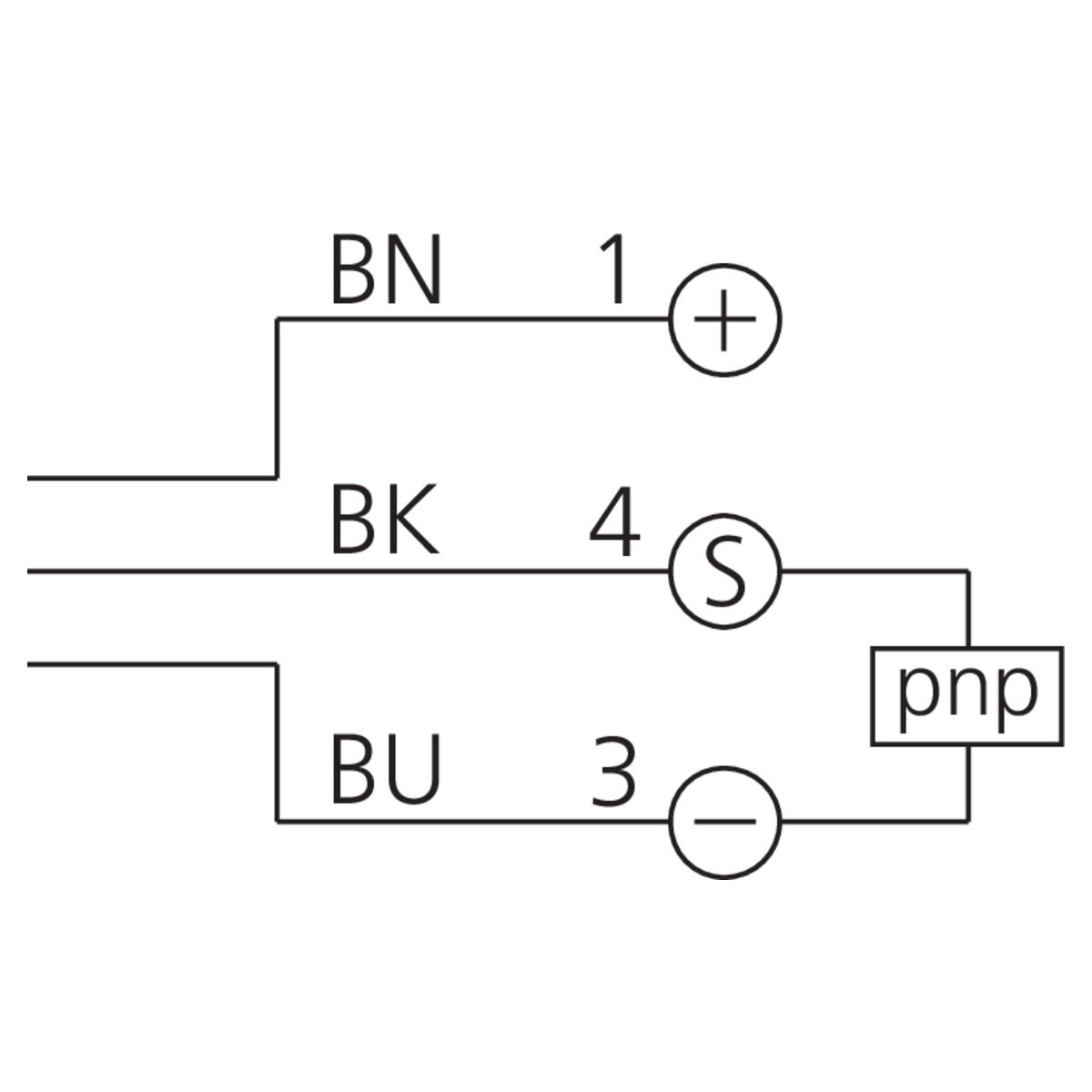

| Switching Output | pnp 200.0 mA NO |

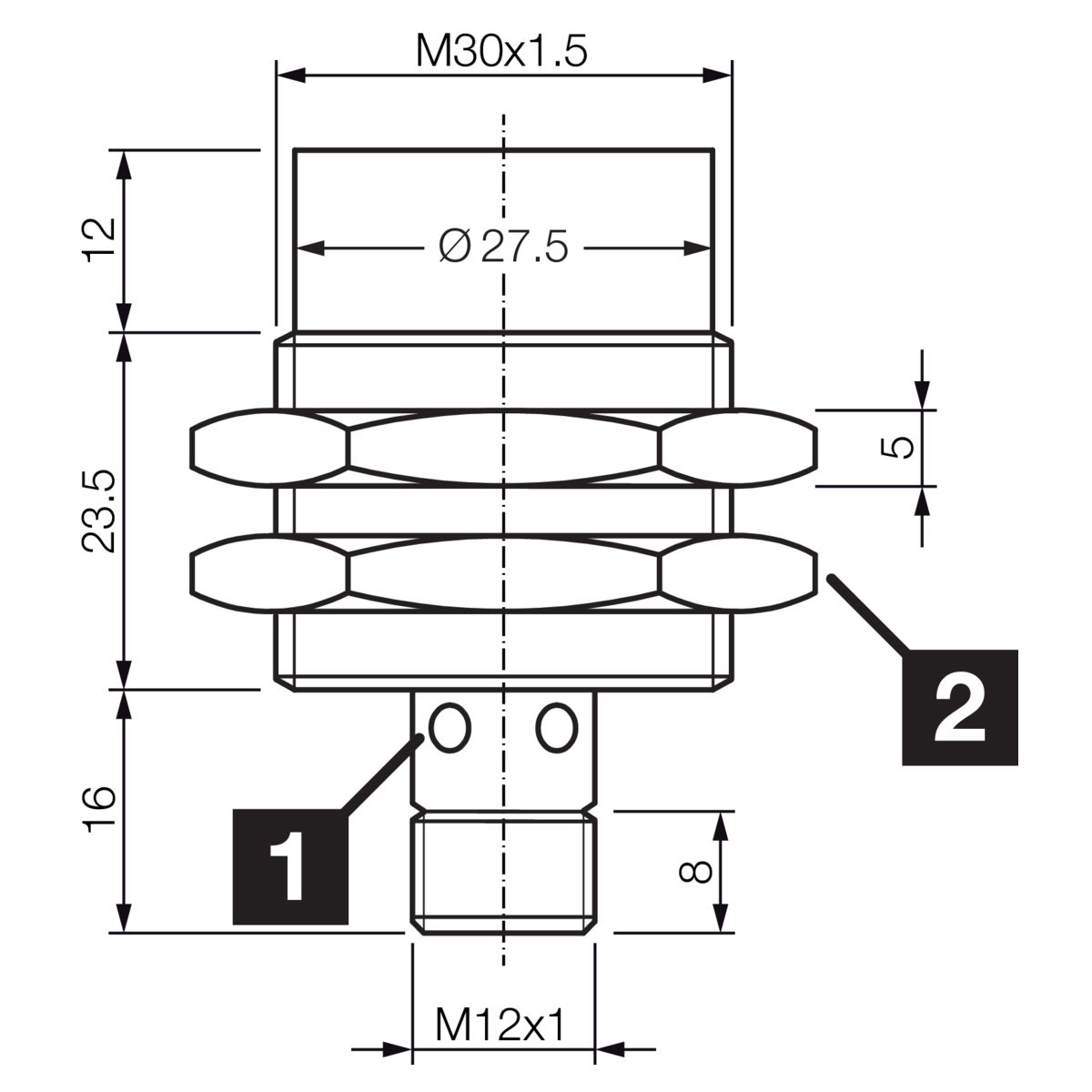

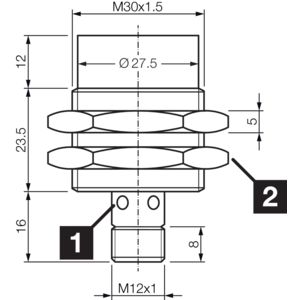

| Thread | M30 x 1.5 |
| Tightening Torque (max.) | 35.0 Nm |
| Voltage Drop (max.) | 2.4 V |
