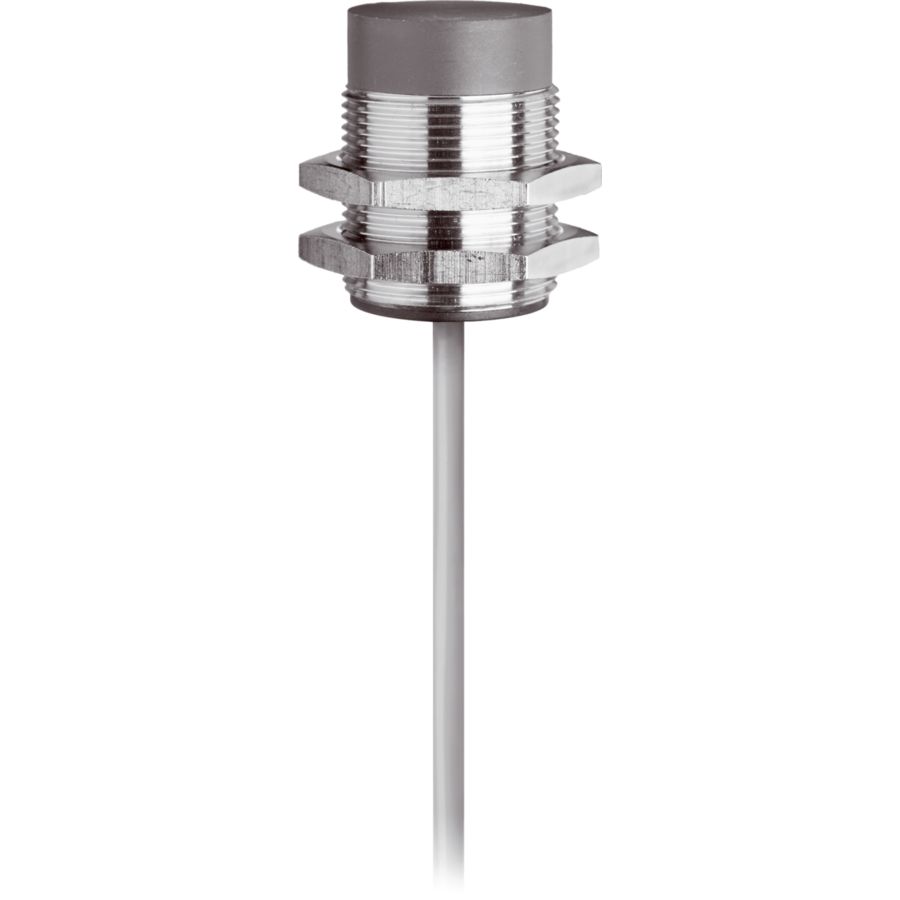

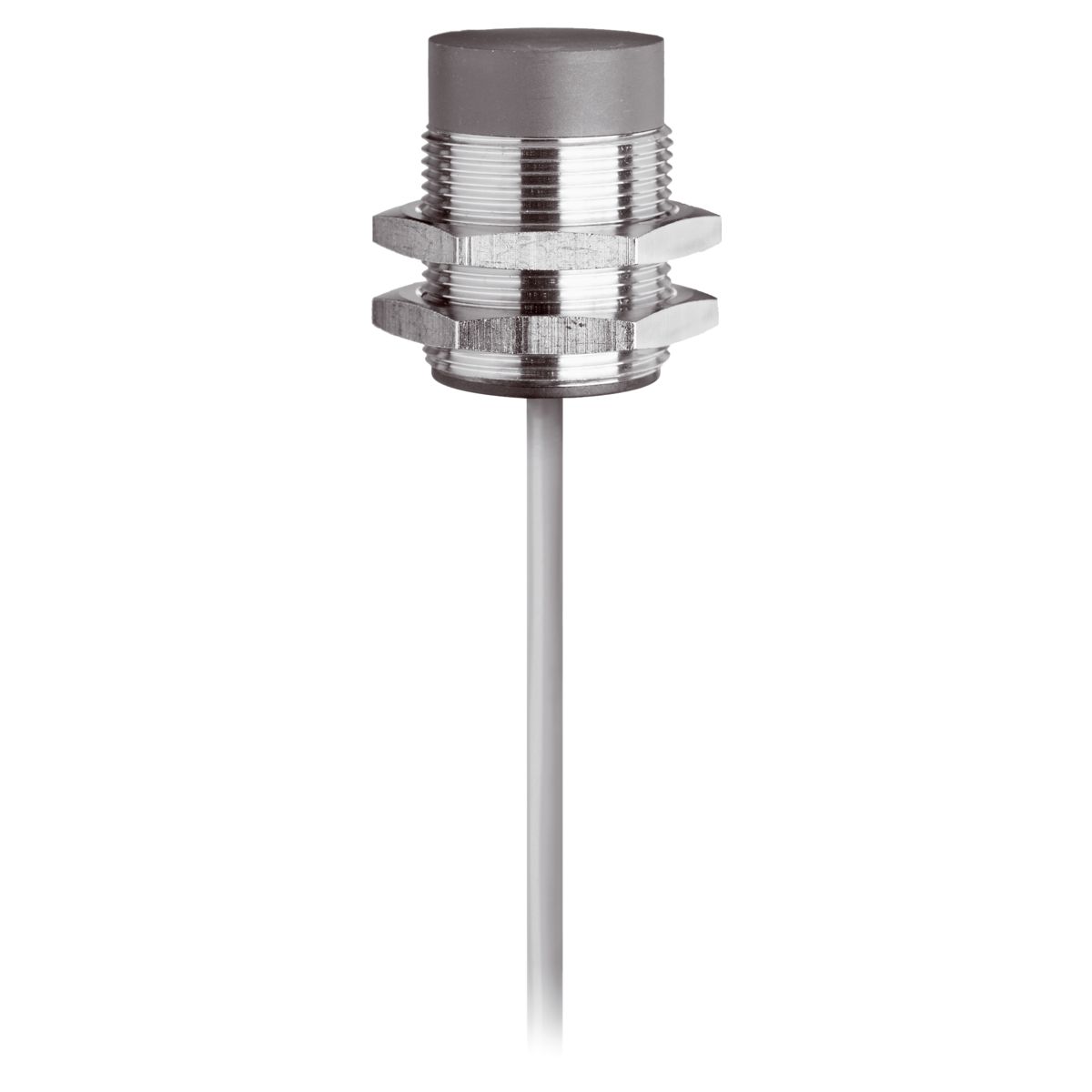

Inductive Proximity Sensor - DCCK 30 M 40/10 AIK
Part Number: DCCK 30 M 40/10 AIK
Article Number: 203370
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|

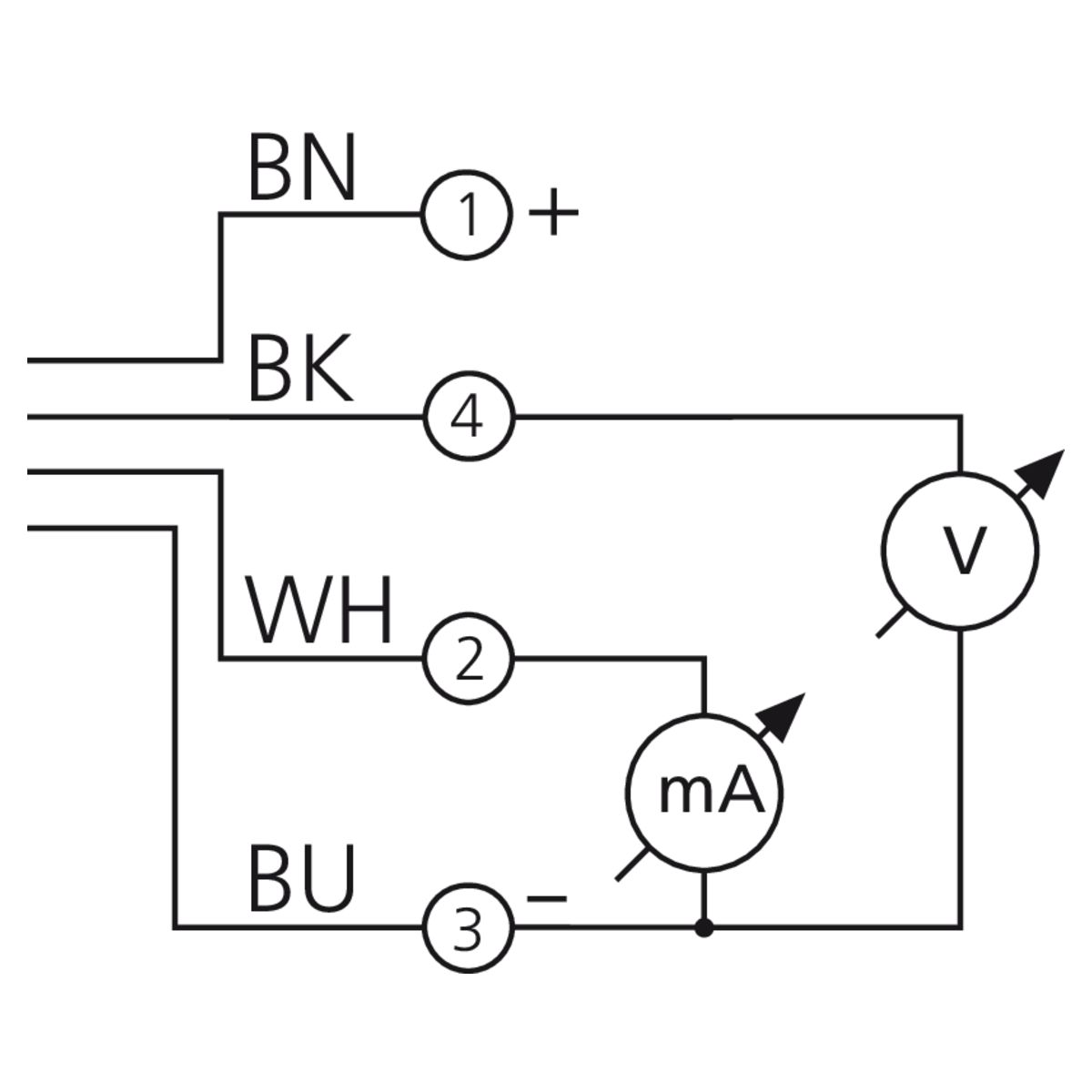

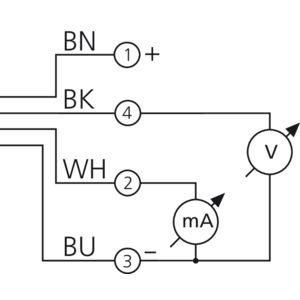

| Analog Output | 0.0 V 10.0 V 4.0 mA 20.0 mA |
| Characteristics | extremely high operating distance |
| Connection | Cable 2.0 m flying leads |
| Design | Thread |
| Evaluation | analog |

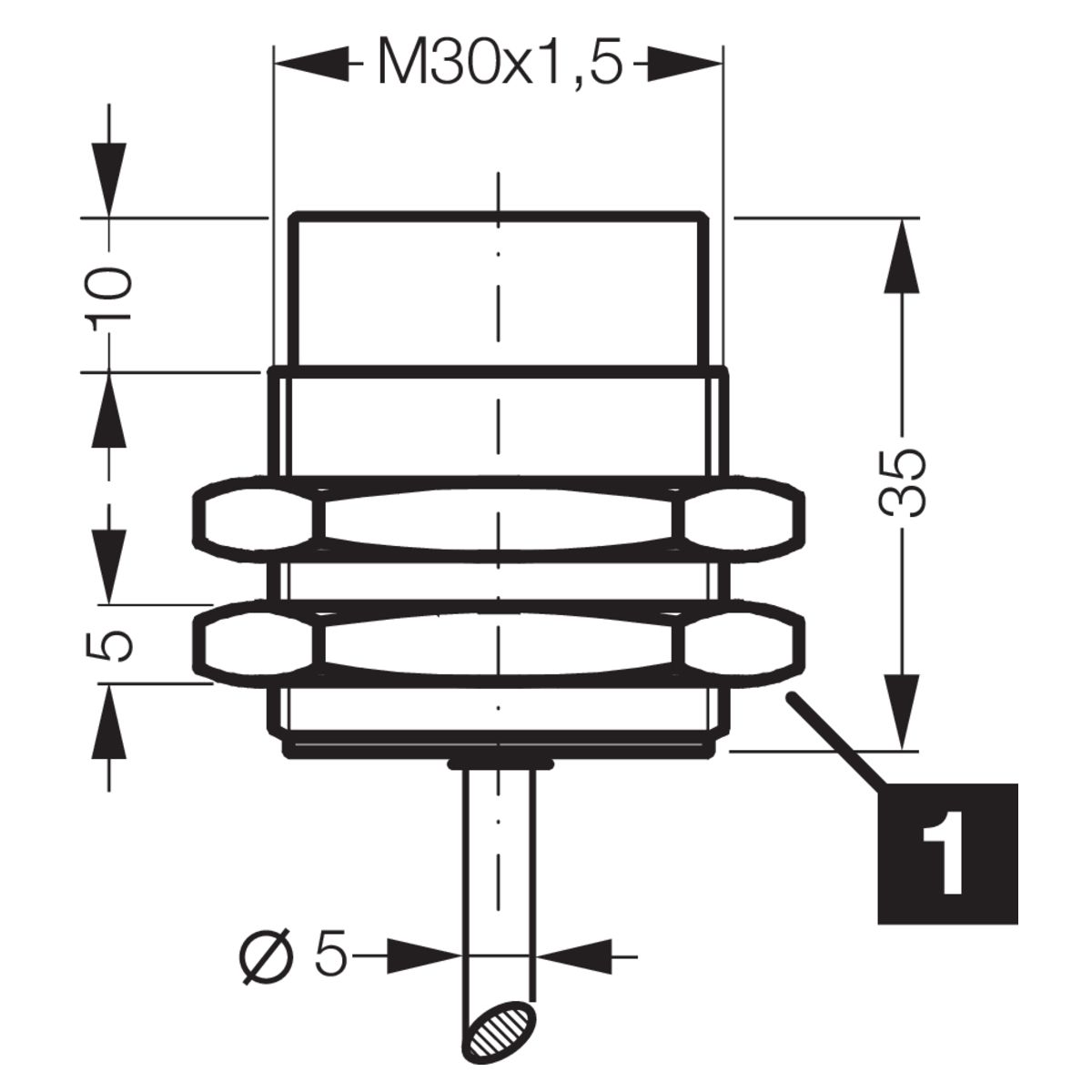

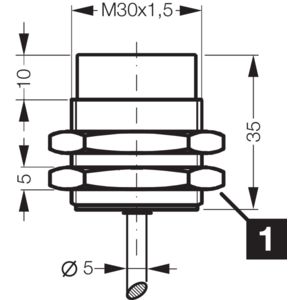

| Housing length | 35.0 mm |
| Housing Material | Brass CuZn nickel-plated |
| Illumination Time Pulse | 1.0 |
| Installation Type | non-flush |
| Insulation Voltage Endurance | According to IEC 60947-5-2 (7.2.3.1) |
| Internal Power Consumption | 12 mA |
| Material Of Cable | Polyurethane |
| Operating Principle | inductive |
| Product Series | INA Analog |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Screw In Length MAX UNIT | mm |
| Service Voltage | 15 ... 30.0V DC |
| Standardized Measuring Plate | 120 x 120 x 1 mm |
| Switching Distance (SN) | 0.0 mm 40.0 mm |
| Switching Frequency | 100.0 Hz |
| Thread | M30 x 1.5 |
| Tightening Torque (max.) | 70.0 Nm |
| Voltage Drop (max.) | 2.0 V |
