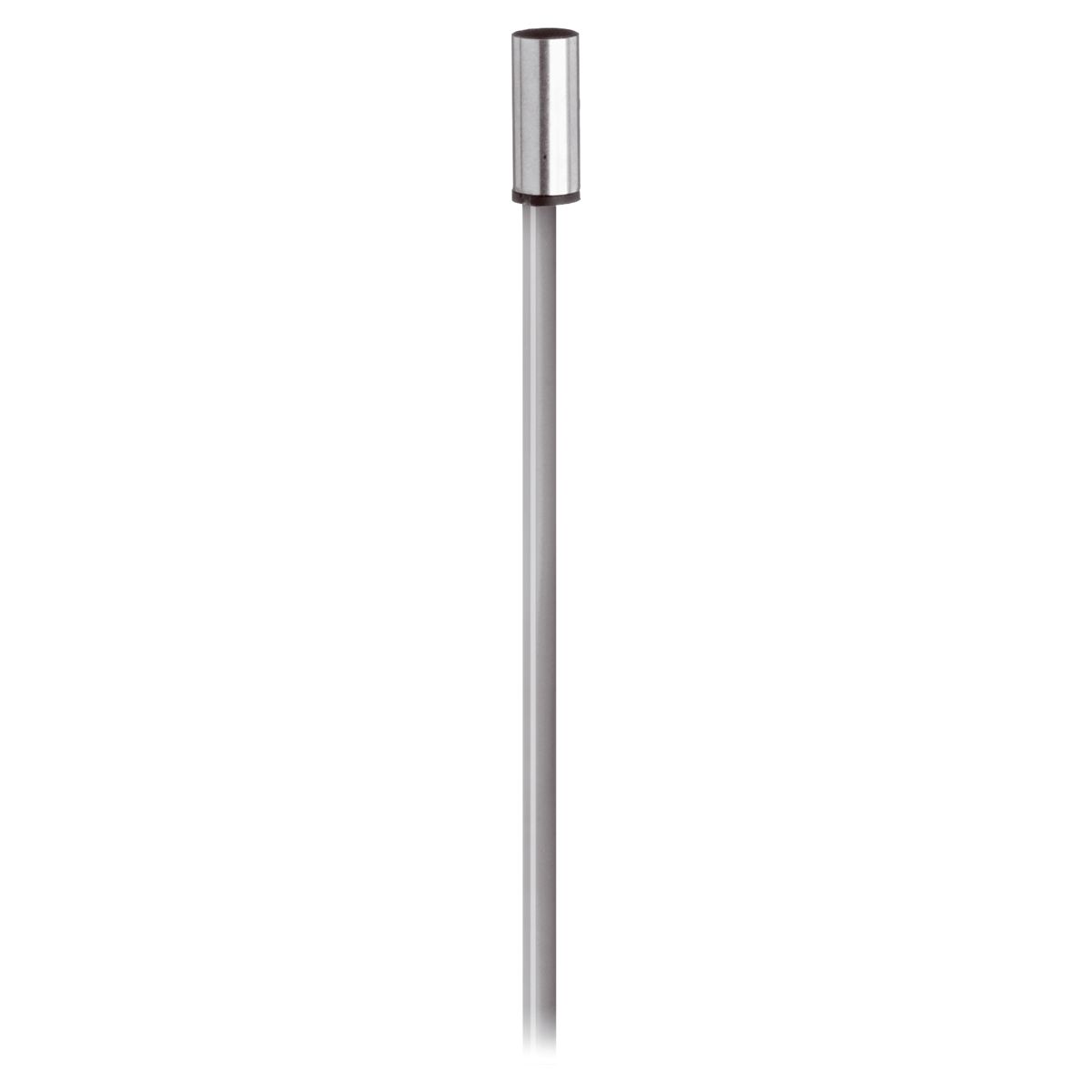

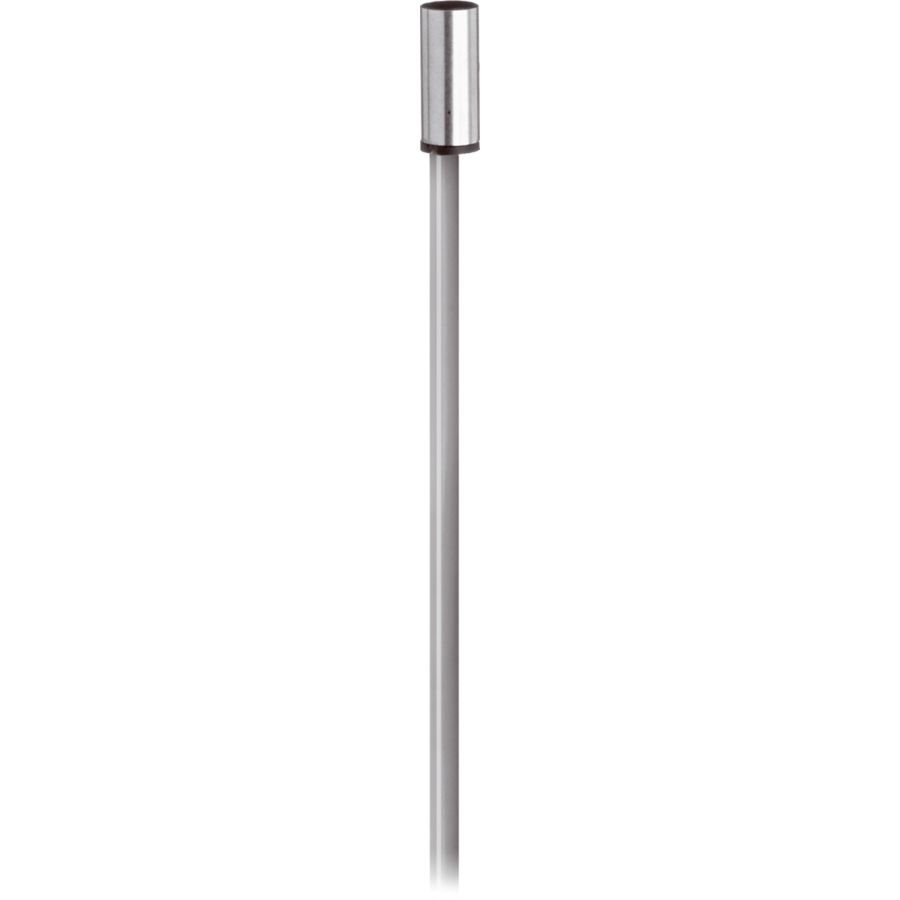

Inductive Proximity Sensor - DCCK 6.5 V 1.5 POLK
Part Number: DCCK 6.5 V 1.5 POLK
Article Number: 208099
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|
| Connection | Cable 2.0 m flying leads |
| Design | Cylinder |

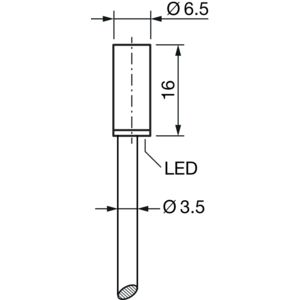

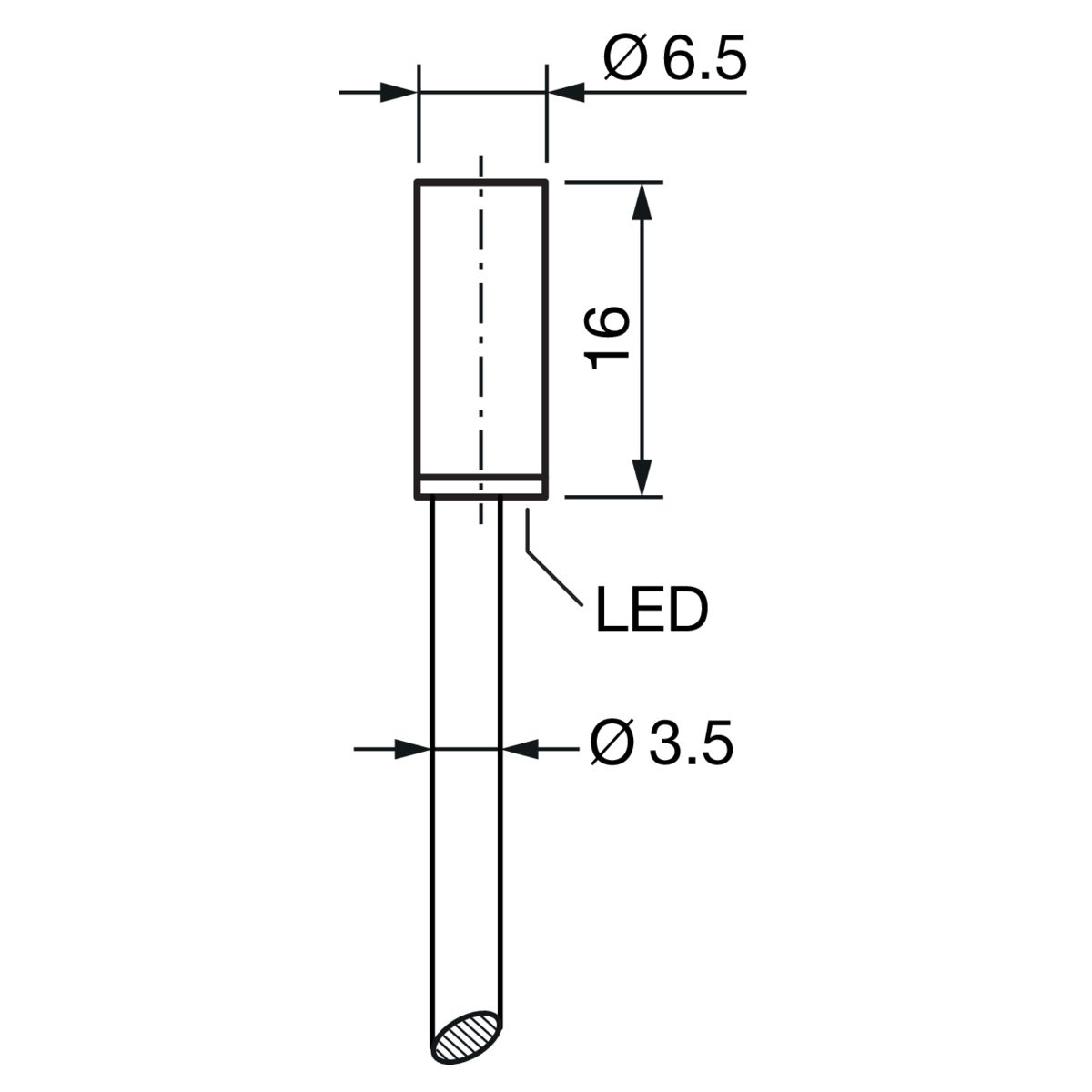

| Diameter | 6.5 mm |
| Evaluation | digital |
| Housing length | 16.0 mm |
| Housing Material | Stainless steel |
| Illumination Time Pulse | 1.0 |
| Installation Type | Flush |
| Insulation Voltage Endurance | 500.0 V |
| Internal Power Consumption | 10 < mA |
| Material Of Cable | PVC |
| Operating Principle | inductive |
| Product Series | IND-100 Short design |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Sensitivity Adjustment | Yes |
| Service Voltage | 10.0 ... 30.0V DC |
| Standardized Measuring Plate | 6.5 x 6.5 x 1 mm |
| Switching Distance (SN) | 1.5 mm |
| Switching Frequency | 3000 Hz |
| Switching Hysteresis (max.) | 15.0 < % |
| Switching Output | pnp 200.0 mA NC |
| Voltage Drop (max.) | 2.4 V |
