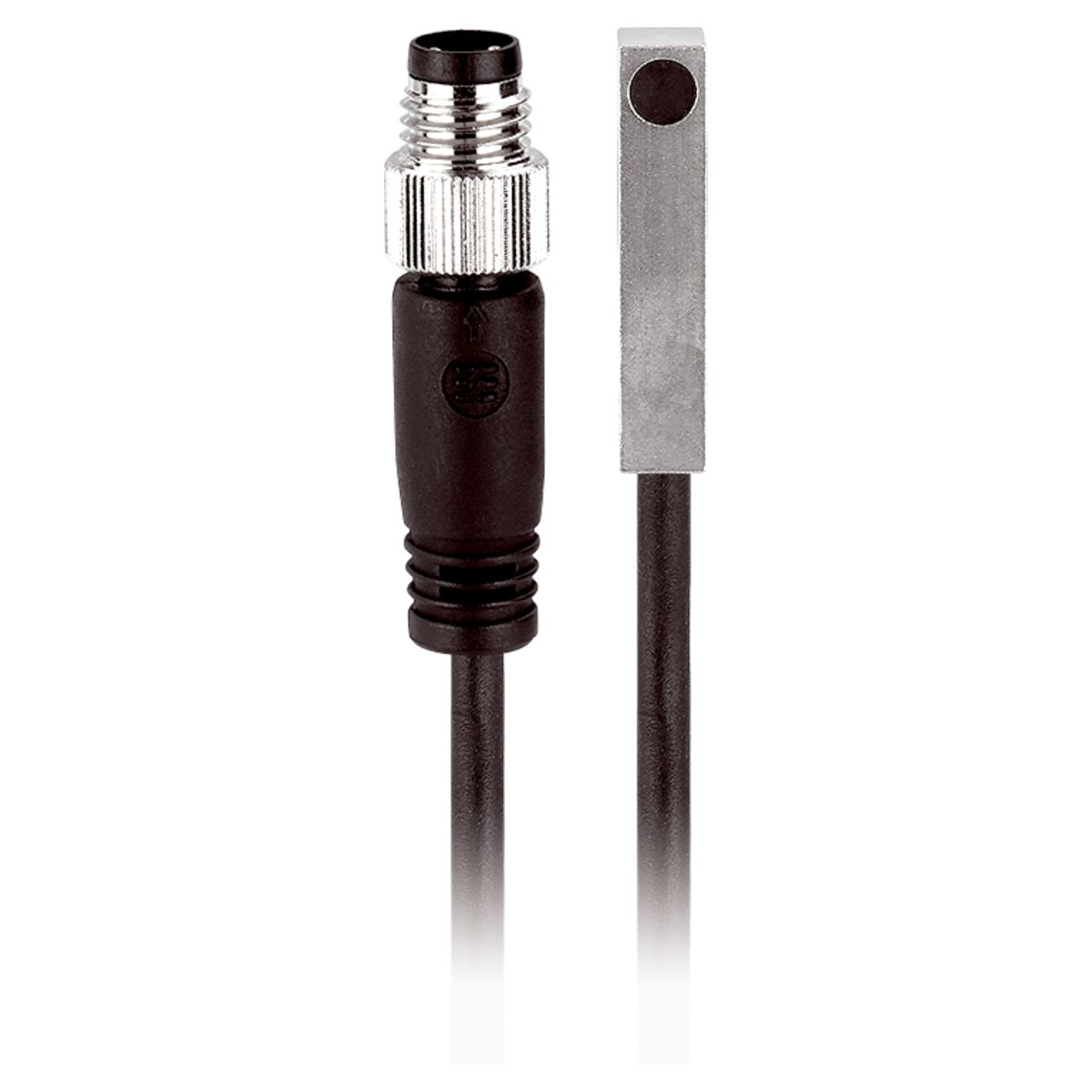

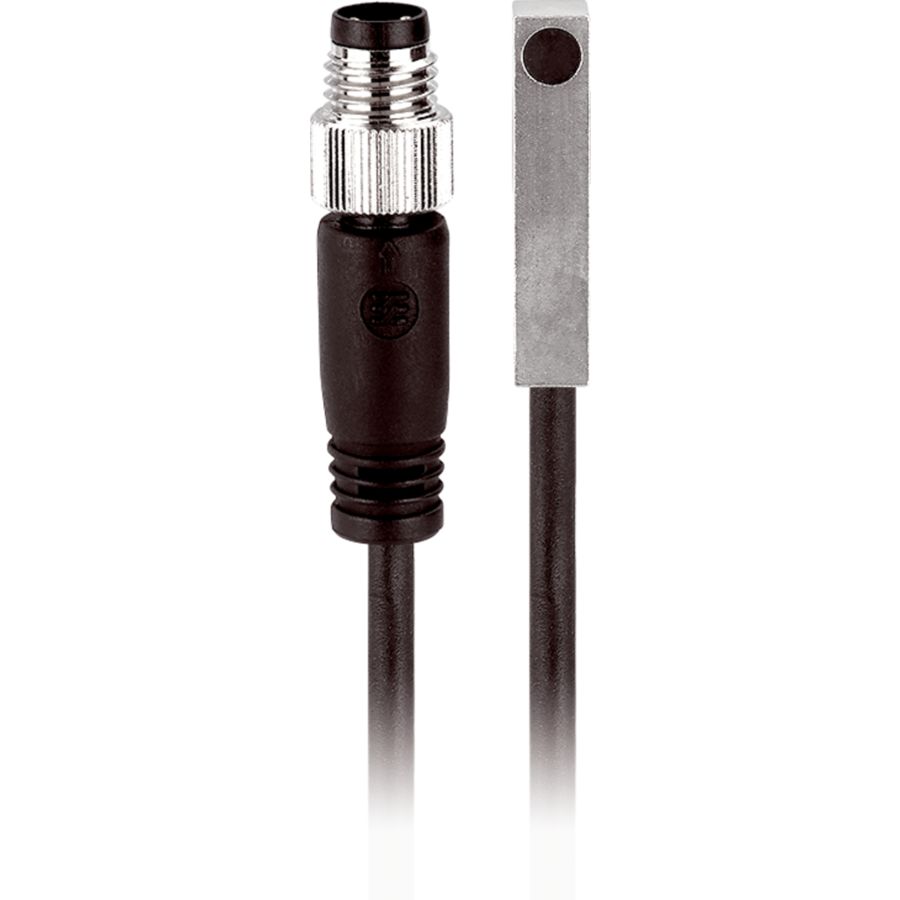

Inductive Proximity Sensor - DCCQ 05 M 0.8 PSK-K-TSL
Part Number: DCCQ 05 M 0.8 PSK-K-TSL
Article Number: 208009
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|
| Connection | Pigtail 0.2 m M8 3-pin |
| Connection Cable | TK ... |
| Design | Cuboid design |
| Evaluation | digital |

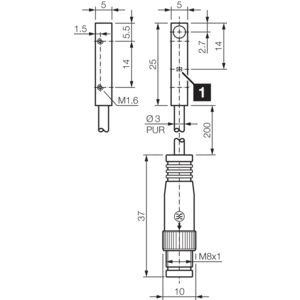

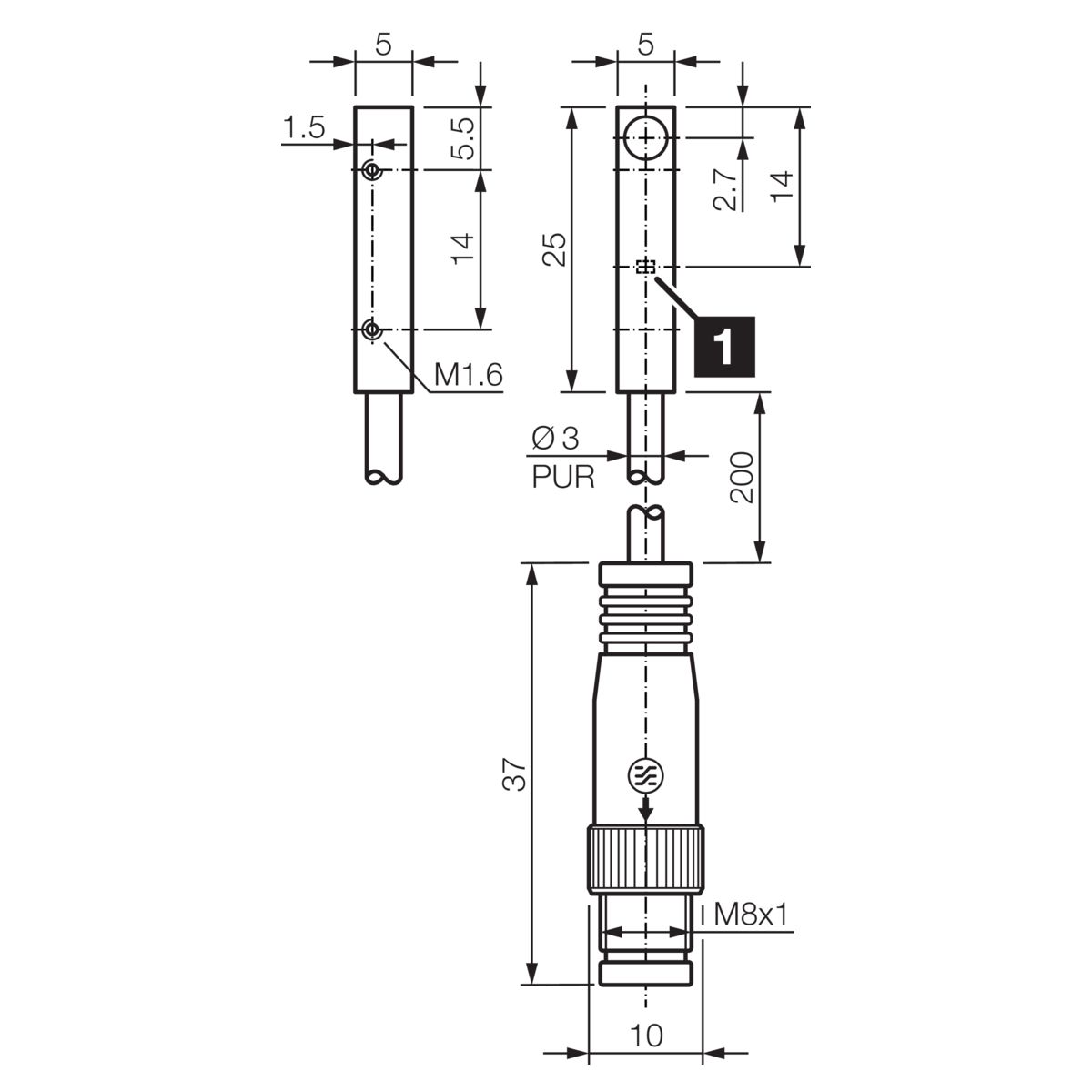

| Housing Dimensions | 5 x 5 mm |
| Housing length | 25.0 mm |
| Housing Material | Brass nickel-plated |
| Illumination Time Pulse | 1.0 |
| Installation Type | Flush |
| Insulation Voltage Endurance | 500.0 V |
| Internal Power Consumption | 10 < mA |
| Material Of Cable | Polyurethane |
| Operating Principle | inductive |
| Product Series | INM-100 Miniature |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Sensitivity Adjustment | Yes |
| Service Voltage | 10.0 ... 30.0V DC |
| Standardized Measuring Plate | 5 x 5 x 1 mm |
| Switching Distance (SN) | 0.8 mm |
| Switching Frequency | 2000 Hz |
| Switching Hysteresis (max.) | 15.0 < % |
| Switching Output | pnp 200.0 mA NO |
| Voltage Drop (max.) | 2.4 V |
