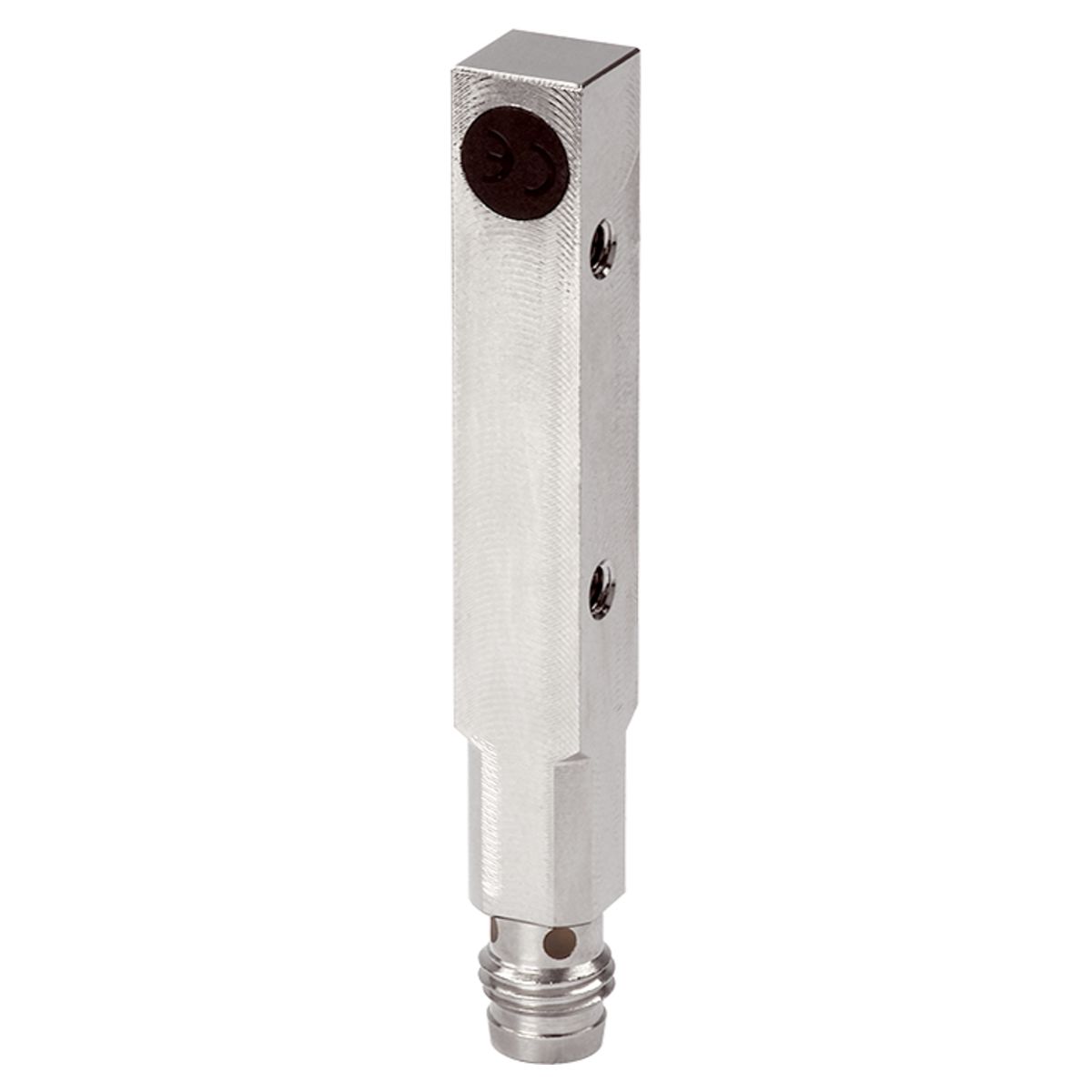

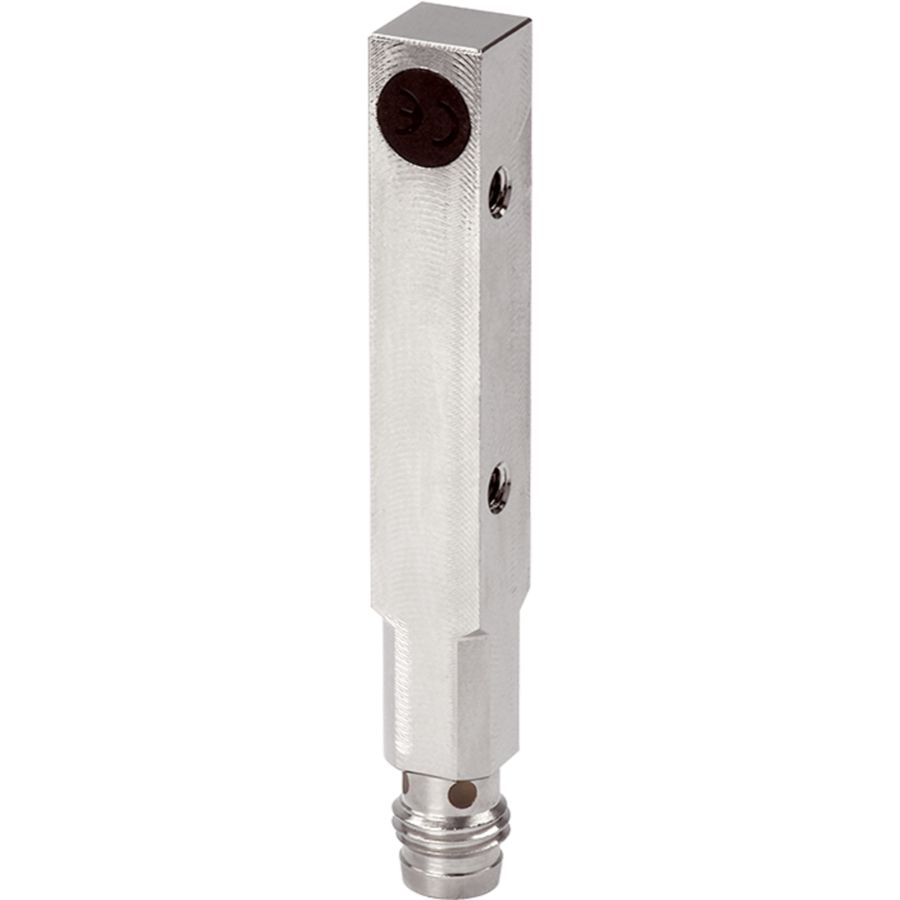

Inductive Proximity Sensor - DCCQ 08 M 03 NOK-TSL
Part Number: DCCQ 08 M 03 NOK-TSL
Article Number: 205311
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|
| Characteristics | extremely high operating distance |
| Connection | Connector M8 3-pin |
| Connection Cable | TK ... |
| Design | Cuboid design |
| Evaluation | digital |

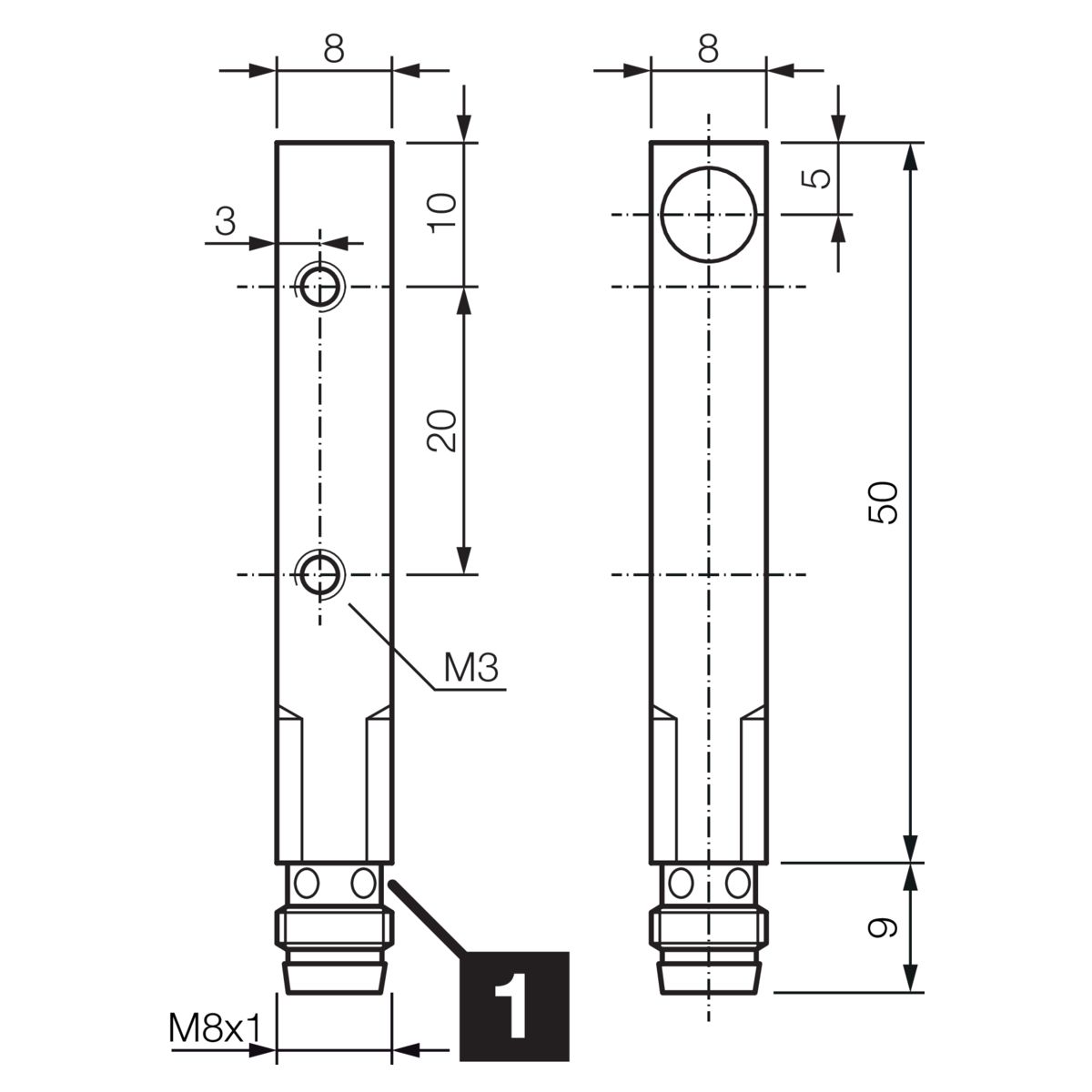

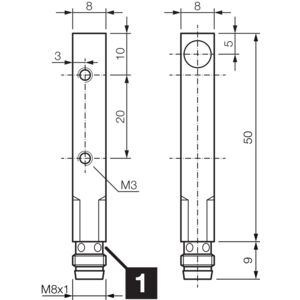

| Housing Dimensions | 8 x 8 mm |
| Housing length | 60.0 mm |
| Housing Material | Brass nickel-plated |
| Illumination Time Pulse | 1.0 |
| Installation Type | quasi-flush |
| Insulation Voltage Endurance | 500.0 V |
| Internal Power Consumption | 10 < mA |
| Operating Principle | inductive |
| Product Series | INE Extended |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Service Voltage | 10 ... 30.0V DC |
| Standardized Measuring Plate | 9 x 9 x 1 mm |
| Switching Distance (SN) | 3.0 mm |
| Switching Frequency | 1000.0 Hz |
| Switching Hysteresis (max.) | 15.0 < % |

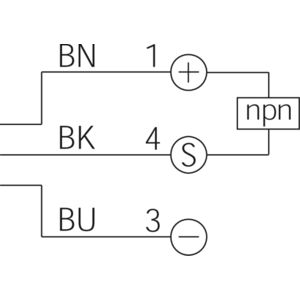

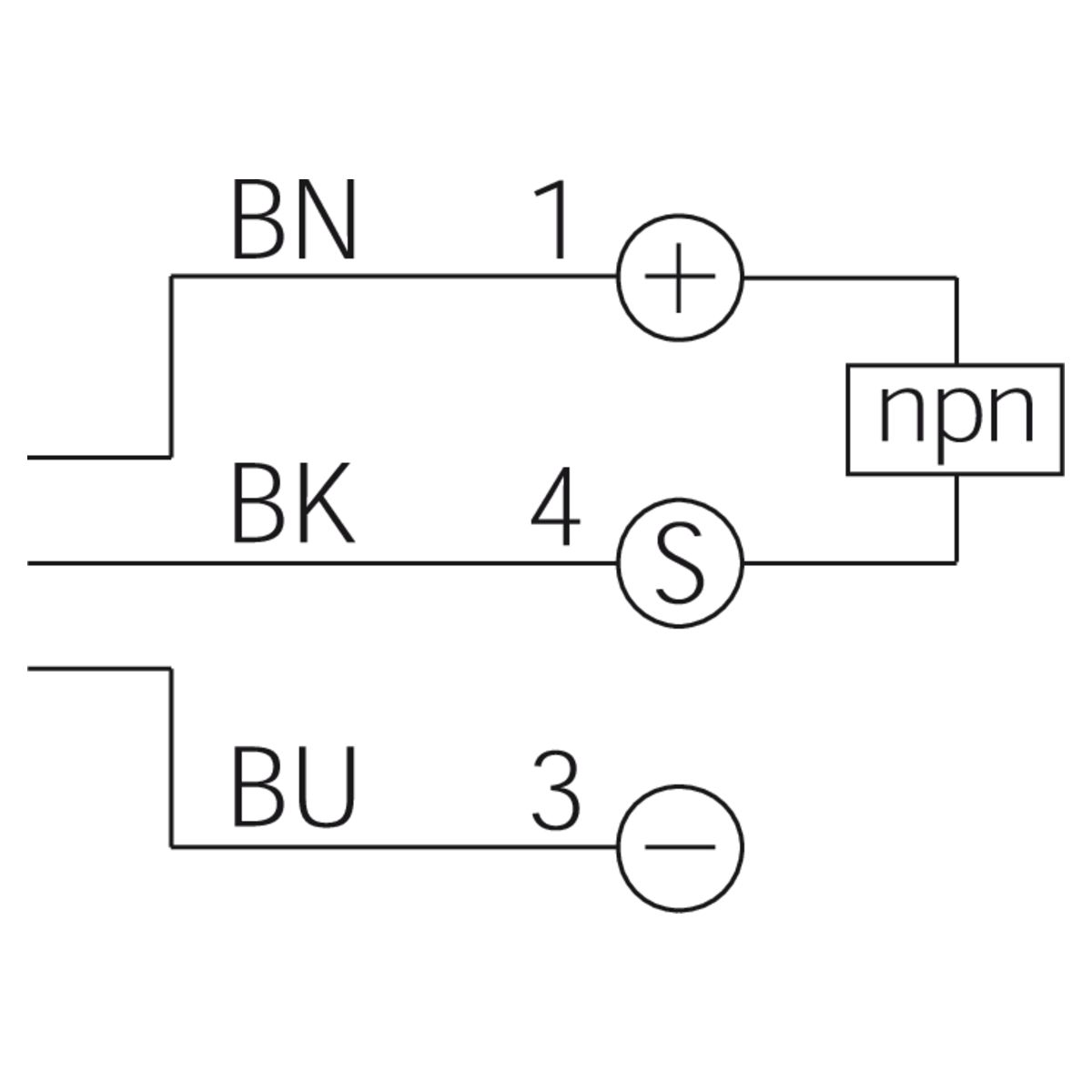

| Switching Output | npn 200.0 mA NC |
| Voltage Drop (max.) | 2.4 V |
