Inductive Proximity Sensor - DCCQ 08 M 04/10 AK
Part Number: DCCQ 08 M 04/10 AK
Article Number: 204998
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|
| Analog Output | 0.0 V 10.0 V |
| Characteristics | extremely high operating distance |

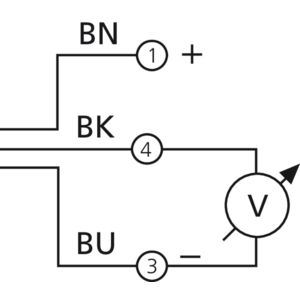

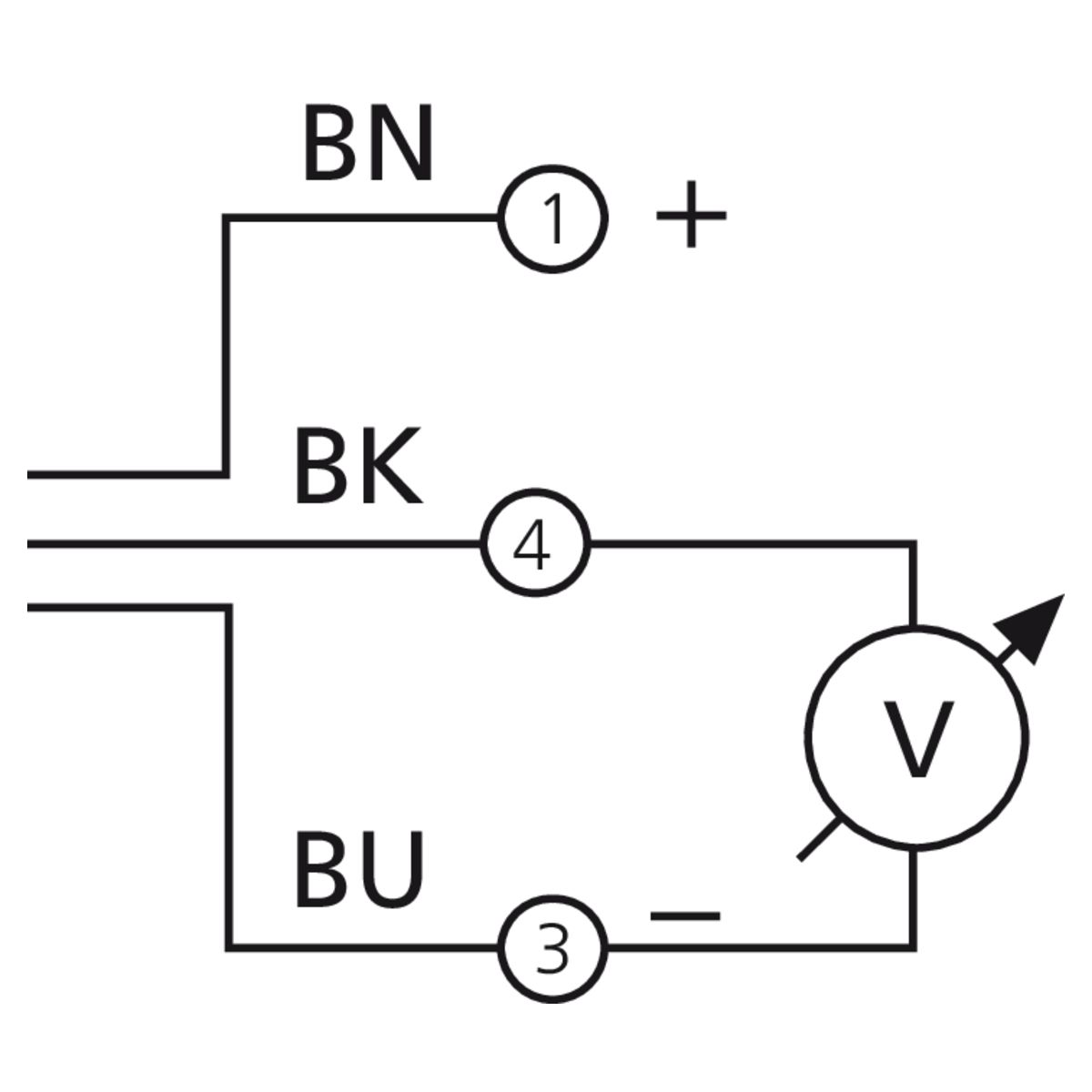

| Connection | Cable 2.0 m flying leads |
| Design | Cuboid design |
| Evaluation | analog |

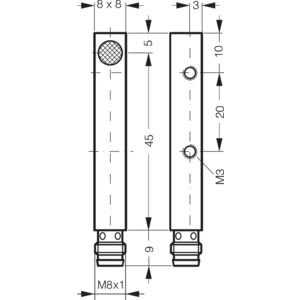

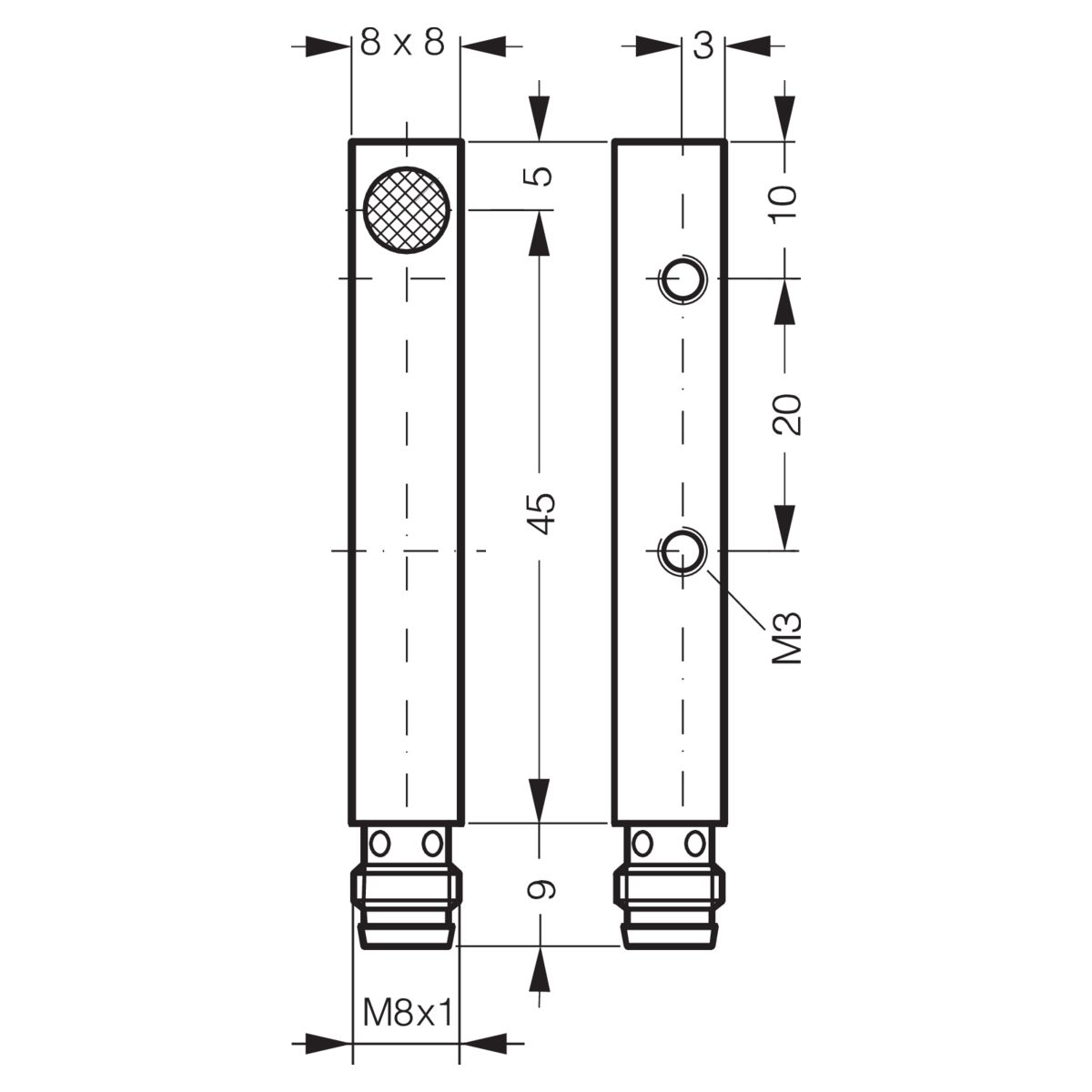

| Housing Dimensions | 8 x 8 mm |
| Housing length | 59.0 mm |
| Housing Material | Brass CuZn nickel-plated |
| Illumination Time Pulse | 1.0 |
| Installation Type | quasi-flush |
| Insulation Voltage Endurance | According to IEC 60947-5-2 (7.2.3.1) |
| Internal Power Consumption | 10 mA |
| Material Of Cable | Polyurethane |
| Operating Principle | inductive |
| Product Series | INA Analog |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Screw In Length MAX UNIT | mm |
| Service Voltage | 15 ... 30.0V DC |
| Standardized Measuring Plate | 12 x 12 x 1 mm |
| Switching Distance (SN) | 0.0 mm 4.0 mm |
| Switching Frequency | 1600.0 Hz |
| Switching Hysteresis (max.) | 5.0 % |
| Tightening Torque (max.) | 4.0 Nm |
