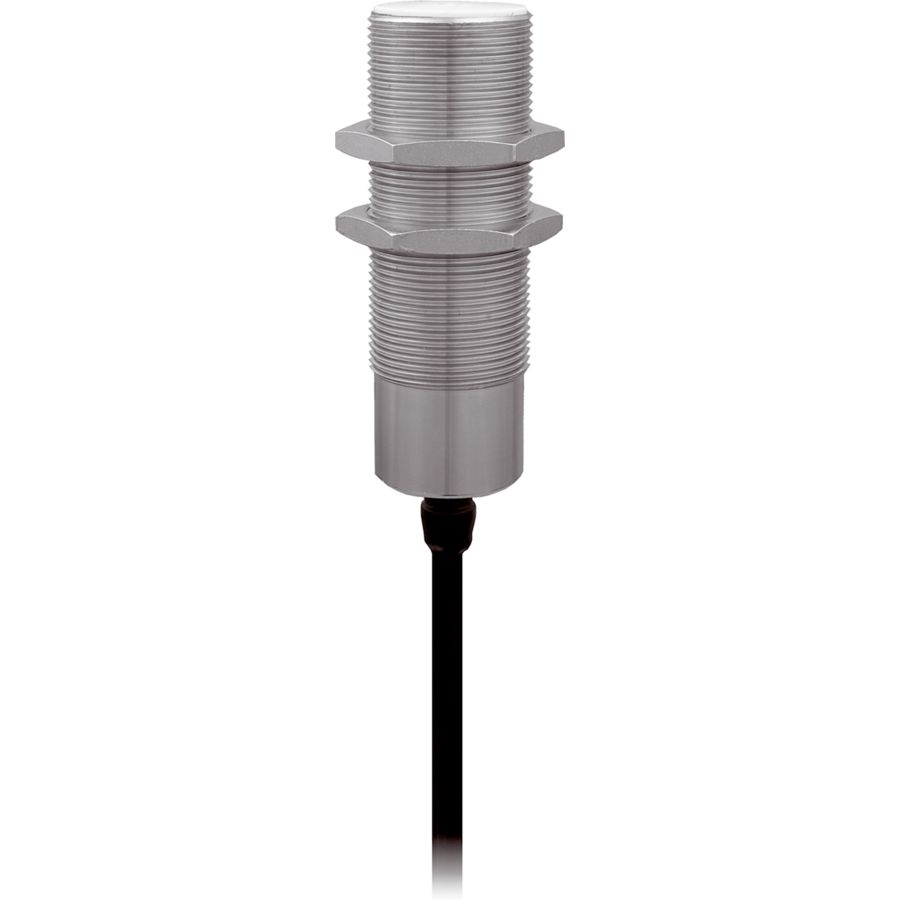

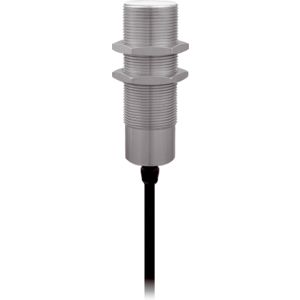

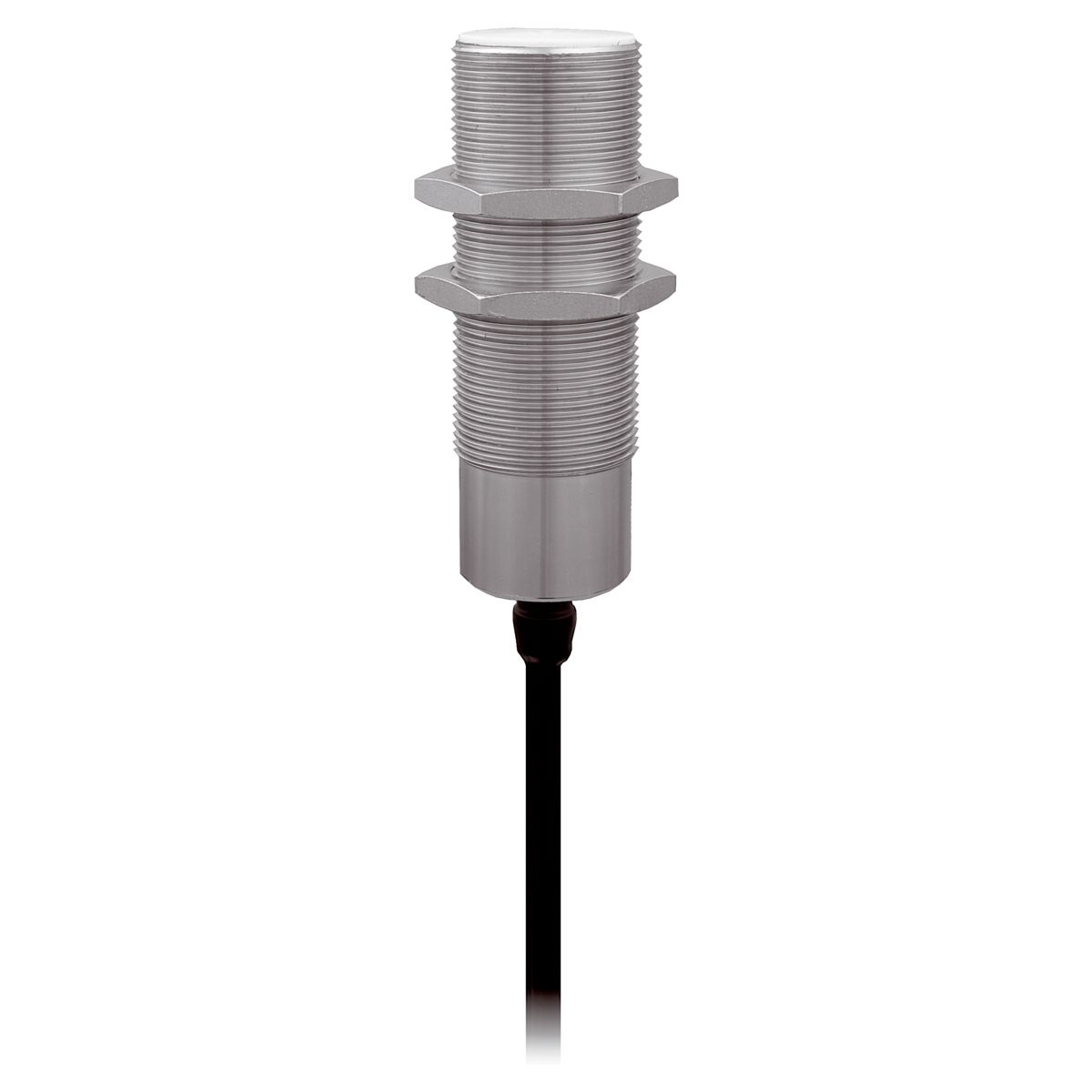

Inductive Proximity Sensor - DCE 30 VH 10 PSK
Part Number: DCE 30 VH 10 PSK
Article Number: 200543
Technical Details
| Ambient Temperature During Operation | -25.0 ... 160.0°C |
|---|---|
| Characteristics | 160 < °C high-temperature resistant |
| Connection | Cable 2.0 m flying leads |
| Design | Thread |
| Evaluation | digital |

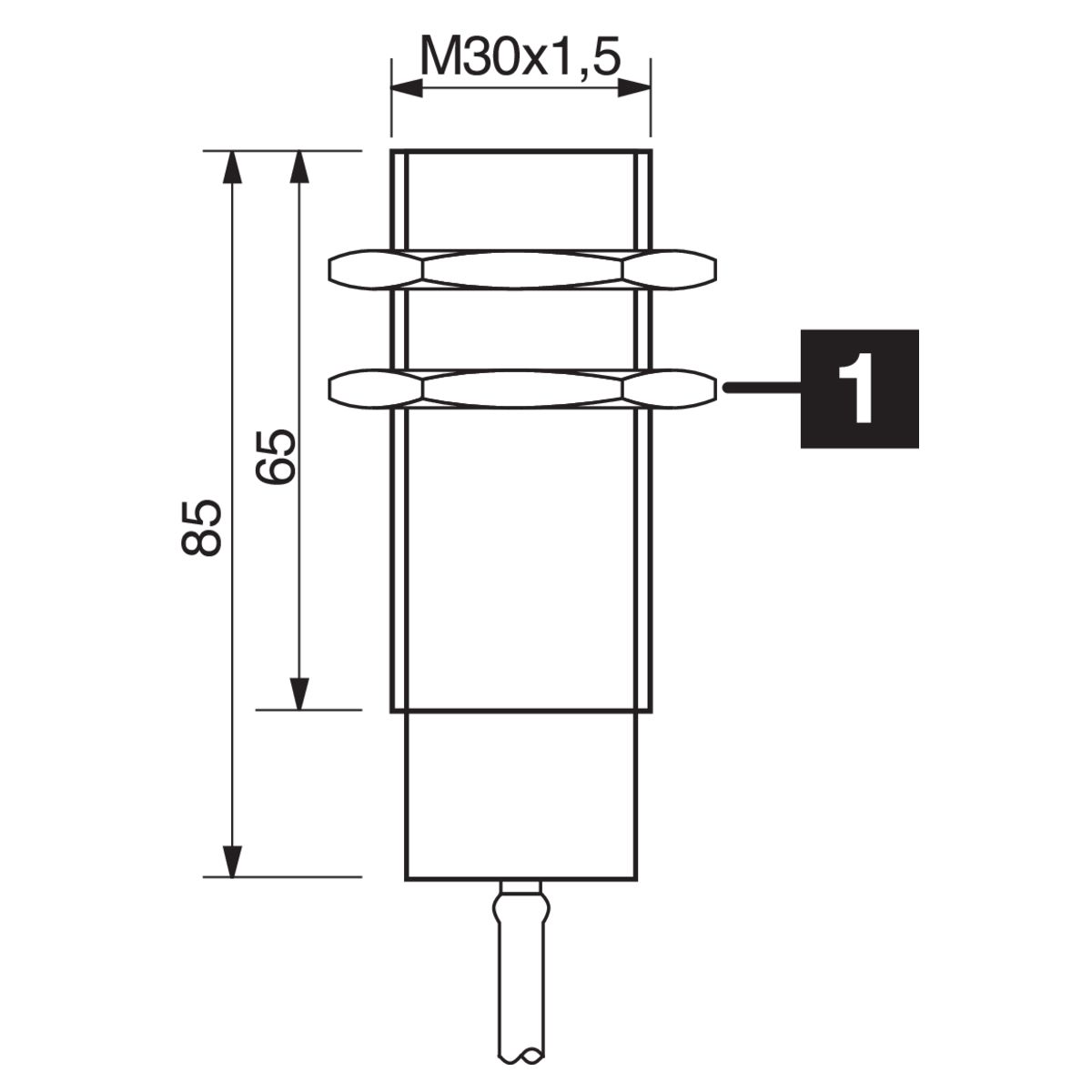

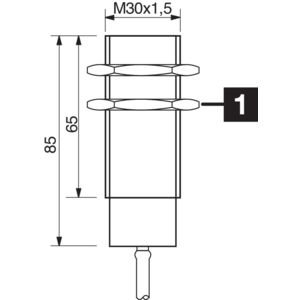

| Housing length | 85.0 mm |
| Housing Material | Stainless steel;Plastic V4A 1.4571 / AISI 316Ti;PTFE |
| Illumination Time Pulse | 1.0 |
| Installation Type | Flush |
| Insulation Voltage Endurance | 500.0 V |
| Internal Power Consumption | 7 < mA |
| Material Of Cable | PTFE |
| Operating Principle | inductive |
| Product Series | INH High-temperature resistant |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 65 |
| Screw In Length MAX UNIT | mm |
| Service Voltage | 10 ... 30.0V DC |
| Standardized Measuring Plate | 30 x 30 x 1 mm |
| Switching Distance (SN) | 10.0 mm |
| Switching Frequency | 200.0 Hz |
| Switching Hysteresis (max.) | 15.0 % |
| Switching Output | pnp 200.0 mA NO |
| Thread | M30 x 1.5 |
| Tightening Torque (max.) | 200.0 Nm |
| Voltage Drop (max.) | 2.0 V |
