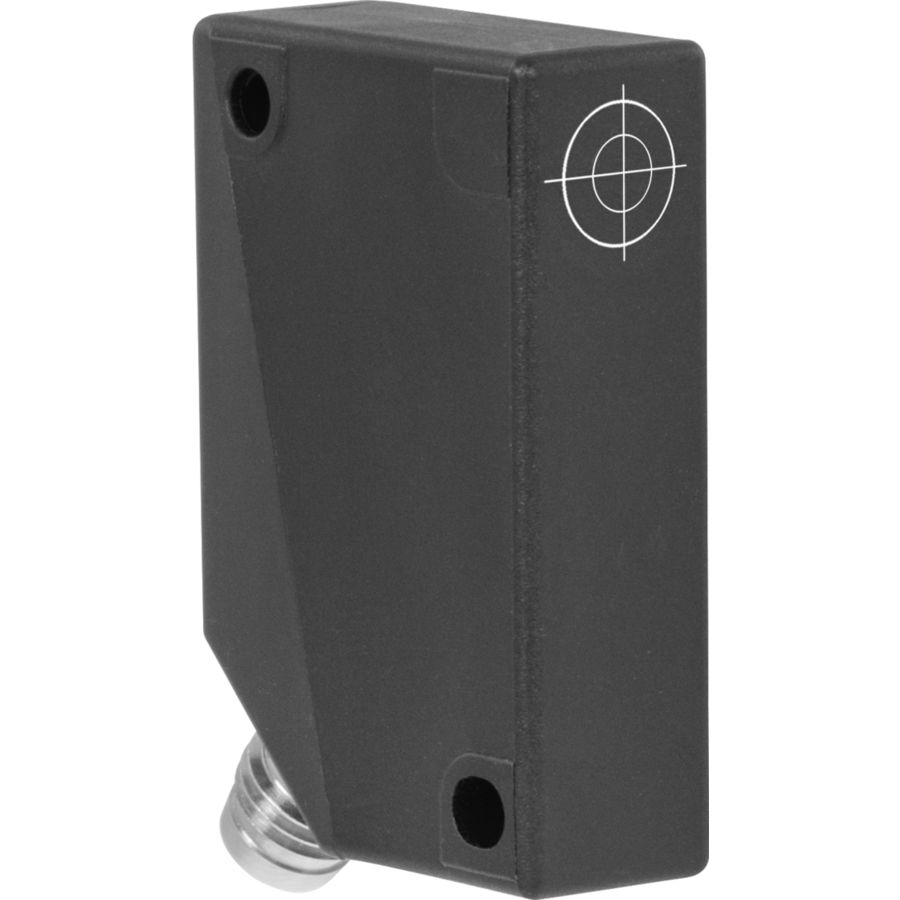

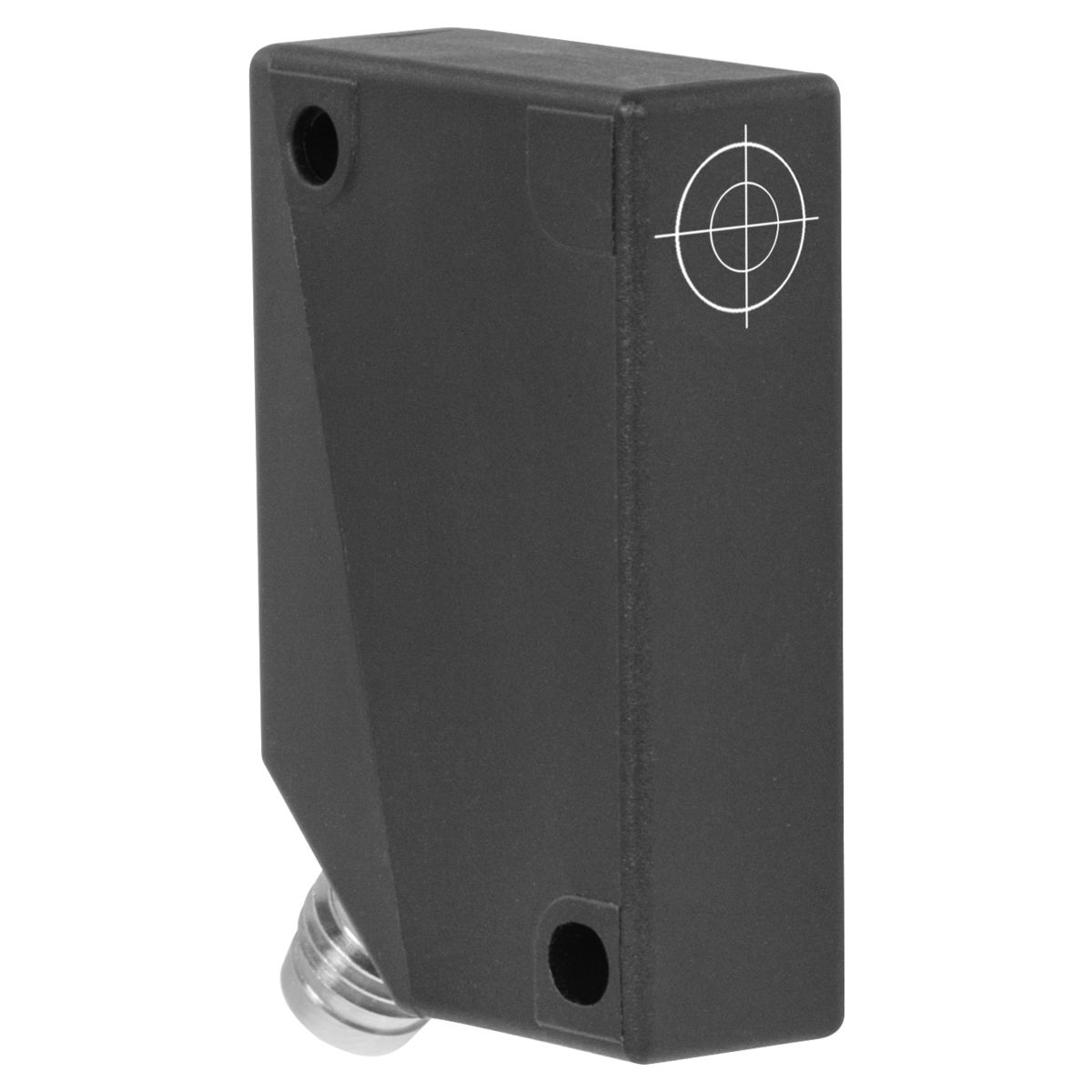

Inductive Proximity Sensor - DCR 40 K 04 NOK-TSL
Part Number: DCR 40 K 04 NOK-TSL
Article Number: 205332
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|
| Connection | Connector M8 3-pin |
| Connection Cable | TK ... |
| Design | Cuboid design |
| Evaluation | digital |

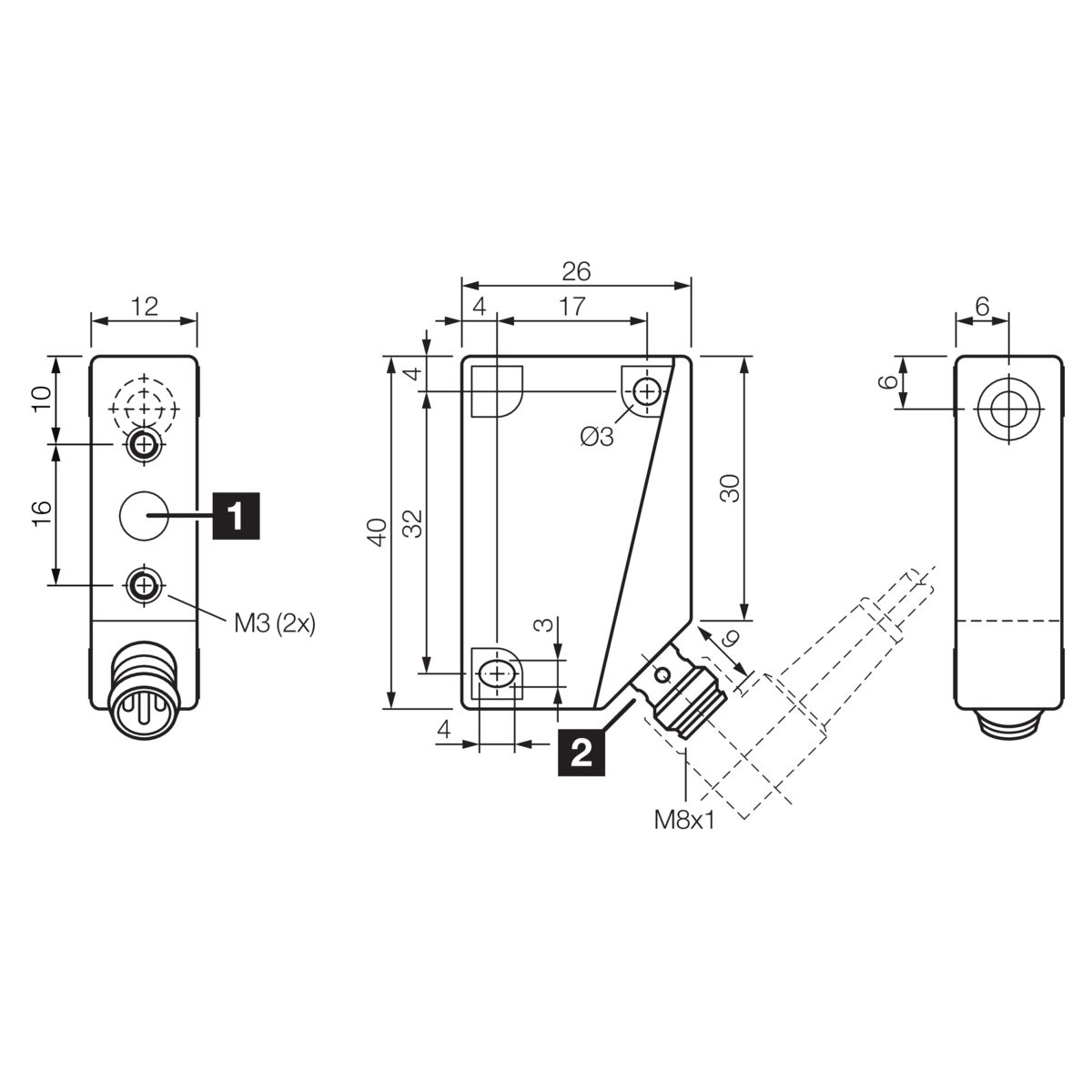

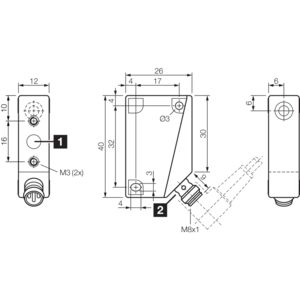

| Housing Dimensions | 40 x 12 mm |
| Housing length | 26.0 mm |
| Housing Material | Plastic |
| Illumination Time Pulse | 1.0 |
| Installation Type | non-flush |
| Insulation Voltage Endurance | 500.0 V |
| Internal Power Consumption | 10 < mA |
| Operating Principle | inductive |
| Product Series | INE Extended |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Sensitivity Adjustment | Yes |
| Service Voltage | 10 ... 35.0V DC |
| Standardized Measuring Plate | 12 x 12 x 1 mm |
| Switching Distance (SN) | 4.0 mm |
| Switching Frequency | 800.0 Hz |
| Switching Hysteresis (max.) | 15.0 < % |
| Switching Output | npn 200.0 mA NC |
| Voltage Drop (max.) | 2.4 V |
