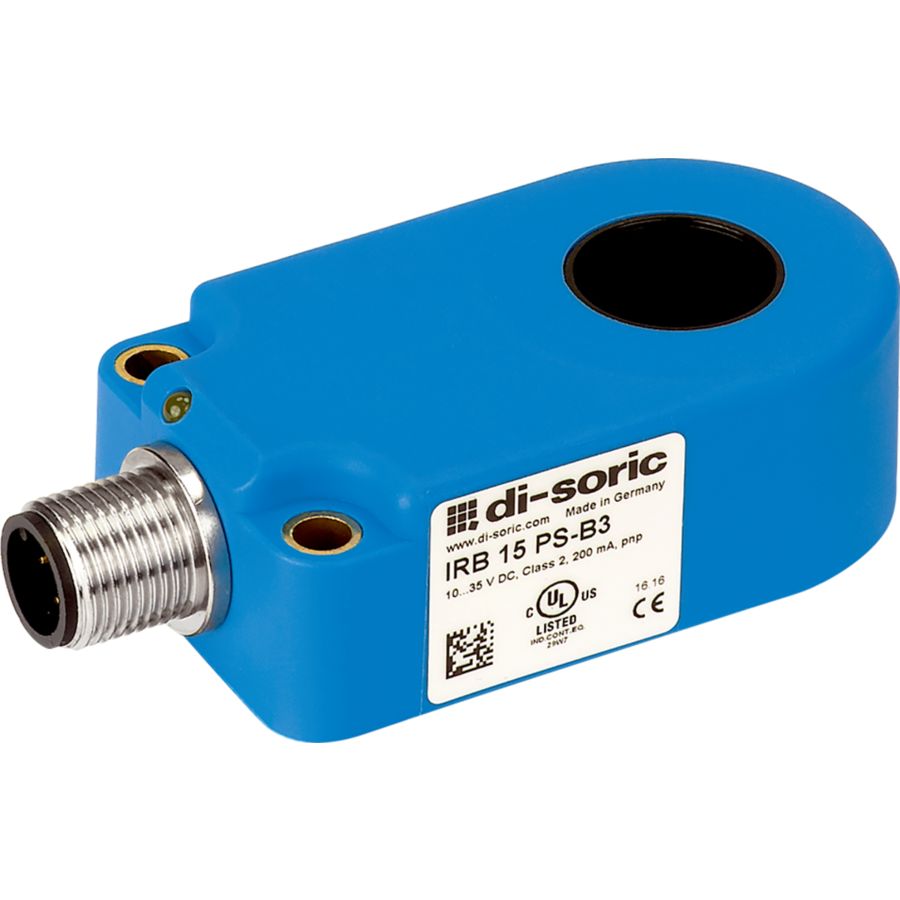

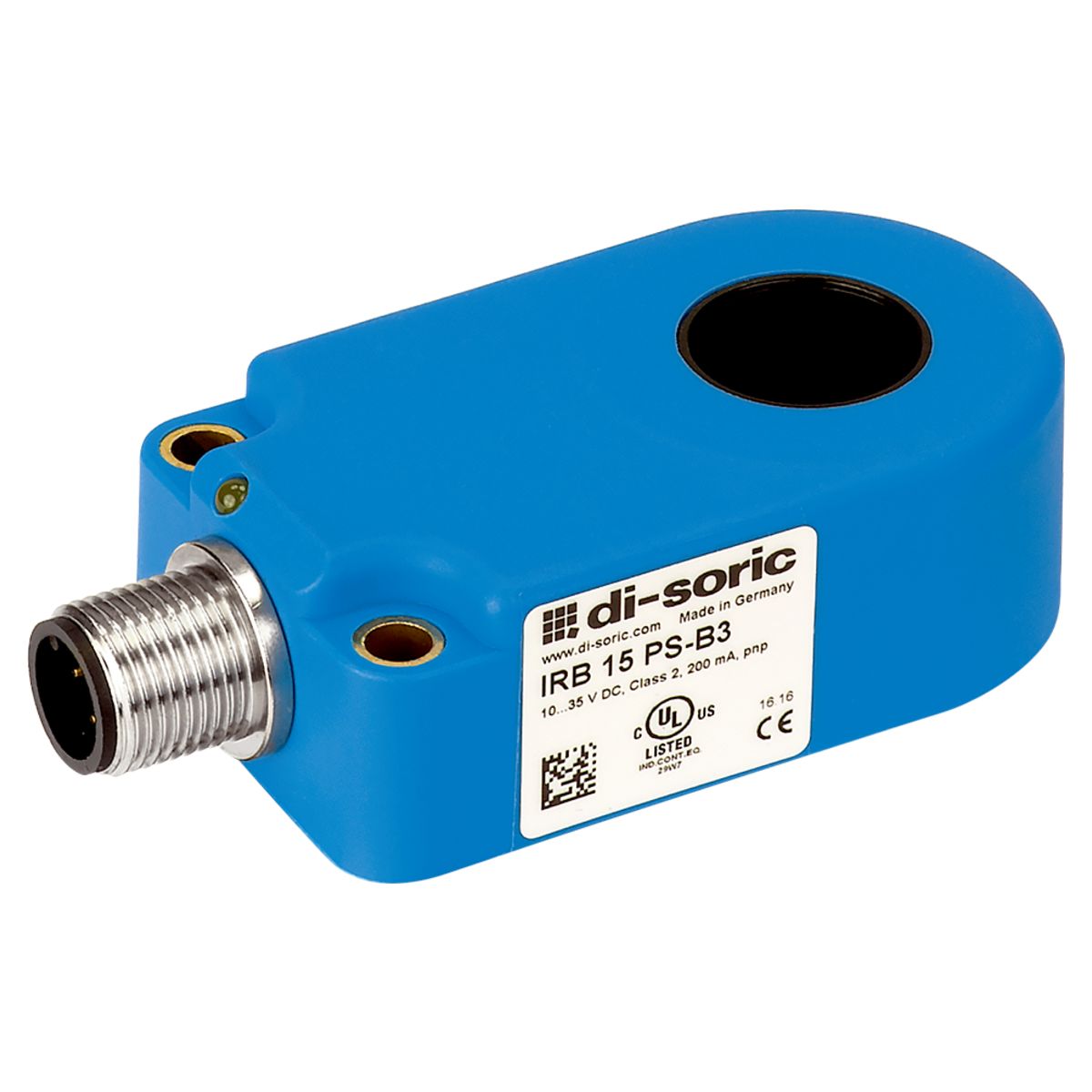

Inductive Ring Sensor - IRB 15 PS-B3
Part Number: IRB 15 PS-B3
Article Number: 209912
Inductive ring sensors are the perfect solution for the detection of metallic parts in automated feeding systems. These sensors are featured by a high resolution and short response time and will be mainly applied for parts detection and stow control.
Inductive ring sensors with dynamic evaluation are featured by an even higher resolution and detect very tiny parts like e.g. springs. The high resolution also stays stable, when the ambient conditions are changing, e. g. metal-containing contamination. di-soric wire break sensors with static function will be used where wires have to be detected in active detection zones.
- Various connector (outlets) available
- Static and dynamic working principle
- High resolution
- Short response time
- Sensitivity and pulse stretching adjustable
- NO/NC switchable
- Insensitive to dirt
- Metal connector
- High protection class
- Compact design
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|

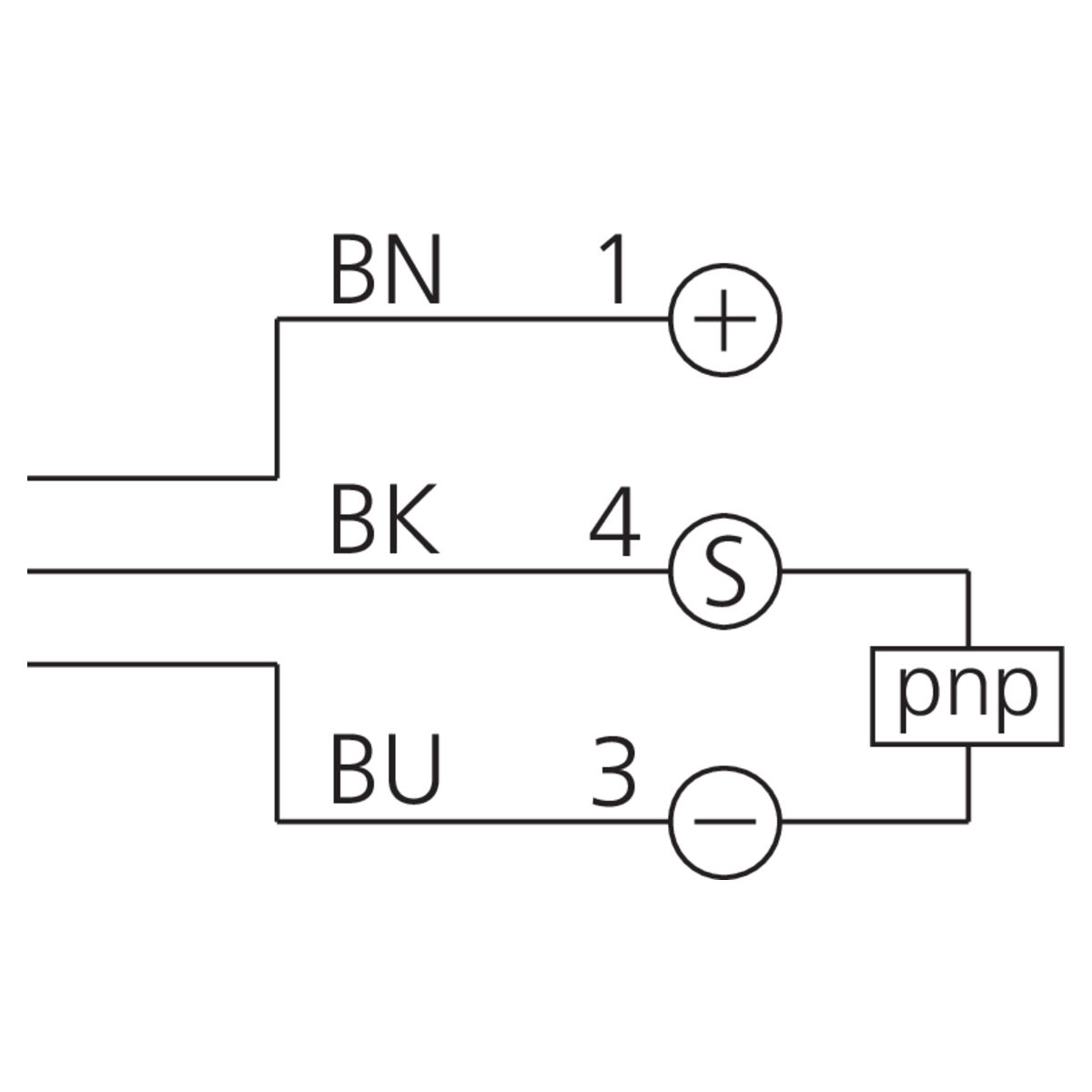

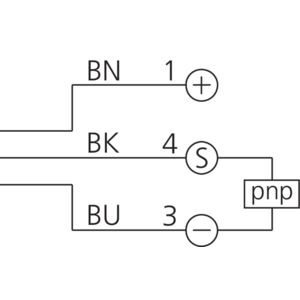

| Connection | Connector M12 4-pin |
| Connection Cable | VK ... |
| Evaluation | Static |
| Housing Material | Plastic PA |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 1000.0 V |

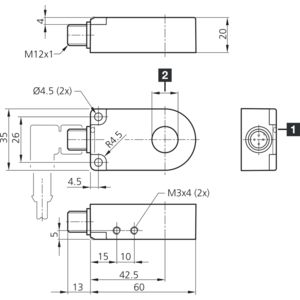

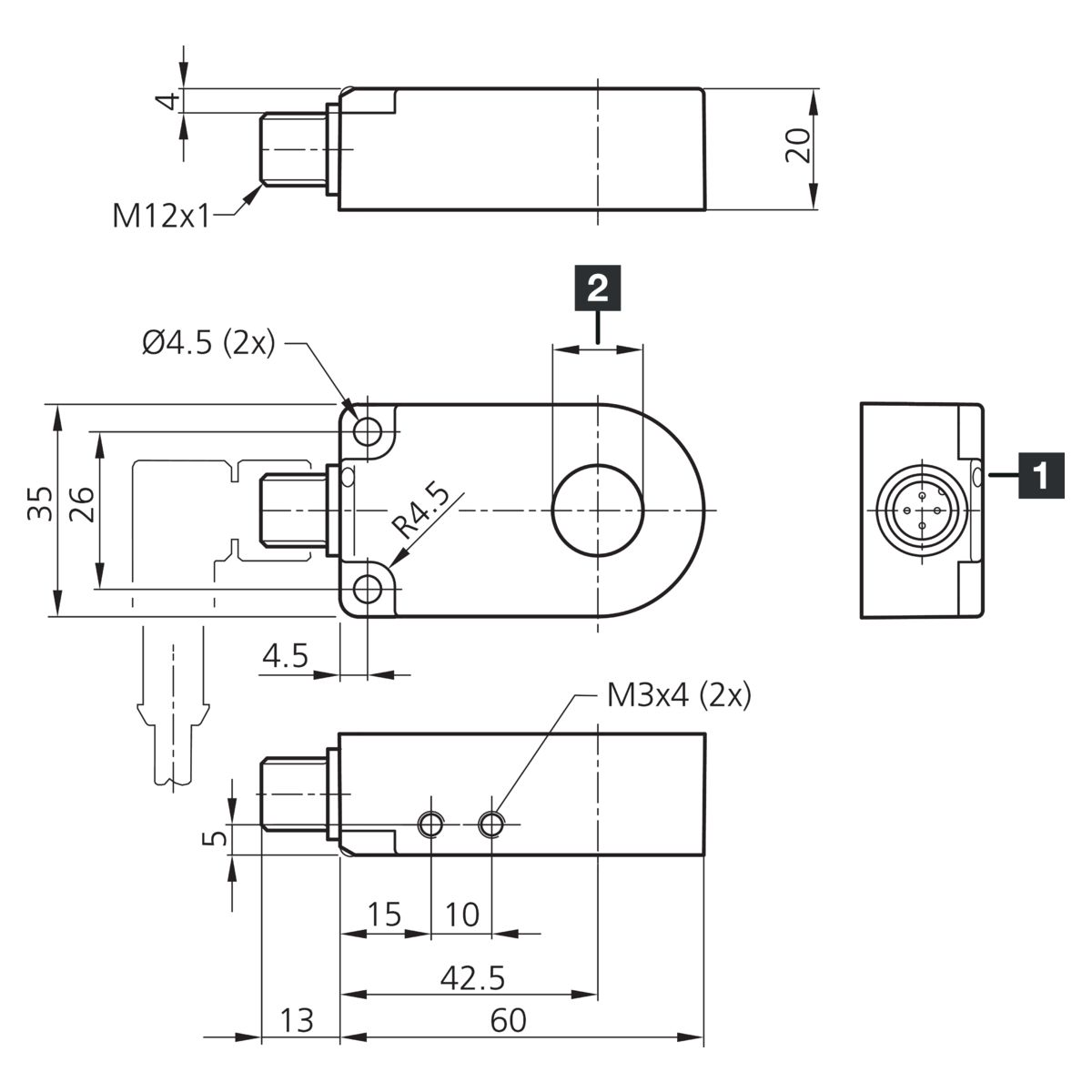

| Internal Diameter | 15.1 mm |
| Material | POM Ring |
| No Load Current (max.) | 11.0 mA |
| Operating Principle | inductive |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Pulse Stretching | 150.0 ms |
| Readiness Delay (max.) | 300.0 ms |
| Resolution | 2.5 mm |
| Sensitivity Adjustment | no setting elements |
| Service Voltage | 10.0 ... 35.0V DC |
| Shock Vibration Load | 30 g, 11 ms / 10 ... 55 Hz, 1.0 mm |
| Speed Of Parts (max.) | 35.0 m/s |
| Switching Output | pnp 200.0 mA NO |
| Voltage Drop (max.) | 2.0 V |
