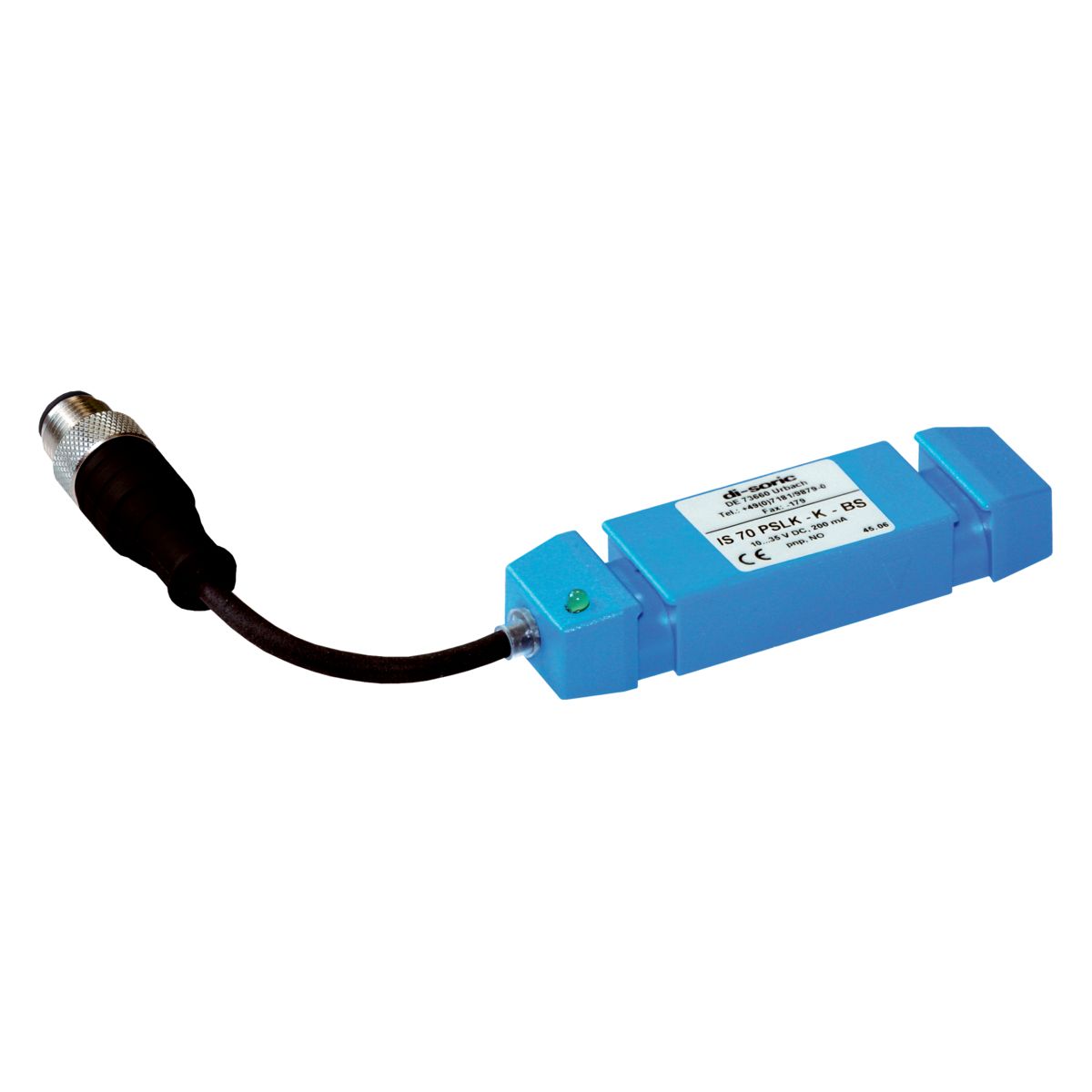

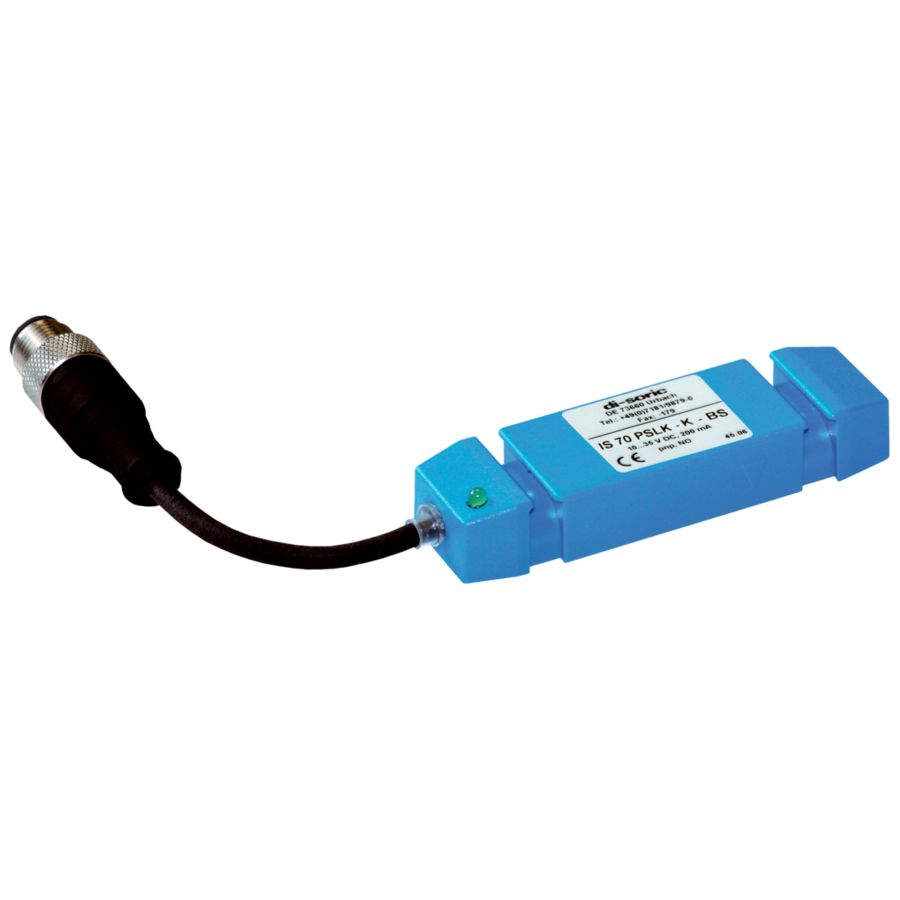

Inductive Tube Sensor - IS 70 PSLK-K-BS
Part Number: IS 70 PSLK-K-BS
Article Number: 203299
Inductive tube sensors are the perfect solution for the detection of metallic parts in automated feeding systems. These sensors are featured by a high resolution and short response time and will be mainly applied for parts detection and stow control.
- Static or dynamic working principle
- High-resolution and insensitive versions available
- Compact design
- High resolution
- Low weight
- Metal connector M8 or pig tail with connector M12
- Slot for quick mounting
Technical Details
| Activation Time | 0.5 ms |
|---|---|
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
| Connection | Pigtail 0.04 m M12 3-pin |
| Connection Cable | VK ... |
| Design | Cuboid design |
| Evaluation | Static |
| Green | Operation |
| Housing length | 70.0 mm |
| Housing Material | Plastic PC |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Material Of Cable | Polyurethane |
| No Load Current (max.) | 15.0 mA |
| Operating Principle | inductive |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Pulse Stretching | 100.0 ms |
| Release Time | 100.0 ms |
| Service Voltage | 10 ... 35.0V DC |
| Shock Vibration Load | 30 g, 11 ms / 10 ... 55 Hz, 1.0 mm |
| Speed Of Parts (max.) | 35.0 m/s |
| Switching Distance | 14 mm |
| Switching Output | pnp 200.0 mA NO |
| Voltage Drop (max.) | 2.0 V |
| Yellow | Switching output |
