INS-M30-N15PS-B3
Part Number: INS-M30-N15PS-B3
Article Number: 213159
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|
| Characteristics | Single switching distance |
| Connection | Connector M12 3-pin |
| Design | Thread |
| Evaluation | digital |

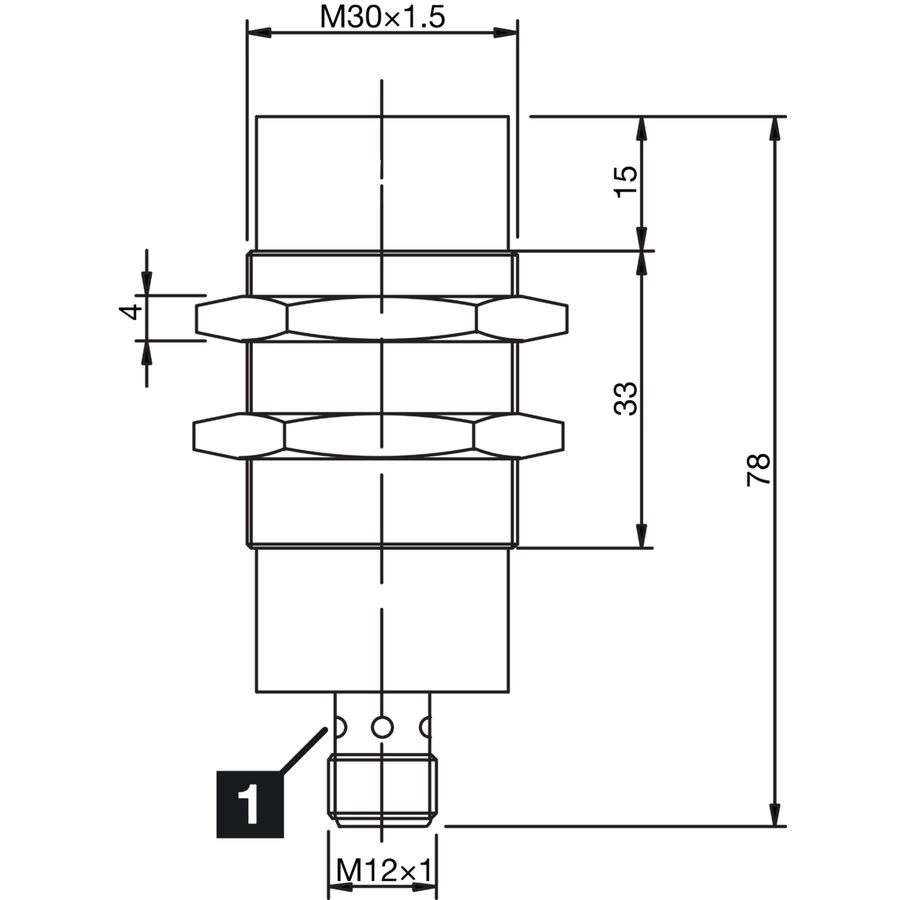

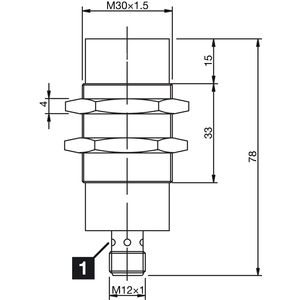

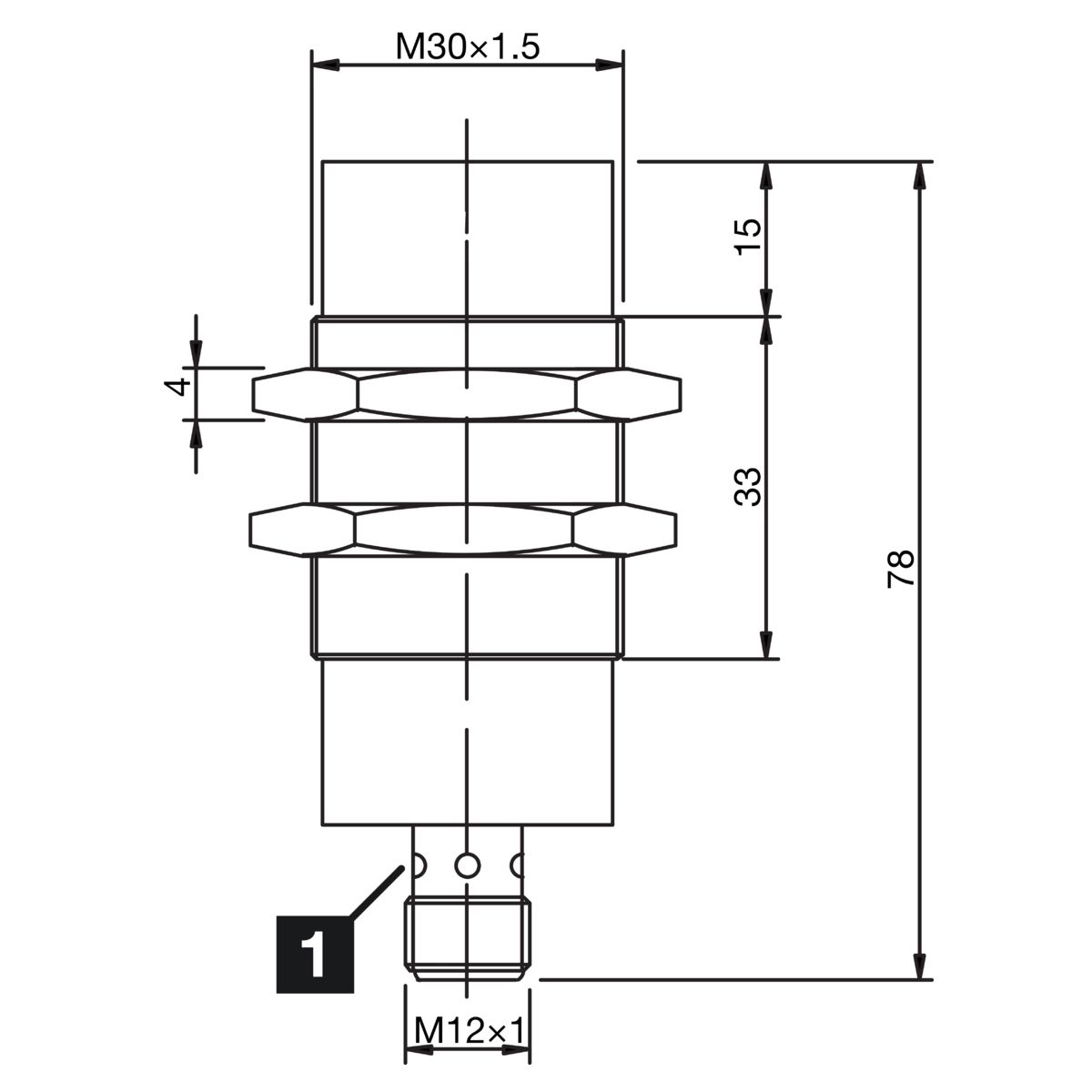

| Housing length | 78.0 mm |
| Housing Material | Brass nickel-plated |
| Illumination Time Pulse | 1.0 |
| Installation Type | non-flush |
| Insulation Voltage Endurance | 500.0 < V DC |
| Internal Power Consumption | 10 mA |
| Operating Principle | inductive |
| Product Series | INS-100 Standard |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Sensitivity Adjustment | Yes |
| Service Voltage | 10.0 ... 30.0V DC |
| Standardized Measuring Plate | 45 x 45 x 1 mm |
| Switching Distance (SN) | 15.0 mm |
| Switching Frequency | 240 Hz |
| Switching Hysteresis (max.) | 10.0 < % |

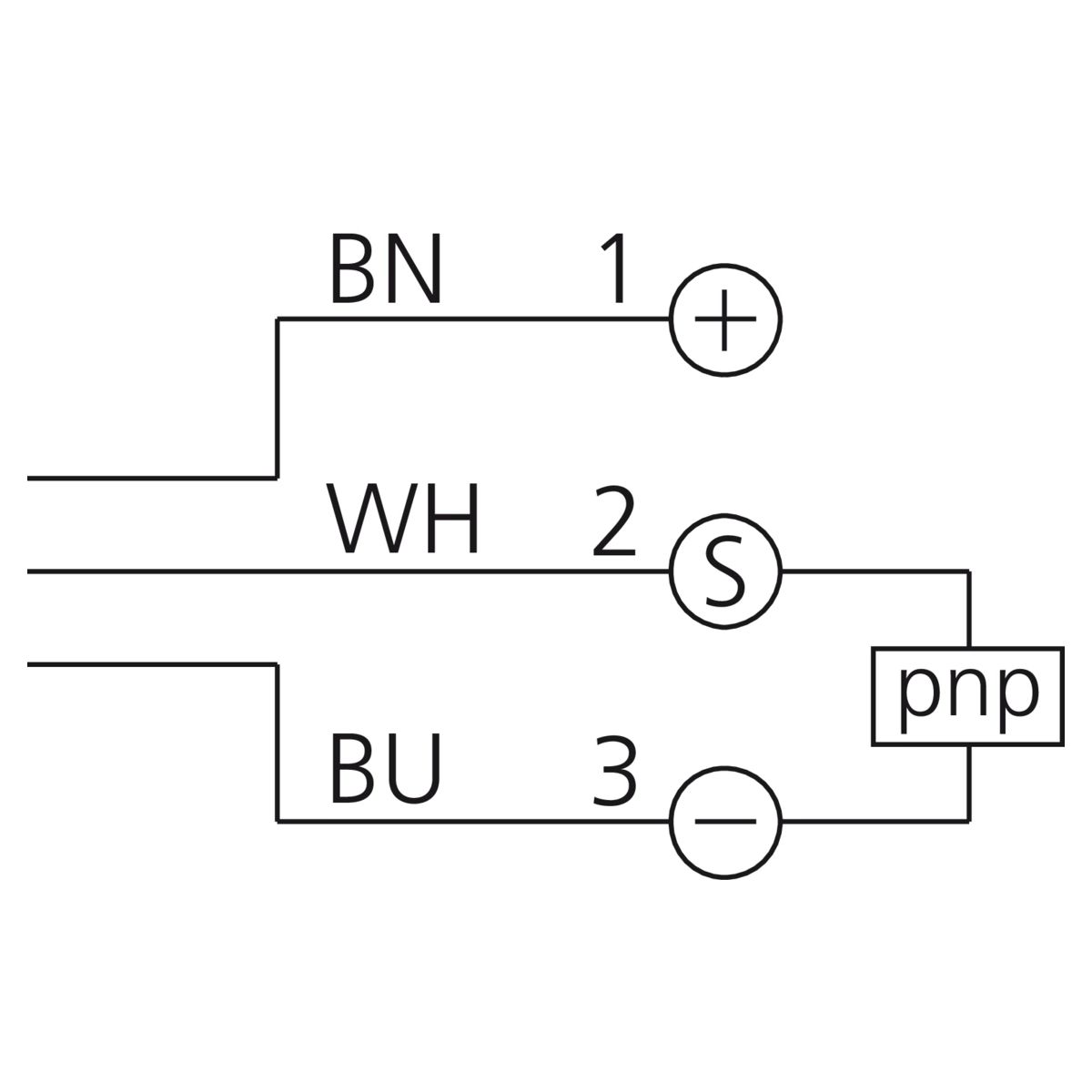

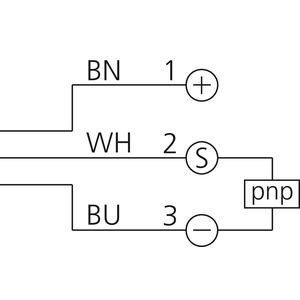

| Switching Output | pnp 200.0 mA NO |
| Thread | M30 x 1.5 |
| Voltage Drop (max.) | 1.5 V DC |
