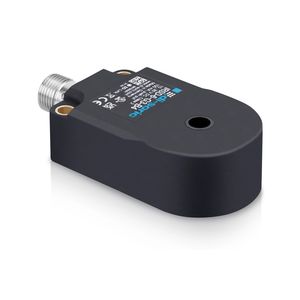

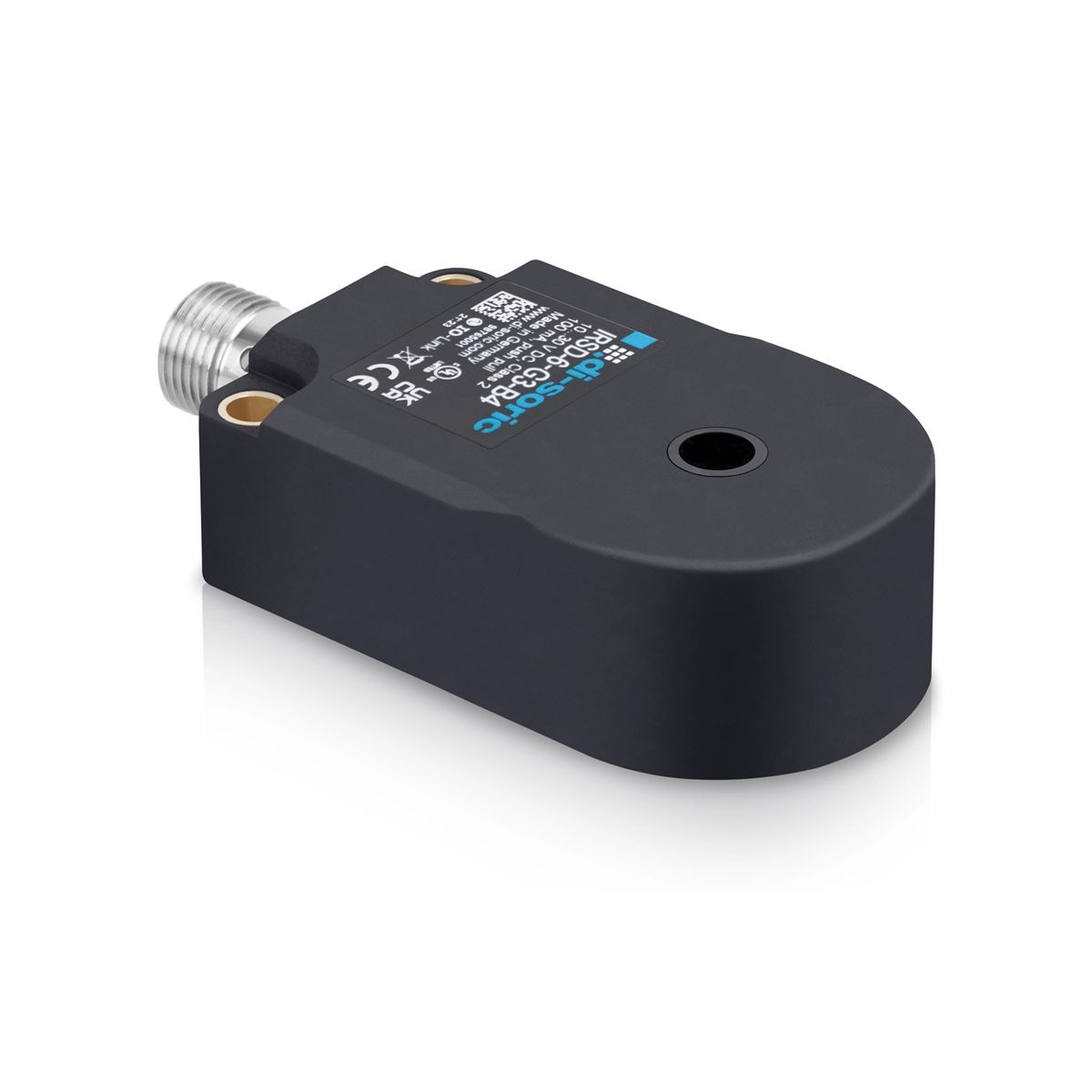

IRSD-6-G3-B4
Part Number: IRSD-6-G3-B4
Article Number: 213666
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|

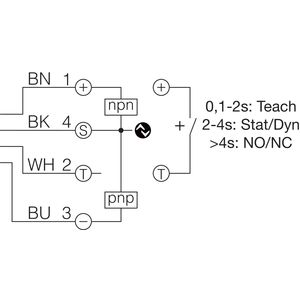

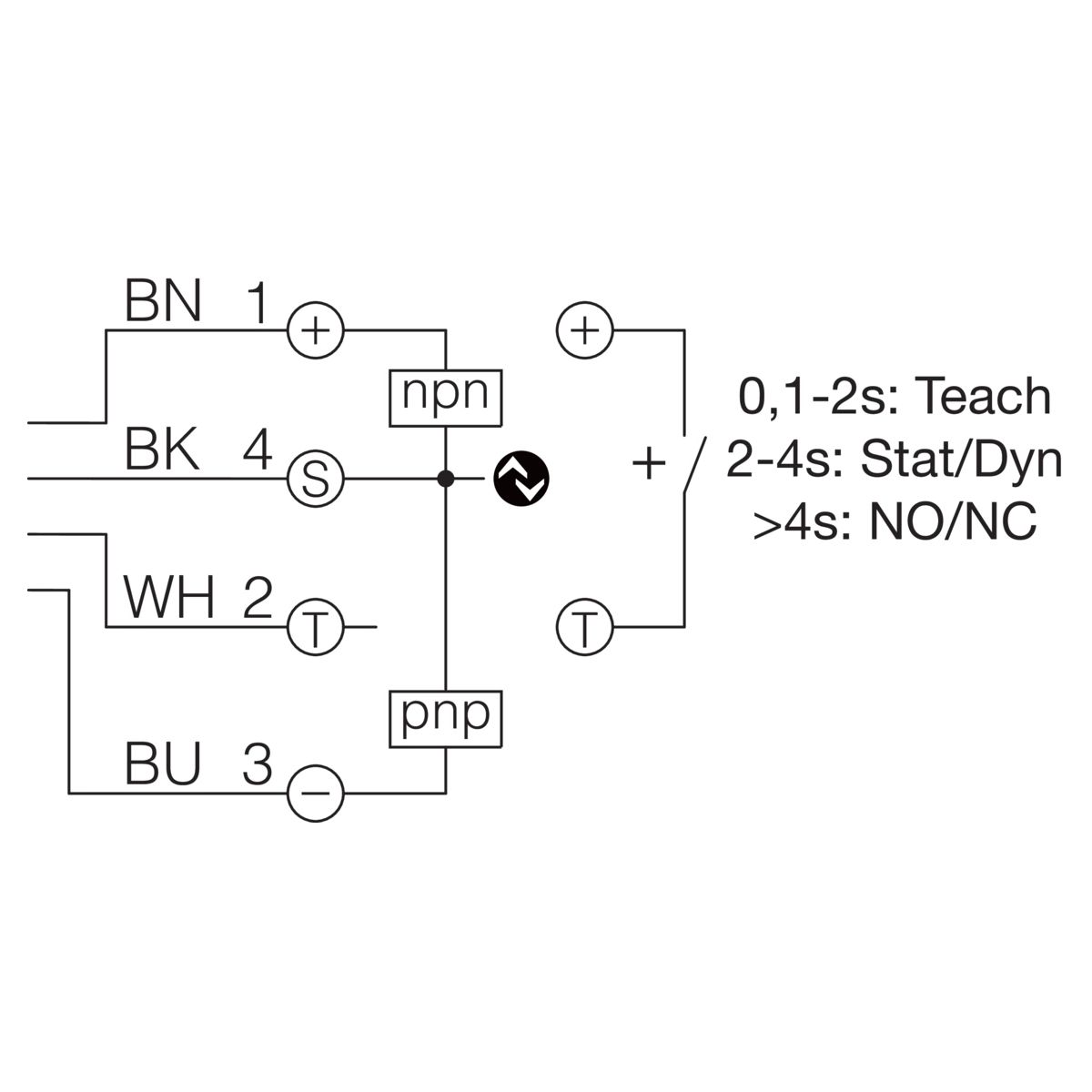

| Connection | Connector M12 4-pin |
| Connection Cable | VK ... |
| Housing Material | Plastic PA |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 1000.0 V |
| Interface | IO-Link |

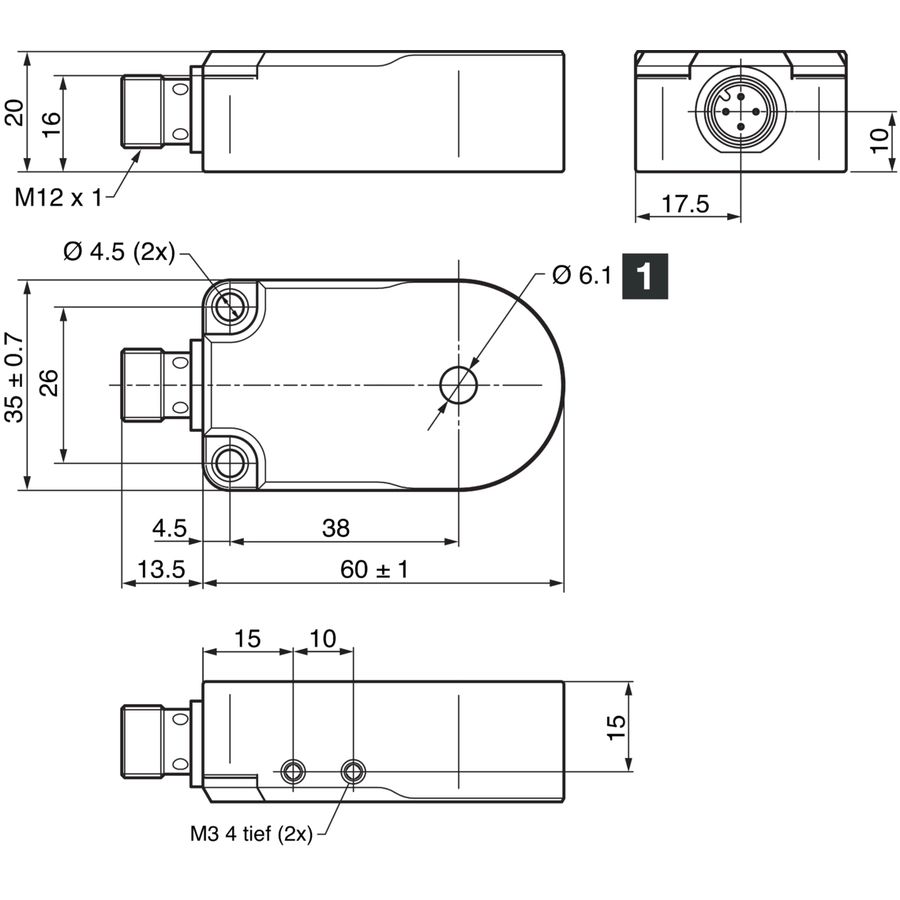

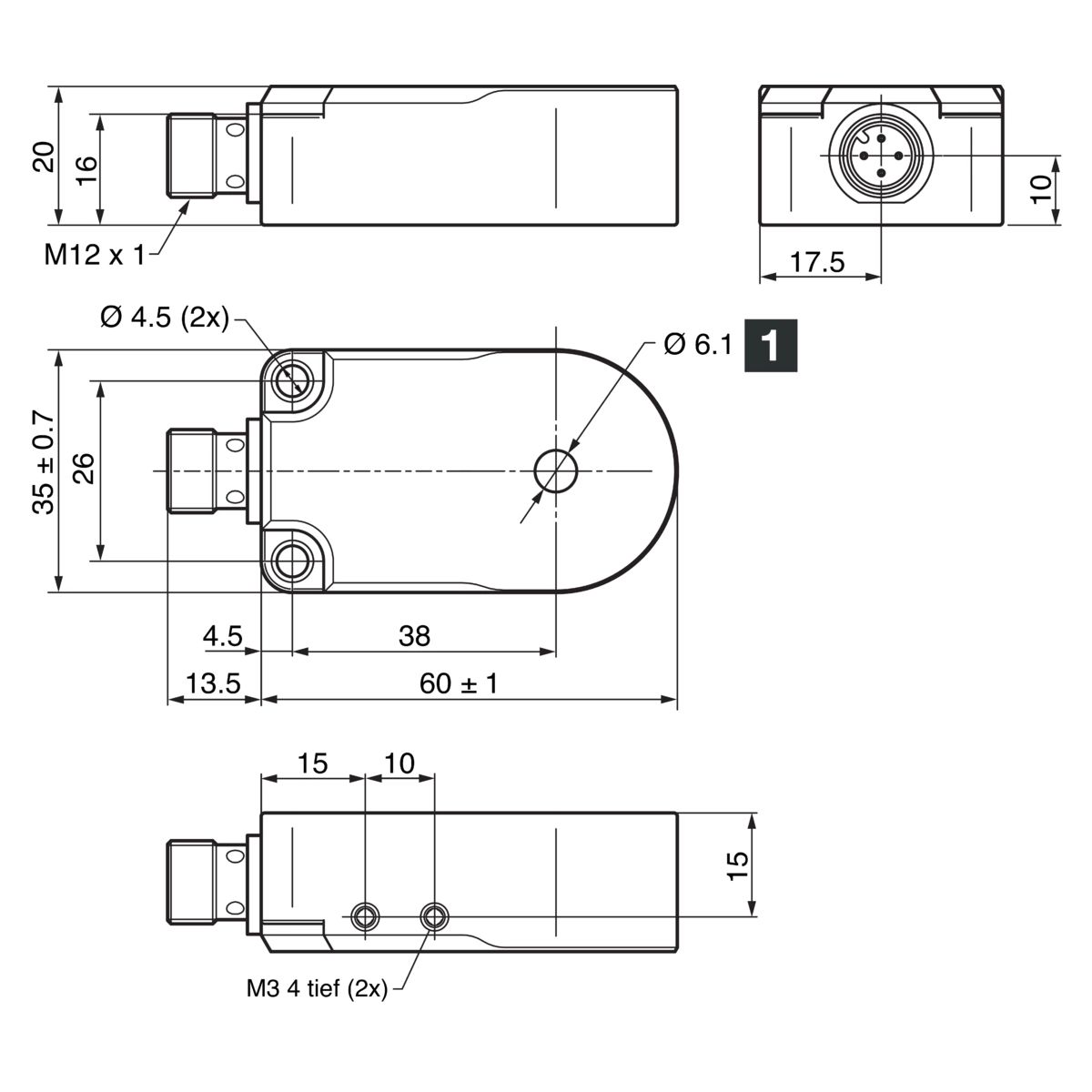

| Internal Diameter | 6.1 mm |
| Material | POM Ring |
| No Load Current (max.) | 30.0 mA |
| Operating Principle | Dynamic/static switchable (IO-Link / PIN 2) |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Pulse Stretching | adjustable |
| Readiness Delay (max.) | 300.0 ms |
| Resolution | dynamic;static 0.5;1 mm;mm |
| Sensitivity Adjustment | IO-Link |
| Service Voltage | 10 ... 30.0V DC |
| Shock Vibration Load | 30 g, 11 ms / 10 ... 55 Hz, 1.0 mm |
| Speed Of Parts (max.) | 35.0 m/s |
| Speed Of Parts (min.) | 0.1 m/s |
| Switching Output | Push-pull/PNP/NPN 100.0 mA NO/NC switchable |
| Voltage Drop (max.) | 2.0 V |
