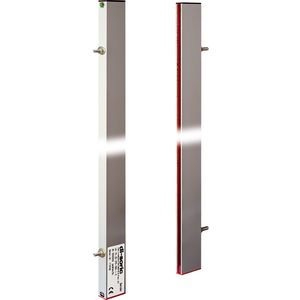

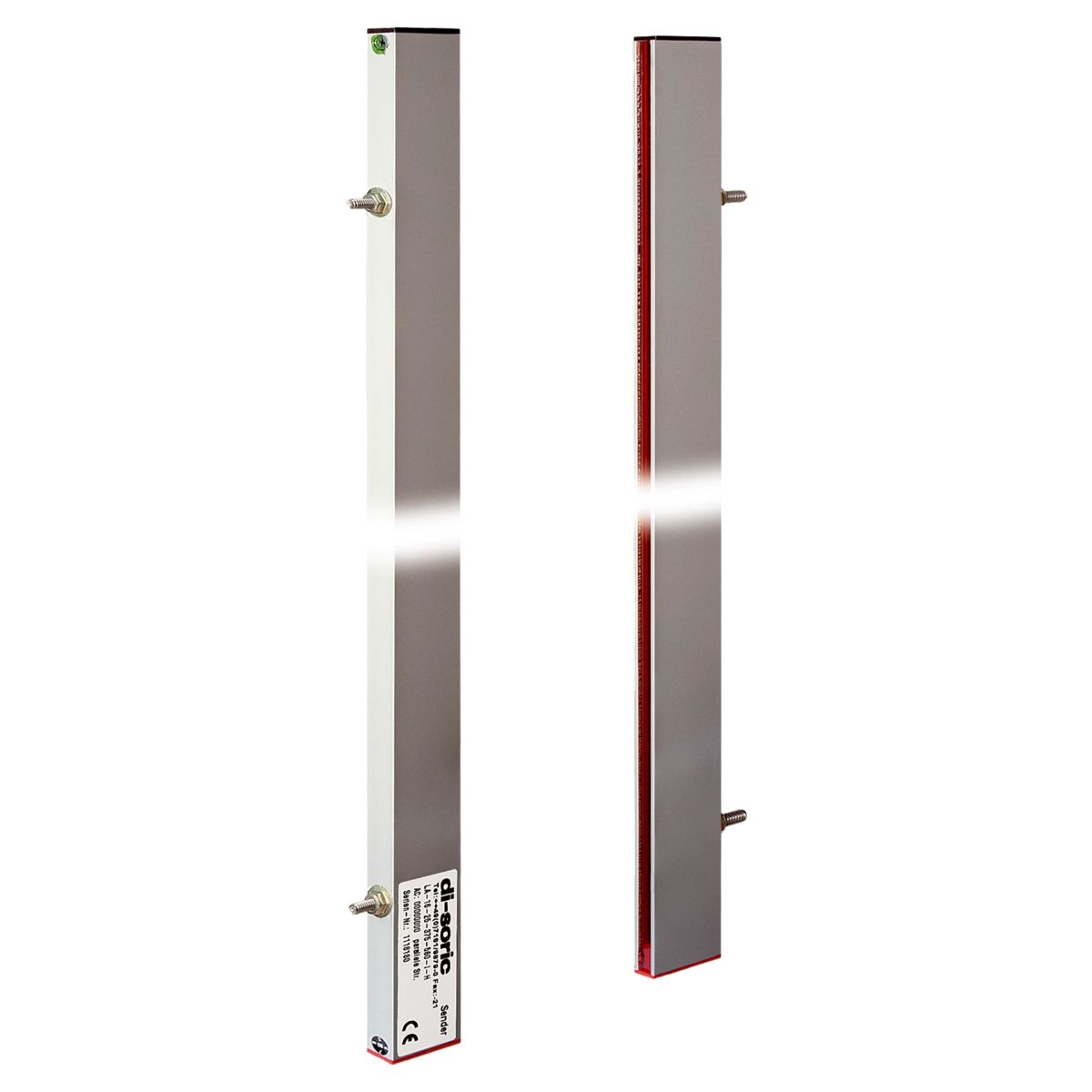

LA-D 24-25-575-760 I-D

Ambient Temperature During Operation	-10.0 ... 45.0°C
Assembly	Threaded bolt
Basic Processing Time	4.0 ms
Beam Evaluation	via integrated evaluation electronics
Beam Separation	25.0 mm
Color	Infrared
Connection	with ferrule Cable 4.0 m
Cycle Time Per Light Beam	1.0 ms
Diameter Mounting Pin Boring	mm mm mm mm

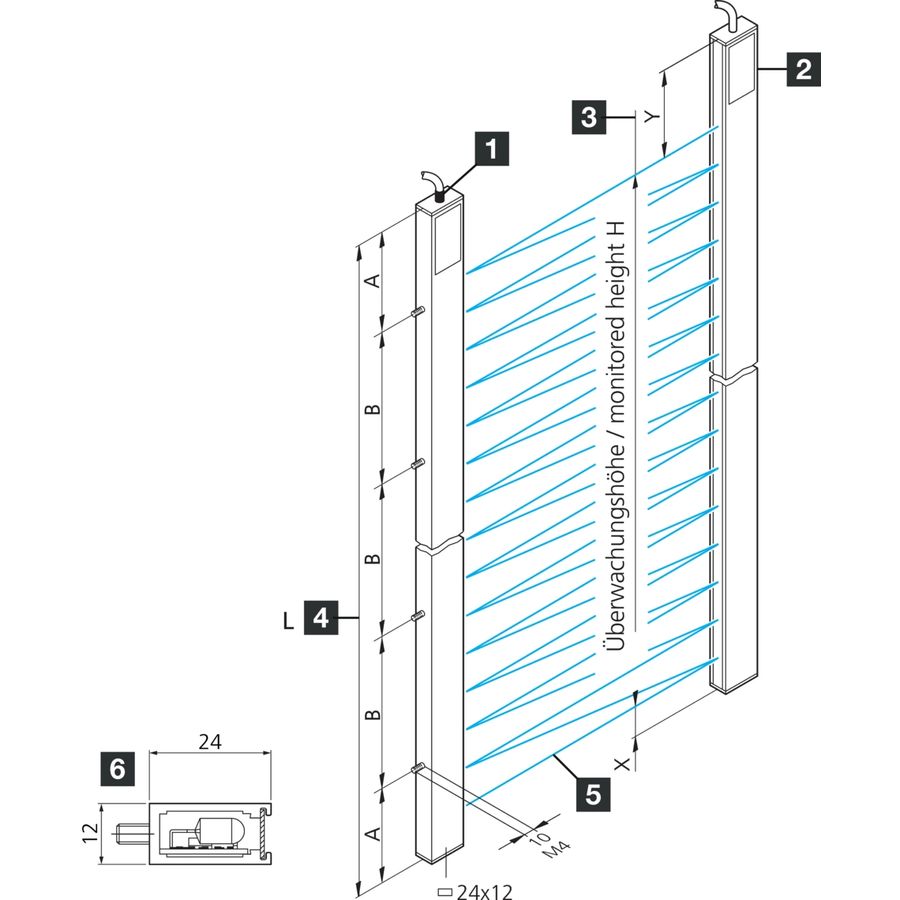

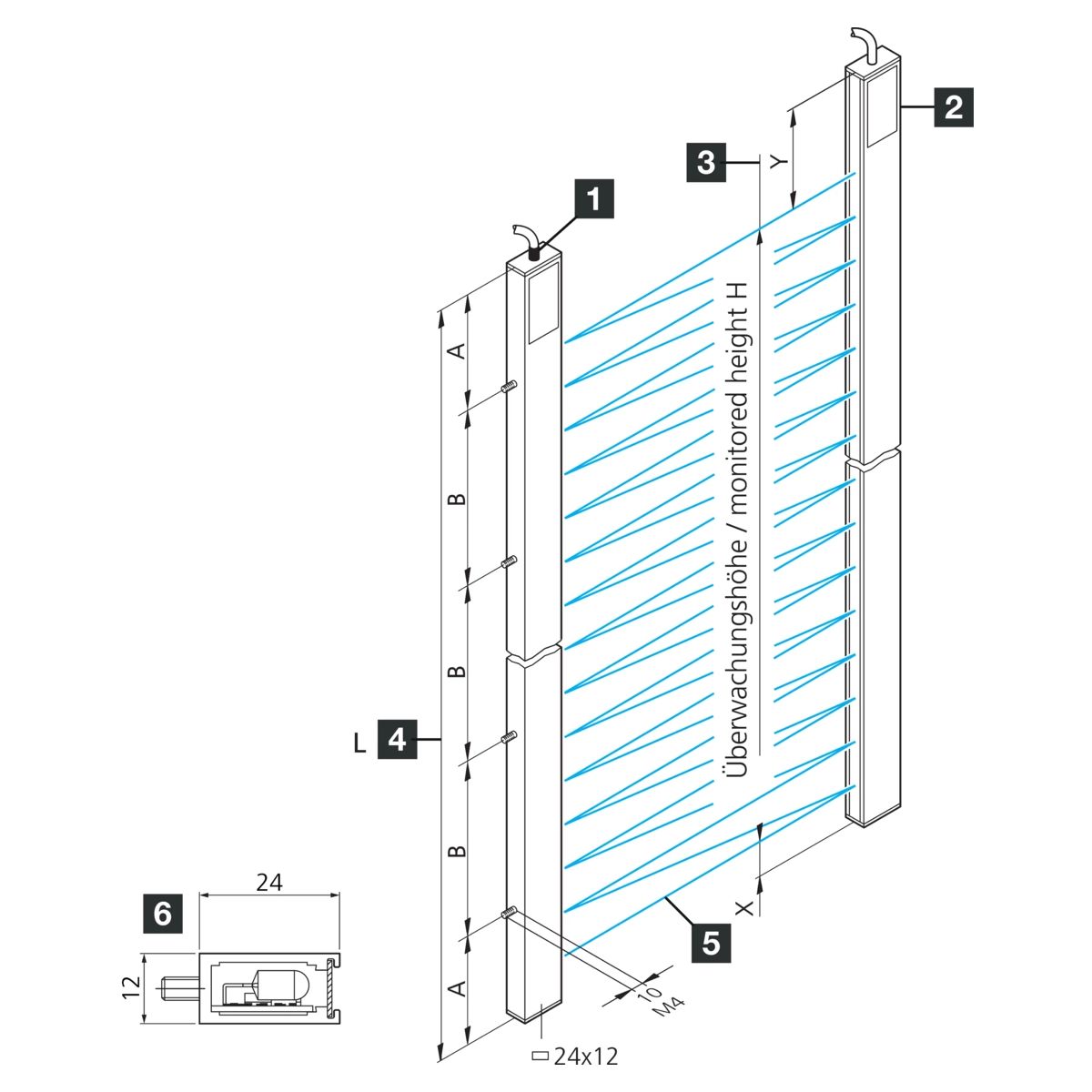

Dimension	30.0 700.0 20.0 160.0
EMC Directives	EN 61000-6-3:2001 / EN 61000-6-1:2001
Evaluation	diagonal
Evaluation Electronics	integrated
Housing Material	Aluminum silver Anodized
Illumination Time Pulse	1.0
LED	Service voltage / output stage, error (alarm)
Light Source	LED
Monitoring Height	575.0 mm
Number Of Beams	24.0
Output Function	Dark switching
Power Consumption	8.0 W
Profile Cross Section	12 x 24 mm
Profile Length	760.0 mm
Protection Class	III, operation on protective low voltage
Protection Type	IP 54 IP 65 optional
Range	700.0 ... 4000.0mm (factory setting)
Service Voltage	20.4 ... 28.8V DC

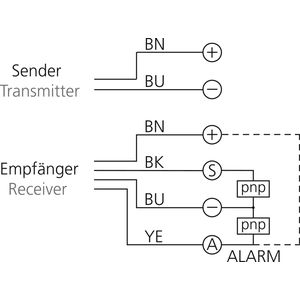

Switching Output	pnp 200.0 mA NO short-circuit-proof
Total Cycle Time	Anzahl Lichtstrahlen x 1 ms + 4 ms
Wavelength	880.0 nm
