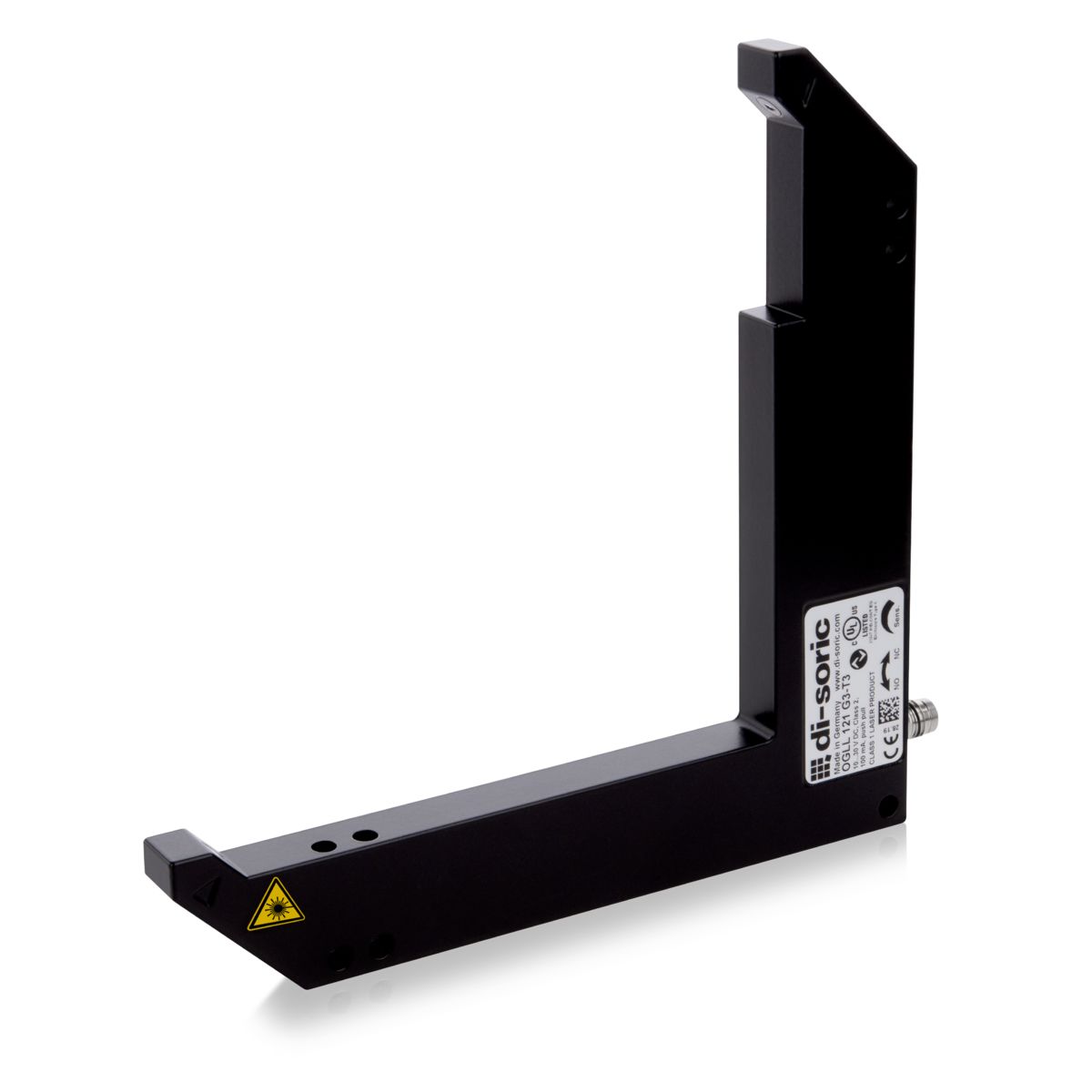

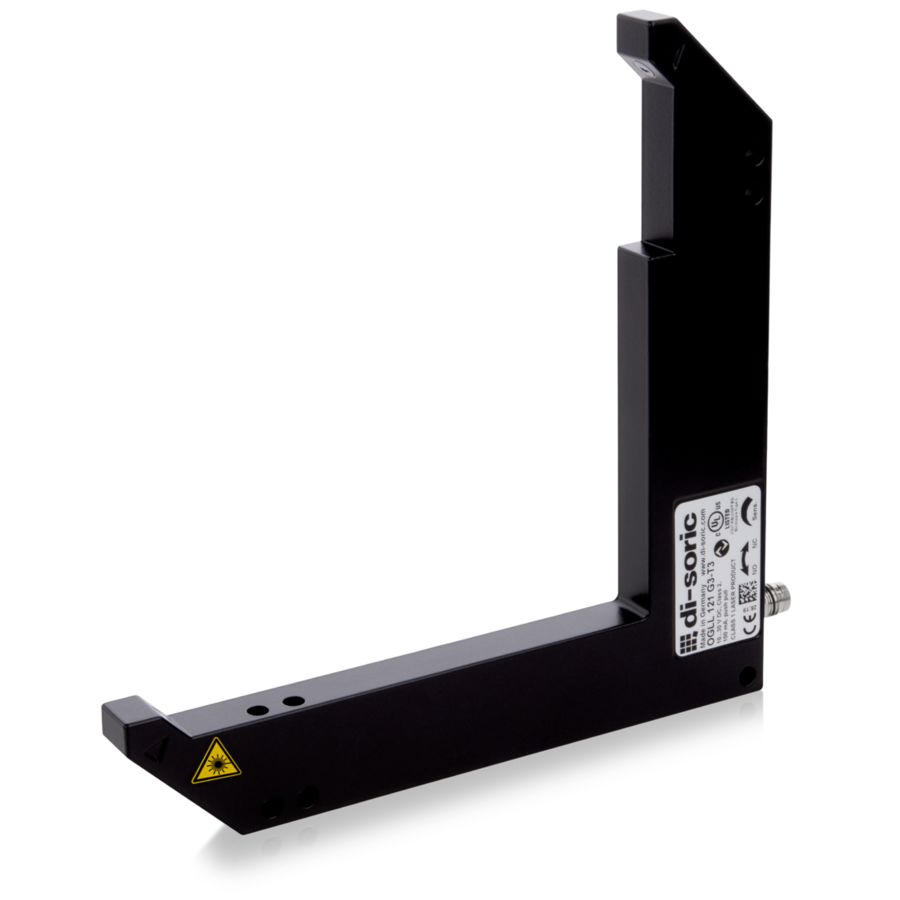

Laser Angled Light Barrier - OGLL 121 G3-T3
Part Number: OGLL 121 G3-T3
Article Number: 211050
Technical Details
| Ambient Temperature During Operation | -25.0 ... 60.0°C |
|---|---|
| Color | Red |
| Connection | Connector M8 3-pin |
| Connection Cable | TK ... |
| Design | Angle |
| Evaluation | digital |

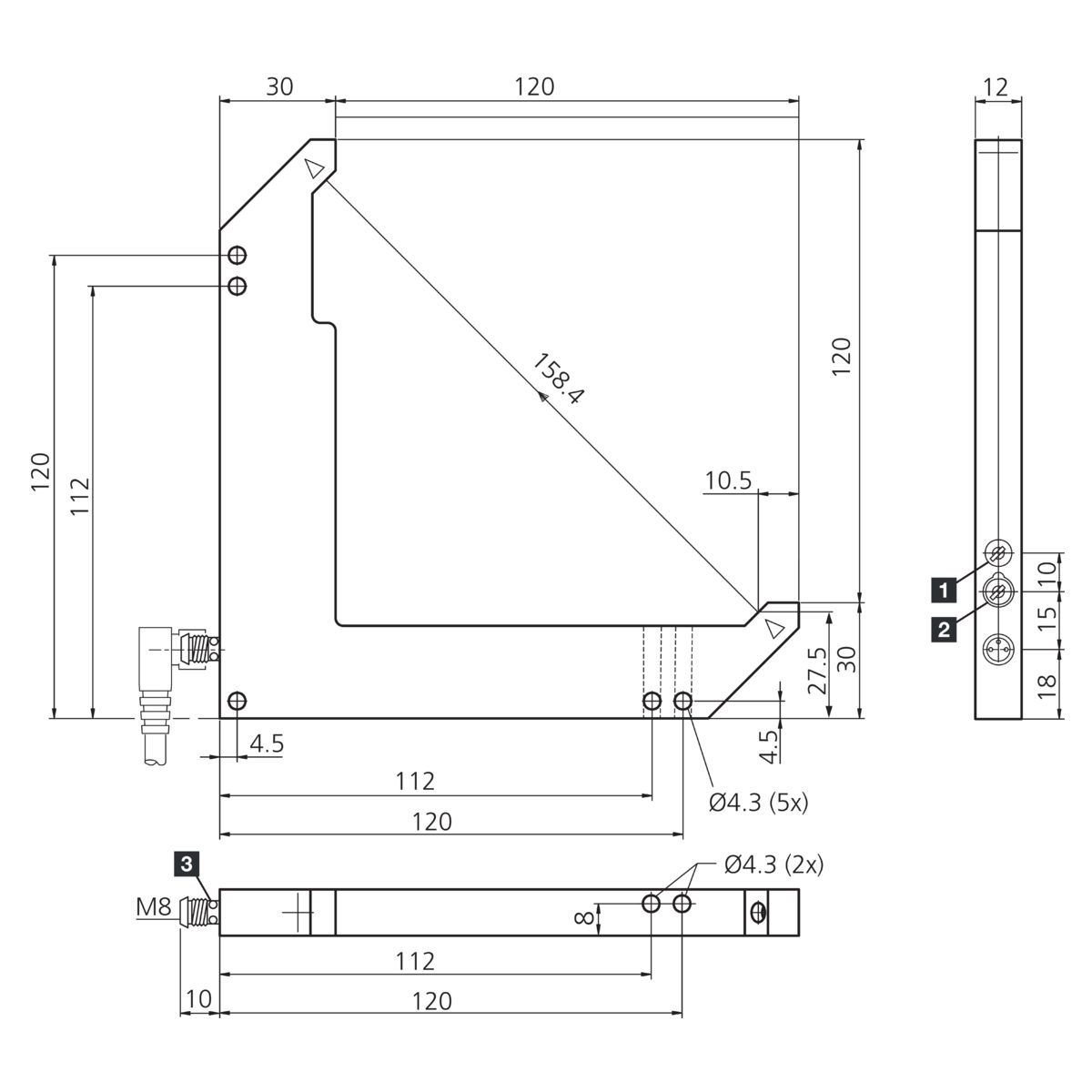

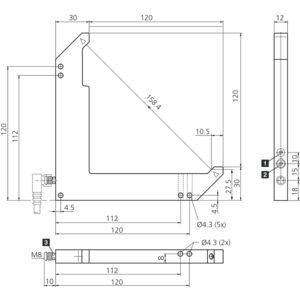

| Housing Dimensions | 150 x 150 x 12 mm |
| Housing length | 150.0 mm |
| Housing Material | Die-cast zinc Black powder-coated |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Interface | IO-Link V1.1, COM2 (38.4 kBd) Smart Sensor Profile |
| Laser Class | 1 (IEC 60825-1:2014 / EN 60825-1:2014) |
| Leg Length Internal | 120;120 mm;mm |
| Light Source | Laser |
| Modulation | Clocked |
| No Load Current (max.) | 30.0 mA |
| Operating Principle | Optical |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Range | 158.0mm (optical axis) |
| Reproducibility (Factory Setting) | 0.01 mm STANDARD |
| Reproducibility (HIGH RESOLUTION) | 0.01 mm |
| Reproducibility (POWER) | 0.015 mm |
| Reproducibility (SPEED) | 0.015 mm |
| Reproducibility (STANDARD) | 0.01 mm |
| Resolution (Factory Setting) | 0.1 mm STANDARD |
| Resolution (HIGH RESOLUTION) | 0.05 mm |
| Resolution (POWER) | 0.15 mm |
| Resolution (SPEED) | 0.1 mm |
| Resolution (STANDARD) | 0.1 mm |
| Sensitivity Adjustment | Potentiometer or IO-Link |
| Service Voltage | 10.0 ... 30.0V DC |
| Switching Frequency (Factory Setting) | 5000.0 Hz STANDARD |
| Switching Frequency (HIGH RESOLUTION) | 2000.0 Hz |
| Switching Frequency (POWER) | 1000.0 Hz |
| Switching Frequency (SPEED) | 10000.0 Hz |
| Switching Frequency (STANDARD) | 5000.0 Hz |

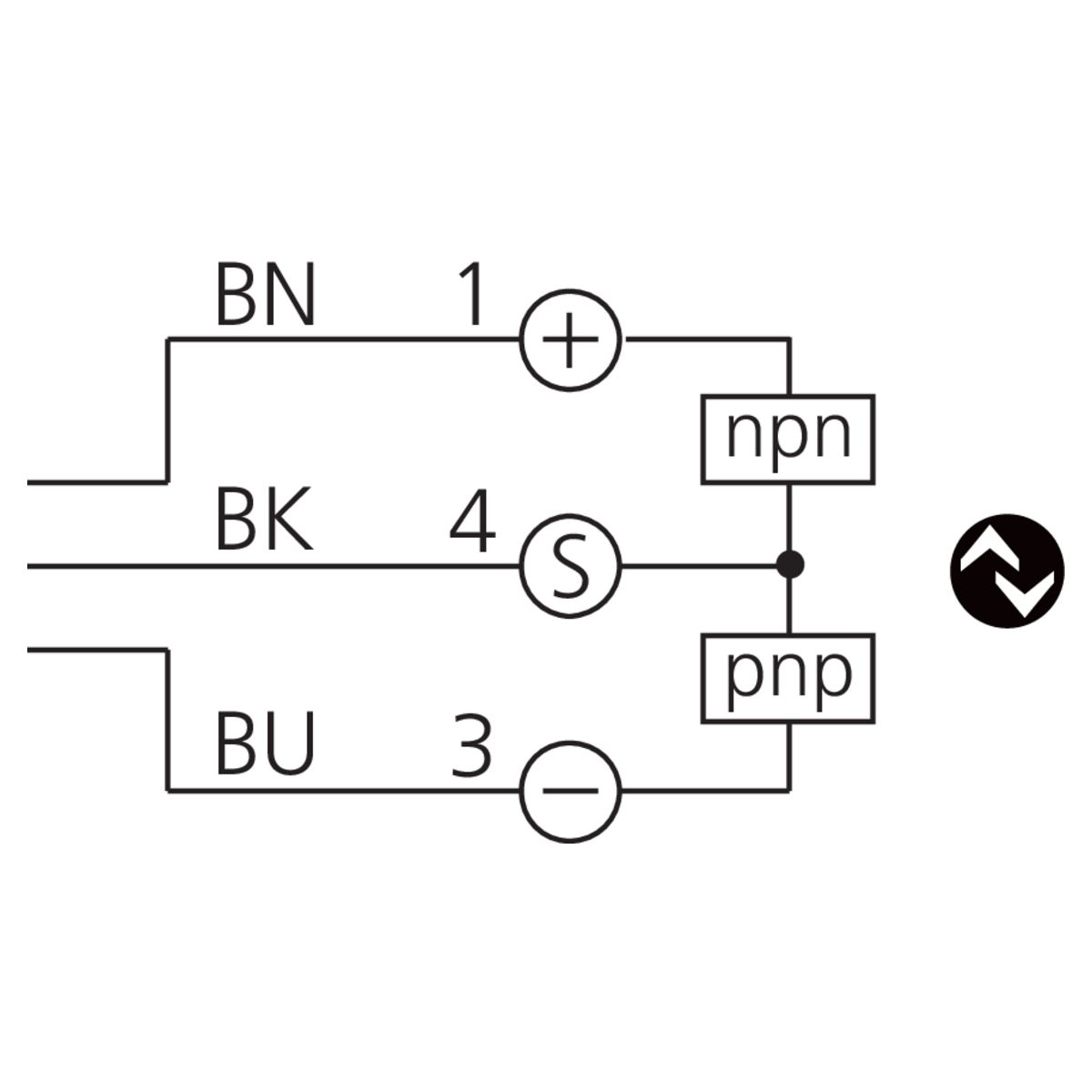

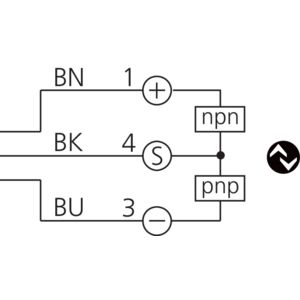

| Switching Output | Push-pull 100.0 mA NO/NC switchable |
| Voltage Drop (max.) | 1.0 V |
| Wavelength | 655 nm |
| Weight | 270.0 g |
