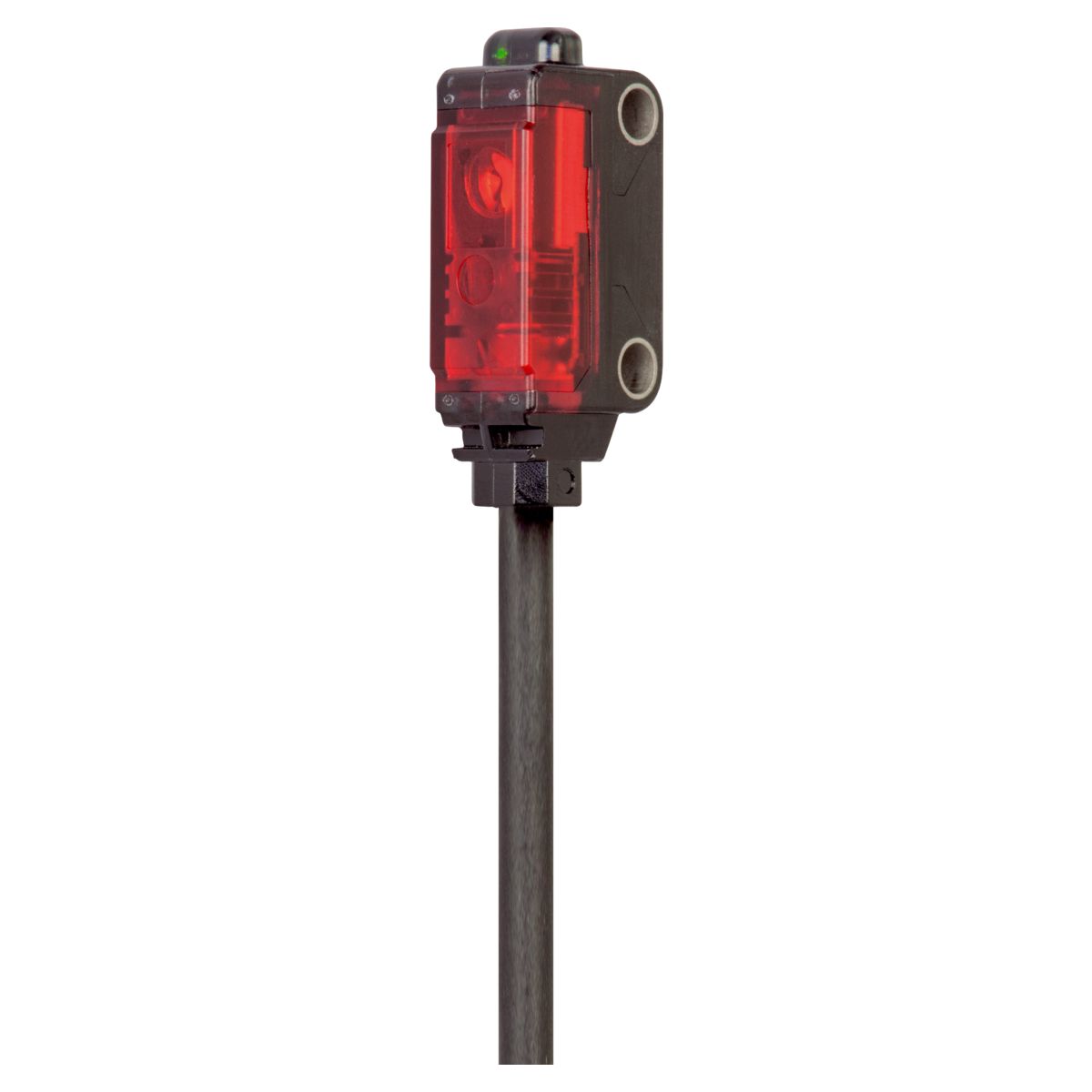

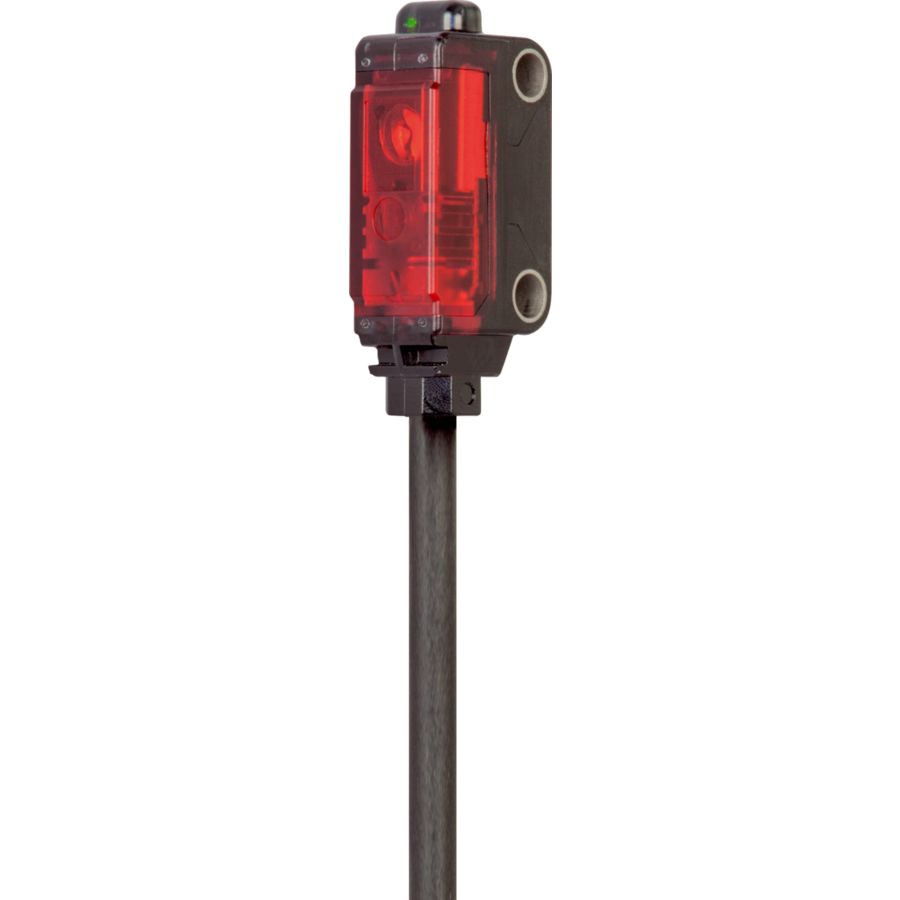

Laser Diffuse Sensor - LT 21 K 50 P3
Part Number: LT 21 K 50 P3
Article Number: 207165
Technical Details
| Activation Time | 0.5 ms |
|---|---|
| Ambient Light Immunity | 3 kLx |
| Ambient Temperature During Operation | -10.0 ... 55.0°C |
| Color | Red |
| Connection | Cable 2.0 m 4-pin flying leads |
| Design | Cuboid design |
| Evaluation | digital |

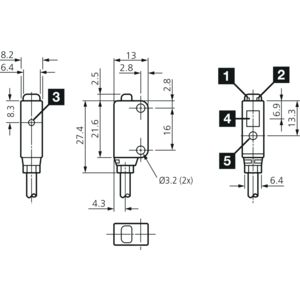

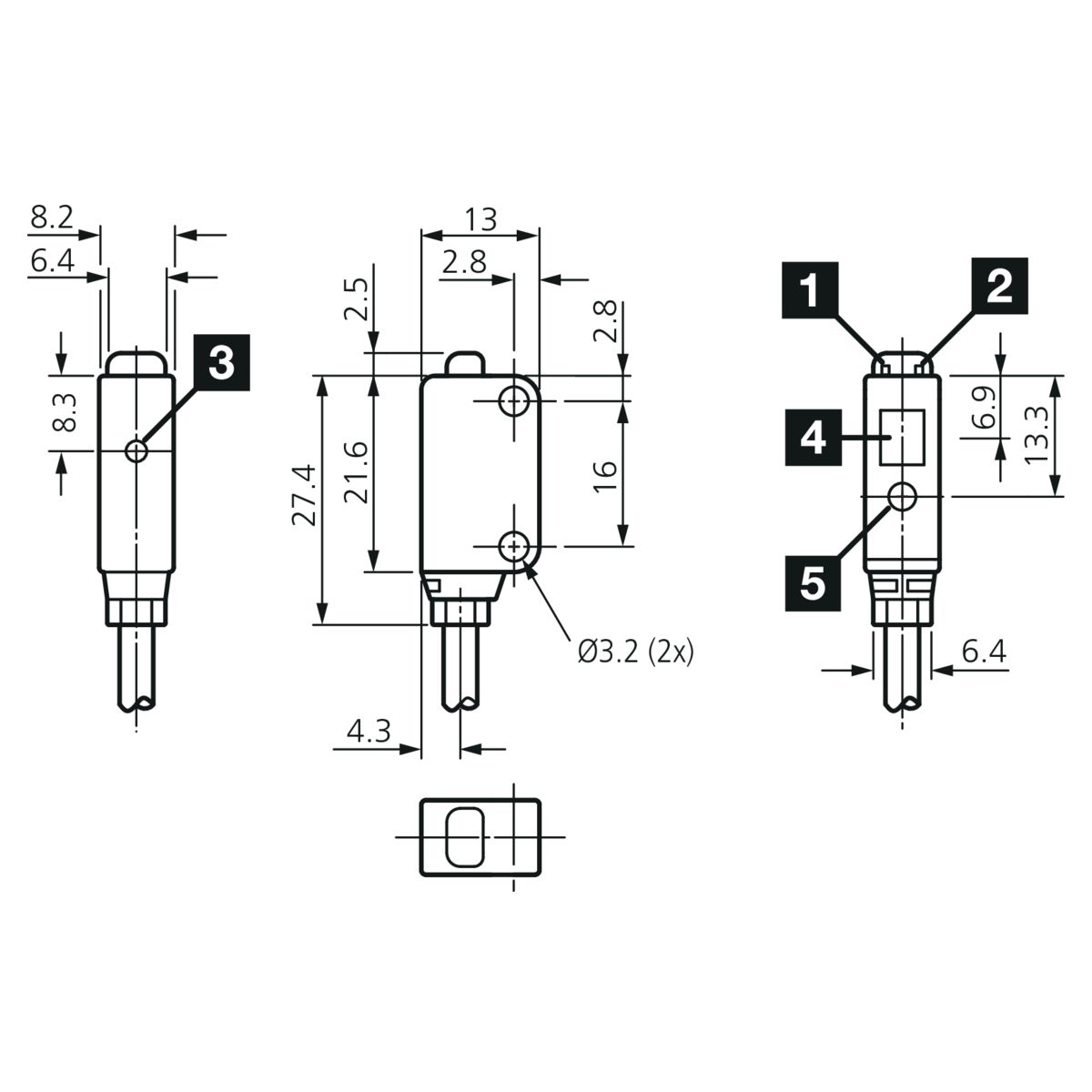

| Housing Dimensions | 22 x 13 x 8.5 mm |
| Housing length | 13.0 mm |
| Housing Material | Plastic |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 1000.0 V |
| Laser Class | 1 (IEC 60825-1:2014 / EN 60825-1:2014) |
| Light Source | Laser |
| Material | Acrylic Window |
| Modulation | Clocked |
| No Load Current (max.) | 15.0 mA |
| Operating Principle | Retroreflective diffuse sensor |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Resolution | 1 mm |
| Resolution1 | with operating range 50 mm |
| Scanning Range | 20.0 mm 50.0 mm |
| Sensitivity Adjustment | Potentiometer |
| Service Voltage | 10.8 ... 26.4V DC |
| Smallest Detectable Object | 0.01 mm Gold wire |
| Switching Frequency | 1000 Hz |
| Switching Hysteresis (max.) | 20.0 % |

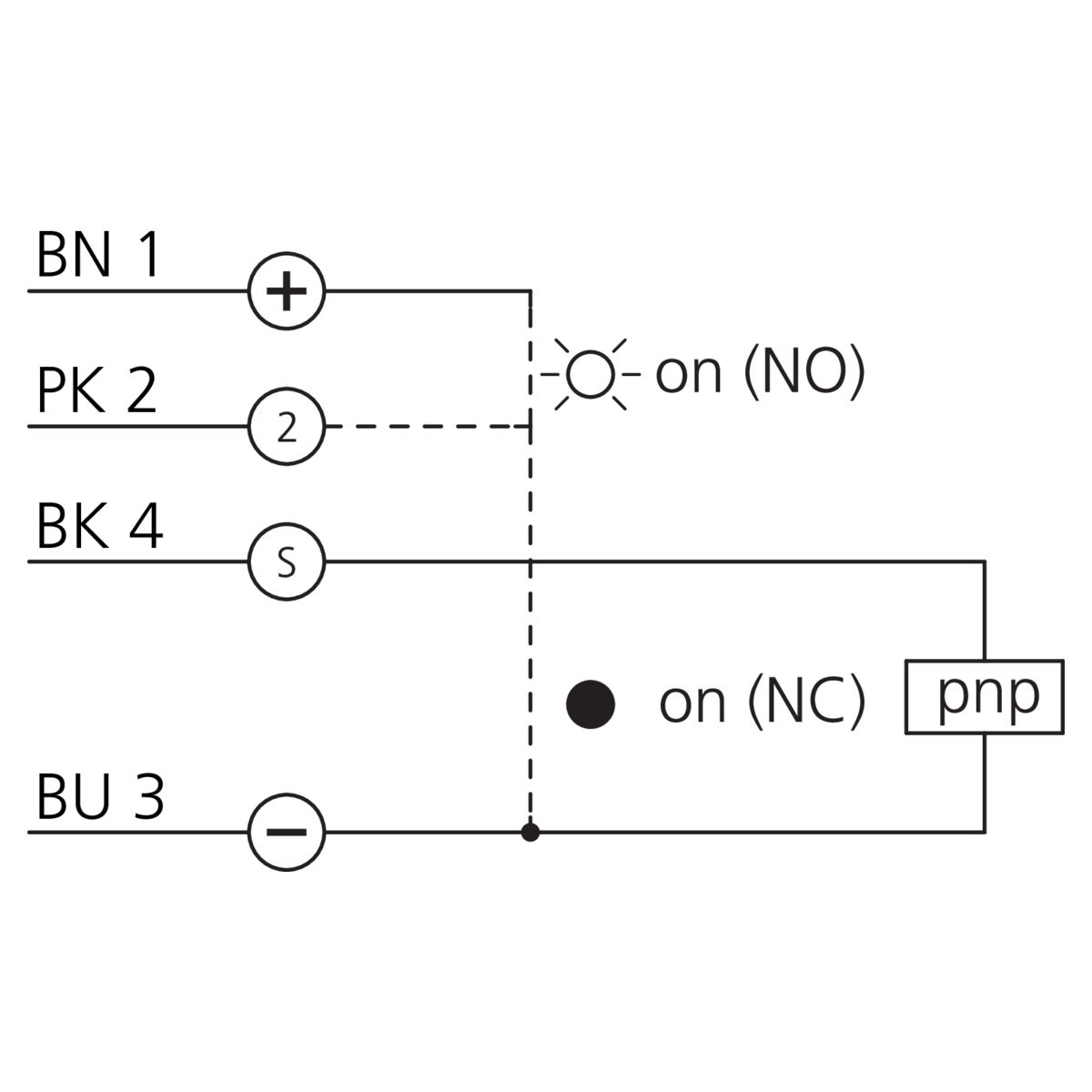

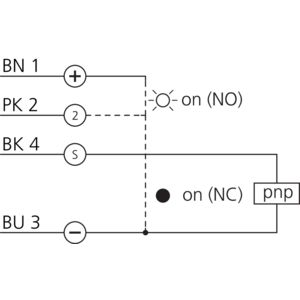

| Switching Output | pnp 50.0 mA NO/NC |
| Vibration Shock Resistance | 10 ... 500 Hz / 1.5 mm / 10 G |
| Wavelength | 655 nm |
