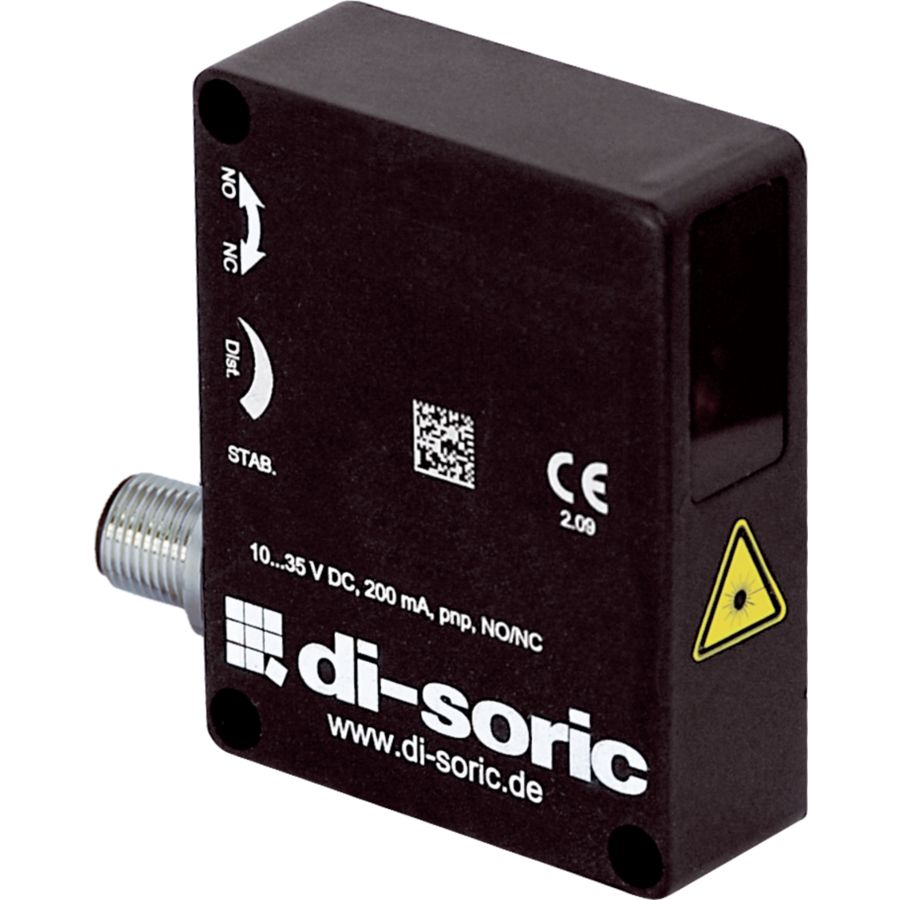

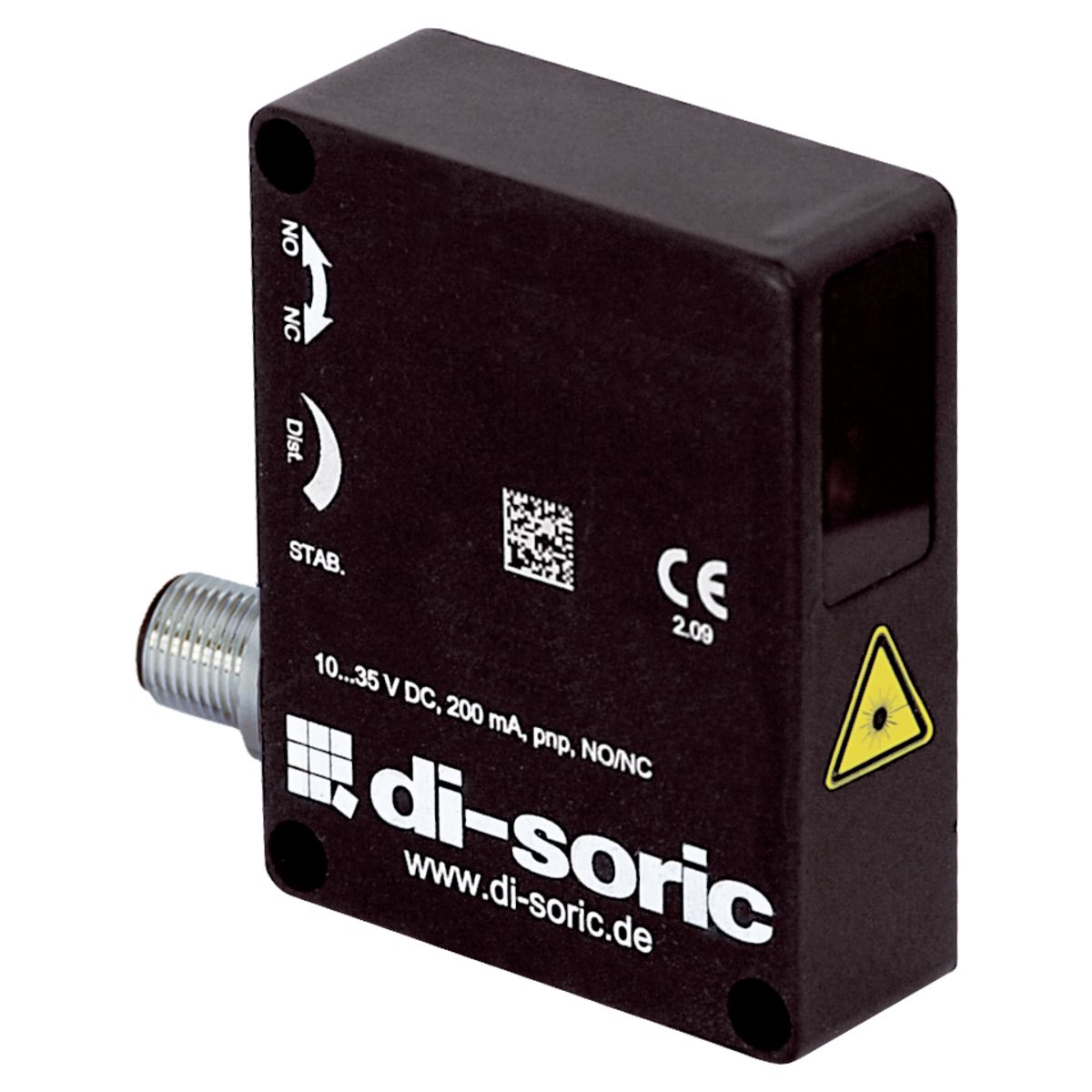

Laser Diffuse Sensor - LTV 51 M 600 P3K-IBS
Part Number: LTV 51 M 600 P3K-IBS
Article Number: 204056
Technical Details
| Ambient Temperature During Operation | -10.0 ... 50.0°C |
|---|---|

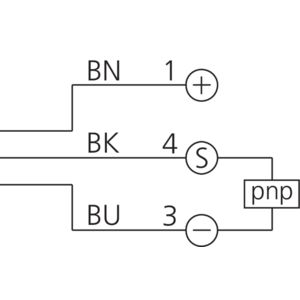

| Connection | Connector M12 3-pin |
| Design | Cuboid design |
| Evaluation | digital |

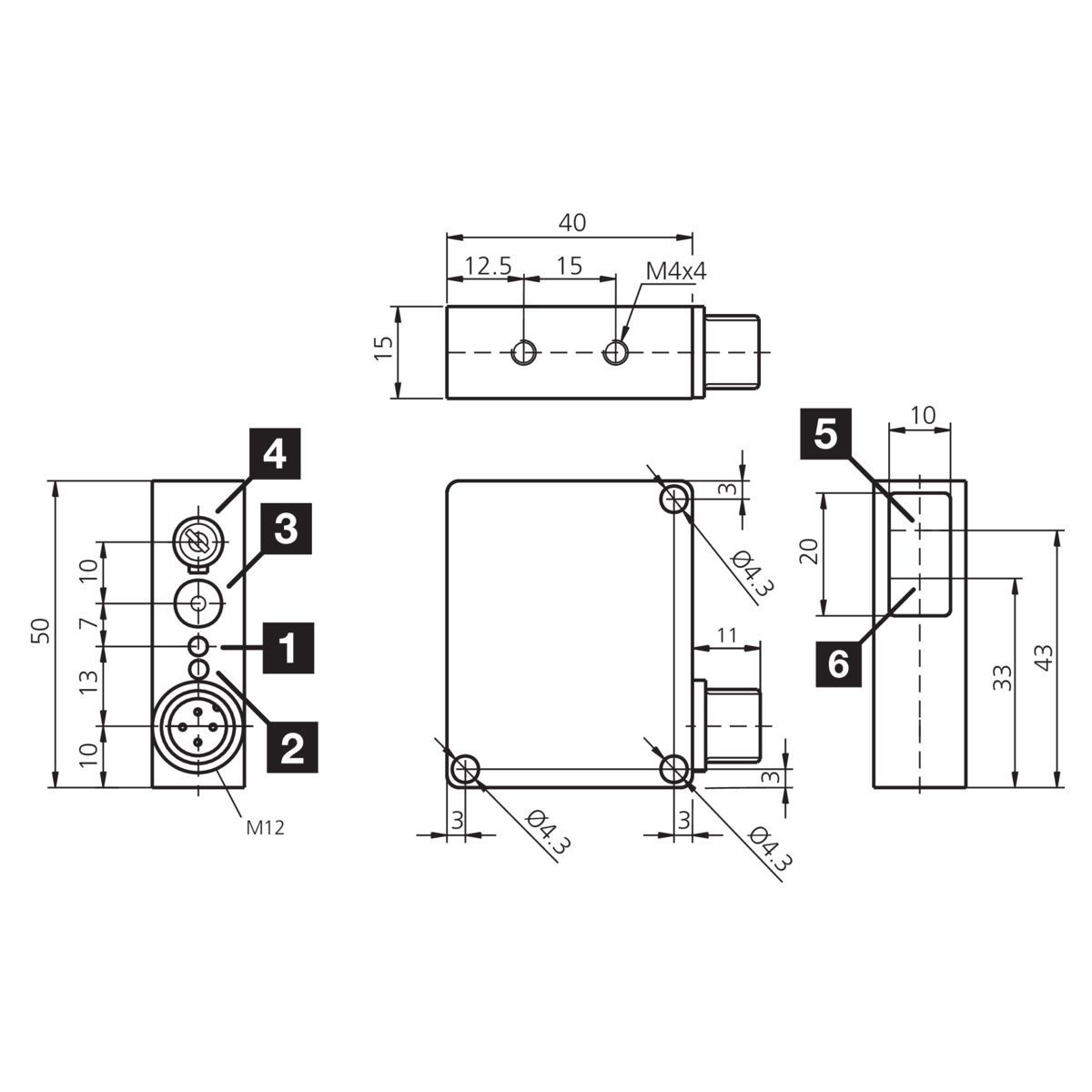

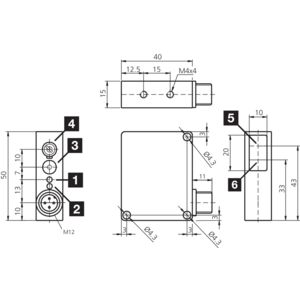

| Housing Dimensions | 50 x 40 x 15 mm |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| No Load Current (max.) | 30.0 mA |
| Operating Principle | Retroreflective diffuse sensor |
| Reproducibility | < 2 % |
| Scanning Range | 100.0 mm 600.0 mm |
| Sensitivity Adjustment | Potentiometer |
| Service Voltage | 10 ... 35.0V DC |
| Switching Hysteresis (max.) | 10.0 % |
| Switching Output | pnp 200.0 mA NO/NC switchable |
| Voltage Drop (max.) | 2.0 V |
