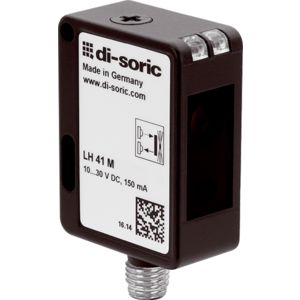

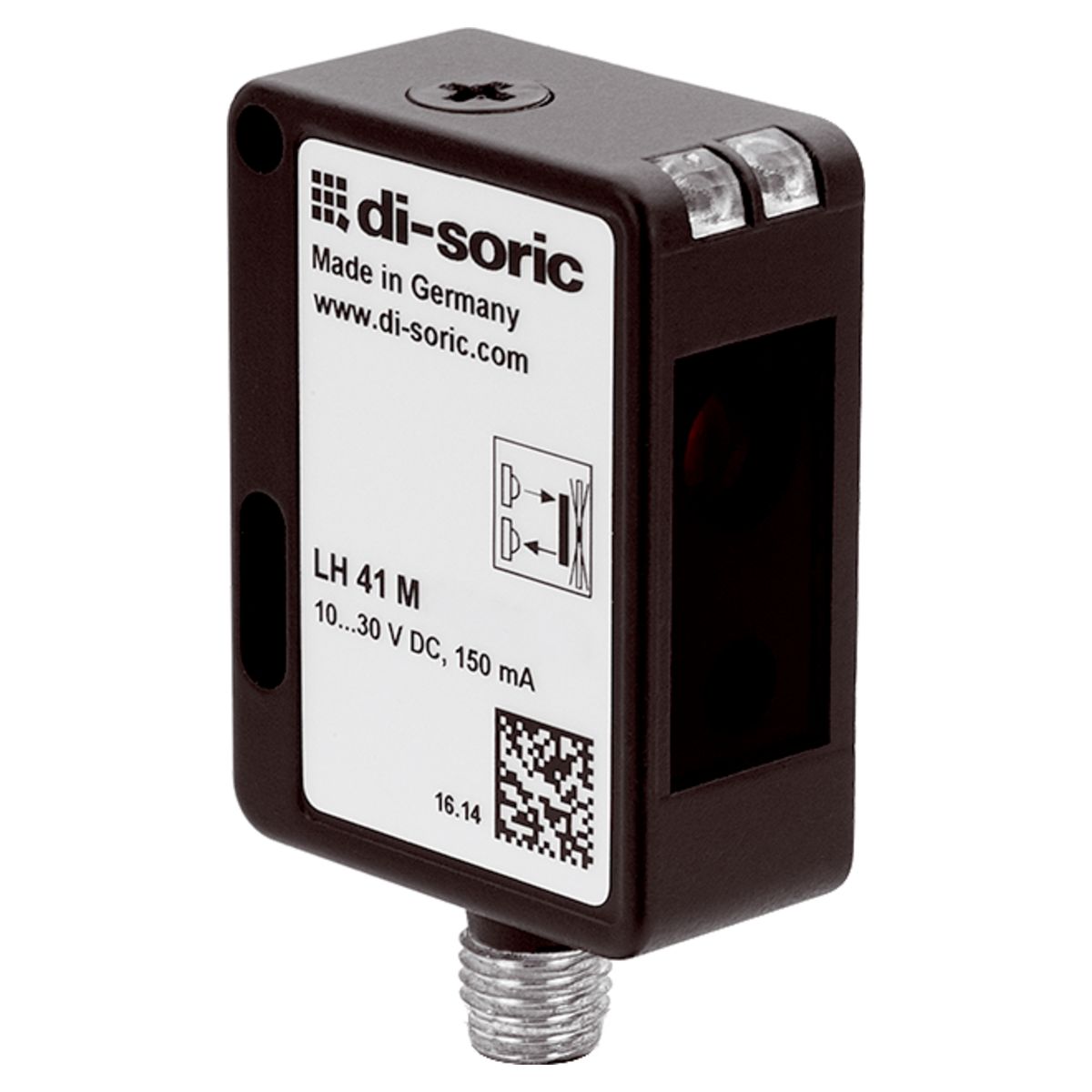

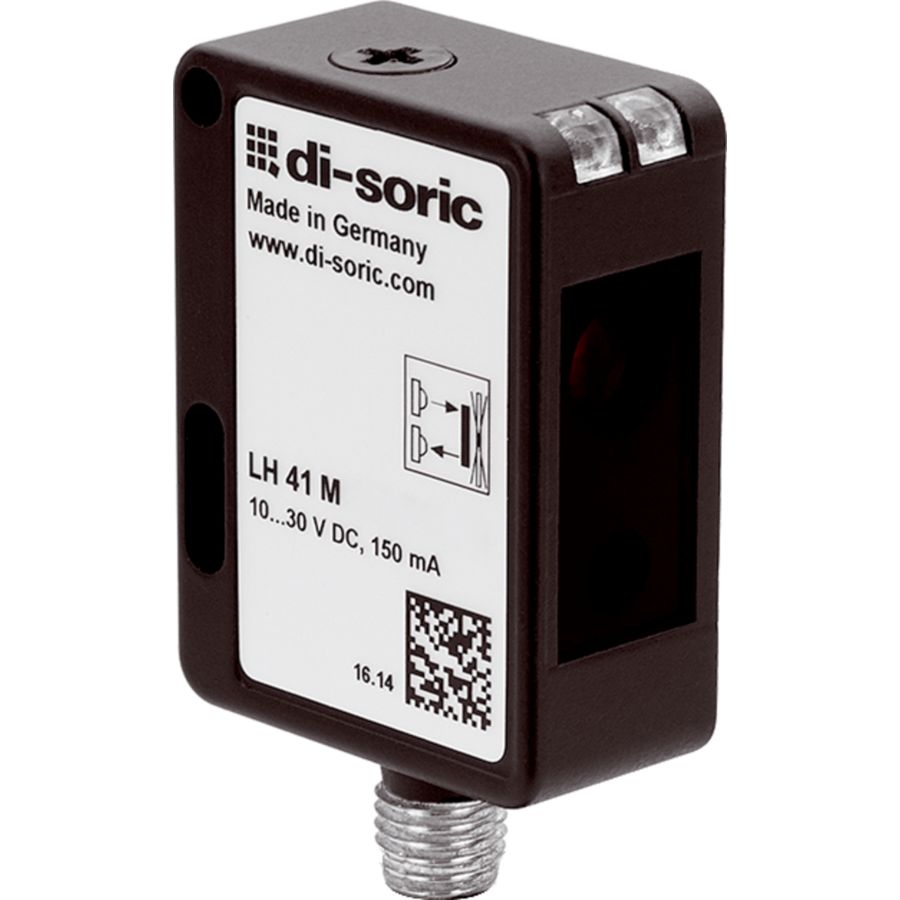

Laser Diffuse Sensor With Background Suppression - LH 41 M 350 G4L-T4
Part Number: LH 41 M 350 G4L-T4
Article Number: 209571
Technical Details
| Ambient Light Immunity | 20 kLx |
|---|---|
| Ambient Temperature During Operation | -10.0 ... 50.0°C |
| Background Suppression | 1.0 |
| Color | Red |
| Connection | Connector M8 4-pin |
| Connection Cable | TK ... /4 |
| Design | Cuboid design |
| Evaluation | digital |
| Green | Operation;Low functional reserve (flashing) |

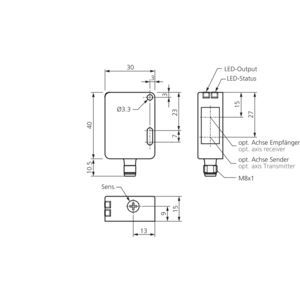

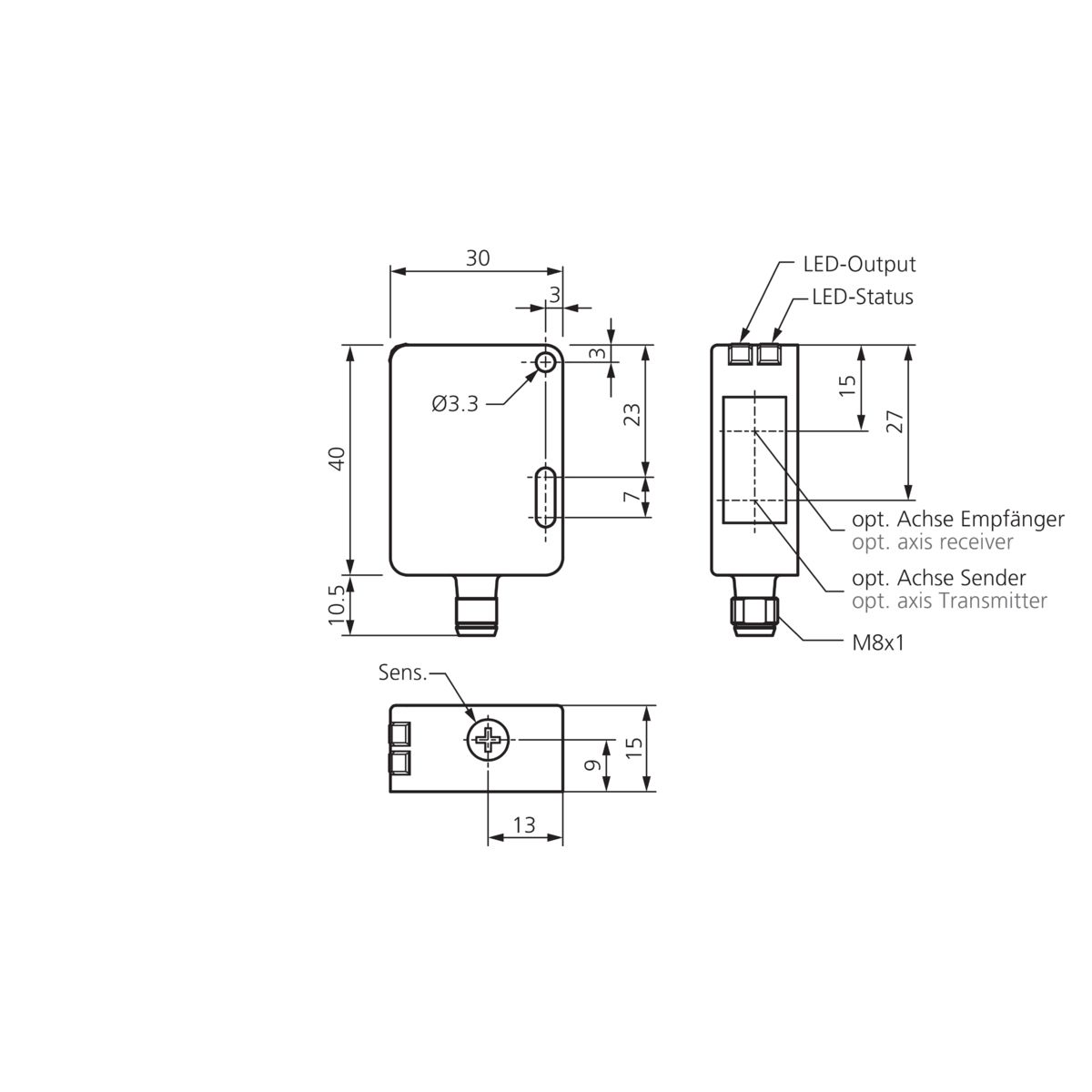

| Housing Dimensions | 40 x 30 x 15 mm |
| Housing length | 30.0 mm |
| Housing Material | Die-cast zinc Black painted |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Laser Class | 1 (IEC 60825-1:2014 / EN 60825-1:2014) |
| Light Source | Laser |
| Light Spot Size | Ø 2 mm |
| Material | Polycarbonate Window |
| Modulation | Clocked |
| No Load Current (max.) | 25.0 mA |
| Operating Principle | Diffuse sensor with background suppression |
| Protection Class | III |
| Protection Type | IP 67 |
| Scanning Range | 30.0 mm 350.0 mm |
| Sensitivity Adjustment | Potentiometer 10-turn |
| Service Voltage | 10.0 ... 30.0V DC |
| Shock Vibration Load | 30 g, 10 ... 55 Hz / 0.5 mm |
| Switching Distance | 350 to 600 mm as diffuse sensor |
| Switching Frequency | 1000 Hz |
| Switching Hysteresis (max.) | 1.5 % |

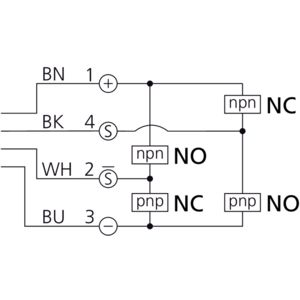

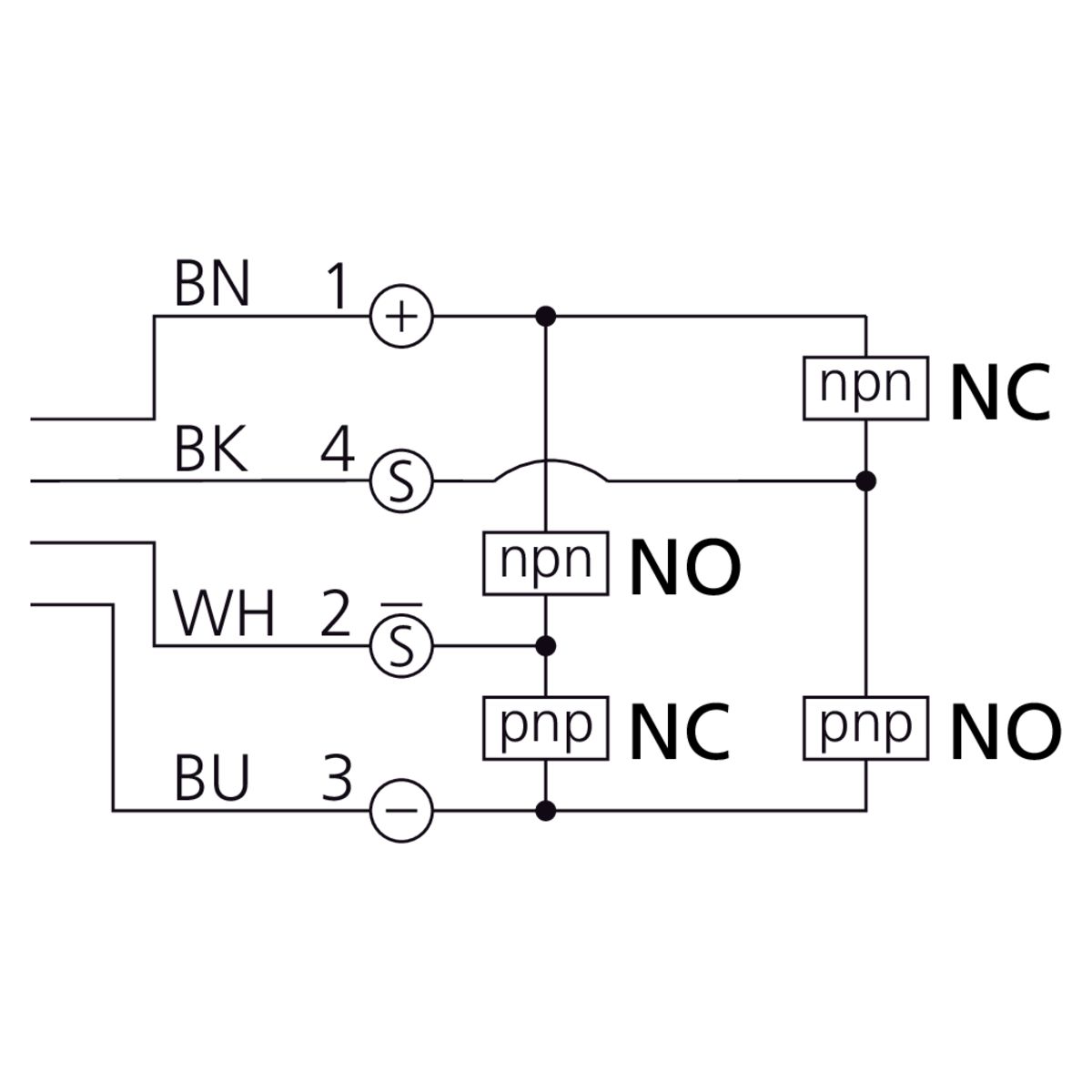

| Switching Output | Push-pull 100.0 mA antivalent;NO/NC |
| Voltage Drop (max.) | 2.0 V |
| Wavelength | 650 nm |
| Weight | 48.0 g |
| Yellow | Switching output |
