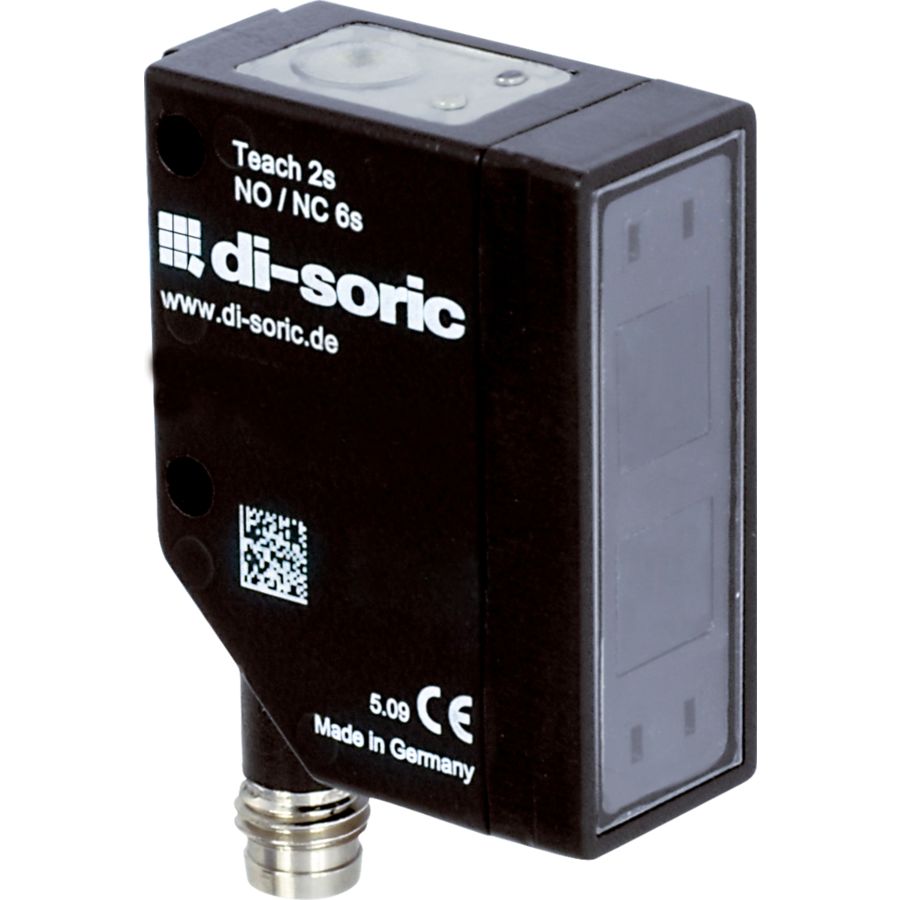

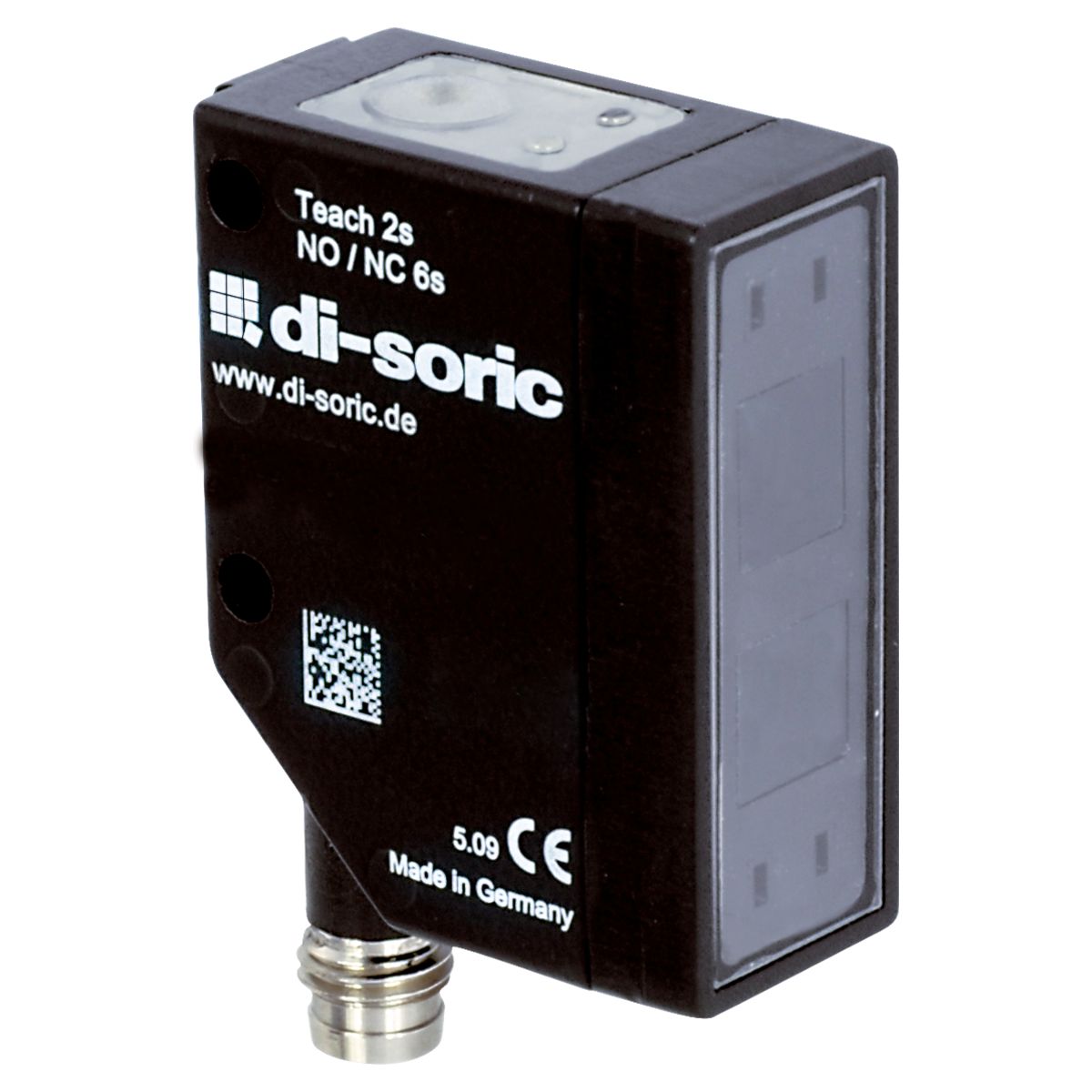

Laser Diffuse Sensor With Background Suppression - LHT 41 M 0.2 G3-T3
Part Number: LHT 41 M 0.2 G3-T3
Article Number: 205014
Technical Details
| Ambient Light Immunity | 50 kLx |
|---|---|
| Ambient Temperature During Operation | 0.0 ... 50.0°C |
| Background Suppression | 1.0 |
| Color | Red |

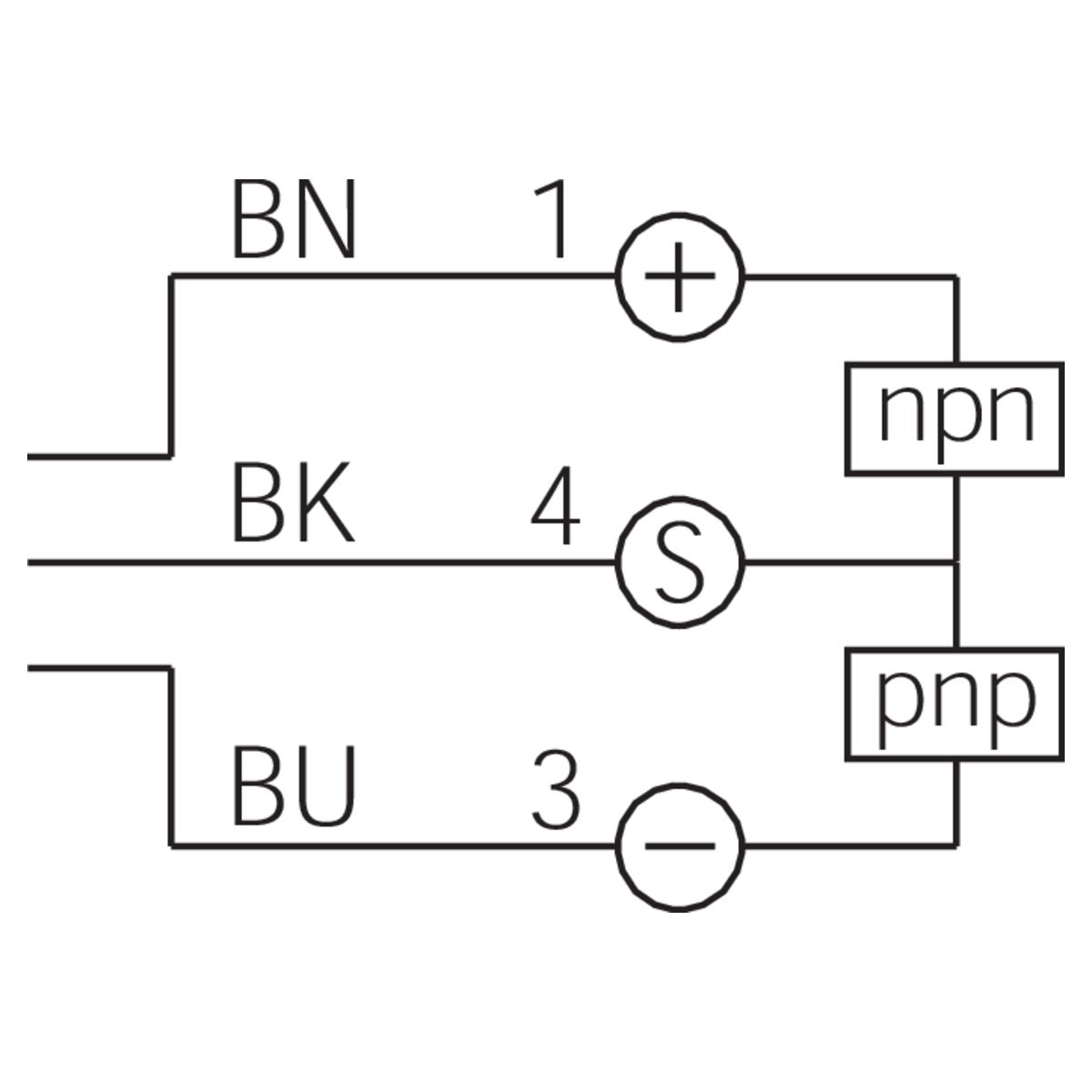

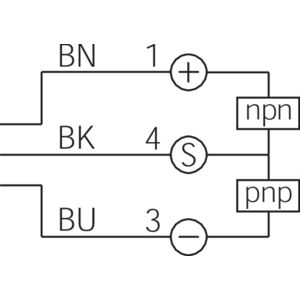

| Connection | Connector M8 3-pin |
| Connection Cable | TK ... |
| Design | Cuboid design |
| Evaluation | digital |

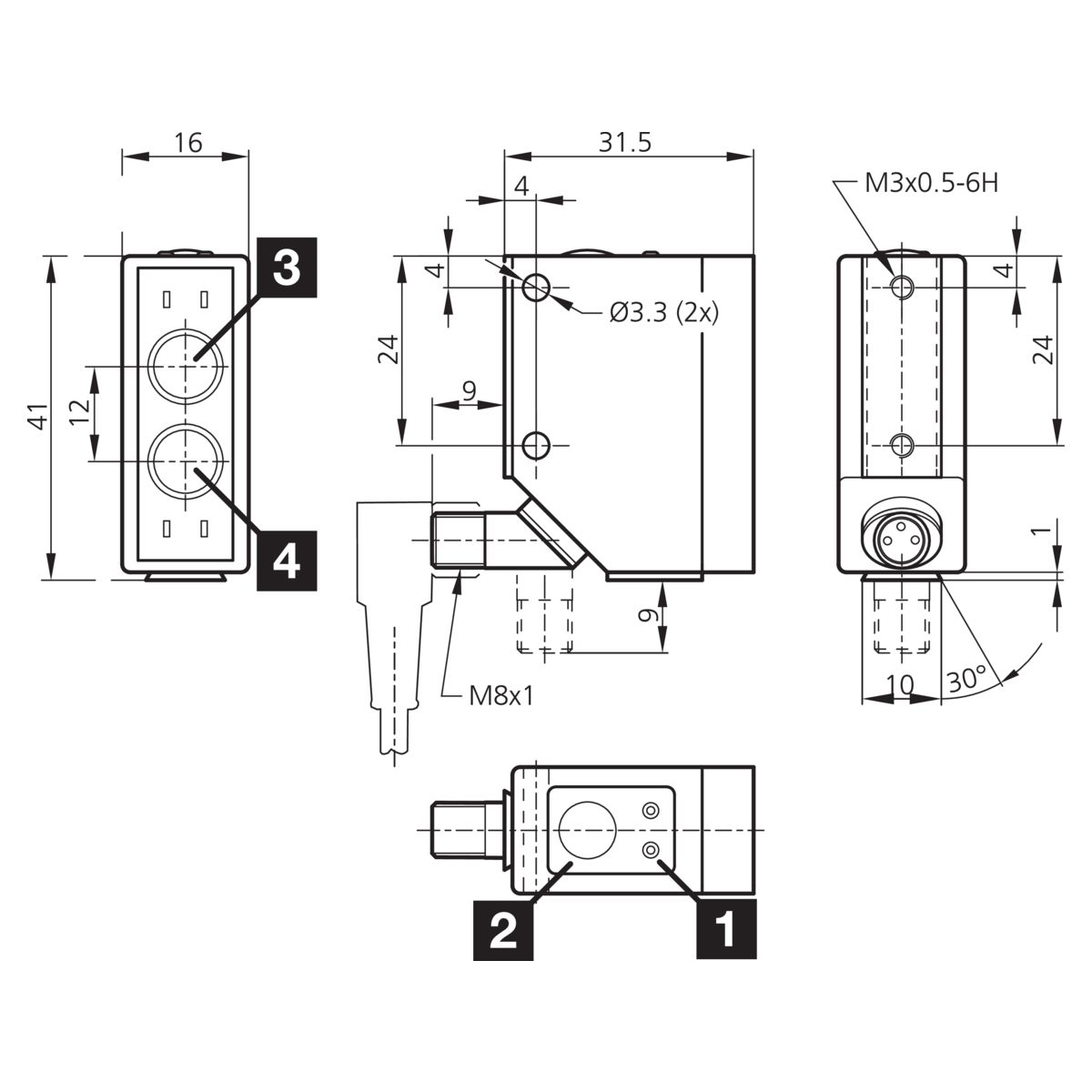

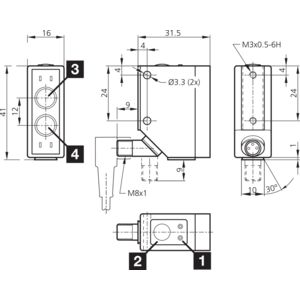

| Housing Dimensions | 41 x 31.5 x 16 mm |
| Housing length | 31.5 mm |
| Housing Material | Die-cast zinc Black painted |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Laser Class | 1 (IEC 60825-1:2014 / EN 60825-1:2014) |
| Light Source | Laser |
| Material | PMMA Window |
| Modulation | Clocked |
| No Load Current (max.) | 40.0 mA |
| Operating Principle | Diffuse sensor with background suppression |
| Protection Class | III |
| Protection Type | IP 67 |
| Scanning Range | 40.0 mm 200.0 mm |
| Sensitivity Adjustment | Teach button |
| Service Voltage | 10 ... 30.0V DC |
| Shock Vibration Load | 30 g, 10 ... 55 Hz / 0.5 mm |
| Switching Frequency | 500.0 Hz |
| Switching Output | Push-pull 200.0 mA NO/NC switchable |
| Voltage Drop (max.) | 2.0 V |
| Wavelength | 655.0 nm |
