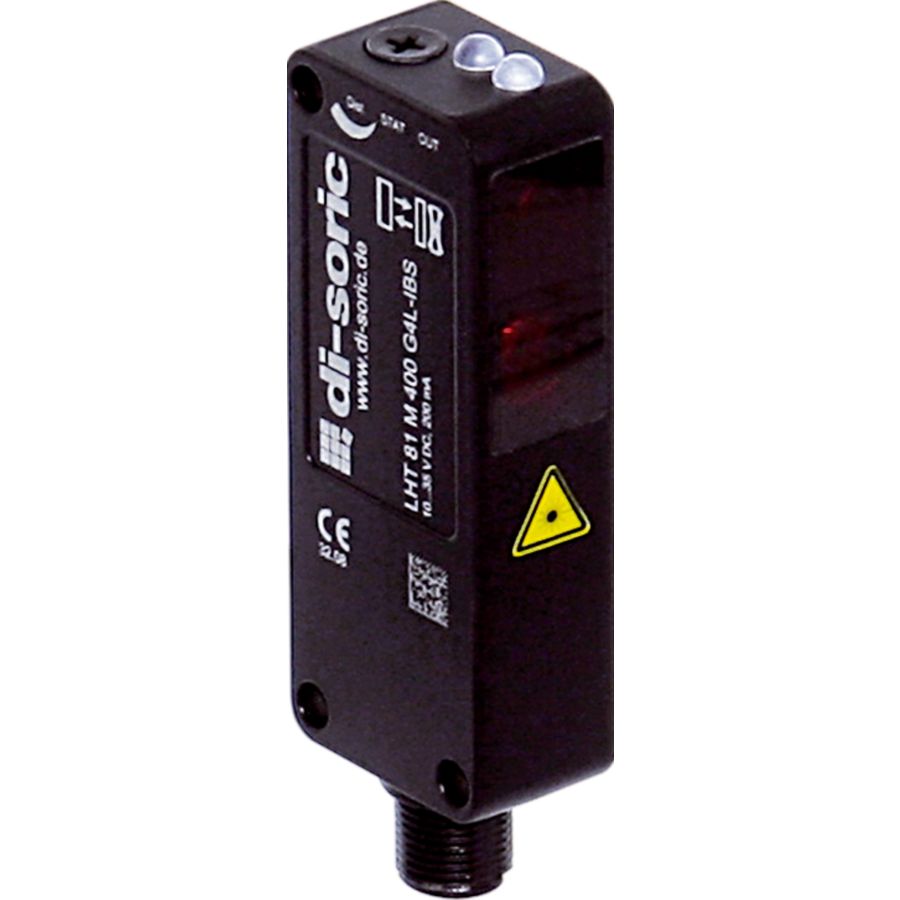

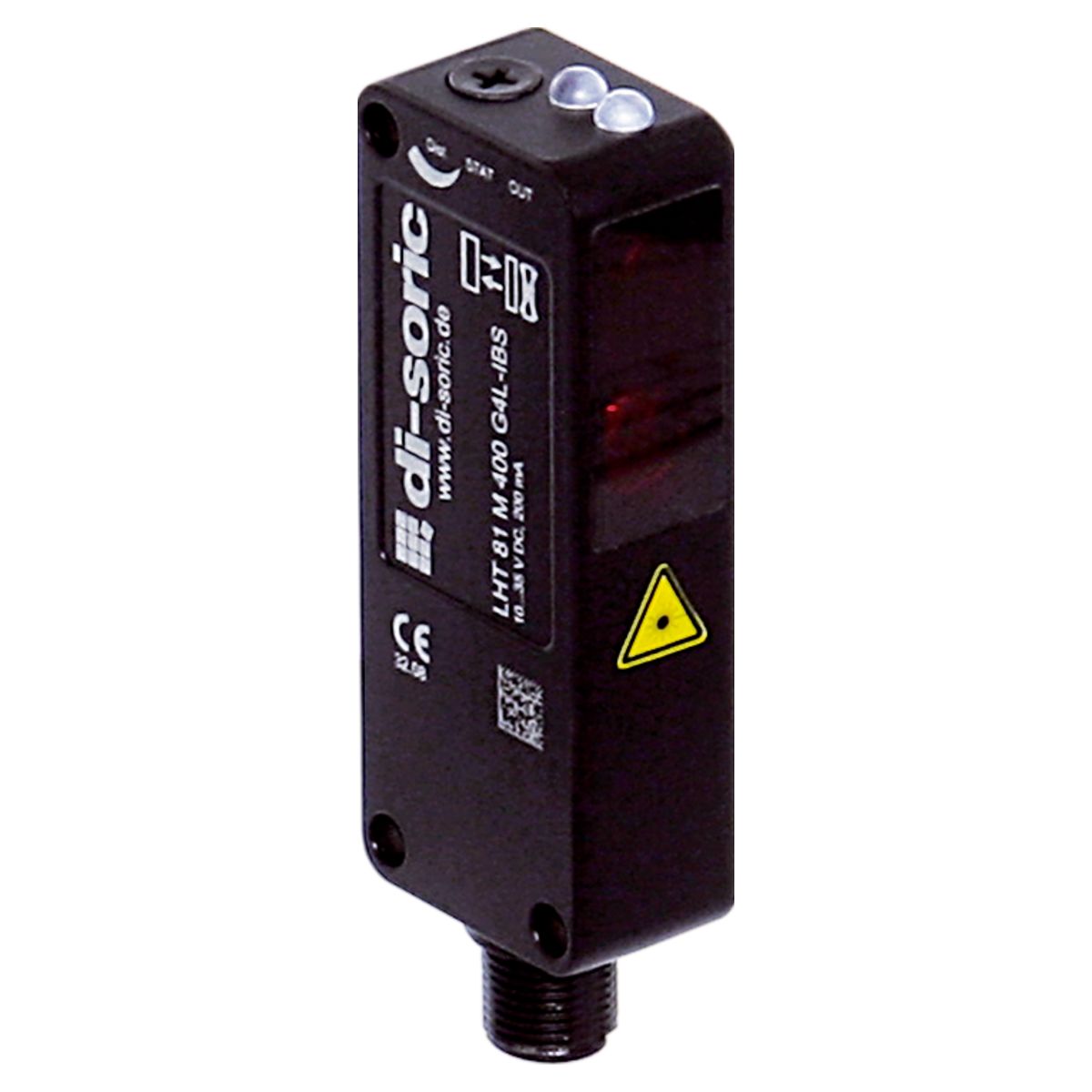

Laser Diffuse Sensor With Background Suppression - LHT 81 M 400 G6L-IBS
Part Number: LHT 81 M 400 G6L-IBS
Article Number: 204237
Technical Details
| Ambient Light Immunity | 5 kLx |
|---|---|
| Ambient Temperature During Operation | -20.0 ... 60.0°C |
| Background Suppression | 1.0 |
| Color | Red |
| Connection | Connector M12 4-pin |
| Connection Cable | VK ... |
| Design | Cuboid design |
| Evaluation | digital |

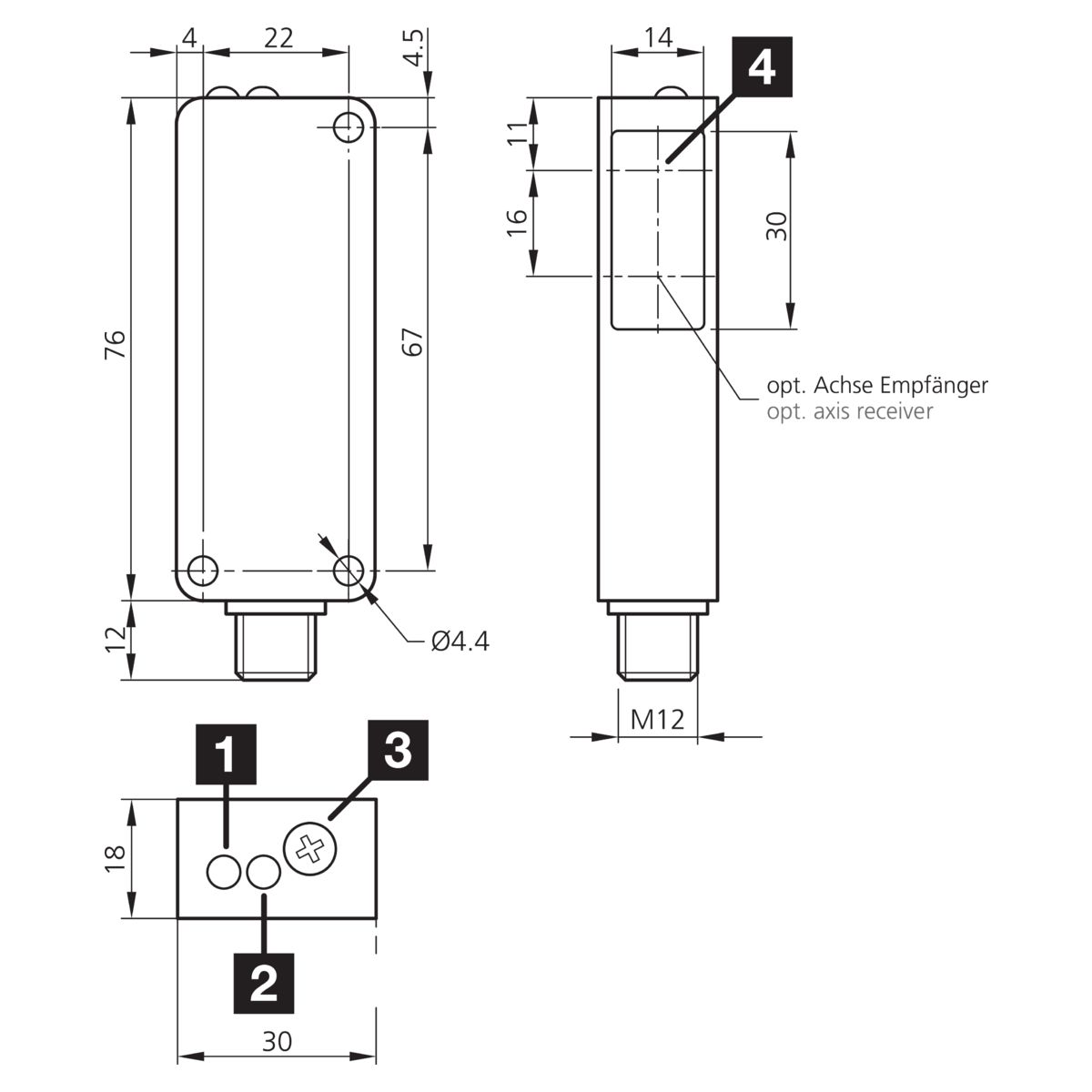

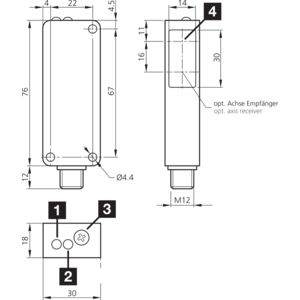

| Housing Dimensions | 76 x 30 x 18 mm |
| Housing length | 30.0 mm |
| Housing Material | Die-cast zinc Black painted |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Laser Class | 2 (IEC 60825-1) |
| Light Source | Laser |
| Material | Polycarbonate Window |
| Modulation | Clocked |
| No Load Current (max.) | 35.0 mA |
| Operating Principle | Diffuse sensor with background suppression |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Scanning Range | 40.0 mm 400.0 mm |
| Sensitivity Adjustment | Potentiometer 6-turn |
| Service Voltage | 10 ... 35.0V DC |
| Switching Distance | 400 to 800 mm as diffuse sensor |
| Switching Frequency | 1000.0 Hz |
| Switching Hysteresis (max.) | 1.0 % |

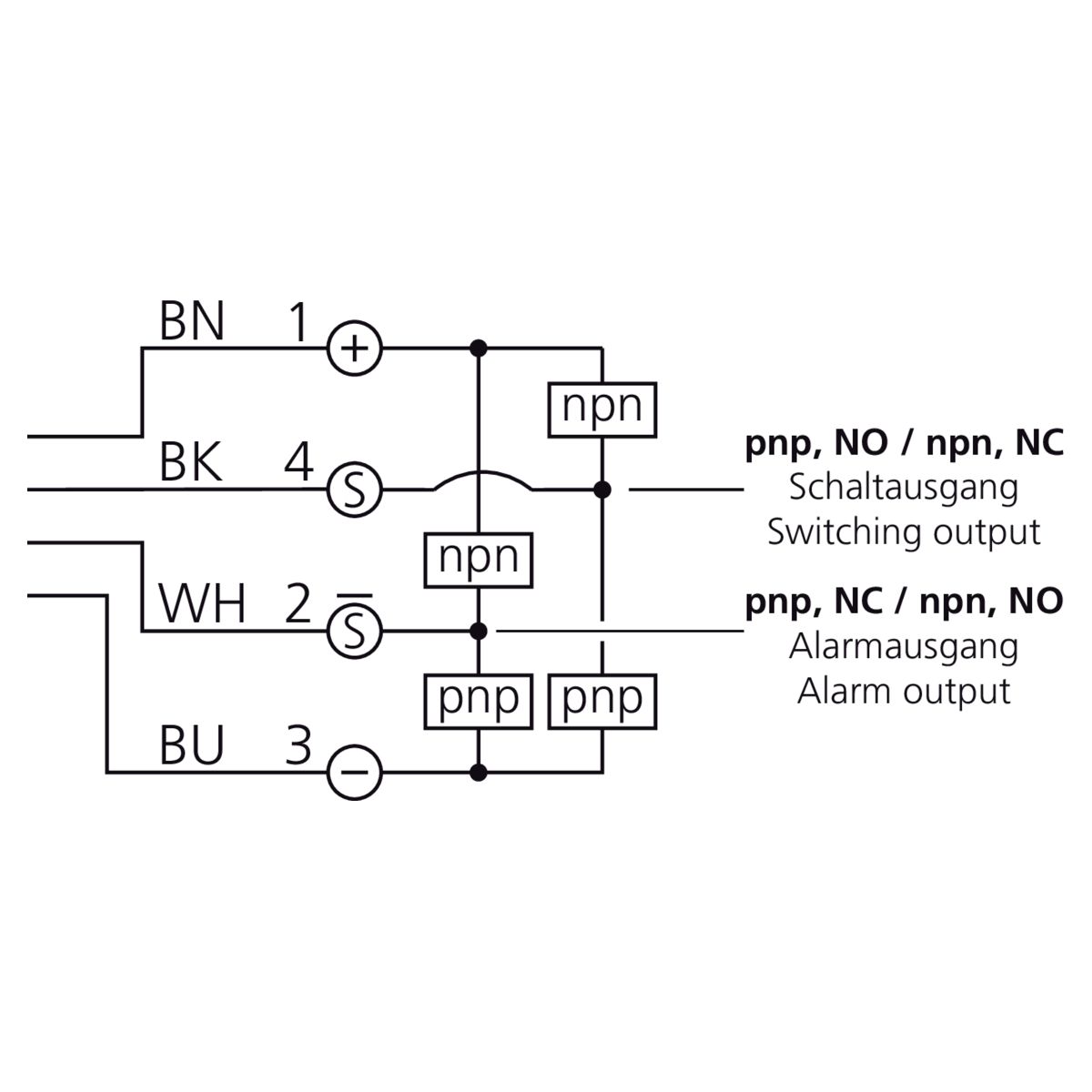

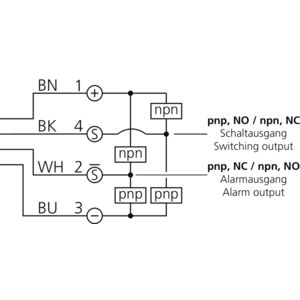

| Switching Output | Push-pull 200.0 mA NO switching output;NC alarm output |
| Wavelength | 650.0 nm |
