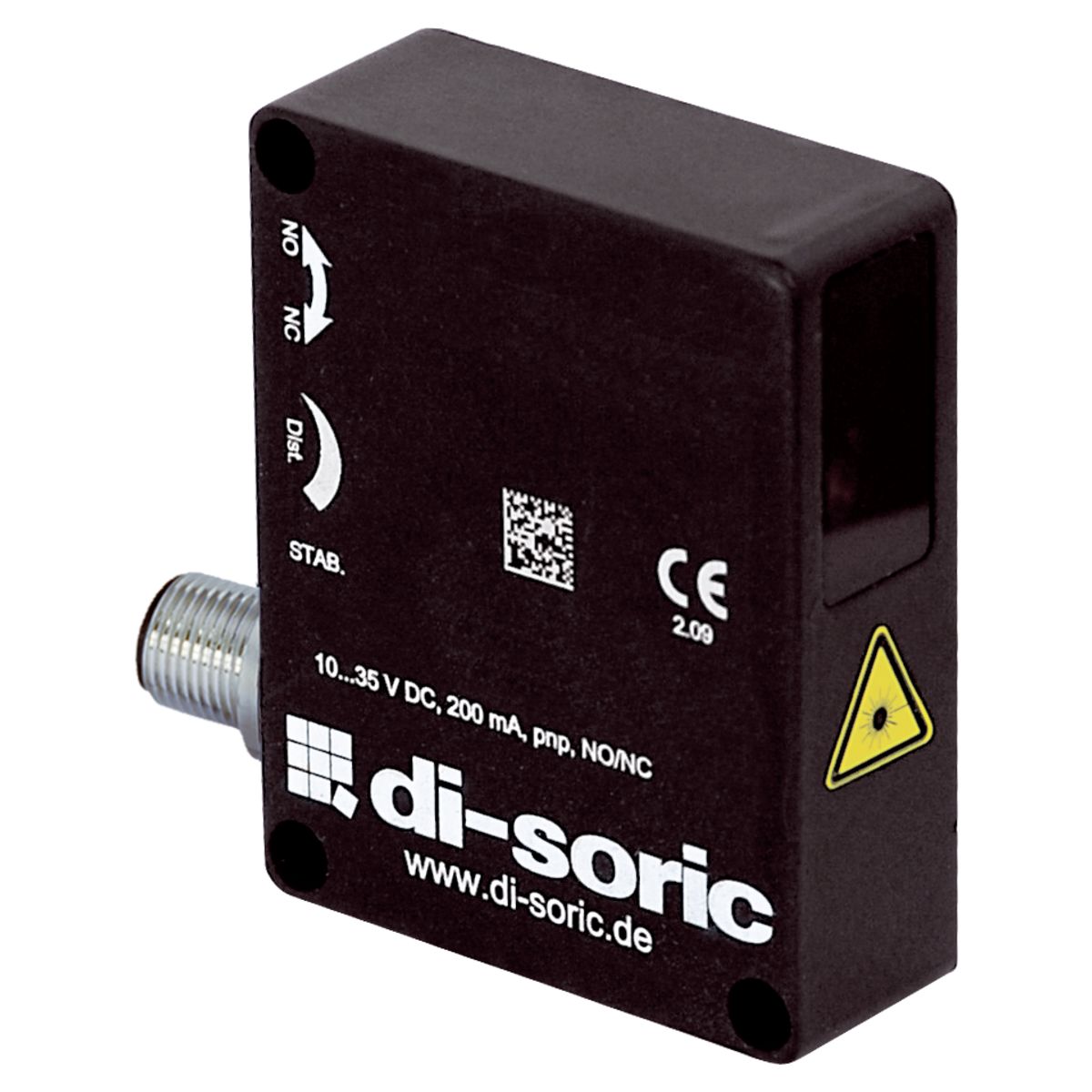

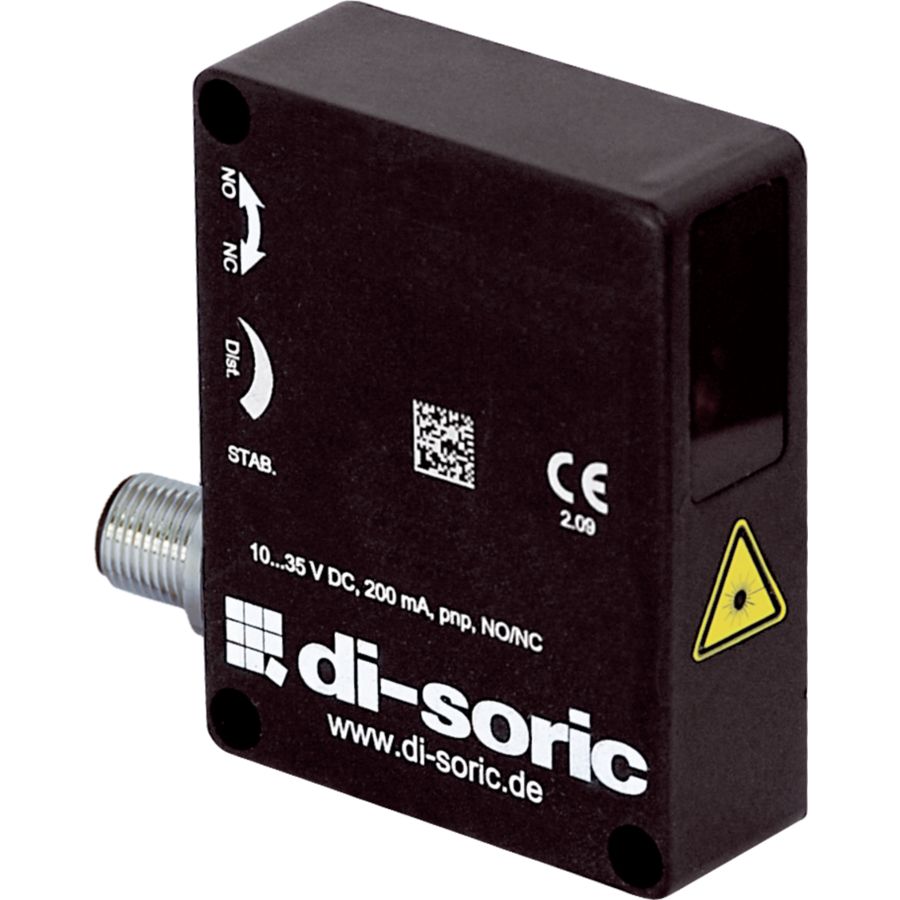

Laser Diffuse Sensor With Background Suppression - LHTTI 51 M 200 FG3-B4
Part Number: LHTTI 51 M 200 FG3-B4
Article Number: 208133
Technical Details
| Ambient Temperature During Operation | -10.0 ... 50.0°C |
|---|---|

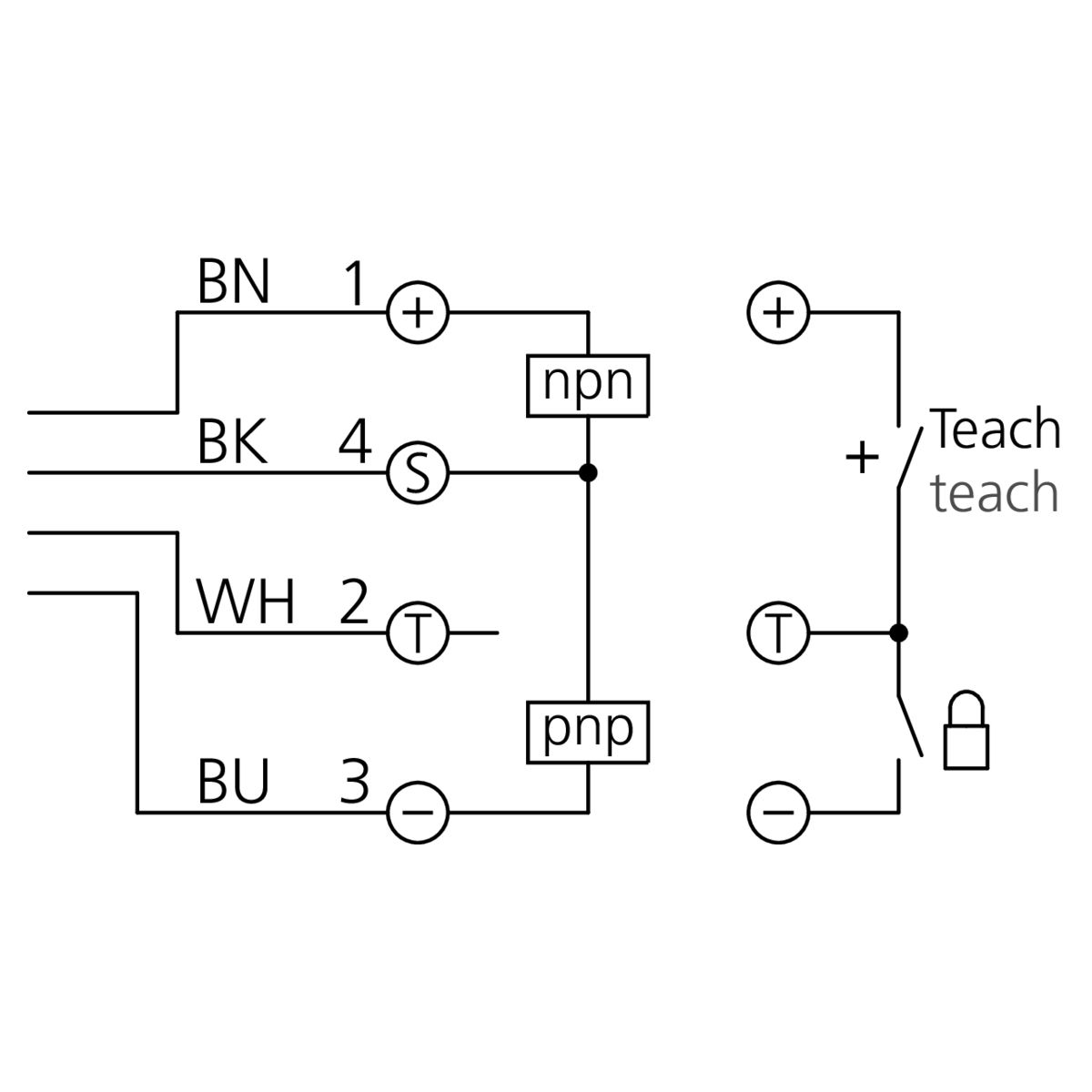

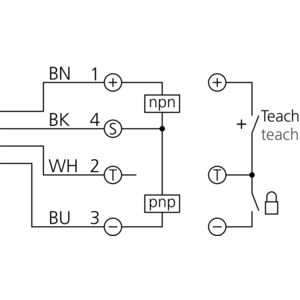

| Connection | Connector M12 4-pin |
| Design | Cuboid design |
| Evaluation | digital |
| Green | Operation |

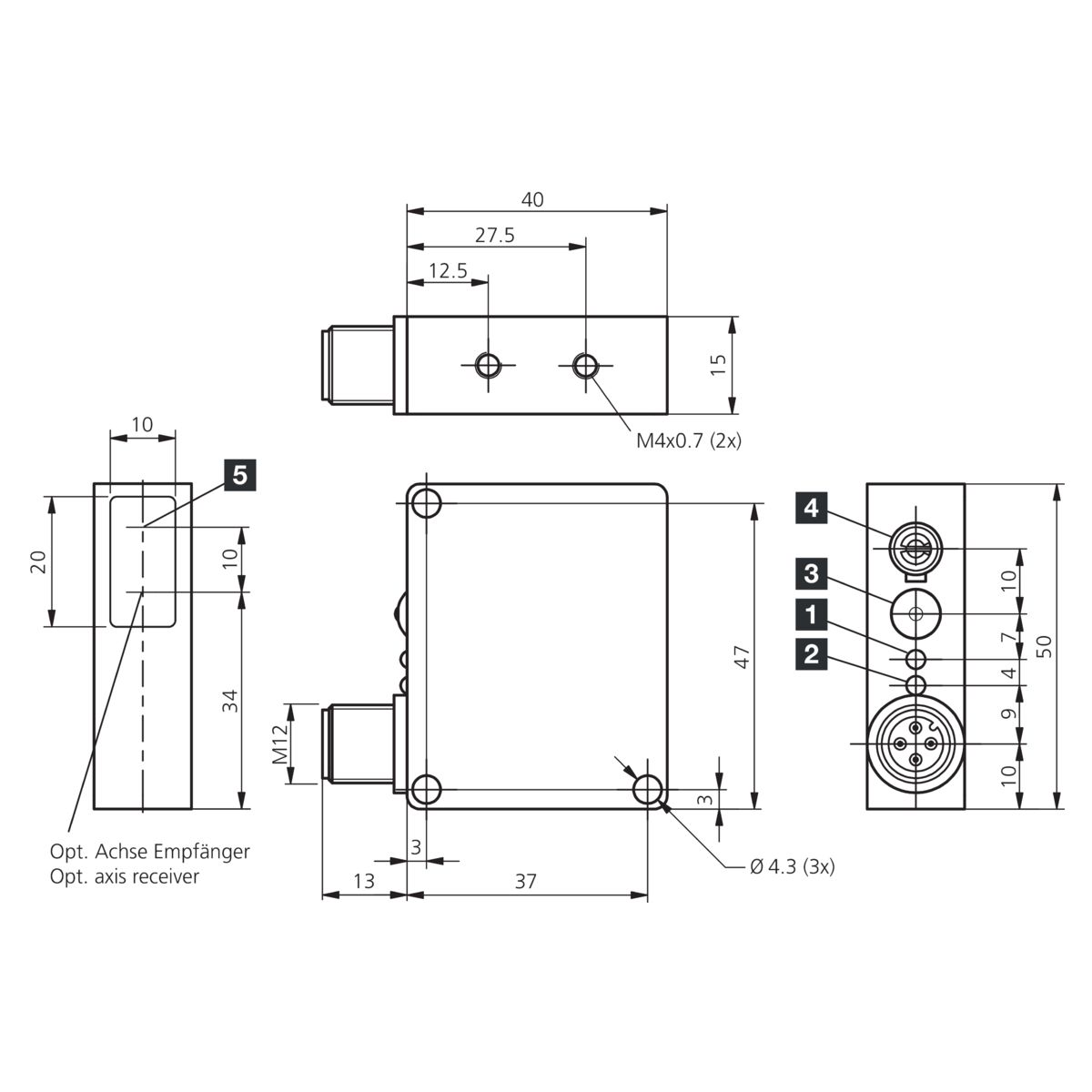

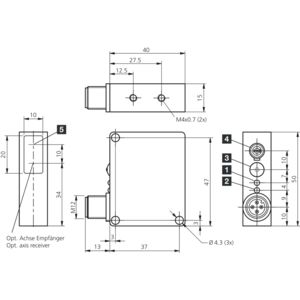

| Housing Dimensions | 50 x 40 x 15 mm |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| No Load Current (max.) | 25.0 mA 24.0 V DC |
| Operating Principle | Diffuse sensor with background suppression |
| Scanning Range | 50.0 mm 200.0 mm |
| Sensitivity Adjustment | Teach button;Remote teach |
| Service Voltage | 10.0 ... 35.0V DC |
| Switching Hysteresis (max.) | 6.0 % |
| Switching Output | Push-pull 200.0 mA NO/NC switchable |
| Voltage Drop (max.) | 2.0 V |
| Yellow | Switching output |
