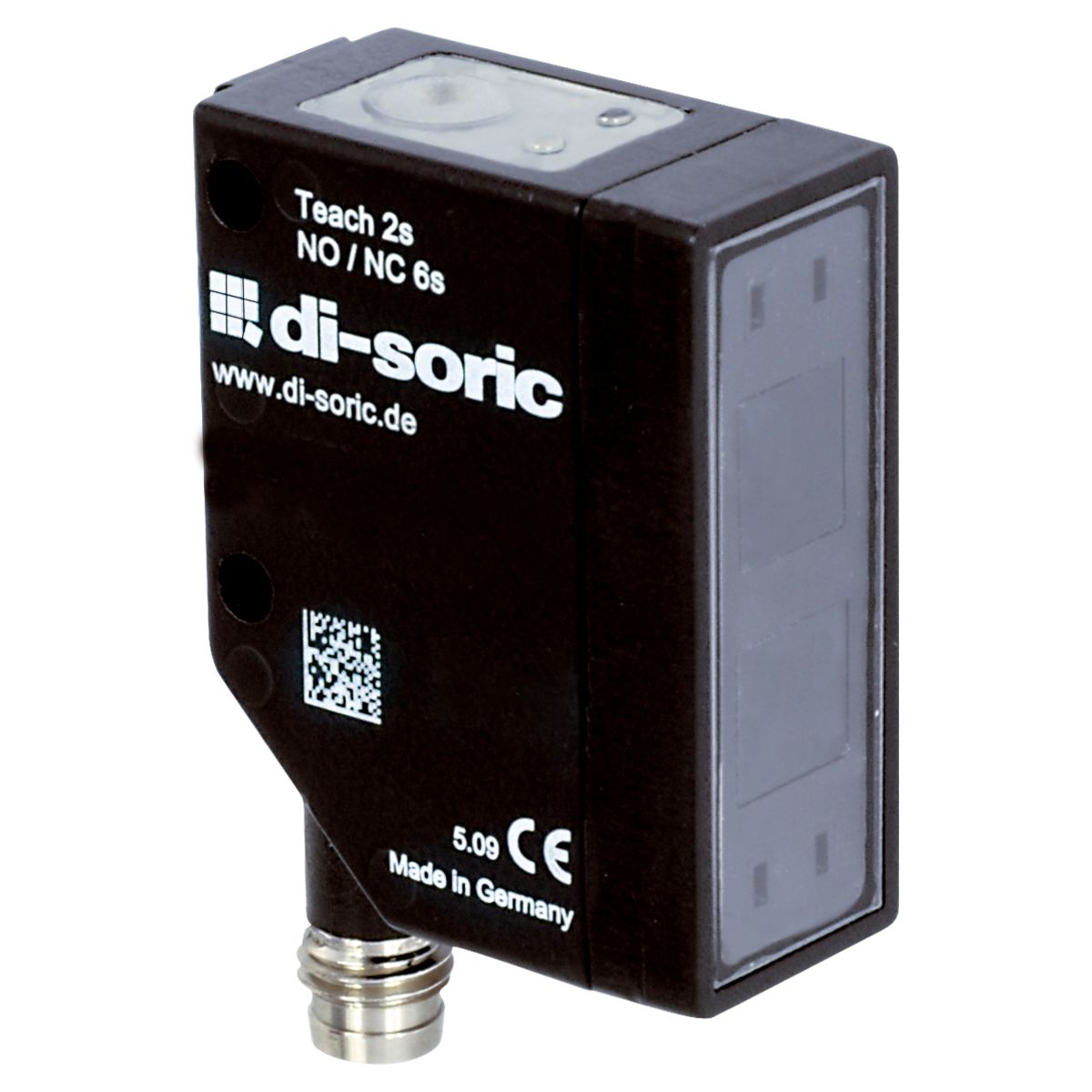

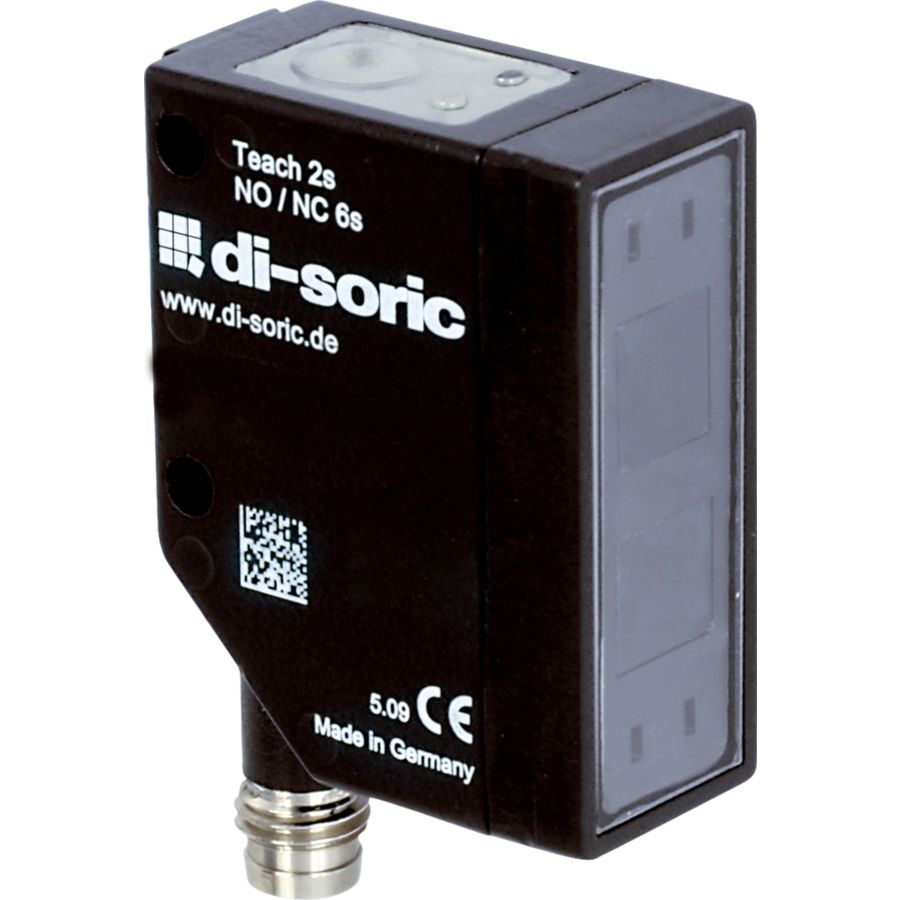

Laser Retroreflective Sensor - LRT 41 M 2 G3-T3
Part Number: LRT 41 M 2 G3-T3
Article Number: 204204
Technical Details
| Ambient Temperature During Operation | 0.0 ... 50.0°C |
|---|---|

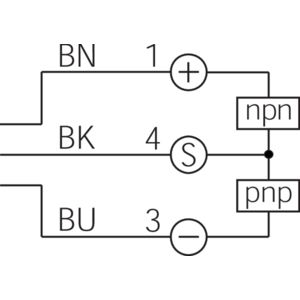

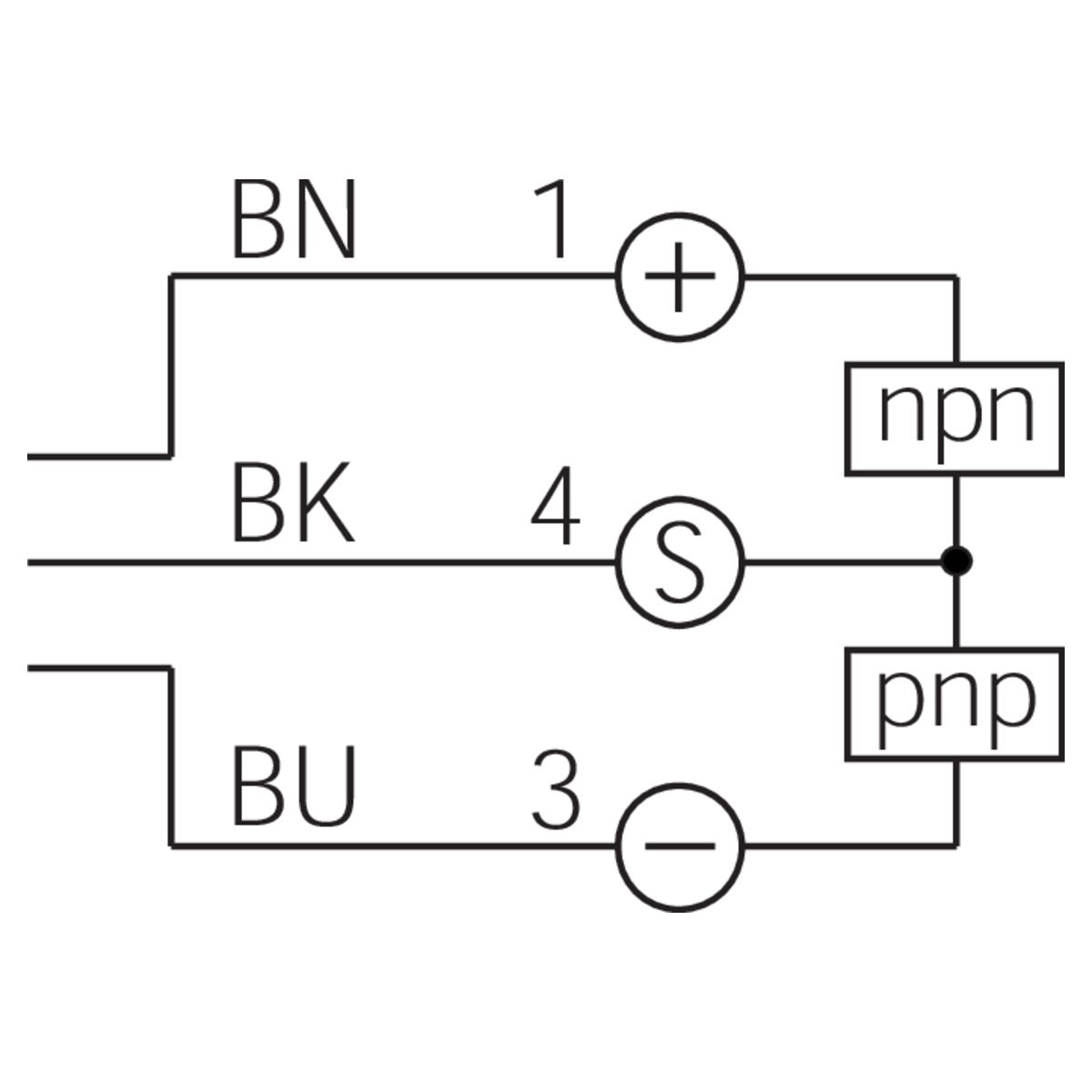

| Connection | Connector M8 3-pin |
| Design | Cuboid design |
| Evaluation | digital |

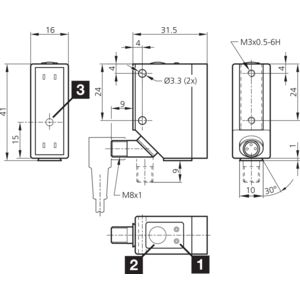

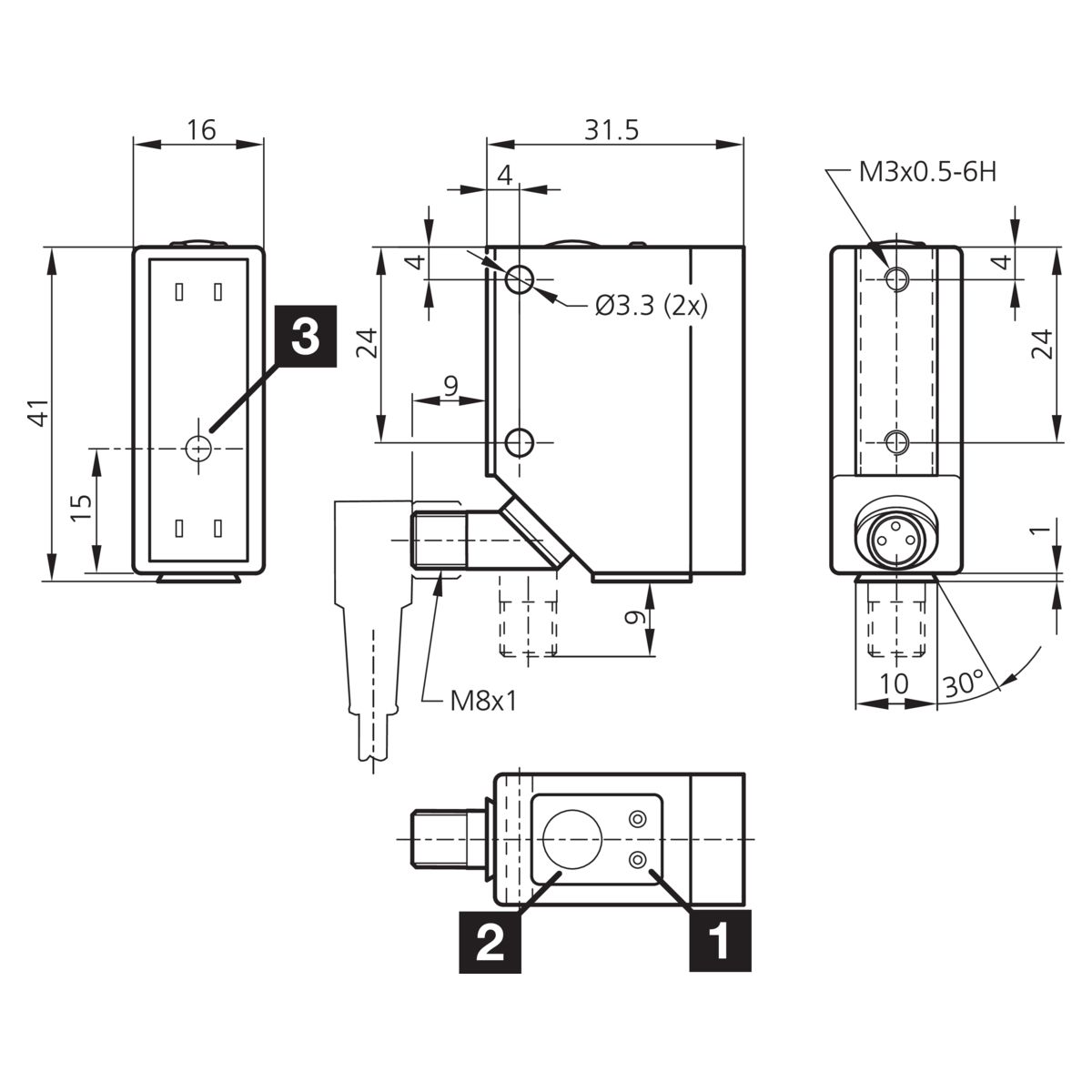

| Housing Dimensions | 41 x 31.5 x 16 mm |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| No Load Current (max.) | 40.0 mA |
| Operating Principle | Retroreflective sensor |
| Range | 100.0 ... 2000.0mm |
| Referring Reflector | RL 13 x 17 mm included |
| Reproducibility | < 1 % |
| Sensitivity Adjustment | Teach button |
| Service Voltage | 10 ... 30.0V DC |
| Switching Hysteresis (max.) | 10.0 % |
| Switching Output | Push-pull 200.0 mA NO/NC switchable |
