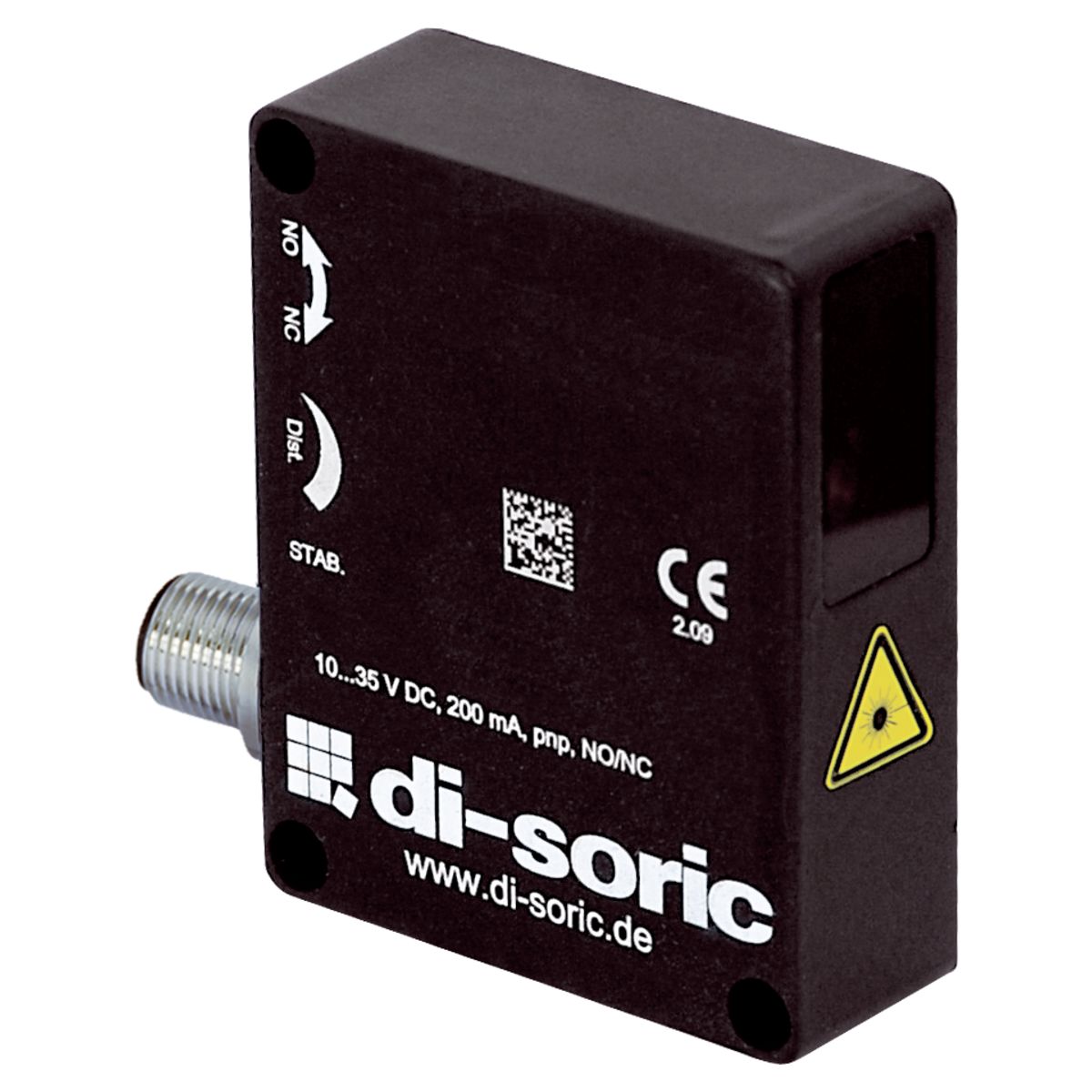

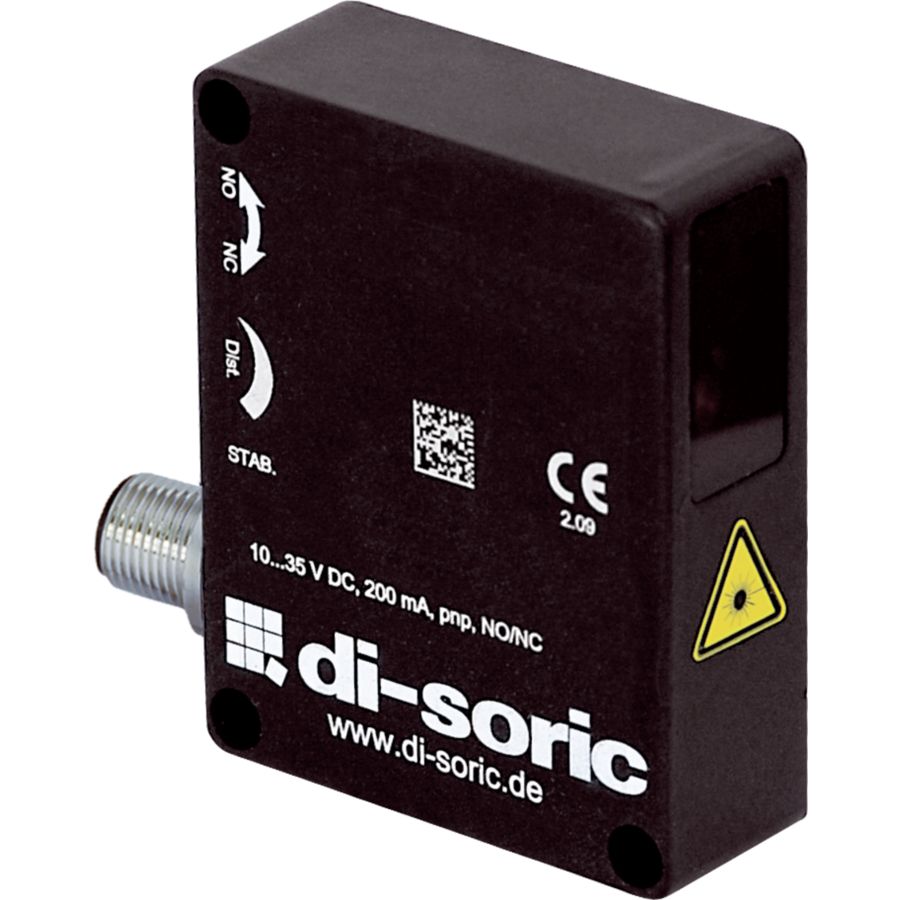

Laser Retroreflective Sensor - LRV 51 M 1000 P3K-IBS
Part Number: LRV 51 M 1000 P3K-IBS
Article Number: 202661
Technical Details
| Ambient Temperature During Operation | 0.0 ... 50.0°C |
|---|---|

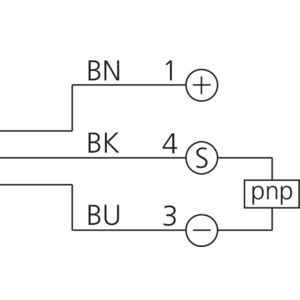

| Connection | Connector M12 3-pin |
| Design | Cuboid design |
| Evaluation | digital |

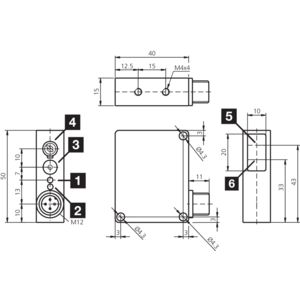

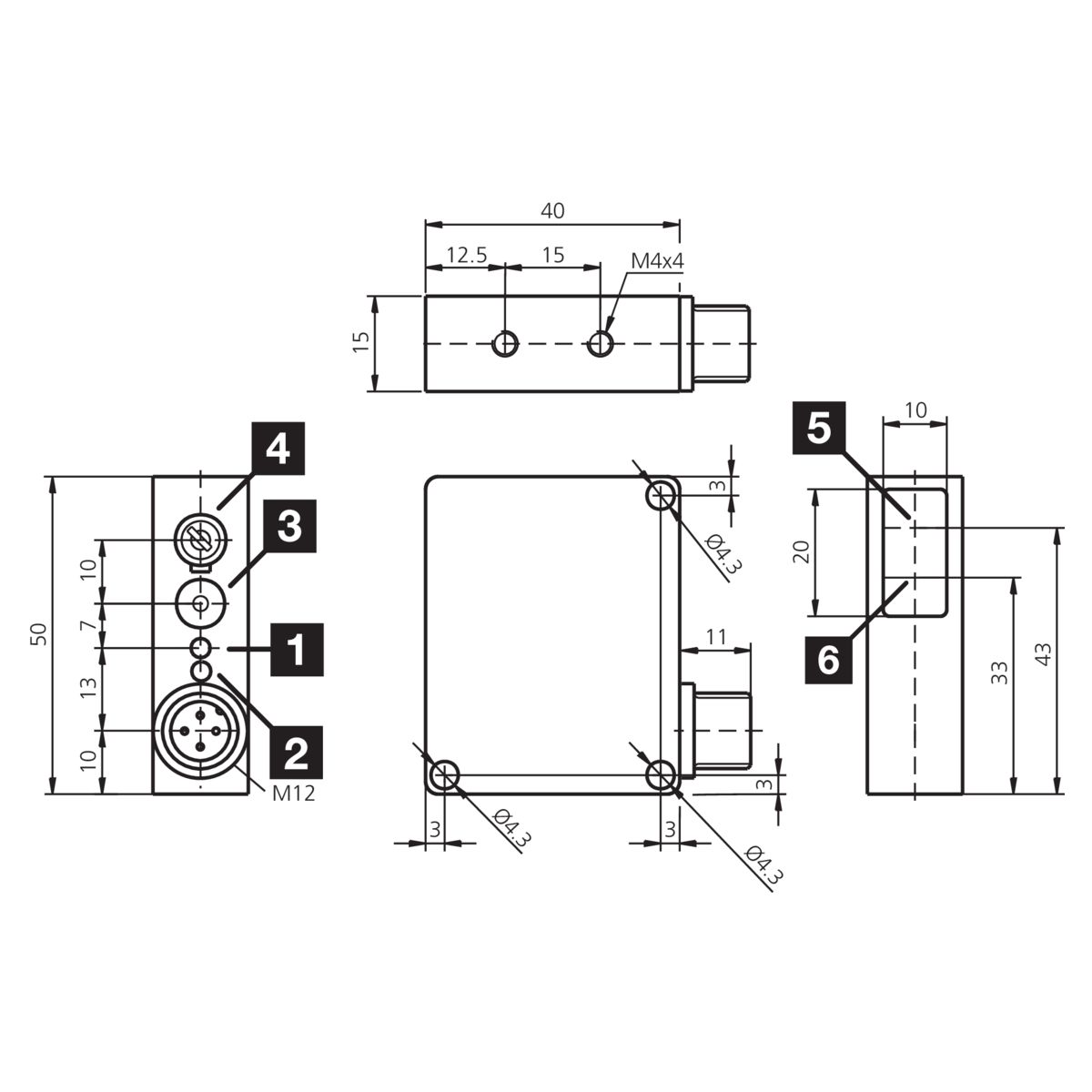

| Housing Dimensions | 50 x 40 x 15 mm |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| No Load Current (max.) | 40.0 mA |
| Operating Principle | Retroreflective sensor |
| Range | 1000.0mm |
| Referring Reflector | RL 13 x 17 mm |
| Reproducibility | 0.1 mm |
| Resolution | 0.2 mm |
| Sensitivity Adjustment | Potentiometer |
| Service Voltage | 10 ... 35.0V DC |
| Switching Hysteresis (max.) | 200.0 µm |
| Switching Output | pnp 200.0 mA NO/NC switchable |
| Voltage Drop (max.) | 2.8 V |
