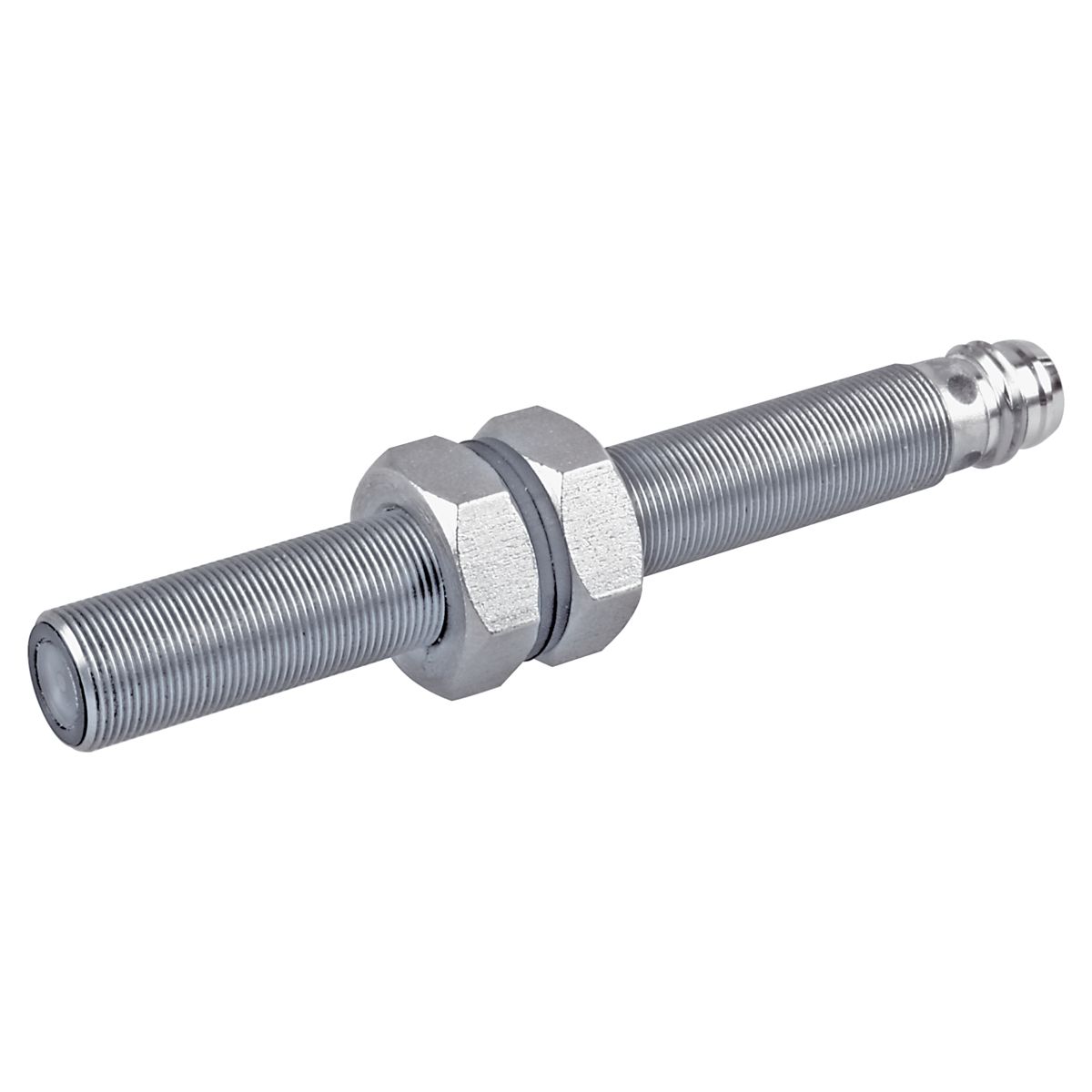

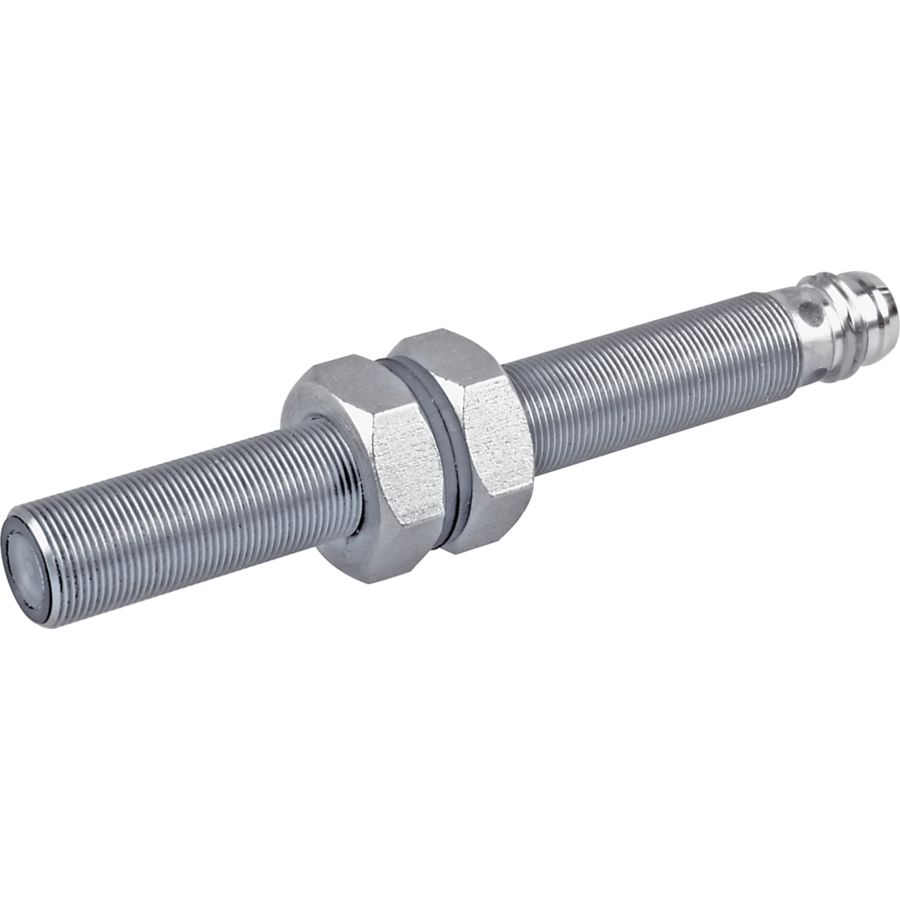

Laser Through-beam Sensor, Receiver - OLE 08 V 2000 P2K-TSSL
Part Number: OLE 08 V 2000 P2K-TSSL
Article Number: 202768
Technical Details
| Ambient Light Immunity | 5 kLx |
|---|---|
| Ambient Temperature During Operation | 0.0 ... 50.0°C |

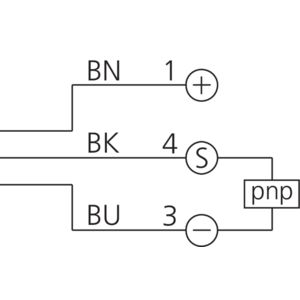

| Connection | Connector M8 3-pin |
| Connection Cable | TK ... |
| Consisting Of | Receiver |
| Design | Thread |
| Evaluation | digital |

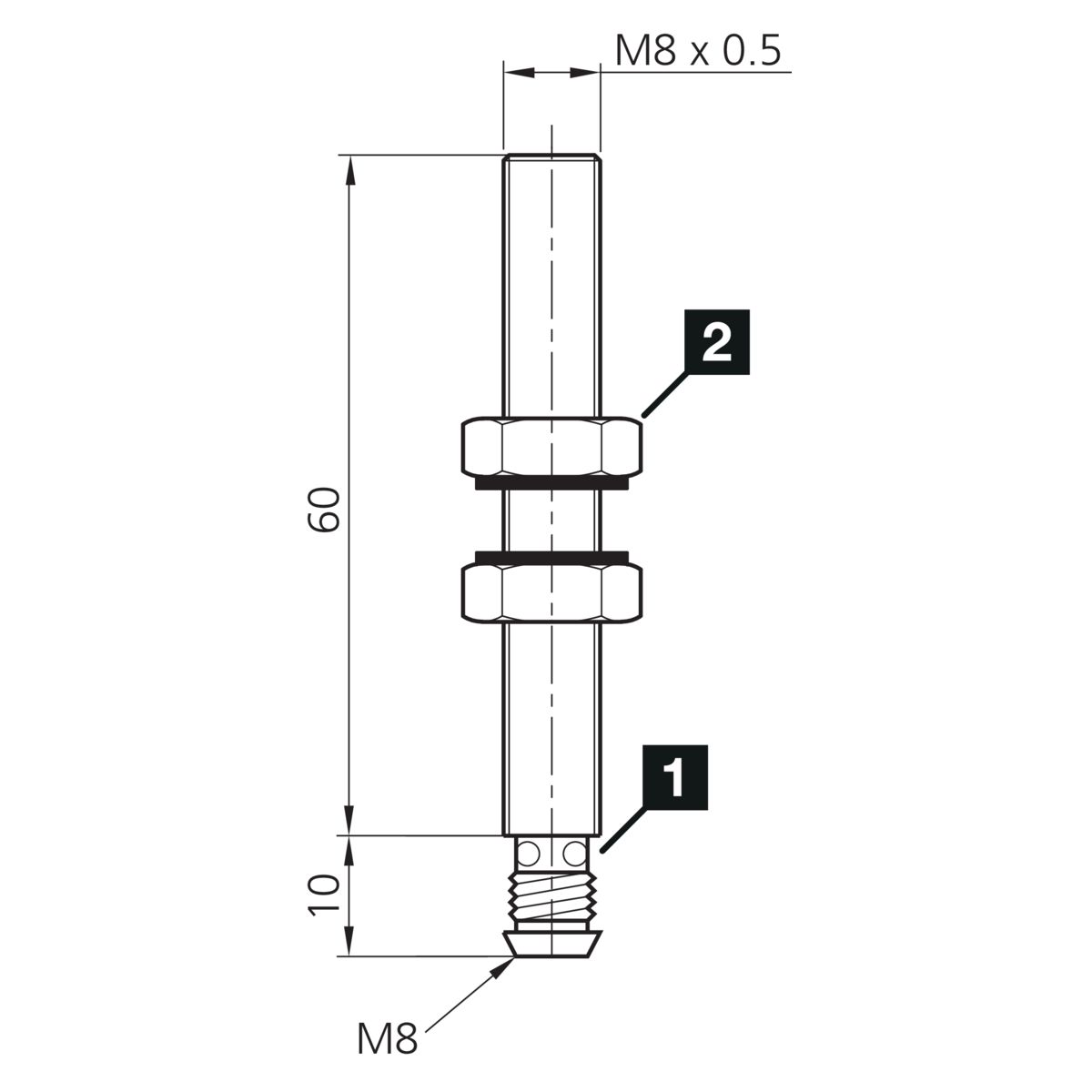

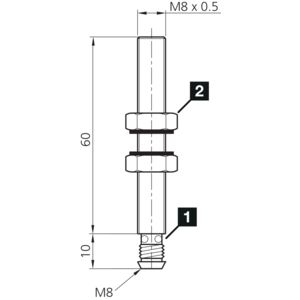

| Housing length | 70.0 mm |
| Housing Material | Stainless steel |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Light Source | Laser |
| No Load Current (max.) | 30.0 mA |
| Operating Principle | Through-beam sensor |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Range | 0.0 ... 2000.0mm |
| Reproducibility | < 0.1 mm |
| Resolution | 1.0 mm |
| Sensitivity Adjustment | no setting elements |
| Service Voltage | 10 ... 35.0V DC |
| Switching Frequency | 2000.0 Hz |
| Switching Hysteresis (max.) | 0.1 mm |
| Switching Output | pnp 200.0 mA NO |
| Thread | M8 x 0.5 |
| Voltage Drop (max.) | 2.5 V |
