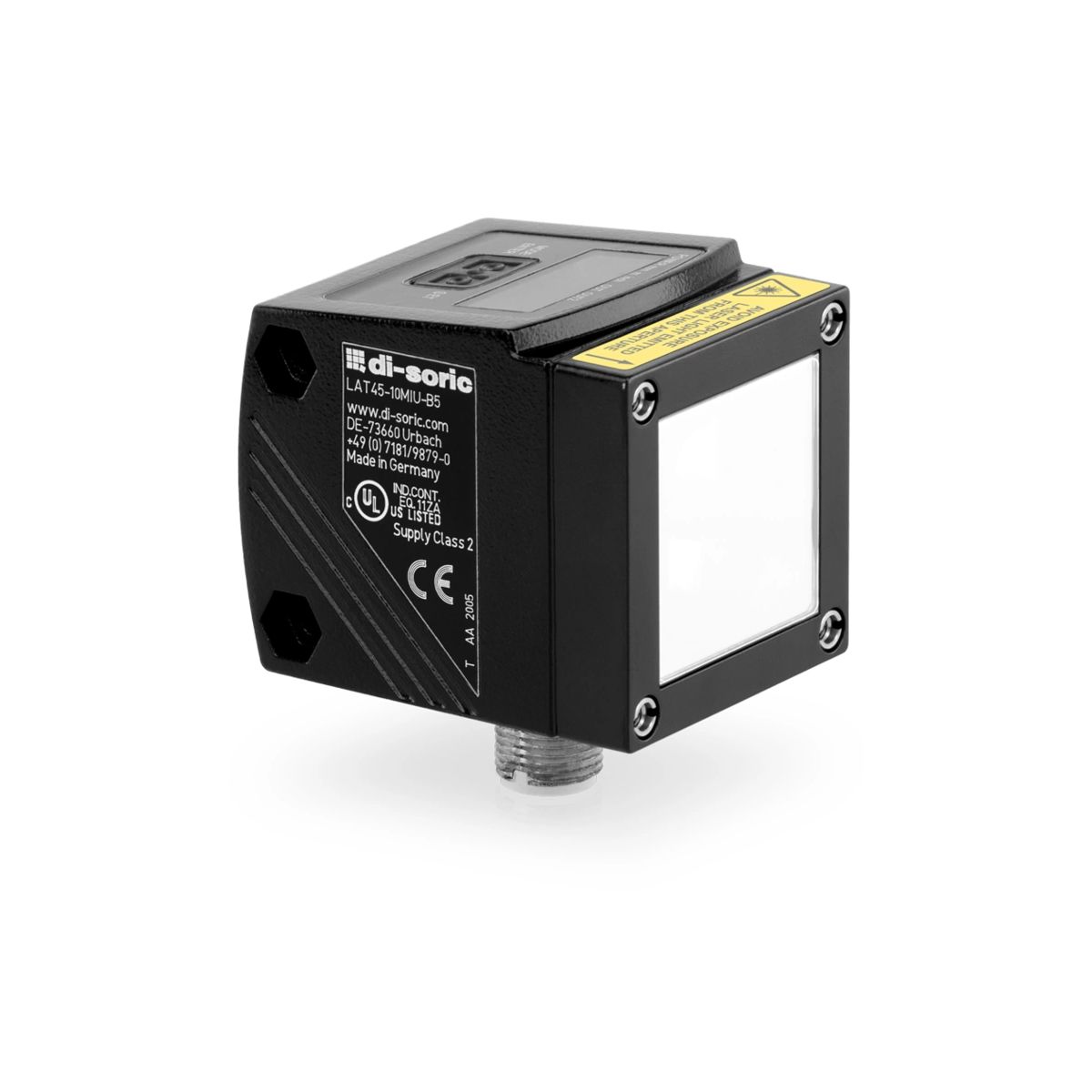

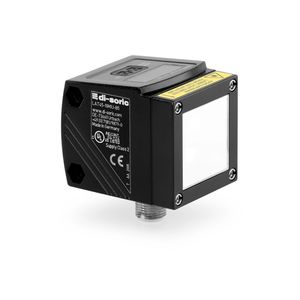

LAT45-10MP3-B5

Ambient Light Immunity	100 kLx
Ambient Temperature During Operation	-10.0 ... 60.0°C
Background Suppression	10000.0 mm 100000.0 mm
Color	Red Pp < 4 mW t = 1.3 ns

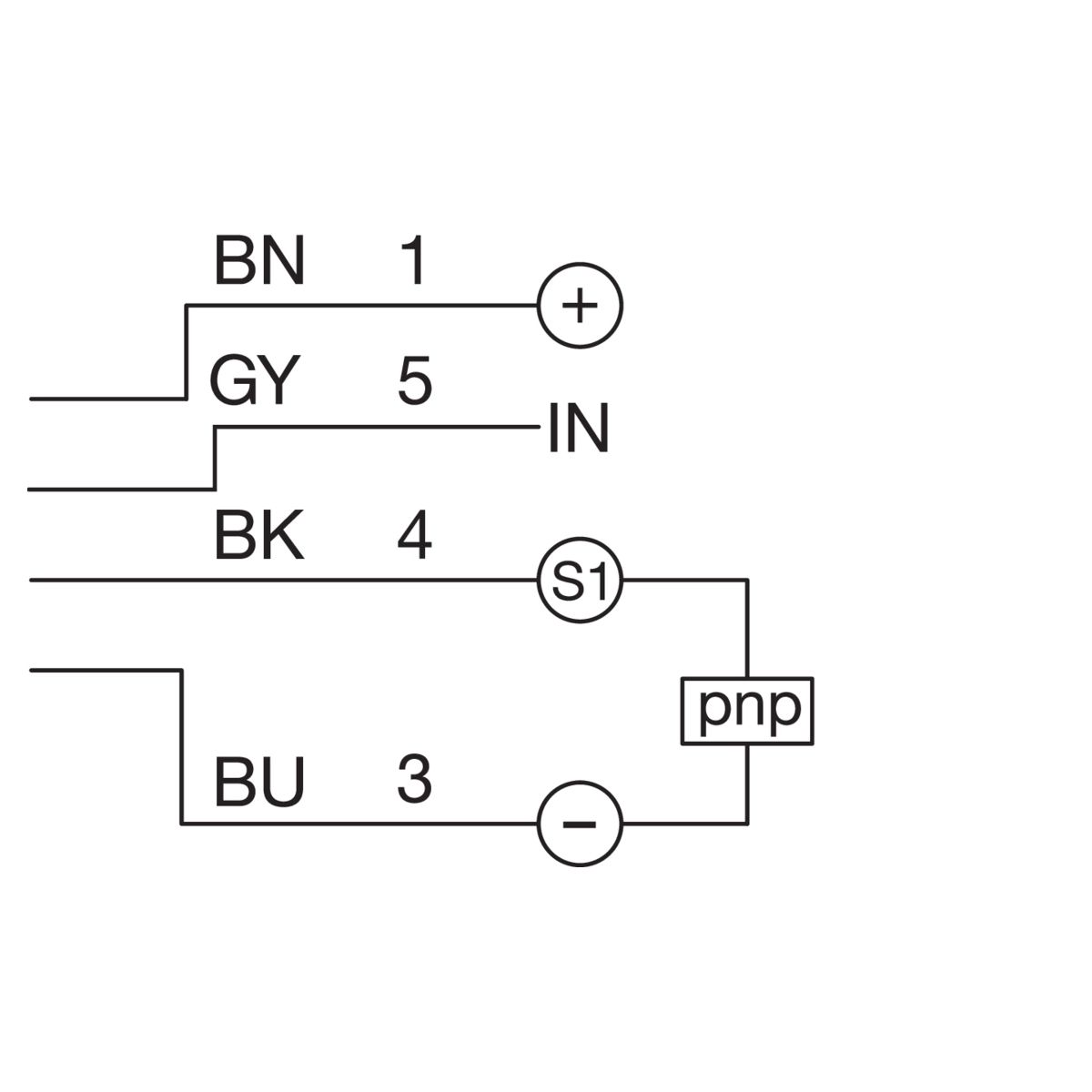

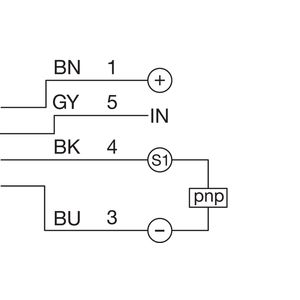

Connection	Connector M12 5-pin
Connection Cable	VK ... /5
Design	Cuboid design
Green	Status

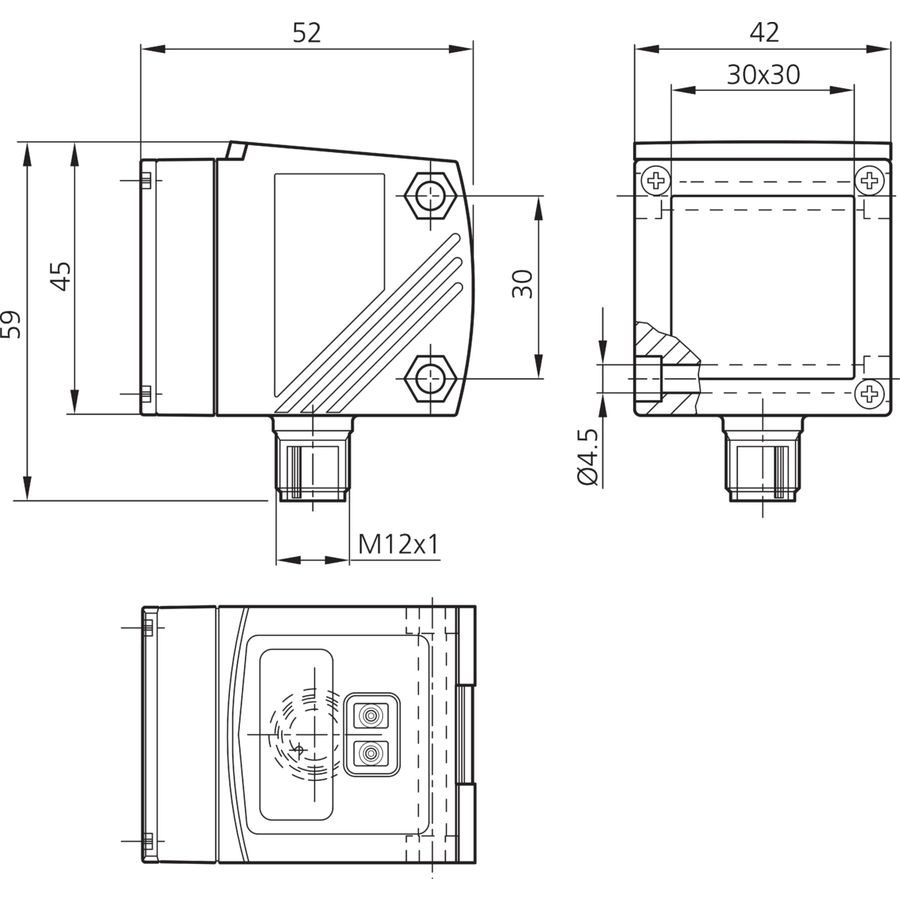

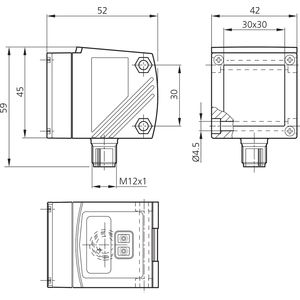

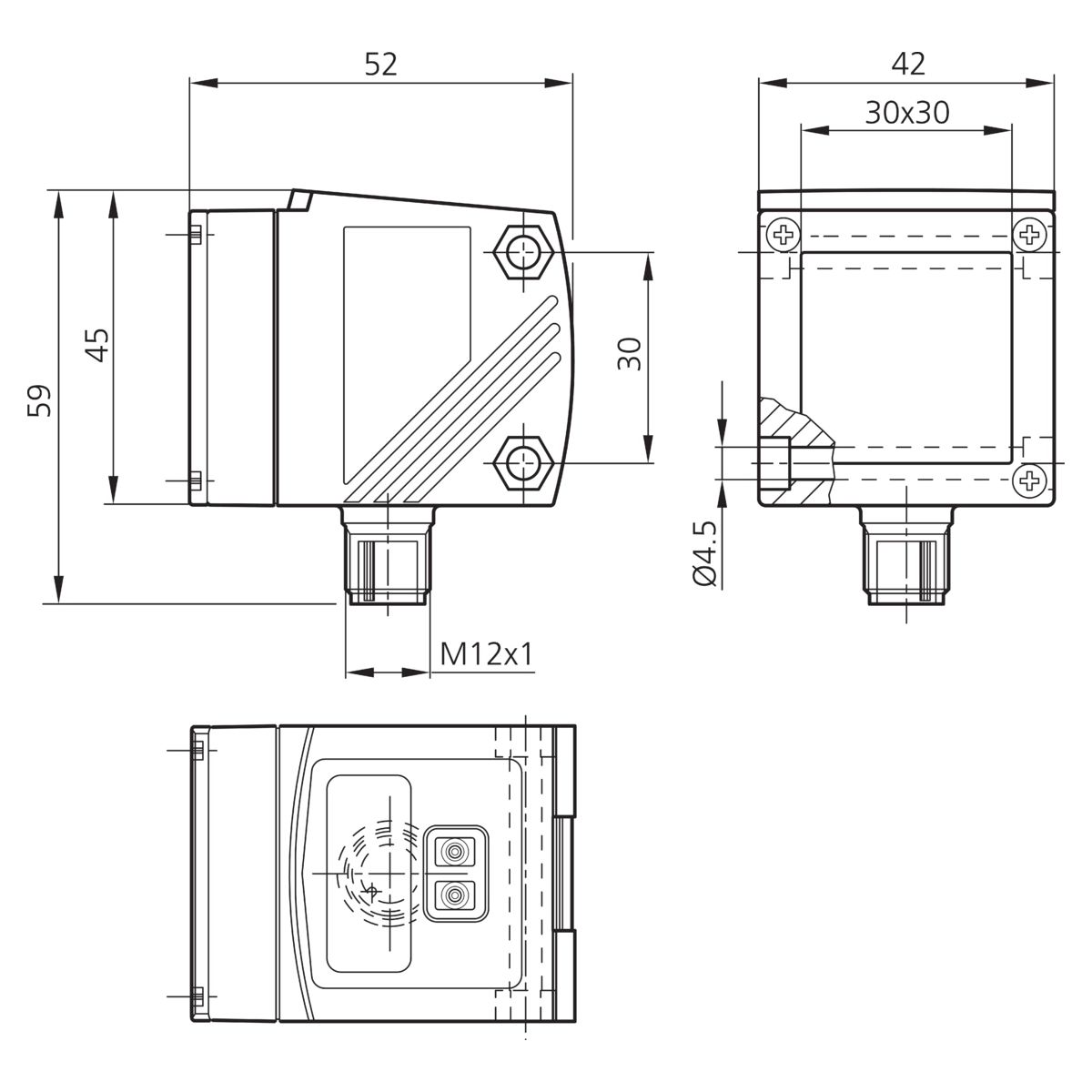

Housing Dimensions	45 x 52 x 42 mm
Housing Material	Die-cast zinc Black painted
Illumination Time Pulse	1.0
Interface	IO-Link V1.1, COM2;Smart Sensor Profile
Laser Class	2 (IEC 60825-1)
Light Source	Laser
Light Spot Size	18 x 20 mm (at distance of 10 m)
Measuring Range	200.0 mm 90 % remission
No Load Current (max.)	150.0 mA
Protection Class	III, operation on protective low voltage
Protection Type	IP 67
Reproducibility	4.5 ... 50 mm (90% remission, measuring frequency 15 Hz)
Resolution	1.0 mm
Resolution1	90% remission, measuring frequency 15 Hz
Sensitivity Adjustment	Keypad
Service Voltage	18.0 ... 30.0V DC
Switching Frequency	5 Hz
Switching Output	pnp 1.0 200.0 mA NO/NC configurable
Weight	309.0 g
Yellow	Switching output
