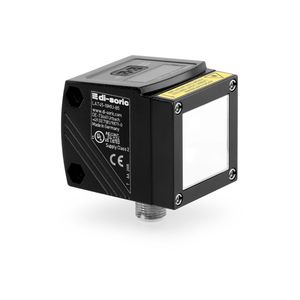

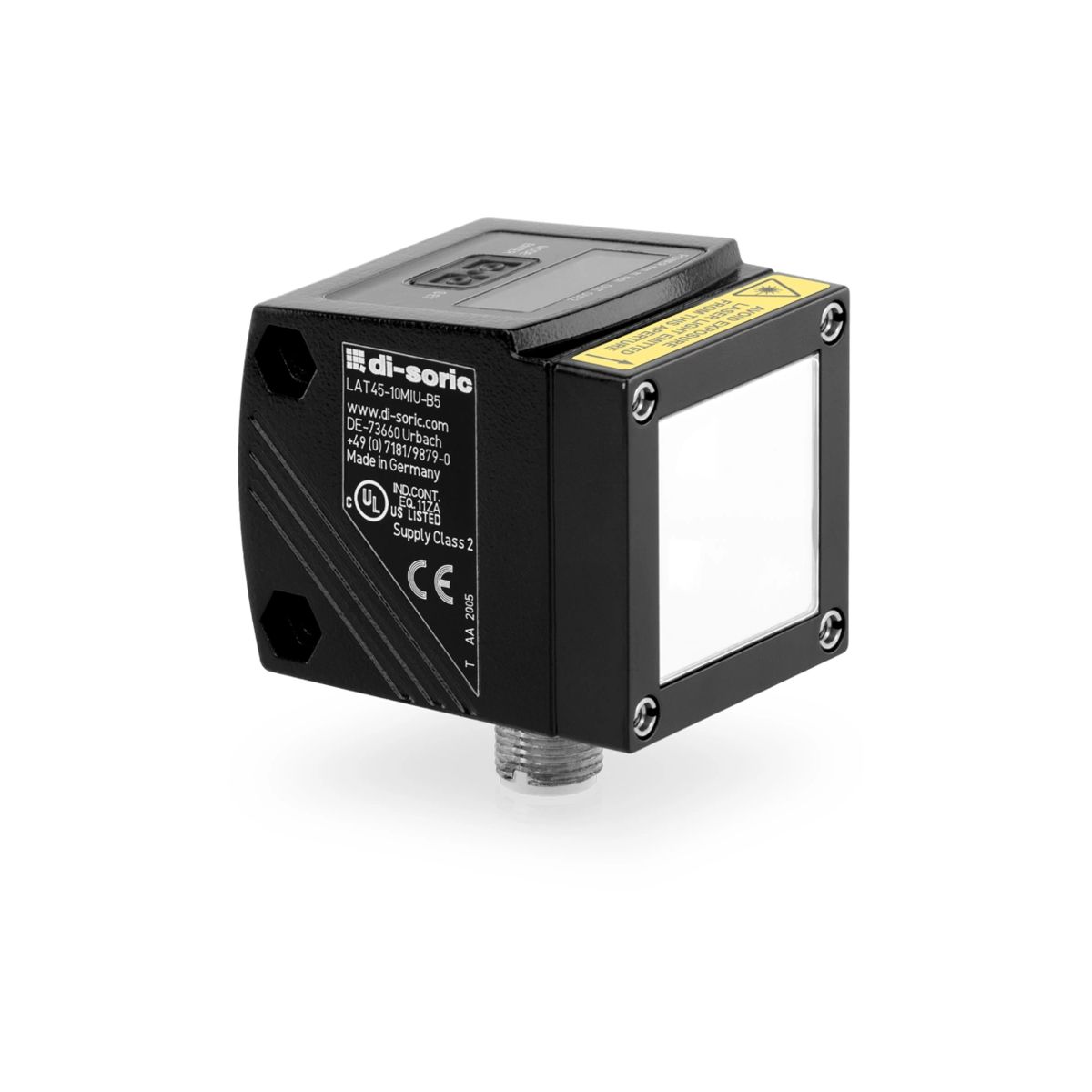

LAT45-6MIU-B5

Ambient Light Immunity	100 kLx
Ambient Temperature During Operation	-10.0 ... 60.0°C
Analog Output	0.0 V 10.0 V 4.0 mA 20.0 mA
Background Suppression	6000.0 mm 100000.0 mm
Color	Red

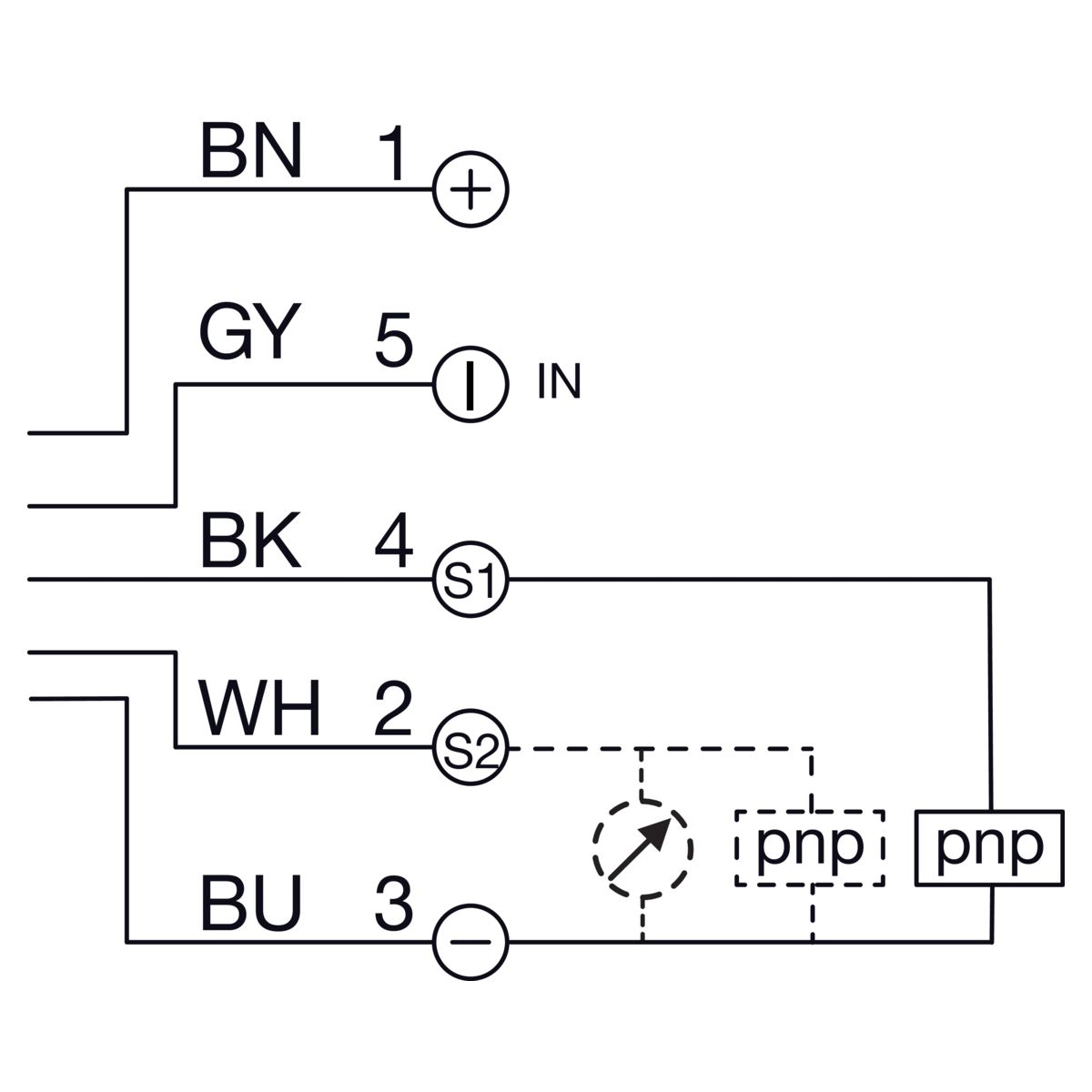

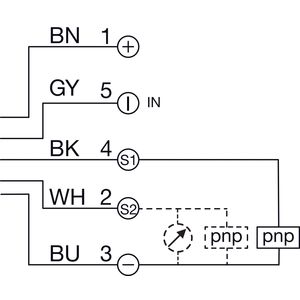

Connection	Connector M12 5-pin
Connection Cable	VK ... /5
Design	Cuboid design
Green	Status

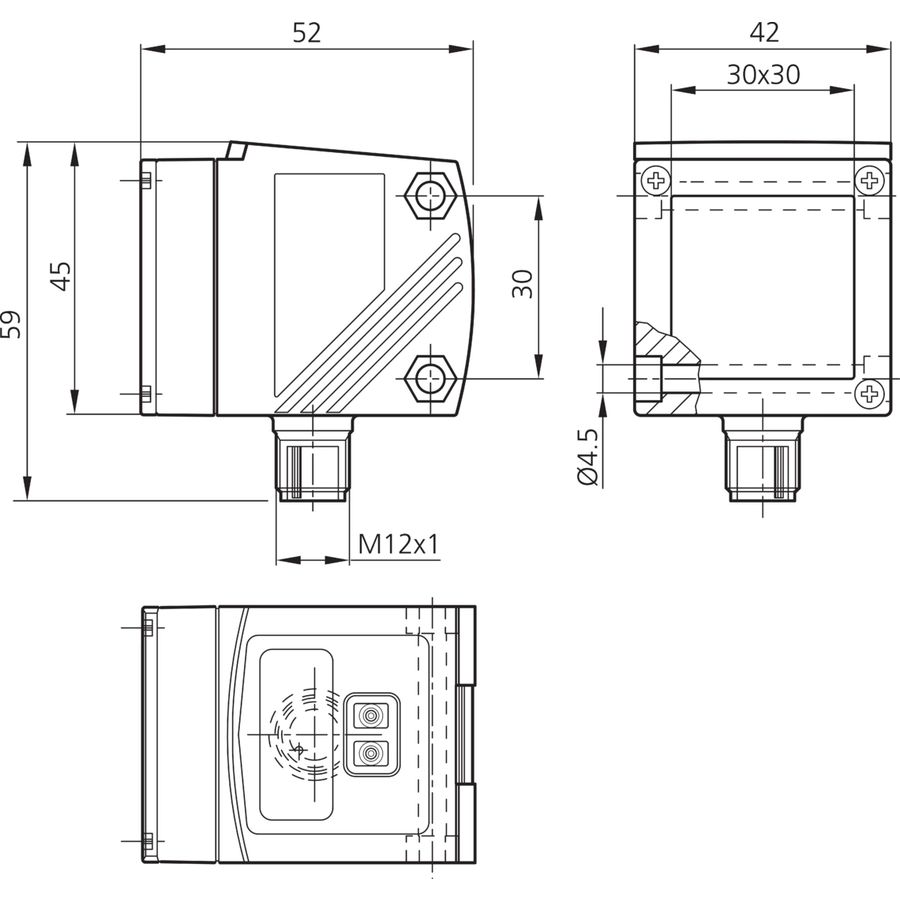

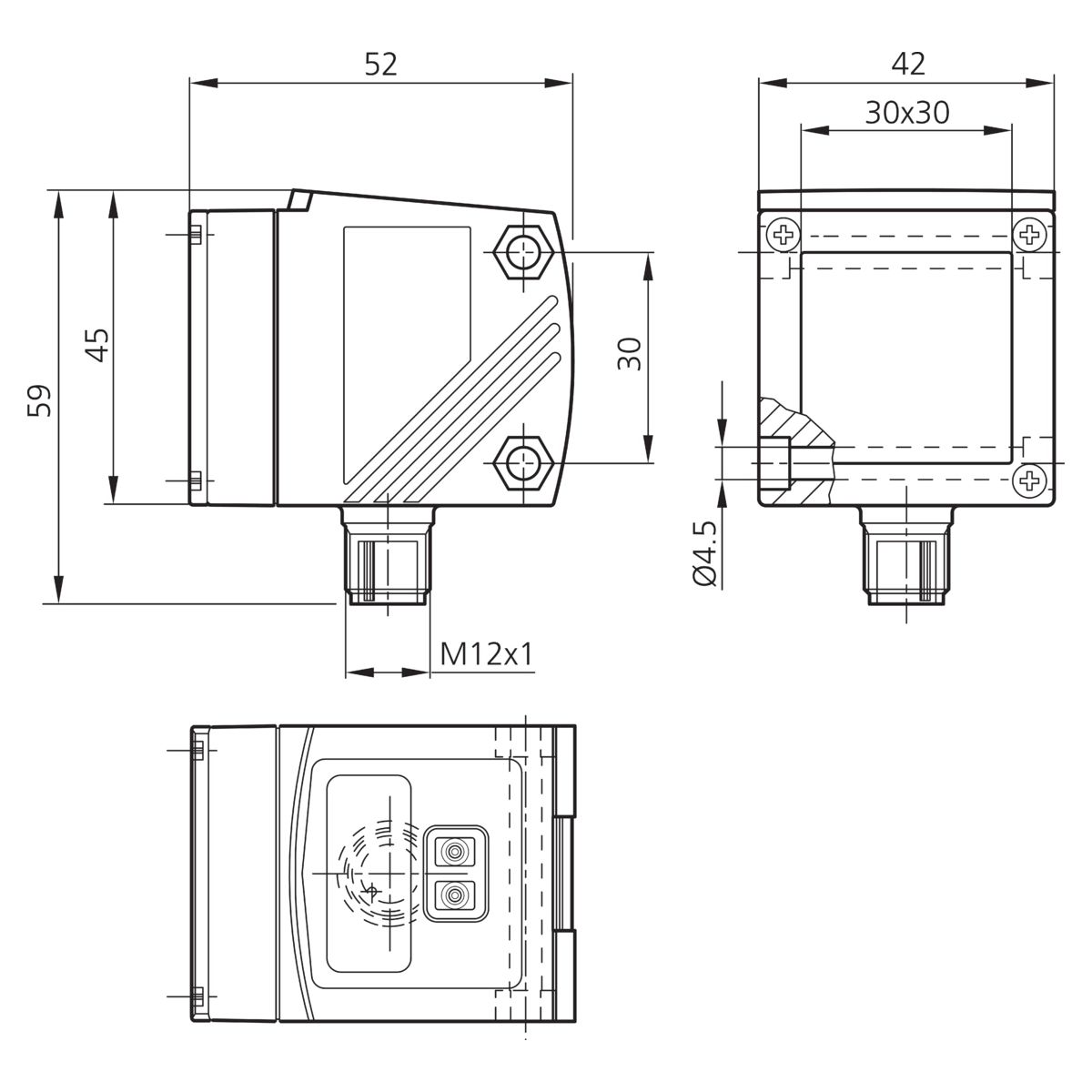

Housing Dimensions	45 x 52 x 42 mm
Housing Material	Die-cast zinc Black painted
Illumination Time Pulse	1.0
Interface	IO-Link V1.1, COM2;Smart Sensor Profile
Laser Class	1 (IEC 60825-1:2014 / EN 60825-1:2014)
Light Source	Laser
Light Spot Size	Ø 8 mm (at 6 m distance)
Linearity Error	31.0 ± mm mm 90% remission, measuring frequency 15 Hz
Measuring Frequency	1.0 Hz 33.0 Hz
Measuring Range	300.0 mm 90 % remission
No Load Current (max.)	150.0 mA
Protection Class	III, operation on protective low voltage
Protection Type	IP 67
Reproducibility	11 ... 145 mm (90% remission, measuring frequency 15 Hz)
Resolution	1.0 mm
Resolution1	90% remission, measuring frequency 15 Hz
Sensitivity Adjustment	Keypad
Service Voltage	18.0 ... 30.0V DC
Switching Frequency	0.3 Hz 11.0 Hz
Switching Output	pnp 2.0 200.0 mA NO/NC configurable
Weight	309.0 g
Yellow	Switching output
