LI 120-5-595-630 T
Part Number: LI 120-5-595-630 T
Article Number: 205612
Technical Details
| Ambient Temperature During Operation | -20.0 ... 40.0°C |
|---|---|
| Beam Evaluation | via external evaluation electronics |
| Beam Separation | 5.0 mm |
| Color | Infrared |
| Connection | with plug connector;additional variants on request Cable 4.0 m |
| Diameter Mounting Pin Boring | mm mm |
| Dimension | 17.5 17.5 |
| Evaluation | absolute;percentage;Configurable via evaluation electronics |
| Evaluation Electronics | external |
| Housing Material | Aluminum natural |
| Illumination Time Pulse | 1.0 |
| Light Source | LED |
| Measuring Range | 595.0 mm |
| Monitoring Height | 595.0 mm |
| Number Of Beams | 120.0 |
| Output Function | Configurable via evaluation electronics |

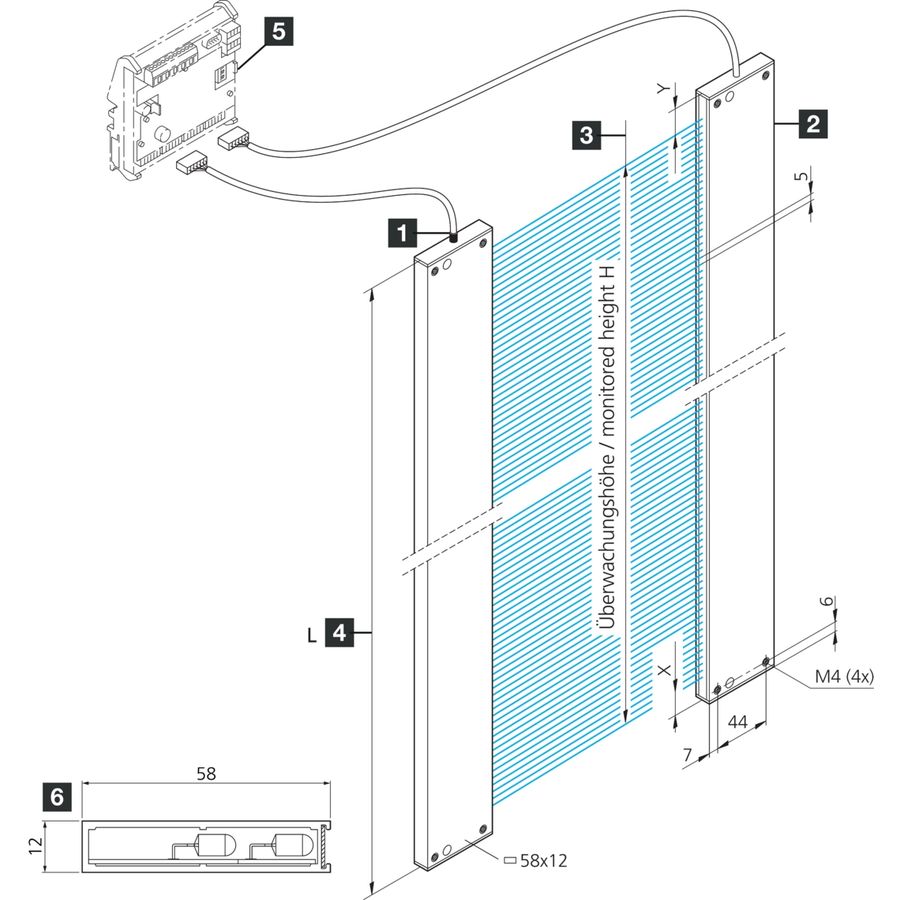

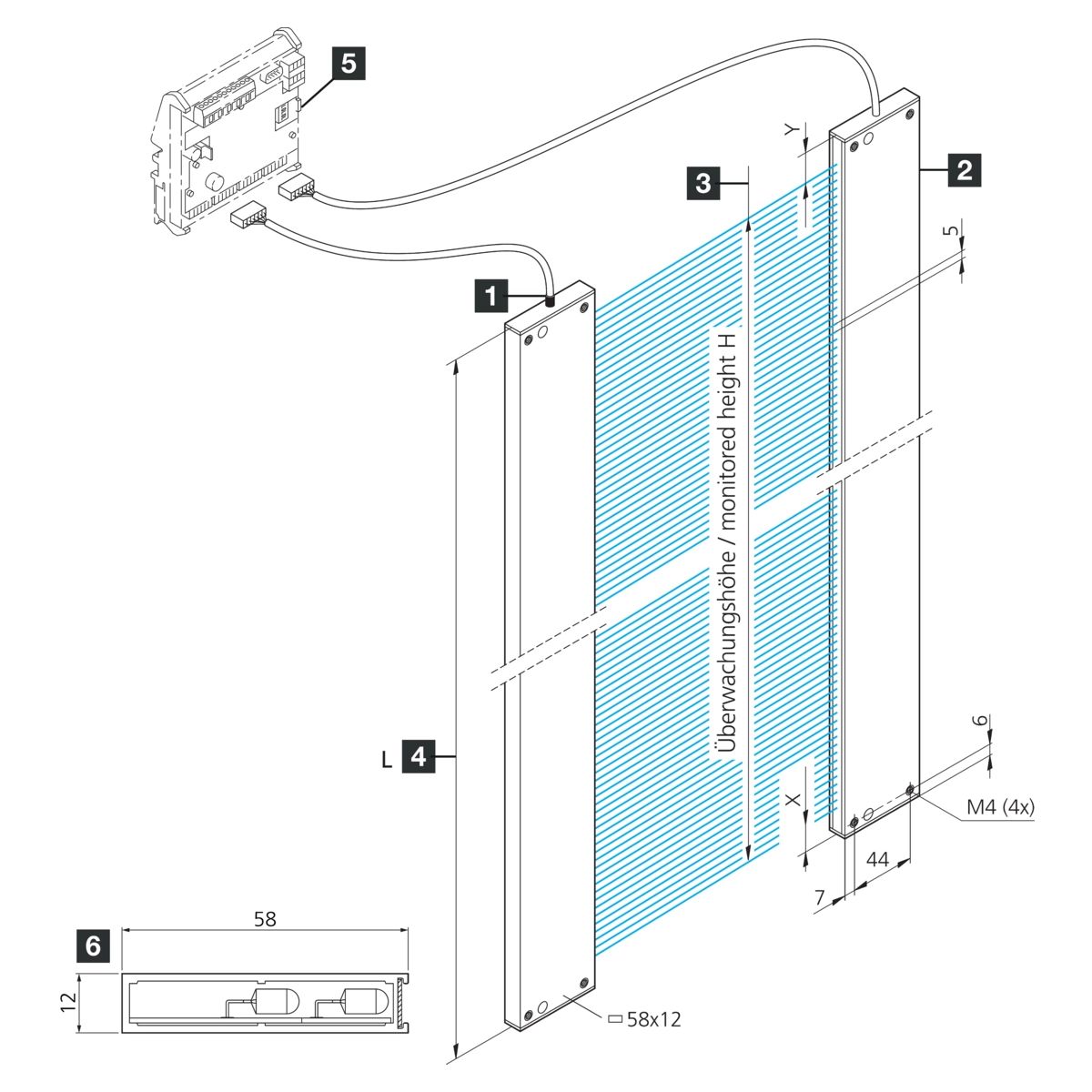

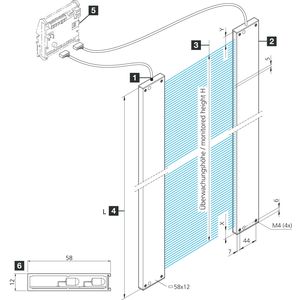

| Profile Cross Section | 12 x 58 mm |
| Profile Length | 630.0 mm |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 54 IP 65 optional |
| Range | 250.0 ... 6000.0mm (adjustable via evaluation electronics) |
| Service Voltage | 20 ... 26.0V DC |
| Switching Output | Configurable via evaluation electronics;NO;NC |
| Wavelength | 880.0 nm |
