LI 32-25-775-840 I
Part Number: LI 32-25-775-840 I
Article Number: 206201
Technical Details
| Ambient Temperature During Operation | -20.0 ... 40.0°C |
|---|---|
| Assembly | Threaded bolt |
| Beam Evaluation | via external evaluation electronics |
| Beam Separation | 25.0 mm |
| Color | Infrared |

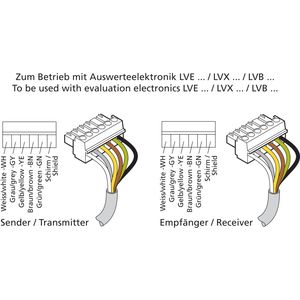

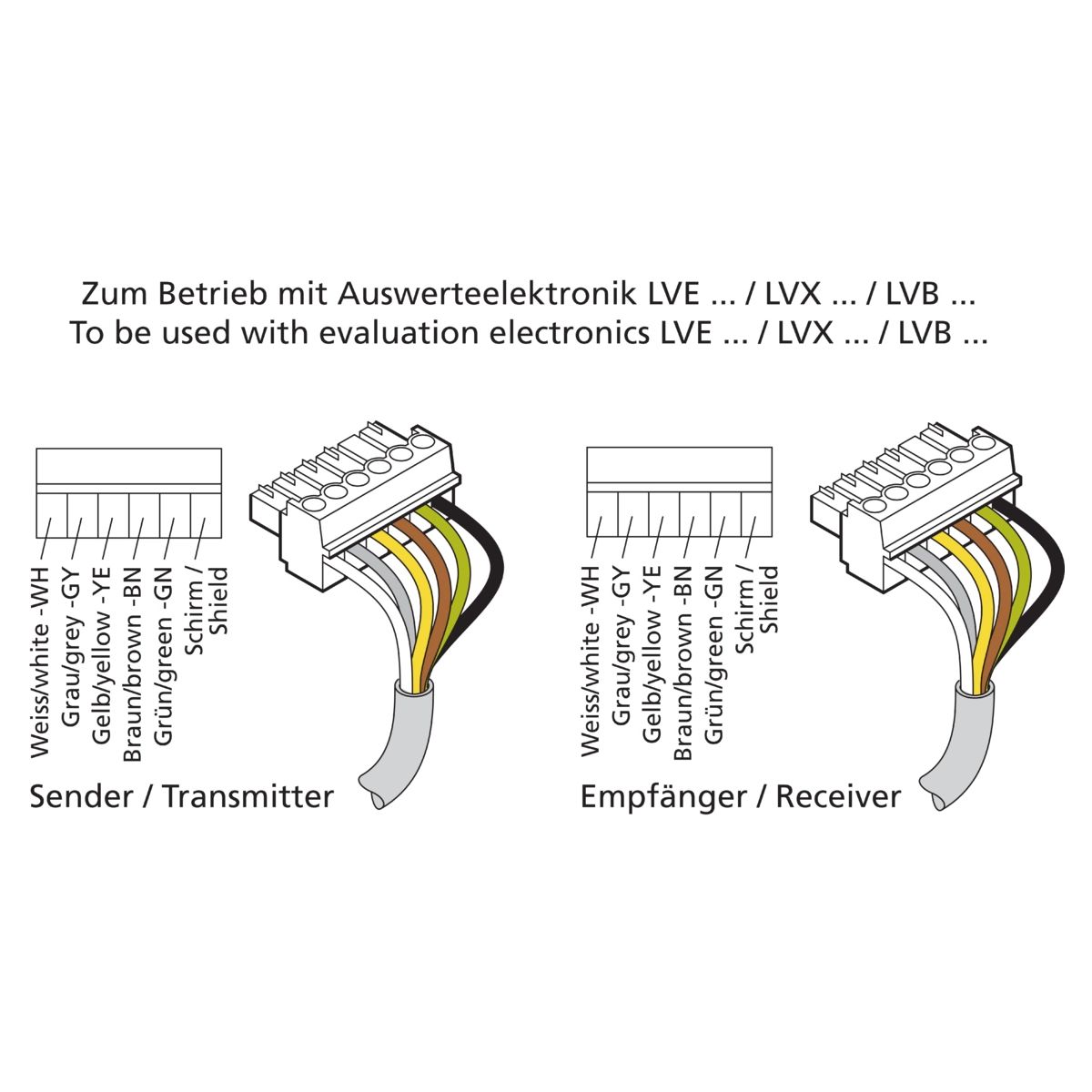

| Connection | with plug connector;additional variants on request Cable 4.0 m |
| Diameter Mounting Pin Boring | mm mm mm mm |
| Dimension | 70.0 700.0 20.0 45.0 |
| Evaluation | absolute;percentage;Configurable via evaluation electronics |
| Evaluation Electronics | external |
| Housing Material | Aluminum natural |
| Illumination Time Pulse | 1.0 |
| Light Source | LED |
| Measuring Range | 775.0 mm |
| Monitoring Height | 775.0 mm |
| Number Of Beams | 32.0 |
| Output Function | Configurable via evaluation electronics |
| Profile Cross Section | 12 x 24 mm |
| Profile Length | 840.0 mm |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 54 IP 65 optional |
| Range | 250.0 ... 6000.0mm (adjustable via evaluation electronics) |
| Service Voltage | 20 ... 26.0V DC |
| Switching Output | Configurable via evaluation electronics;NO;NC |
| Wavelength | 880.0 nm |
