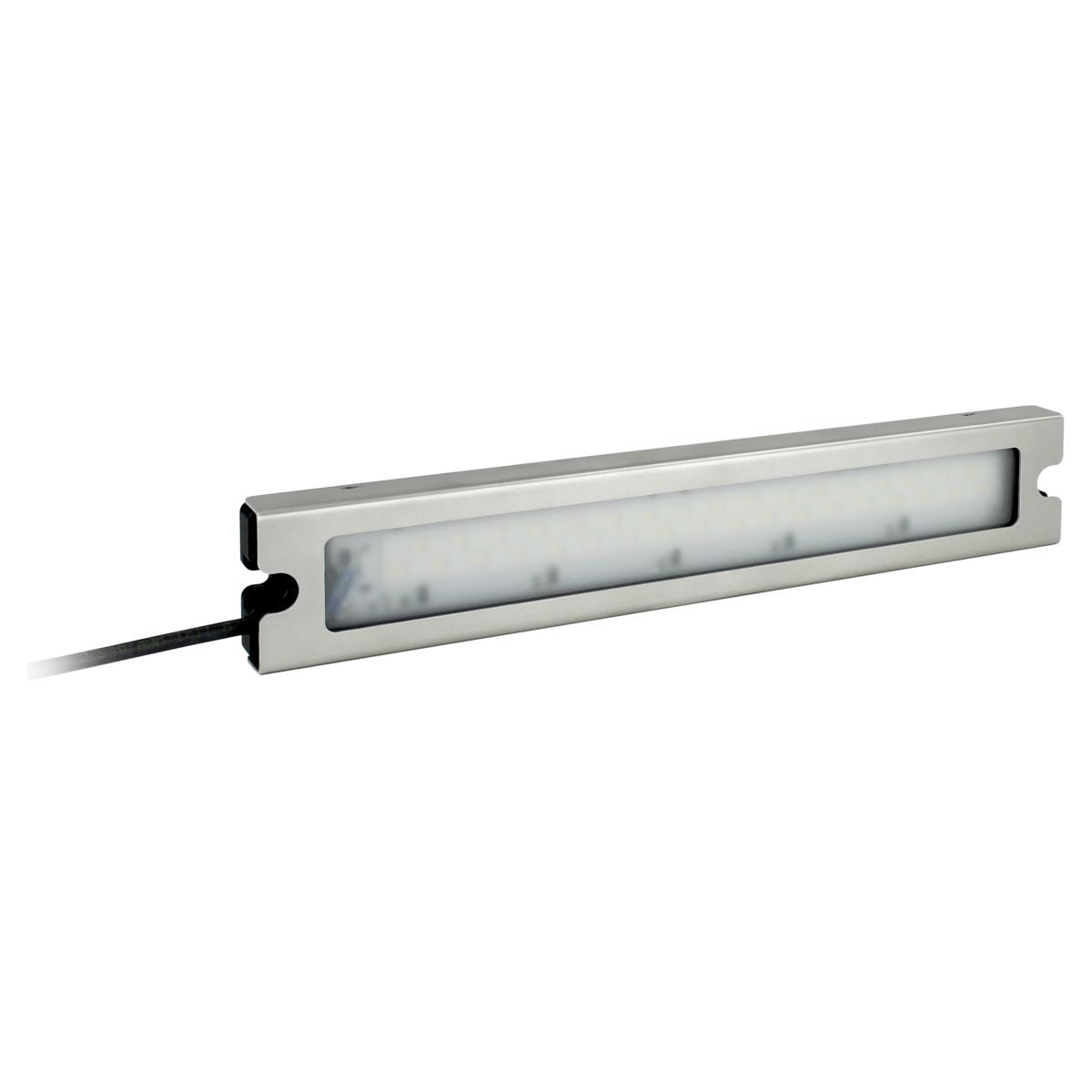

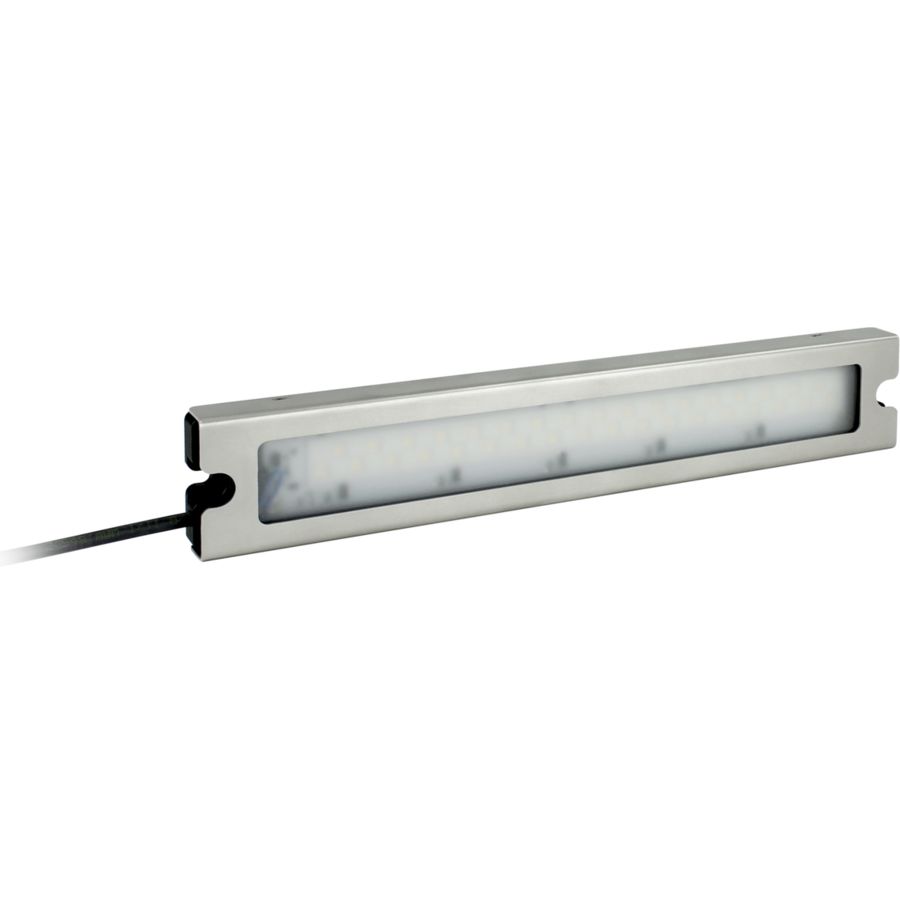

Machine Lighting - MB-NP-250-K
Part Number: MB-NP-250-K
Article Number: 210050
Technical Details
| Ambient Temperature During Operation | 0.0 ... 40.0°C |
|---|---|
| Color | White 5 000 K |
| Color Rendering Index Ra | 85.0 |

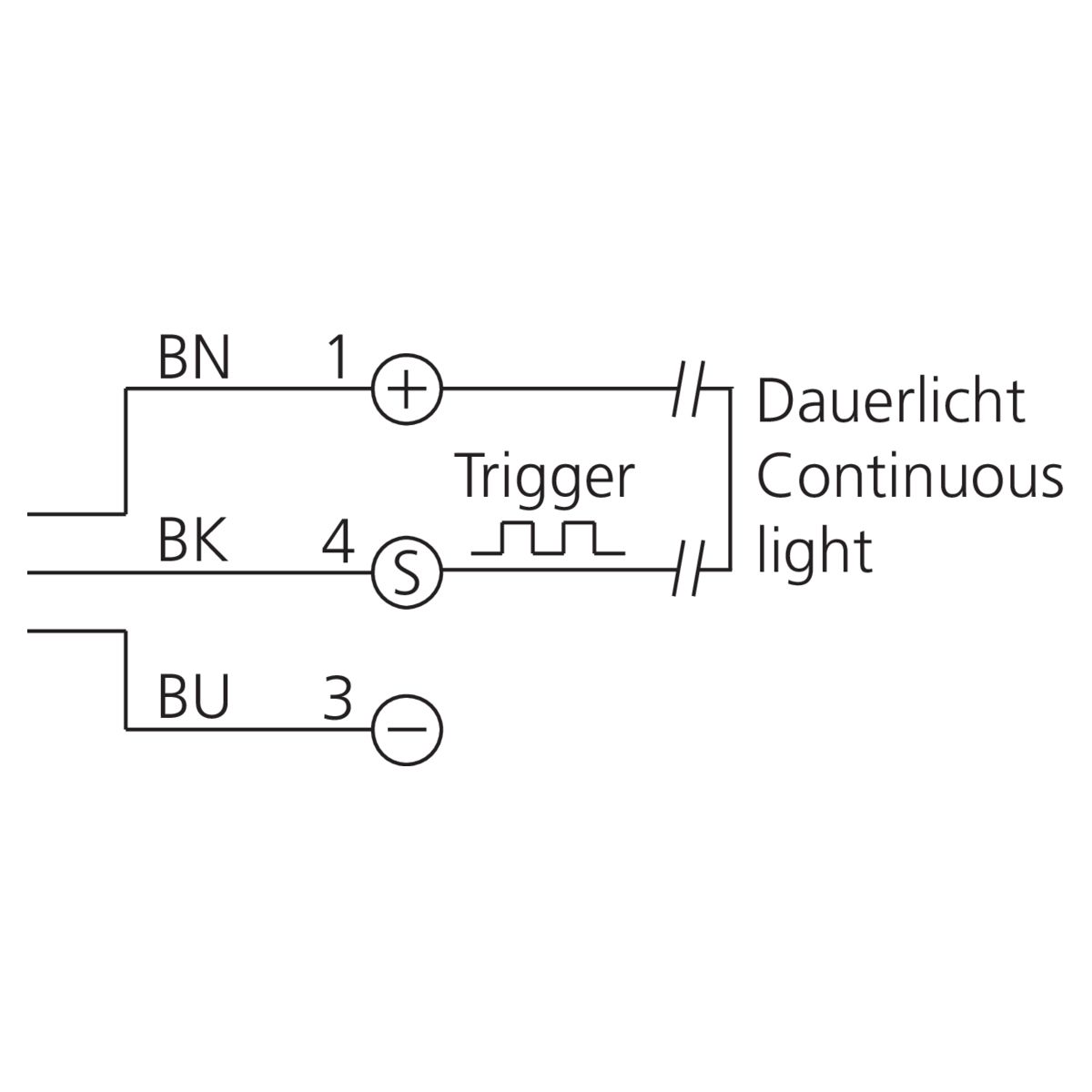

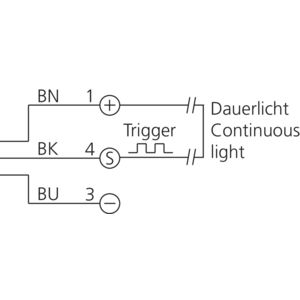

| Connection | Cable 3.0 m 3-pin flying leads |
| Connection1 | 3 x 0.34 mm² |
| Deflection Angle FWHM | 120.0 ° |
| Housing Material | Aluminum |

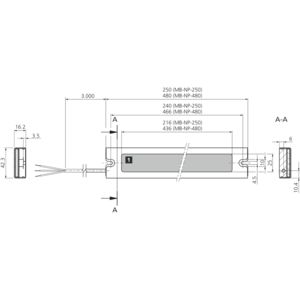

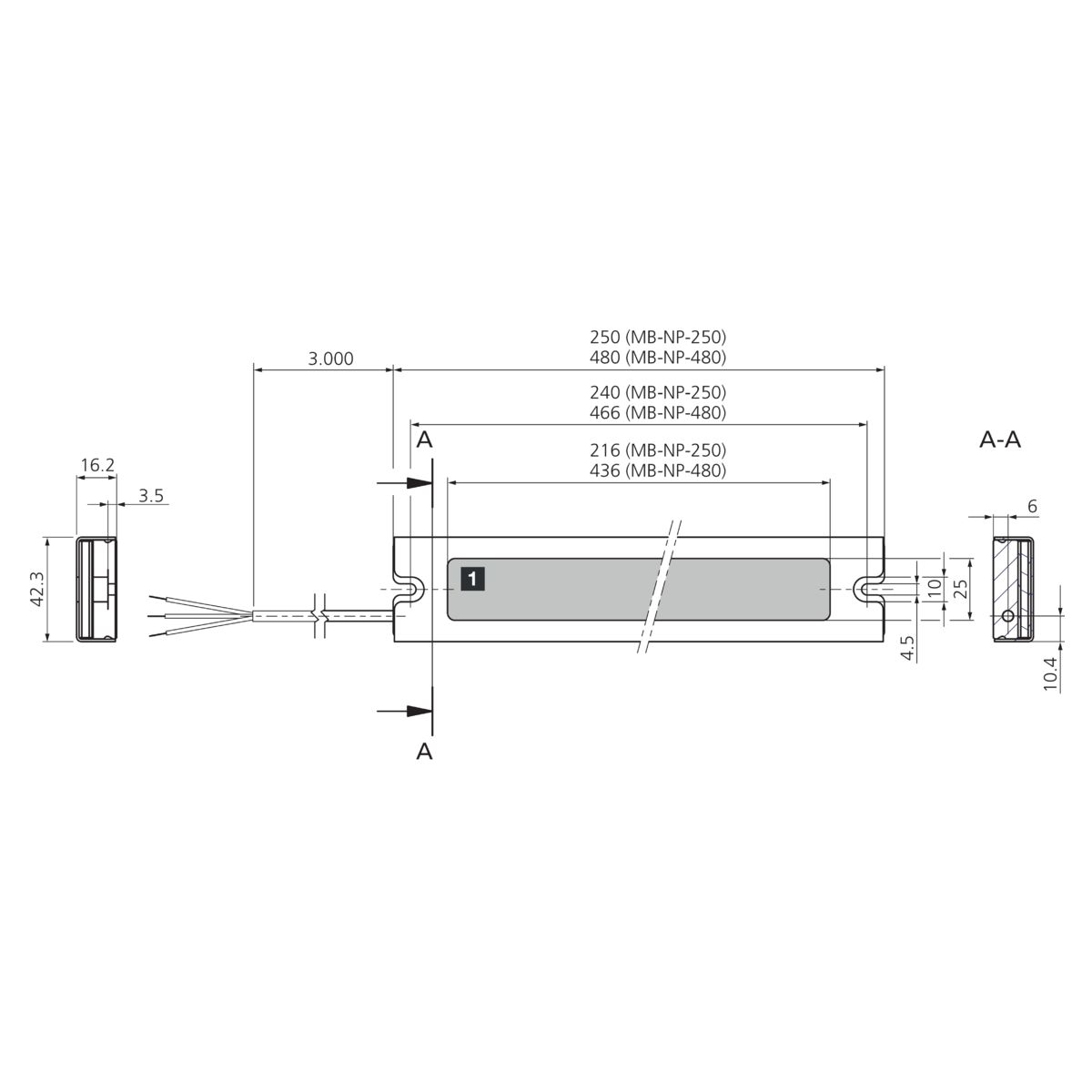

| Illuminated Area | 220.0 mm 30.0 mm |
| Illumination Time Pulse | 1.0 |
| Internal Power Consumption | 450.0 mA 24.0 V DC |
| Inverse Polarity Protection | Yes |
| Light Intensity | 1.4;0.43 kLx;kLx 500;1000 mm;mm |
| Light Source | LED |
| Material | Safety glass ESG, diffuse;V2A Window;Front frame |
| Model | Machine lighting |
| On Delay Time (Trig.) | 0.05 ms |
| Power | 10.8 W 24.0 V |
| Product Series | MB-NP Protected |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Risk Group (DIN EN 62471) | Free group |
| Service Voltage | 24.0 |
| Shock Vibration Load | 30 g, 11 ms / 10 ... 55 Hz, 1.0 mm |
| Switch Off Delay (Trig.) | 0.05 ms |
| Trigger Input High Level | 8.0 V 25.2 V |
| Trigger Input Low Level | 5.0 < V |
| Weight | 410.0 g |
