MB-R-1540-B5
Part Number: MB-R-1540-B5
Article Number: 213808
Technical Details
| Ambient Temperature During Operation | -20.0 ... 50.0°C |
|---|---|
| Color | White 5 000 K |

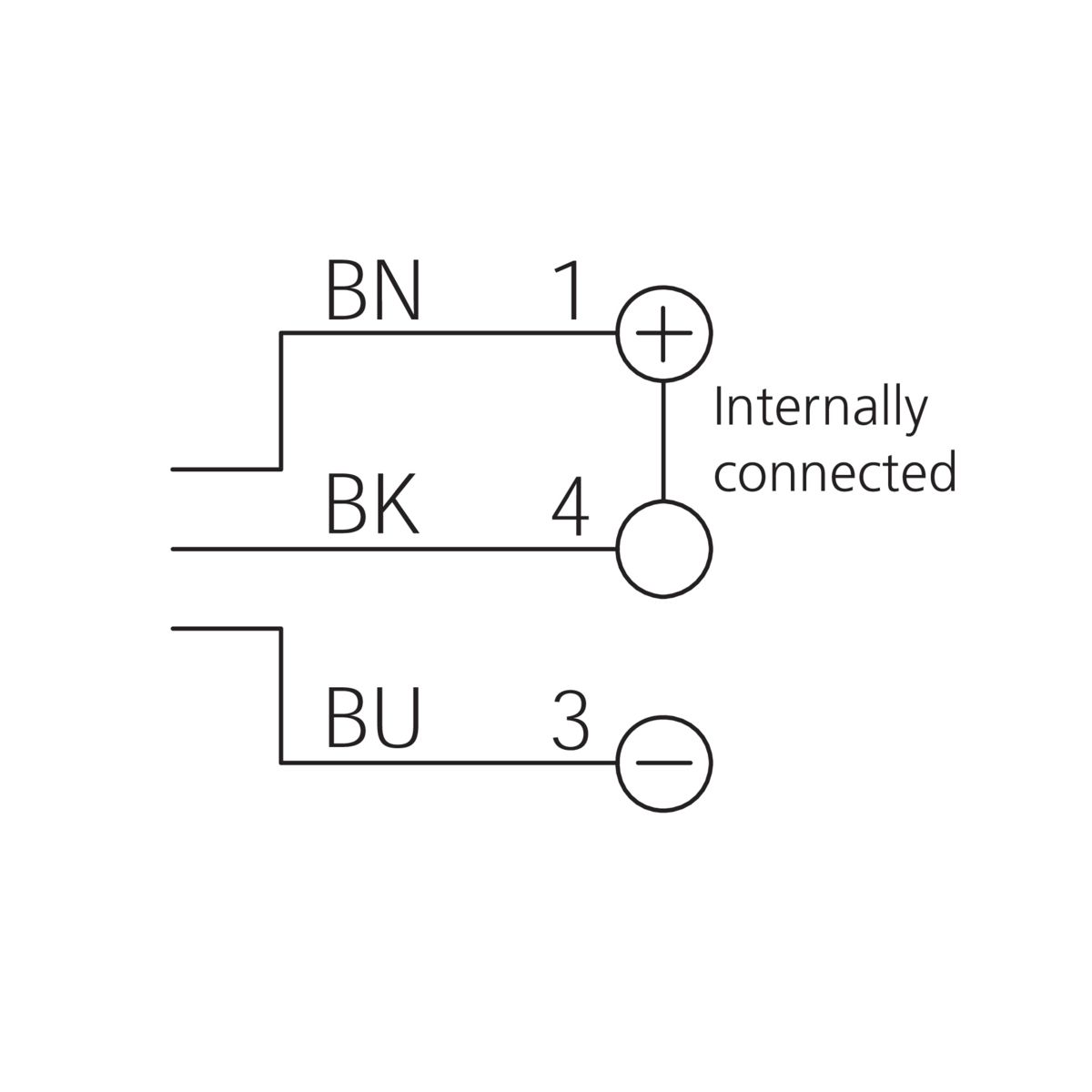

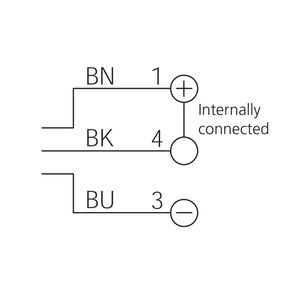

| Connection | Connector M12 5-pin A-coded |
| Deflection Angle FWHM | 102.0 ° |
| Housing Material | Aluminum natural Anodized |

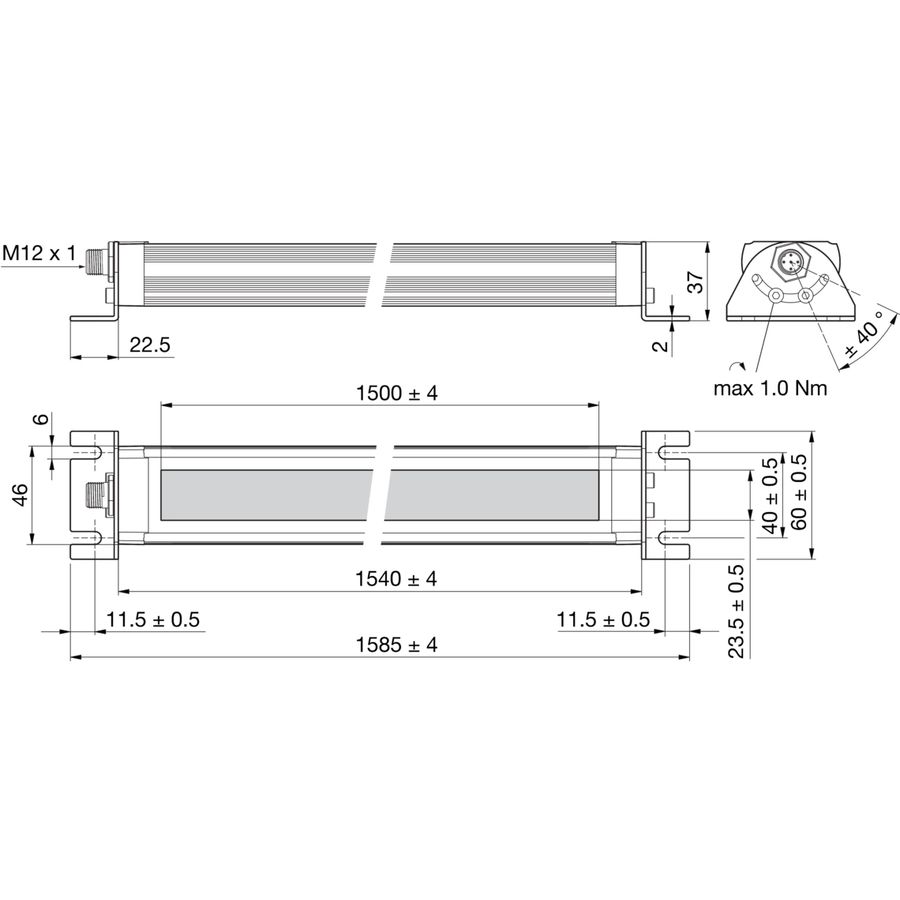

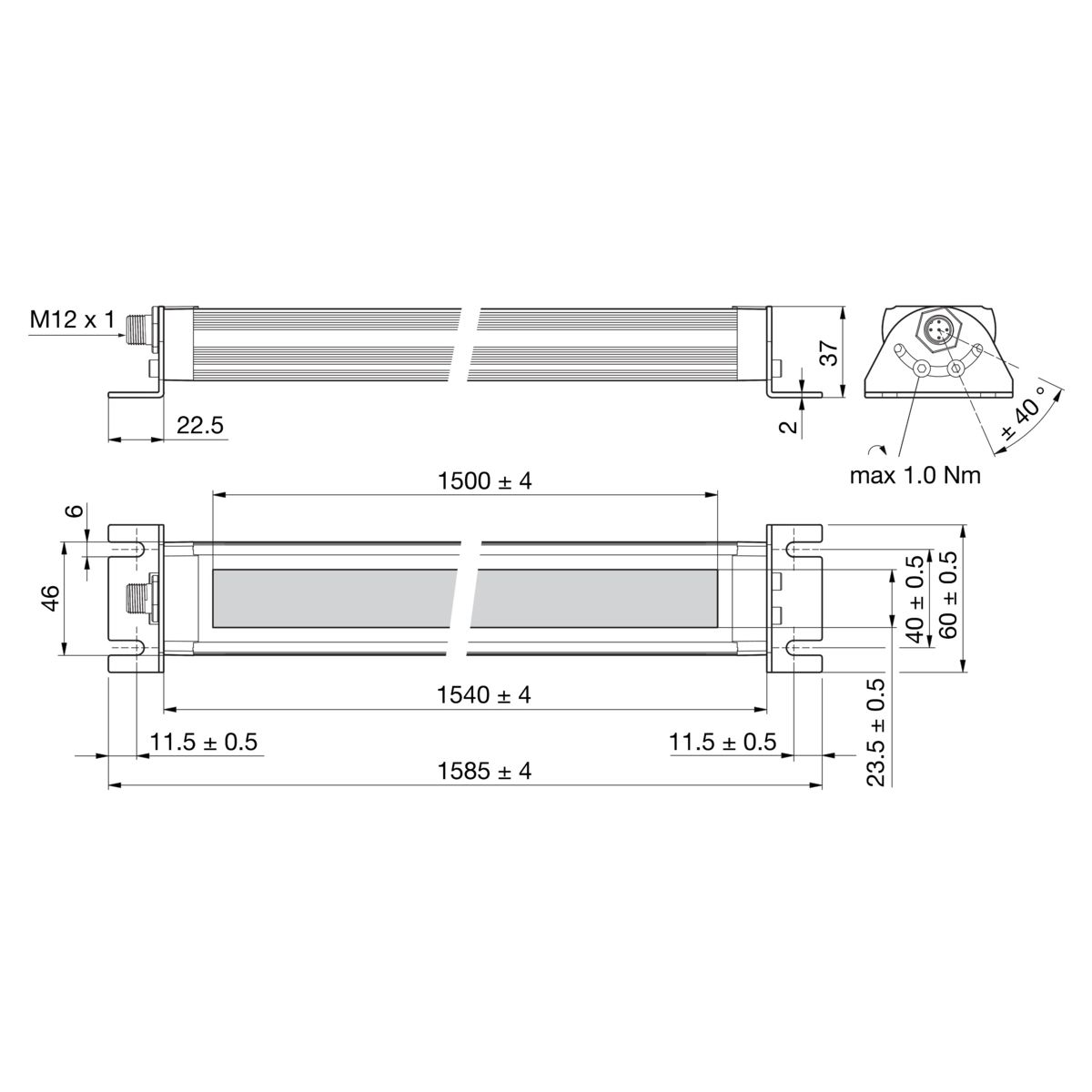

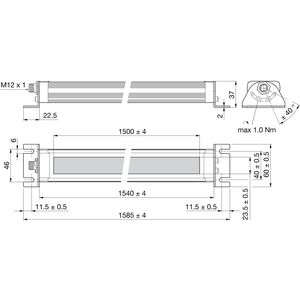

| Illuminated Area | 1500.0 mm 23.5 mm |
| Illumination Time Pulse | 1.0 |
| Internal Power Consumption | 1360.0 mA 24.0 V DC |
| Inverse Polarity Protection | Yes |
| Light Intensity | 3600;1700;700;350;200 Lux;Lux;Lux;Lux;Lux 250;500;1000;1500;2000 mm;mm;mm;mm;mm |
| Luminous Flux | 3260.0 lm |
| Material | Tempered safety glass, diffuse Diffusor |
| Model | Machine lighting, semicircle |
| Power | 33.0 W 24.0 V |
| Product Series | MB-R |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Risk Group (DIN EN 62471) | Free group |
| Service Voltage | 24 |
| Shock Vibration Load | 30 g, 11 ms / 10 ... 55 Hz, 1.0 mm |
| Weight | 2110.0 g |
