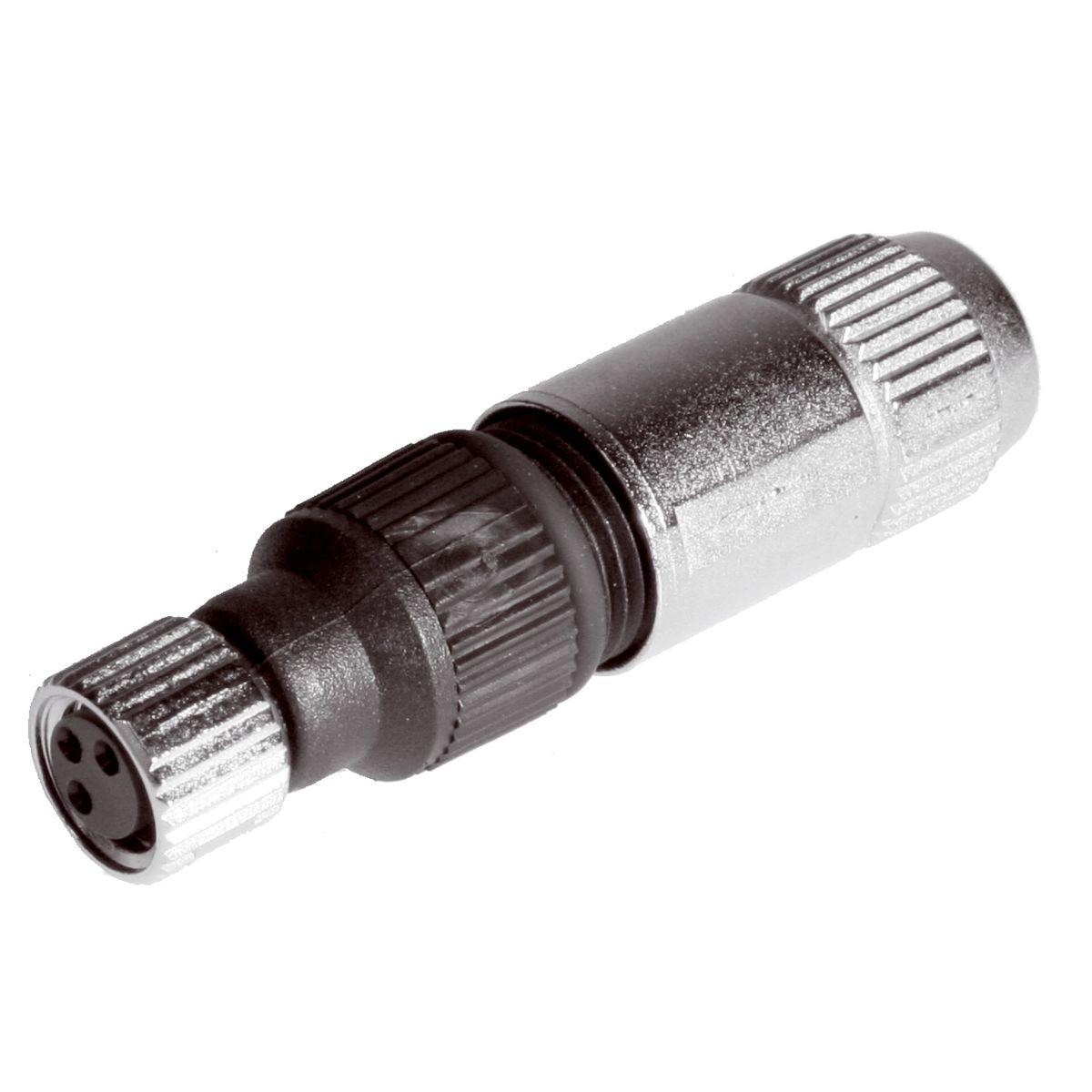

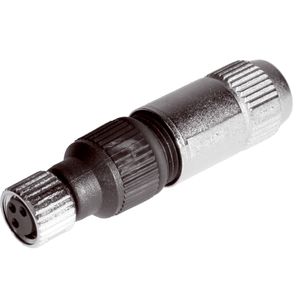

MK-Z-8/0.14
Part Number: MK-Z-8/0.14
Article Number: 202990
Technical Details
| Ambient Temperature During Operation | -25.0 ... 85.0°C |
|---|---|
| Control Side Connection | Field-wireable Insulation displacement connectors |
| Design | straight |
| For Diameter Cable | 2.5mm ... 5.1mm |

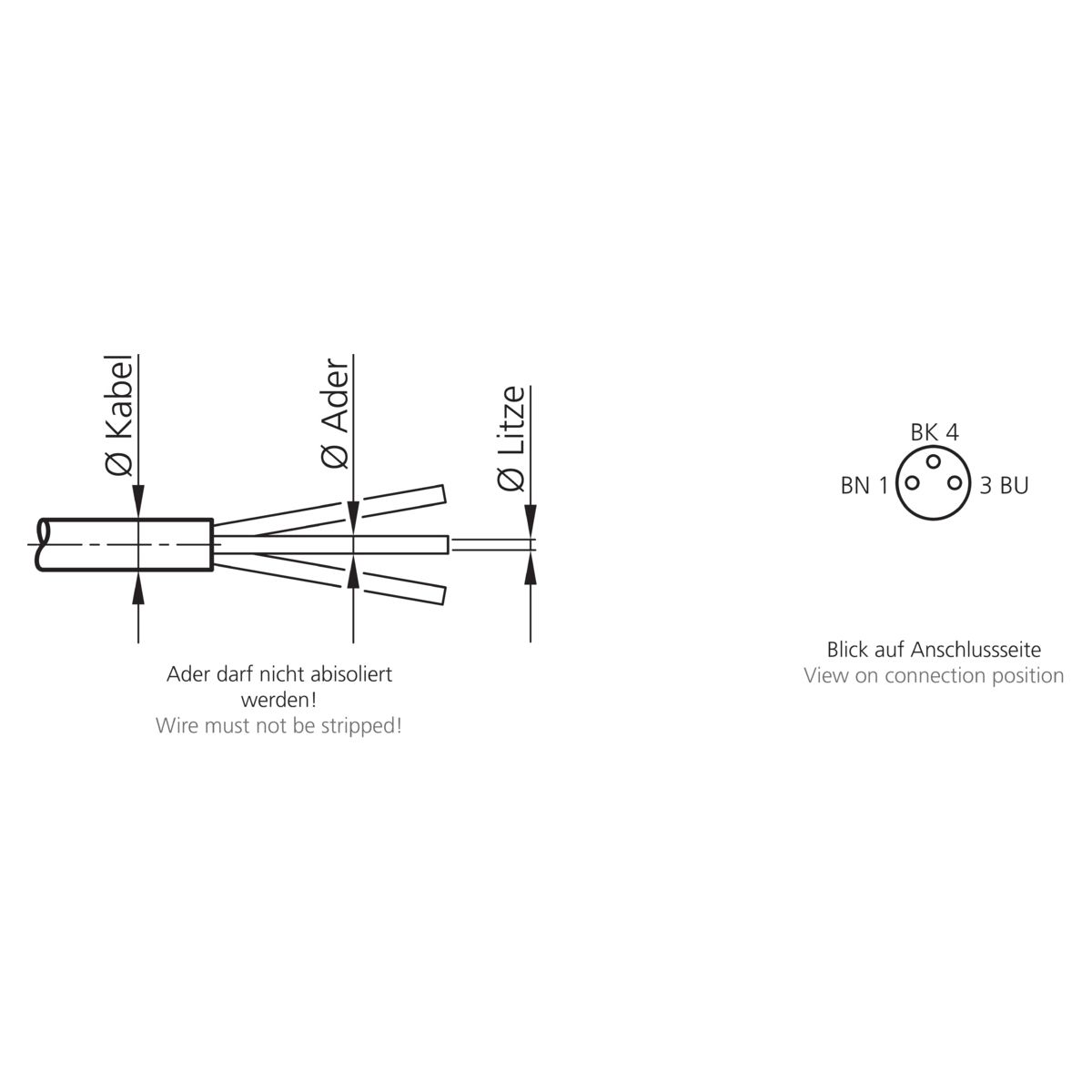

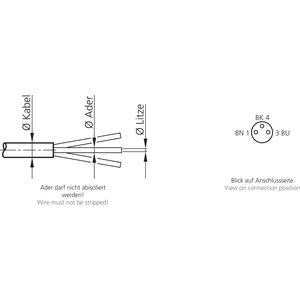

| For Diameter Wire | 1.0 mm 1.6 mm Wire must not be stripped! |
| For Strand Cross Section | 0.14 mm² 0.34 mm² |
| Housing Material | Metal;Plastic |
| Protection Type | IP 67 |
| Sensor Side Connection | Socket M8 x 1 3-pin |
| Service Voltage | 32 |
