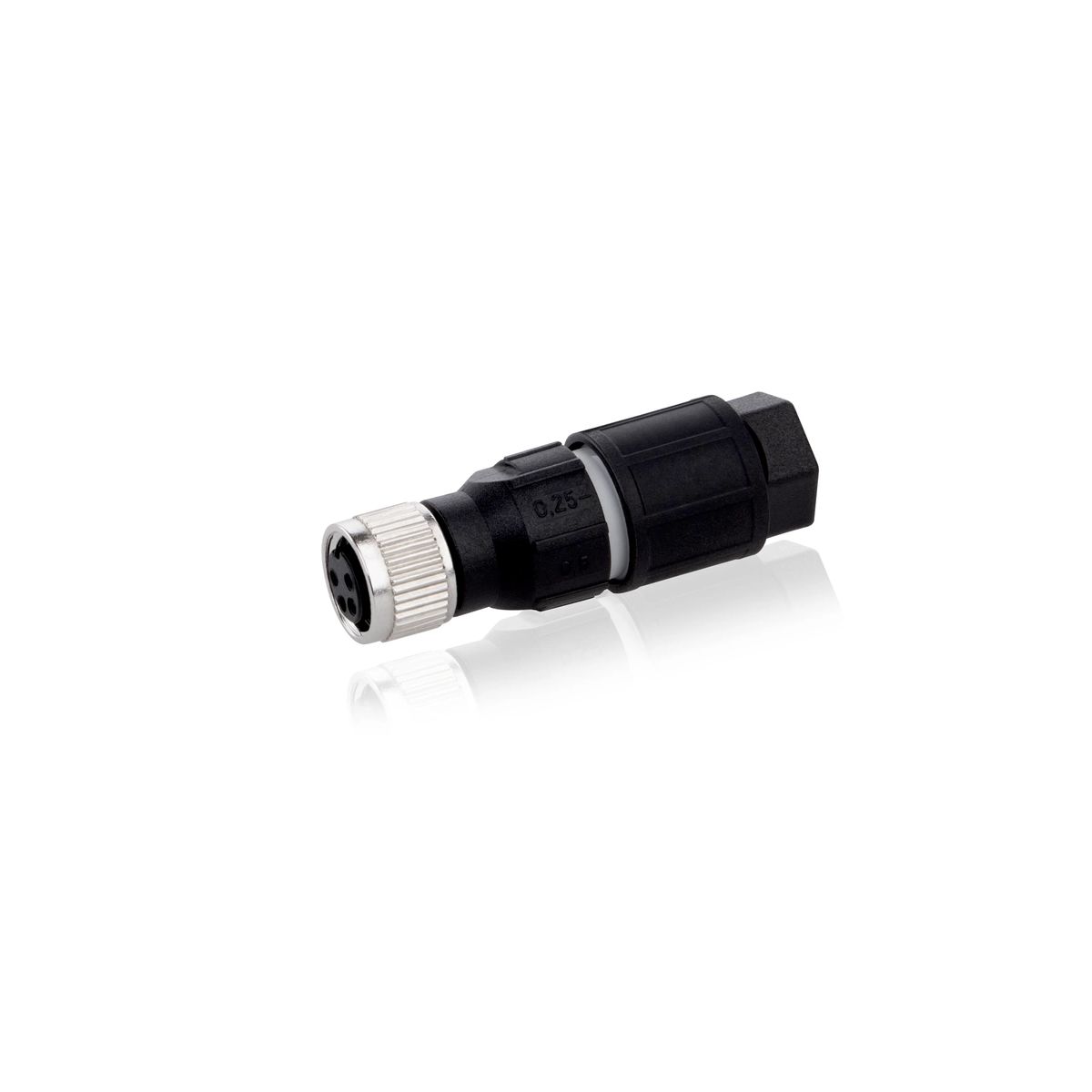

MK-Z-8/4
Part Number: MK-Z-8/4
Article Number: 213043
Technical Details
| Ambient Temperature During Operation | -25.0 ... 80.0°C |
|---|---|
| Control Side Connection | Field-wireable Insulation displacement connectors |
| Design | straight |
| For Diameter Cable | 2.5mm ... 5.0mm |
| For Diameter Wire | 1.1 mm 1.55 mm Wire must not be stripped! |
| For Strand Cross Section | 0.25 mm² 0.5 mm² |
| Housing Material | Metal;Plastic |
| Protection Type | IP 67 |
| Sensor Side Connection | Socket M8 x 1 4-pin |
| Service Voltage | 30.0 |
