MS-Z-12/4
Part Number: MS-Z-12/4
Article Number: 201120
Technical Details
| Ambient Temperature During Operation | -25.0 ... 85.0°C |
|---|---|
| Control Side Connection | Field-wireable Insulation displacement connectors |
| Design | straight |
| For Diameter Cable | 4.0mm ... 5.1mm |

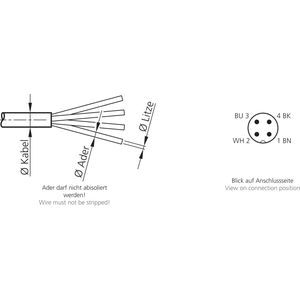

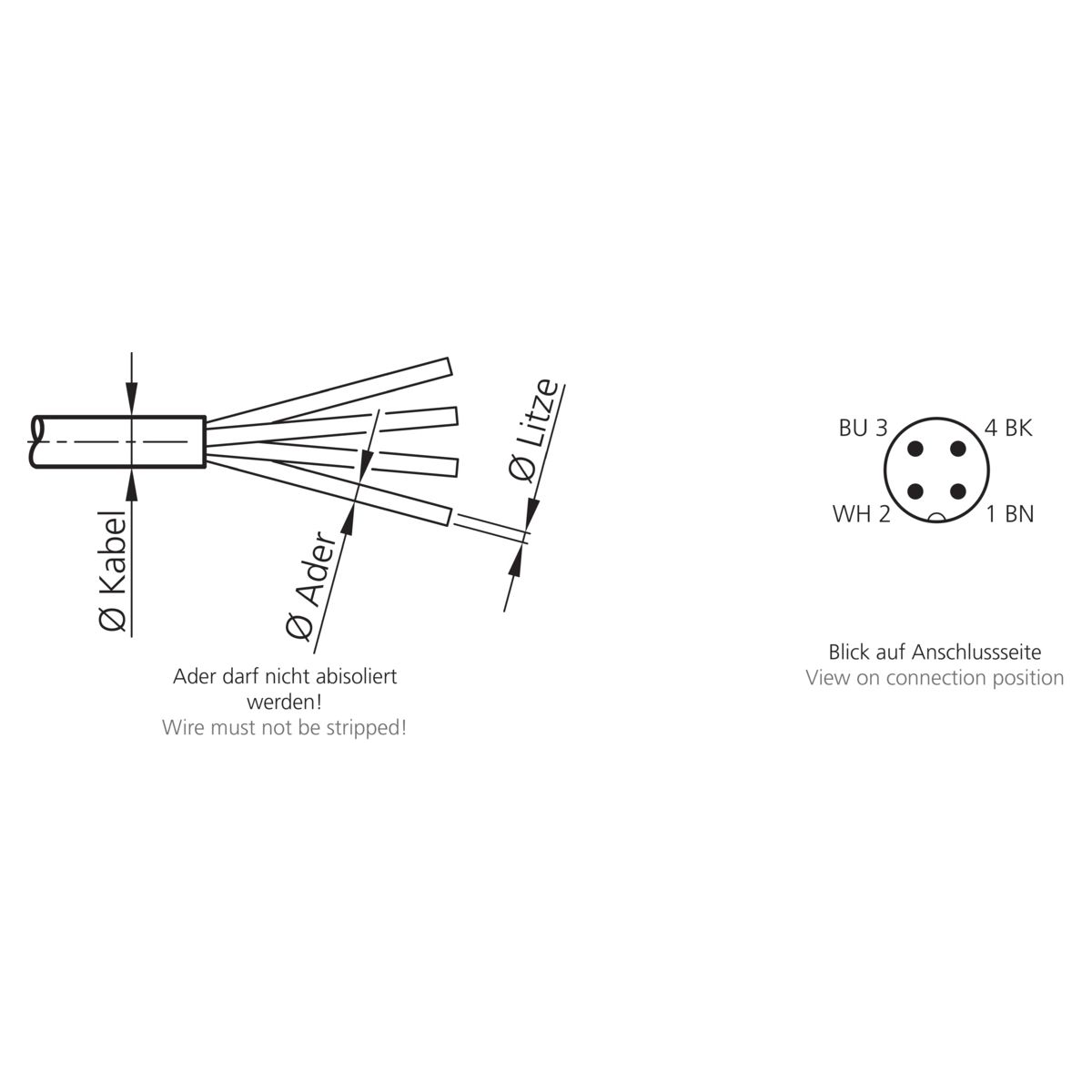

| For Diameter Wire | 1.0 mm 1.6 mm Wire must not be stripped! |
| For Strand Cross Section | 0.25 mm² 0.5 mm² |
| Housing Material | Metal;Plastic |
| Protection Type | IP 67 |
| Sensor Side Connection | Connector M12 x 1 4-pin |
| Service Voltage | 32 |
