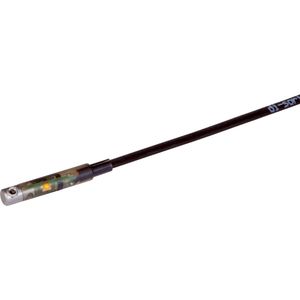

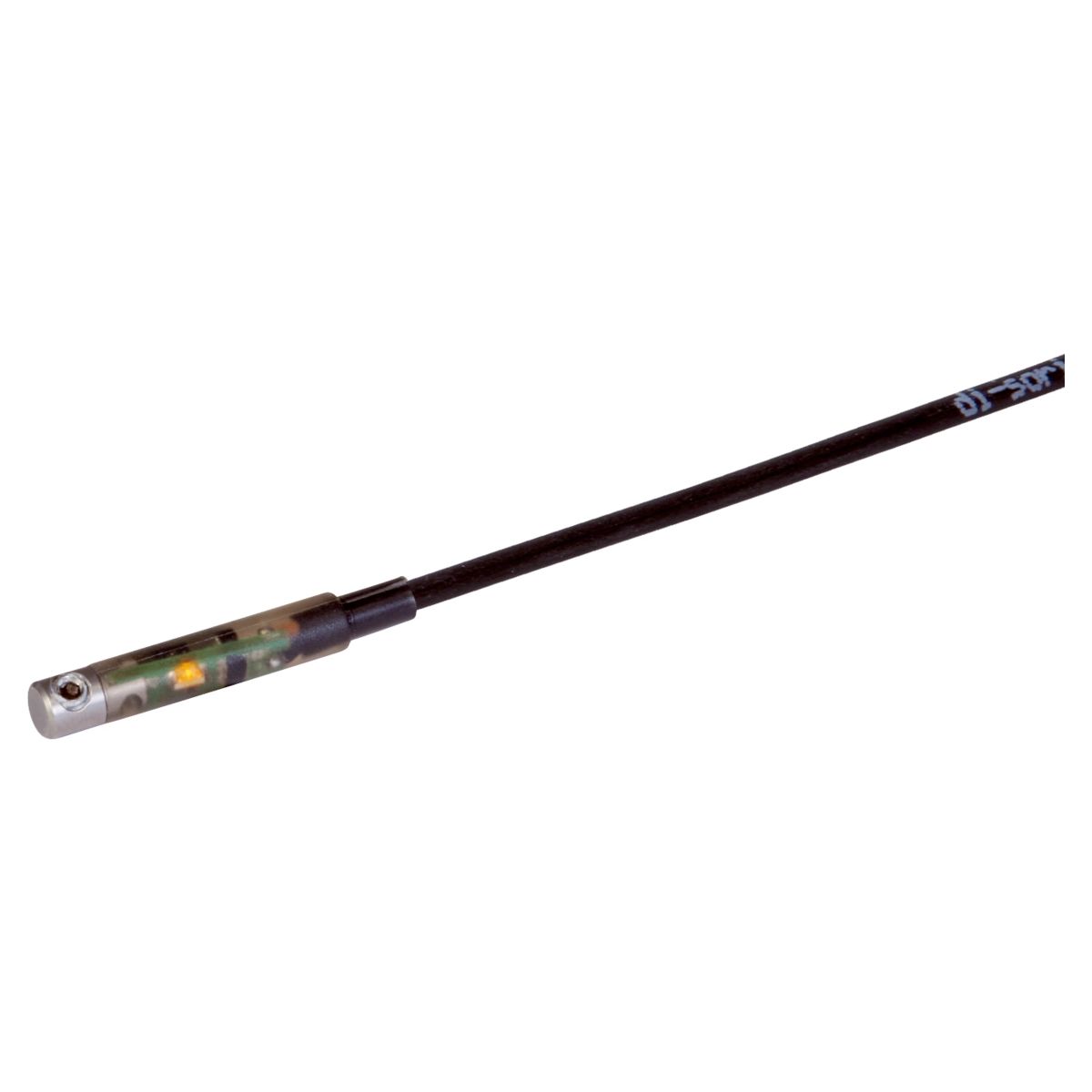

MZEC 3.7 PSL
Part Number: MZEC 3.7 PSL
Article Number: 201128
Technical Details
| Ambient Temperature During Operation | -20.0 ... 70.0°C |
|---|---|
| Connection | Cable 2.5 m 3-pin |
| Connection1 | 3 x 0.08 mm² |
| Current Carrying Capacity | 100.0 mA not short-circuit-proof polarity-safe |
| Cylinder Groove | C-groove 3.7 mm insertion in lateral direction of groove |
| Housing Material | Stainless steel;Plastic V2A 1.4301 / AISI 304 |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Material Of Cable | TPU |
| Mounting | Locking screw Allen screw SW 1.3 mm |
| No Load Current (max.) | 11.0 mA |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Reproducibility | < 0.1 mm |
| Service Voltage | 10 ... 30.0V DC |
| Switching Capacity | 3 < W 30 V, 100 mA |
| Switching Frequency | 1000.0 Hz |
| Switching Output | pnp 100.0 mA NO |
| Voltage Drop (max.) | 2.0 V |
| Yellow | Output signal |
