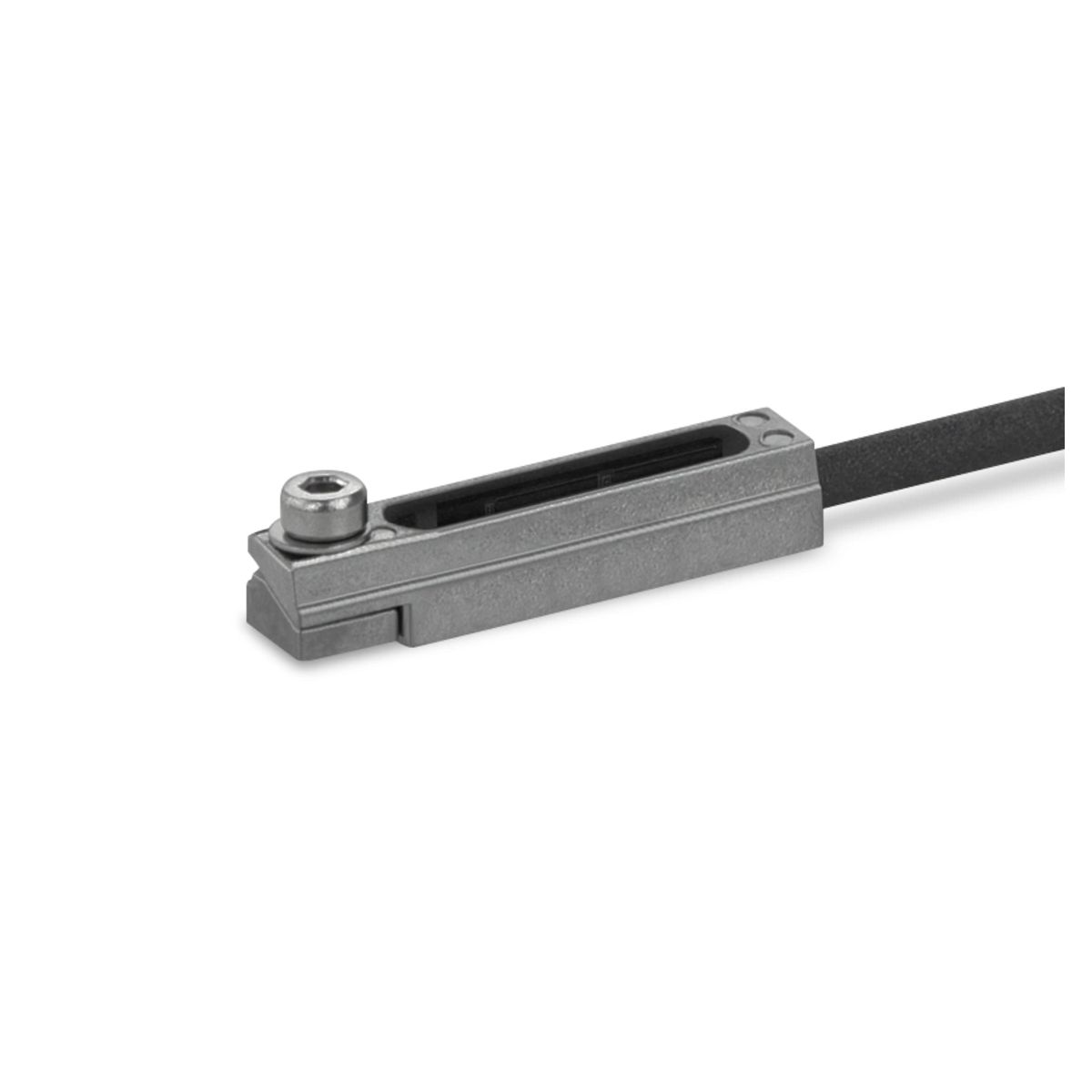

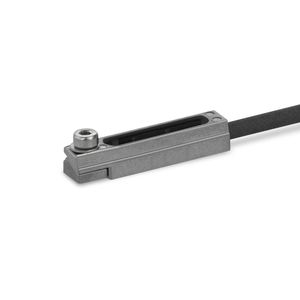

MZEK 25 PSK-K-IBS

Ambient Temperature During Operation	-25.0 ... 70.0°C
Connection	Pigtail 0.3 m M12 3-pin
Connection Cable	VK ...
Current Carrying Capacity	200.0 mA short-circuit-proof polarity-safe
Cylinder Groove	T-groove Can be inserted into the groove from above
Housing Material	Die-cast zinc
Illumination Time Pulse	1.0
Insulation Voltage Endurance	500.0 V
Material Of Cable	Polyurethane
Mounting	Clamping block Allen screw SW 1.5 mm
No Load Current (max.)	10.0 mA
Protection Class	III, operation on protective low voltage
Protection Type	IP 68;IP 67 Device and cable;Connection plug
Reproducibility	0.1 mm
Service Voltage	10 ... 30.0V DC
Switching Capacity	6 < W 30 V, 200 mA
Switching Frequency	1000.0 Hz

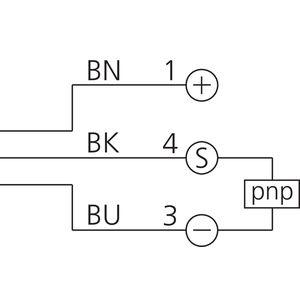

Switching Output	pnp 200.0 mA NO short-circuit-proof
Voltage Drop (max.)	2.0 V
Yellow	Output signal
