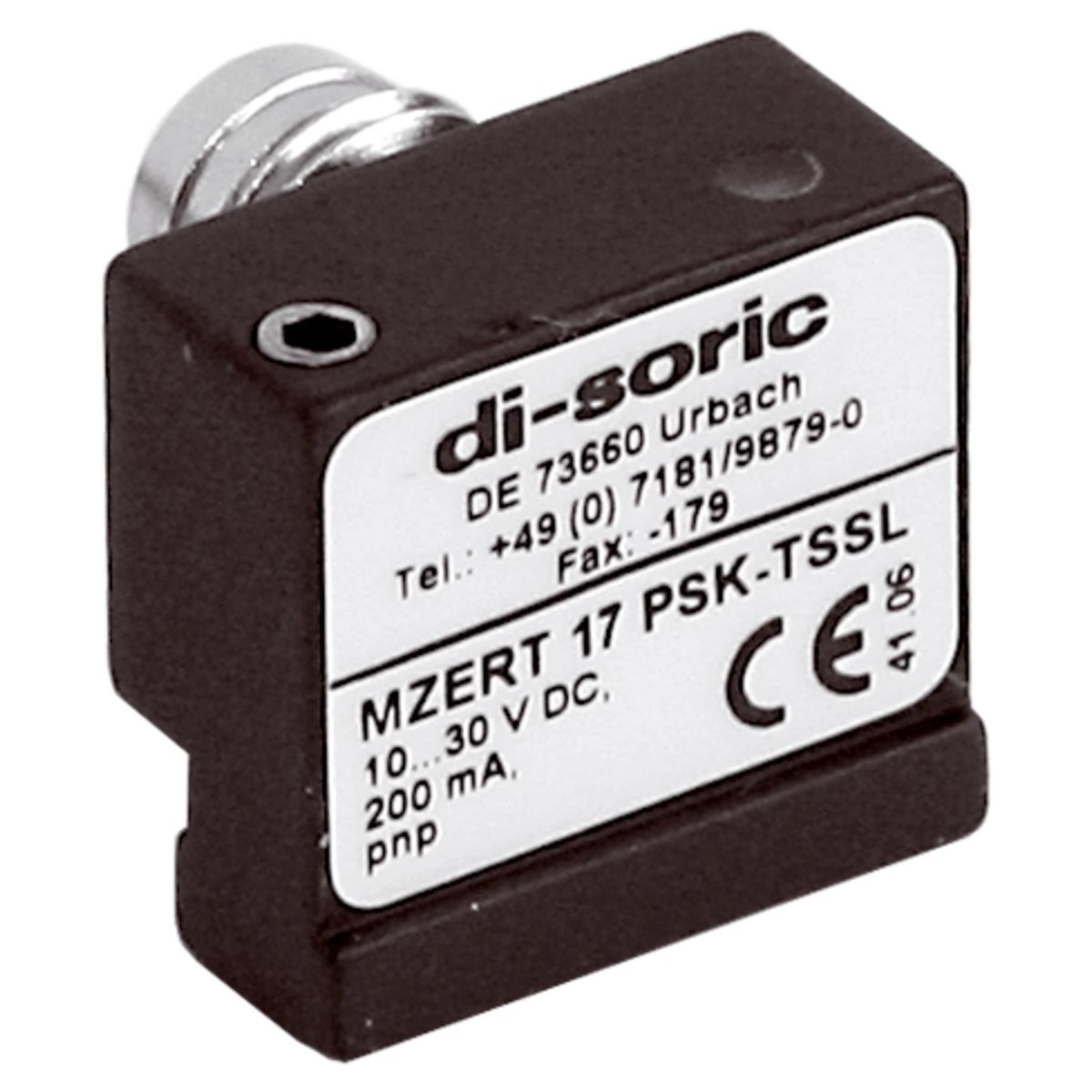

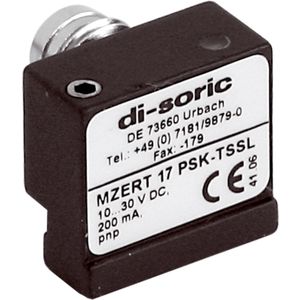

MZERT 17 PSK-TSSL
Part Number: MZERT 17 PSK-TSSL
Article Number: 202987
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|
| Connection | Connector M8 3-pin |
| Connection Cable | TK ... |
| Current Carrying Capacity | 200.0 mA short-circuit-proof polarity-safe |
| Cylinder Groove | T-groove insertion in lateral direction of groove |
| Housing Material | Die-cast zinc |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Mounting | Locking screw Allen screw SW 1.5 mm |
| No Load Current (max.) | 10.0 mA |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Reproducibility | < 0.1 mm |
| Service Voltage | 10 ... 30.0V DC |
| Switching Frequency | 1000.0 Hz |
| Switching Output | pnp 200.0 mA NO |
| Voltage Drop (max.) | 2.0 V |
| Yellow | Output signal |
