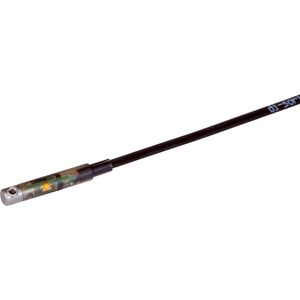

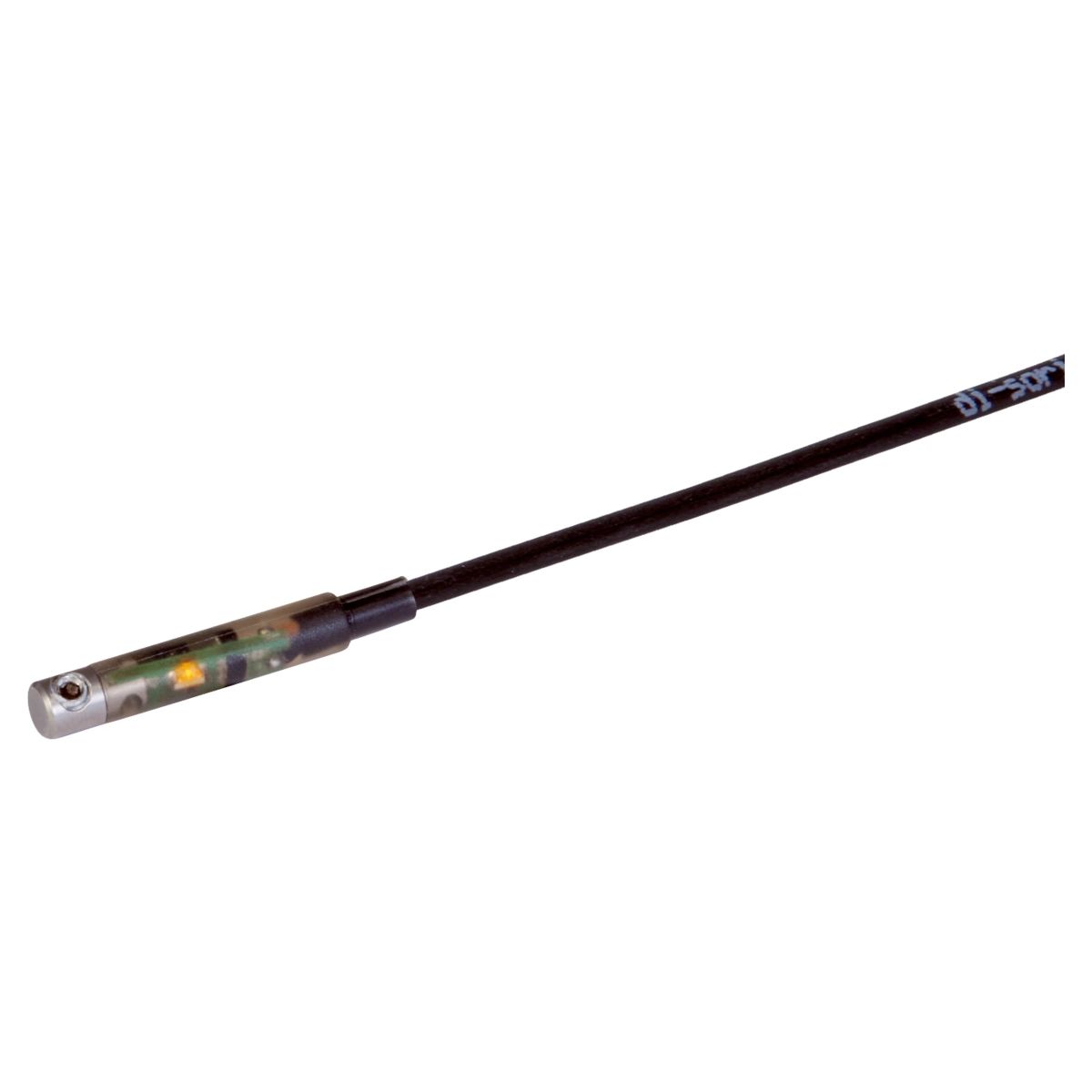

MZES 3.9 PS-K-TSSL
Part Number: MZES 3.9 PS-K-TSSL
Article Number: 204434
Technical Details
| Ambient Temperature During Operation | -20.0 ... 70.0°C |
|---|---|
| Connection | Pigtail 0.3 m M8 |
| Connection Cable | TK ... |
| Current Carrying Capacity | 100.0 mA not short-circuit-proof polarity-safe |
| Cylinder Groove | C-groove 3.9 mm insertion in lateral direction of groove |
| Housing Material | Stainless steel;Plastic V2A 1.4301 / AISI 304 |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Material Of Cable | TPU |
| Mounting | Locking screw |
| No Load Current (max.) | 12.0 mA |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Reproducibility | < 0.1 mm |
| Service Voltage | 10 ... 35.0V DC |
| Switching Capacity | 3 < W 30 V, 100 mA |
| Switching Frequency | 1000.0 Hz |
| Switching Output | pnp NO |
| Voltage Drop (max.) | 2.0 V |
| Yellow | Output signal |
