OE21-NS-0.3T3
Part Number: OE21-NS-0.3T3
Article Number: 212994
Technical Details
| Ambient Temperature During Operation | -25.0 ... 60.0°C |
|---|---|
| Connection | Pigtail 0.3 m M8 3-pin |
| Connection Cable | TK ... |
| Consisting Of | Receiver |
| Design | Cuboid design |
| Evaluation | digital |
| Green | Status |

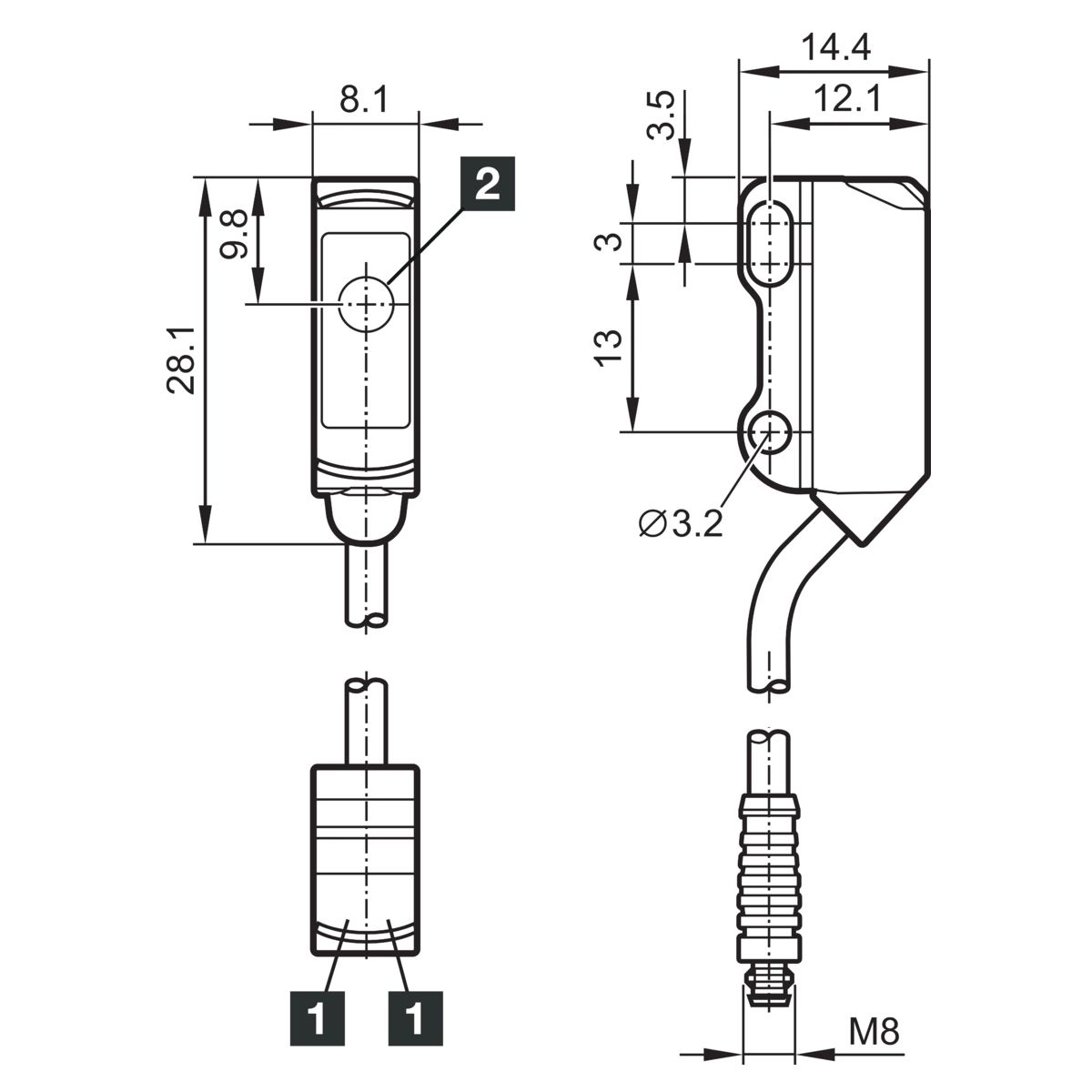

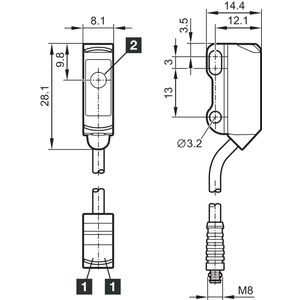

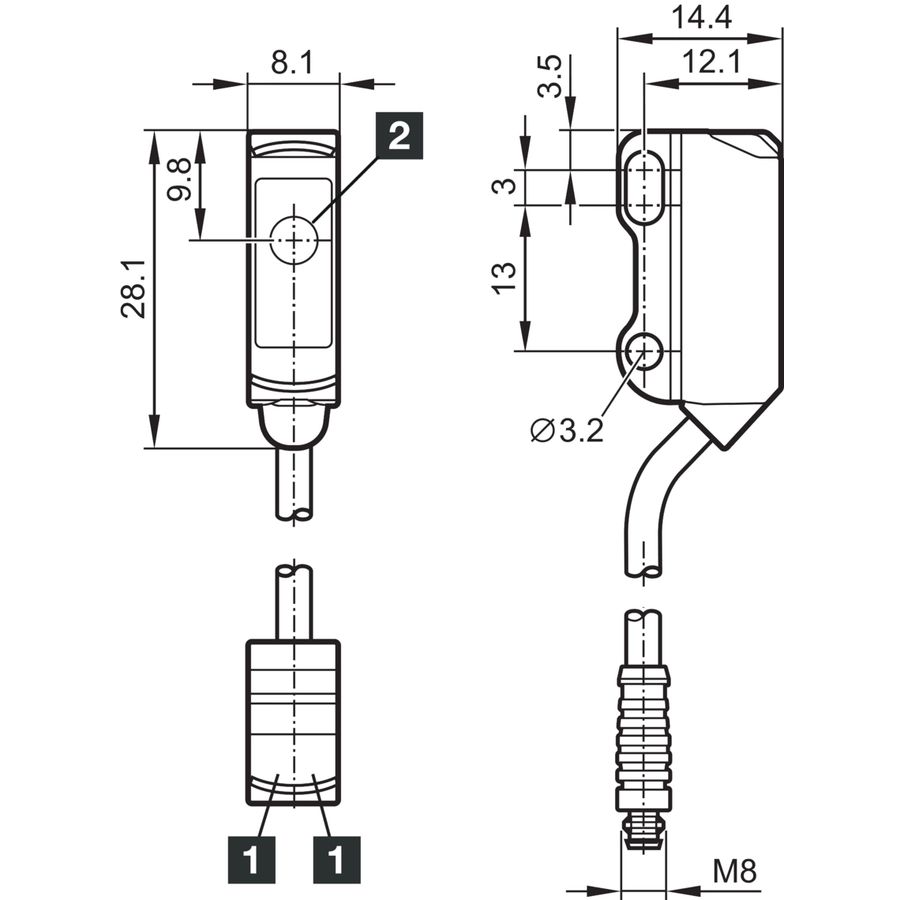

| Housing Dimensions | 28.1 x 8.1 x 14.4 mm |
| Housing length | 8.1 mm |
| Housing Material | Stainless steel;Plastic |
| Illumination Time Pulse | 1.0 |
| Inverse Polarity Protection | Yes |
| Light Source | LED |
| Material | Plastic Window / optics |
| No Load Current (max.) | 15.0 mA |
| Operating Principle | Through-beam sensor |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 65;IP 67 |
| Range | 3000.0mm |
| Sensitivity Adjustment | no setting elements |
| Service Voltage | 10.0 ... 30.0V DC |
| Standardized Measuring Plate | 200 x 200 mm white |
| Switching Frequency | 1000 Hz |
| Switching Output | npn 100.0 mA NO |
| Voltage Drop (max.) | 2.5 V |
| Weight | 21.0 g |
| Yellow | Switching output |
