OEP 12 V 50000 G1L-5M

Ambient Light Immunity	15;2 kLx;kLx Sunlight;Clocked light
Ambient Temperature During Operation	-20.0 ... 60.0°C
Characteristics	High transmit power and dirt penetration
Connection	Cable 5.0 m
Consisting Of	Receiver
Design	Thread
Evaluation	digital

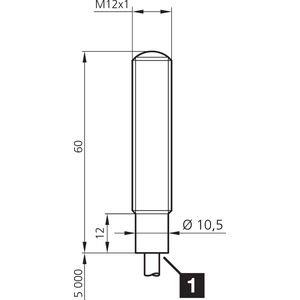

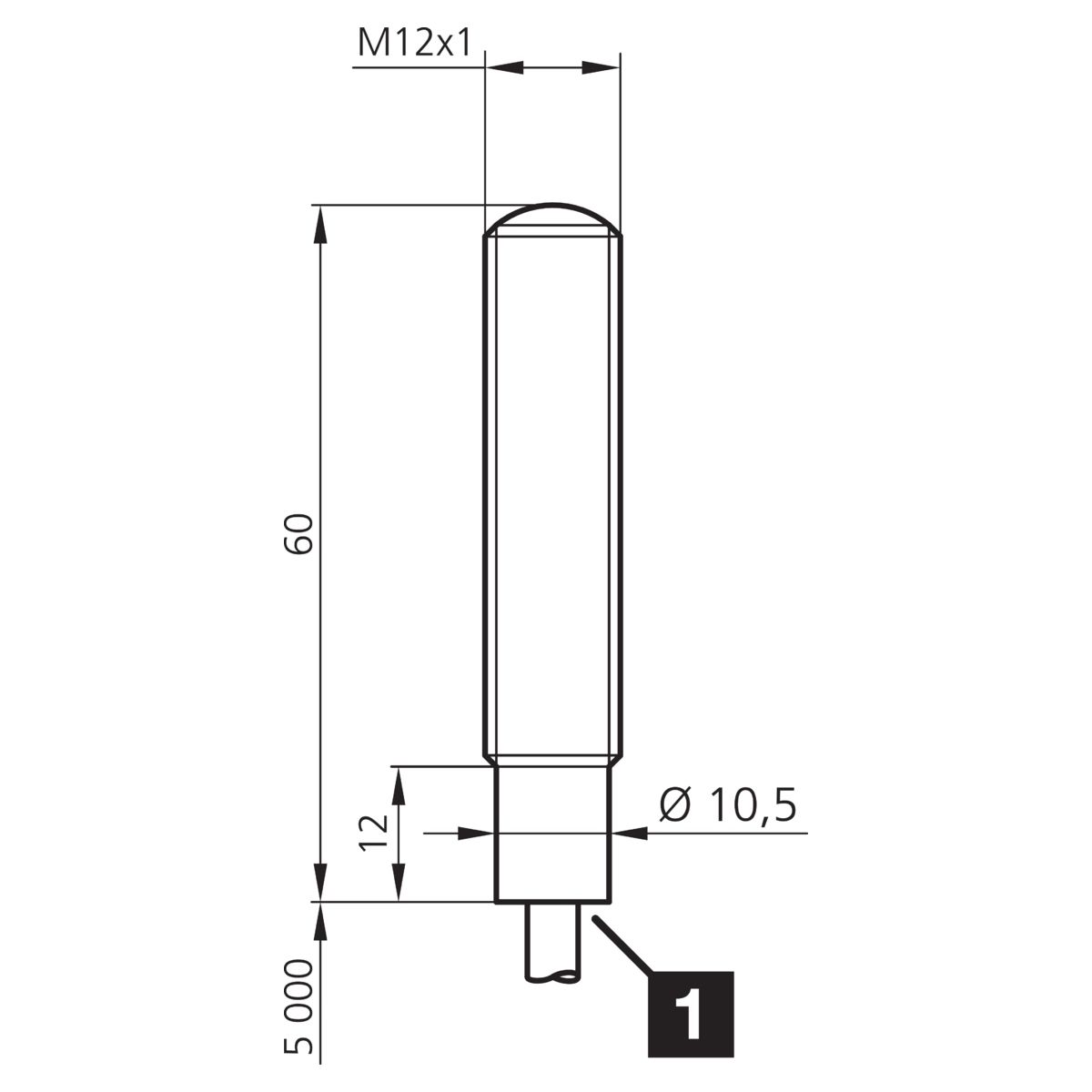

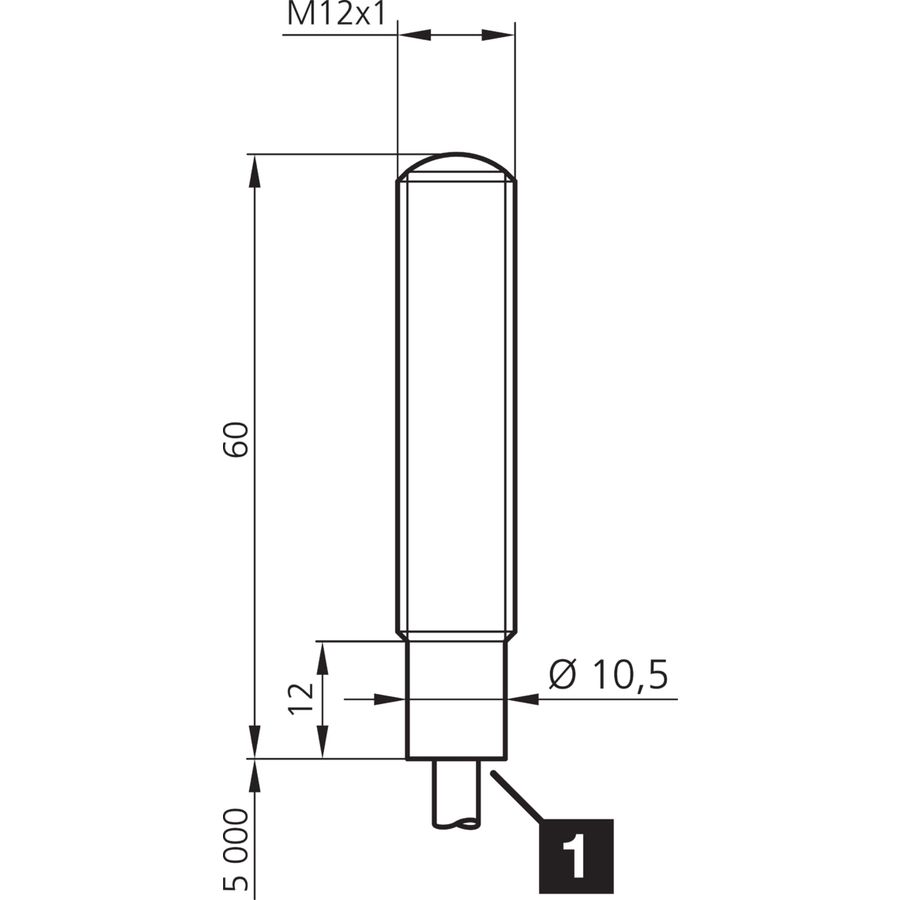

Housing length	60.0 mm
Housing Material	Stainless steel V2A 1.4301 / AISI 304
Illumination Time Pulse	1.0
Material Of Cable	PVC
No Load Current (max.)	40.0 mA
Operating Principle	Through-beam sensor, receiver
Protection Class	III, operation on protective low voltage
Protection Type	IP 67;IP 68;IP 69K
Range	0.0 ... 50000.0mm (dependent on the transmitter)
Sensitivity Adjustment	no setting elements
Service Voltage	10 ... 35.0V DC
Shock Vibration Load	30 g, 11 ms / 10 ... 55 Hz, 2.0 mm
Switching Frequency	20.0 Hz

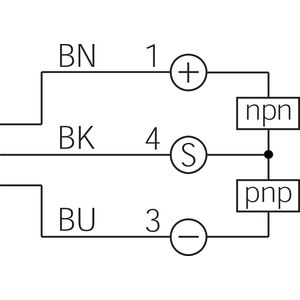

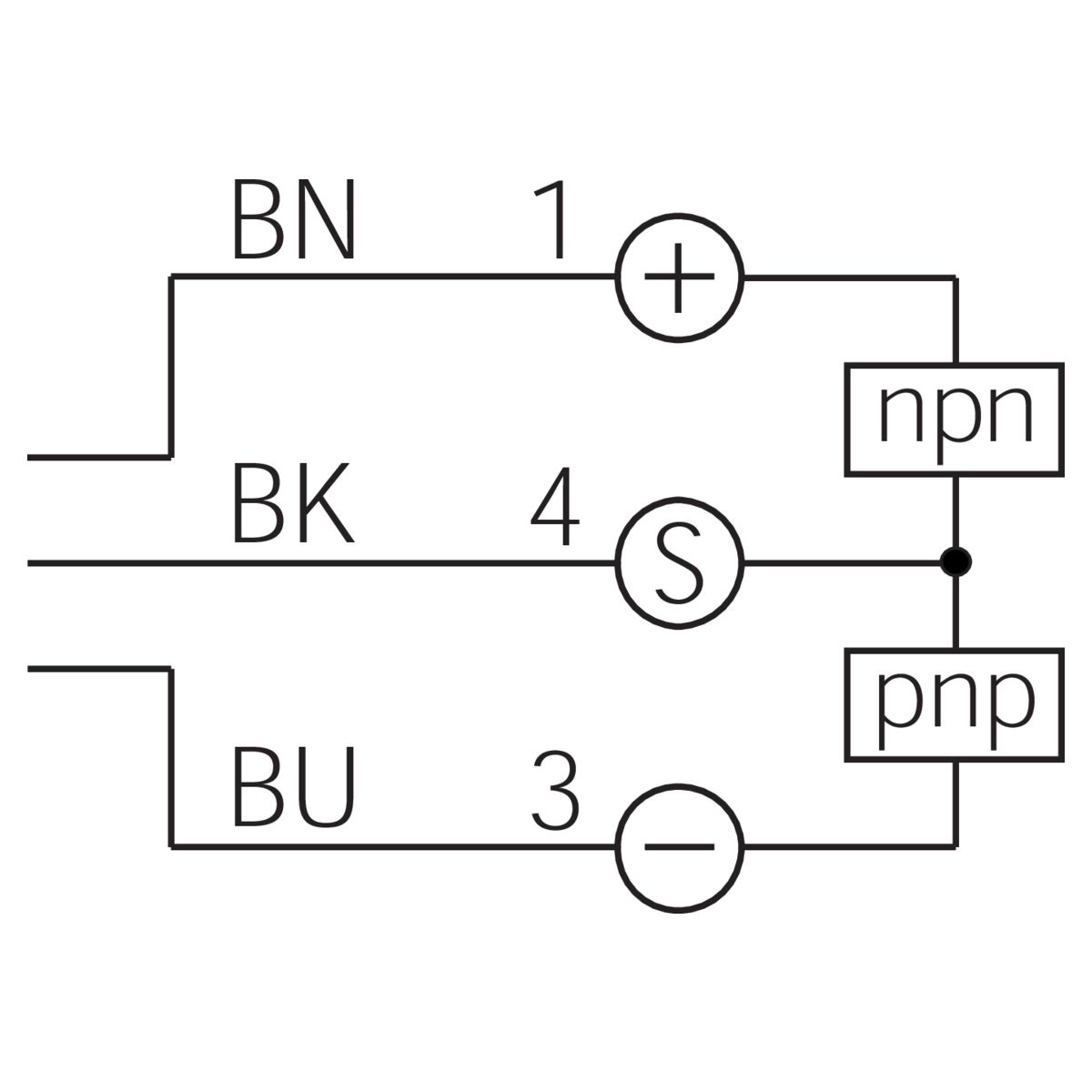

Switching Output	Push-pull 200.0 mA NC (pnp) / NO (npn)
Thread	M12 x 1
