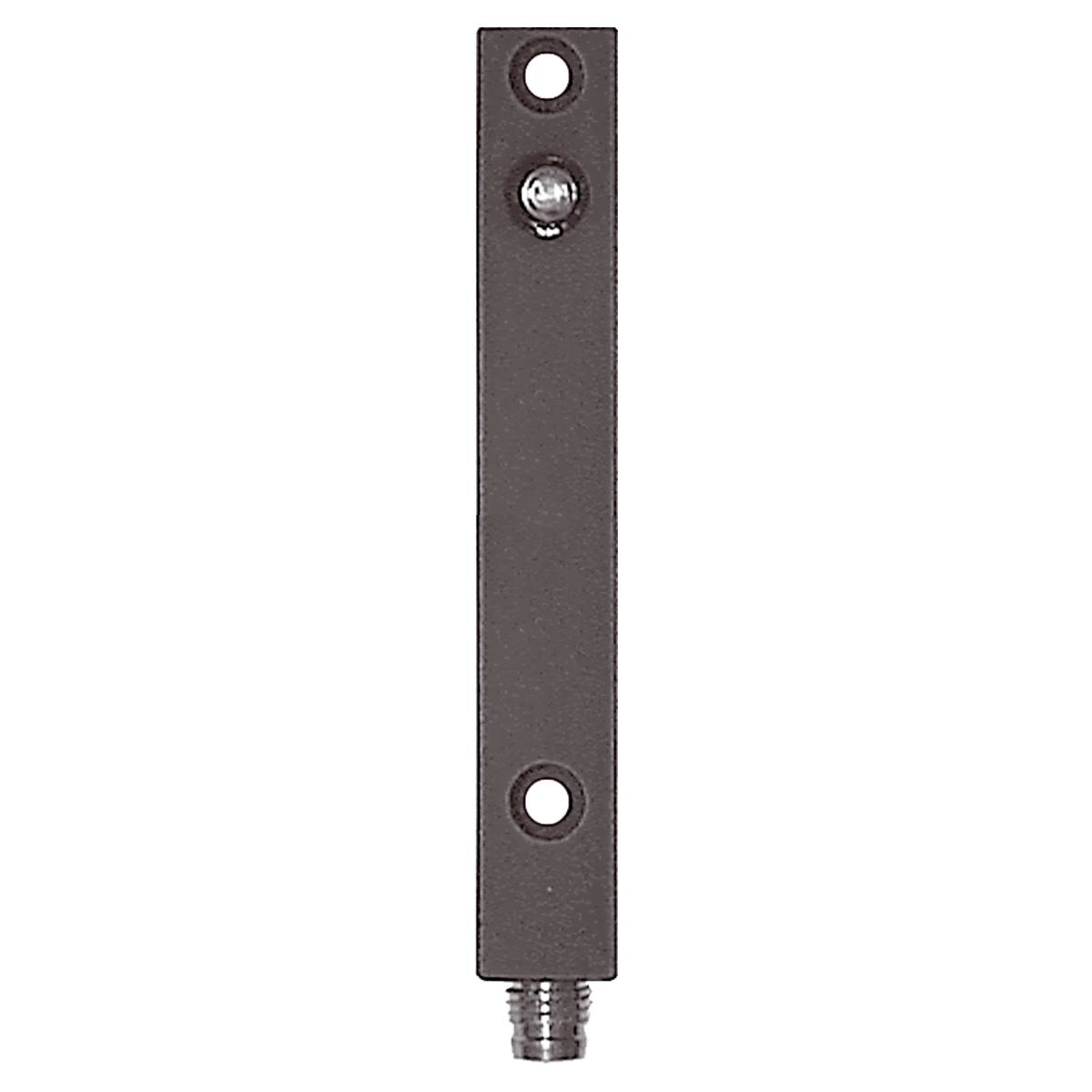

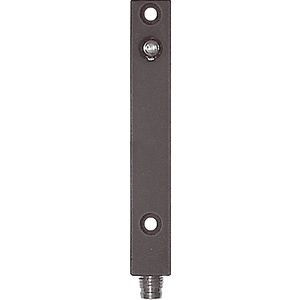

OEPQ 12 M 20000 G2-TSSL

Ambient Light Immunity	15;2 kLx;kLx Sunlight;Clocked light
Ambient Temperature During Operation	-20.0 ... 60.0°C
Characteristics	High transmit power and dirt penetration

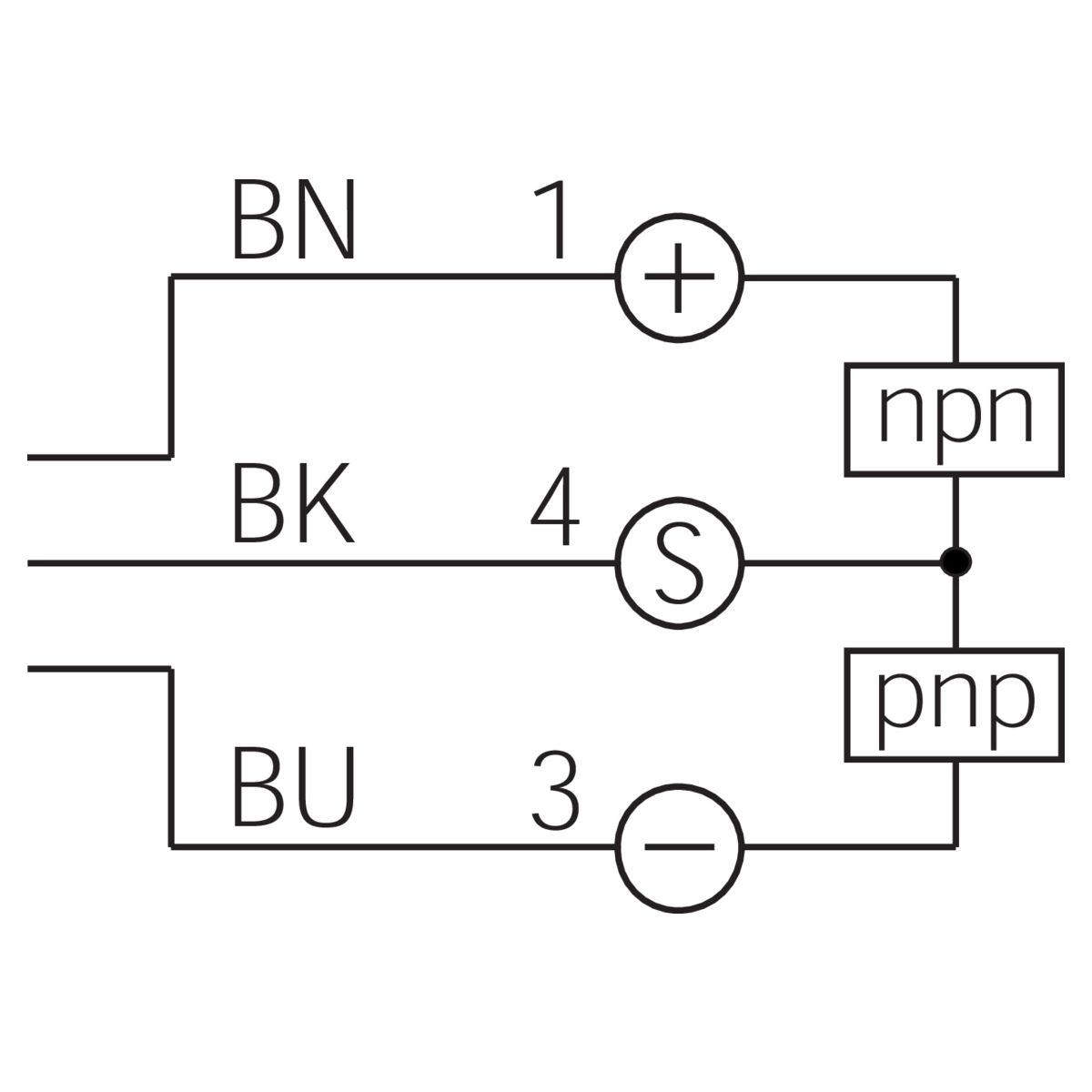

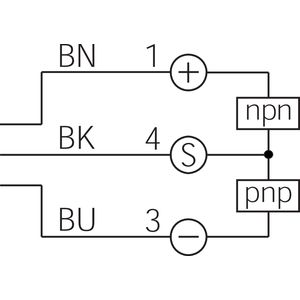

Connection	Connector M8 3-pin
Consisting Of	Receiver
Design	Cuboid design
Evaluation	digital

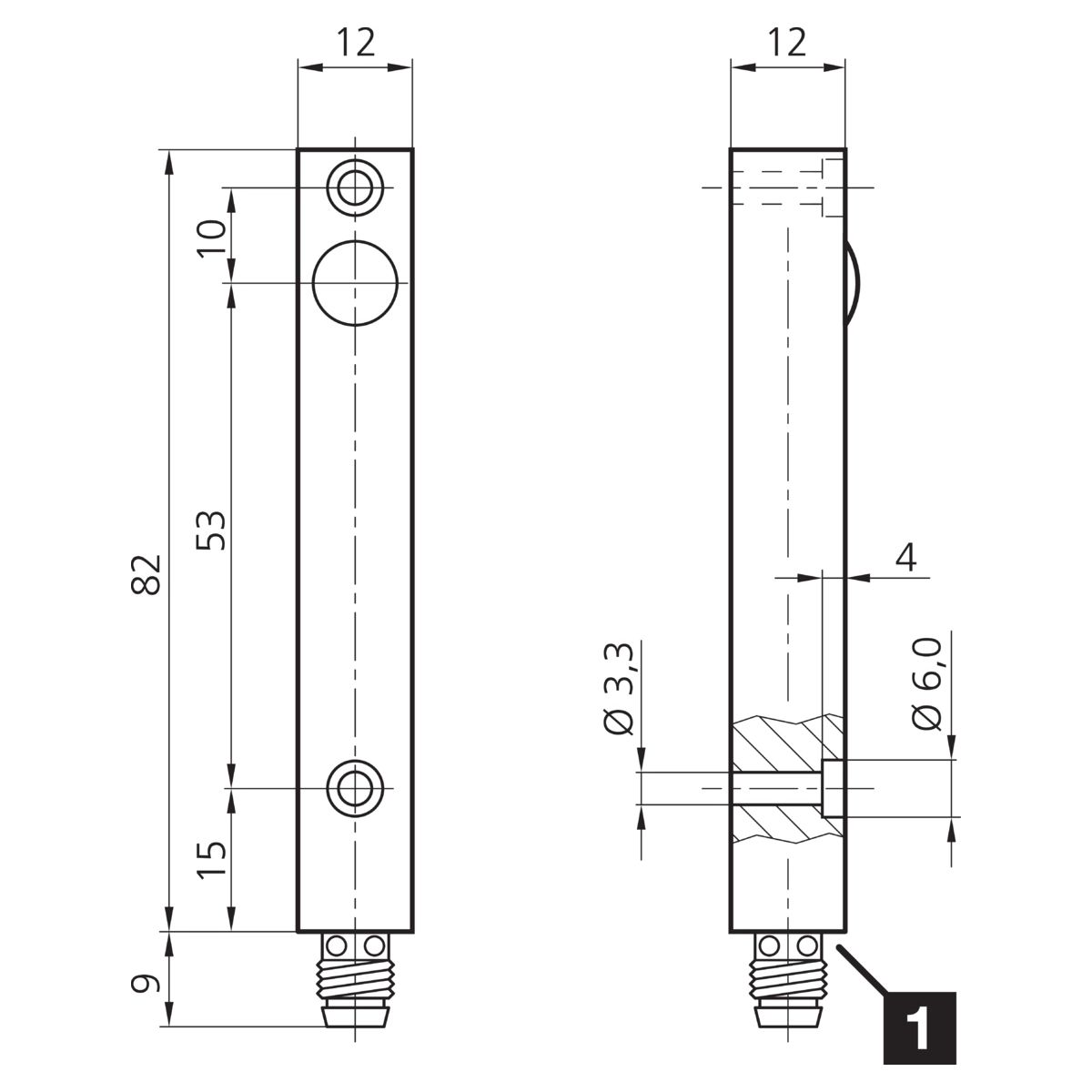

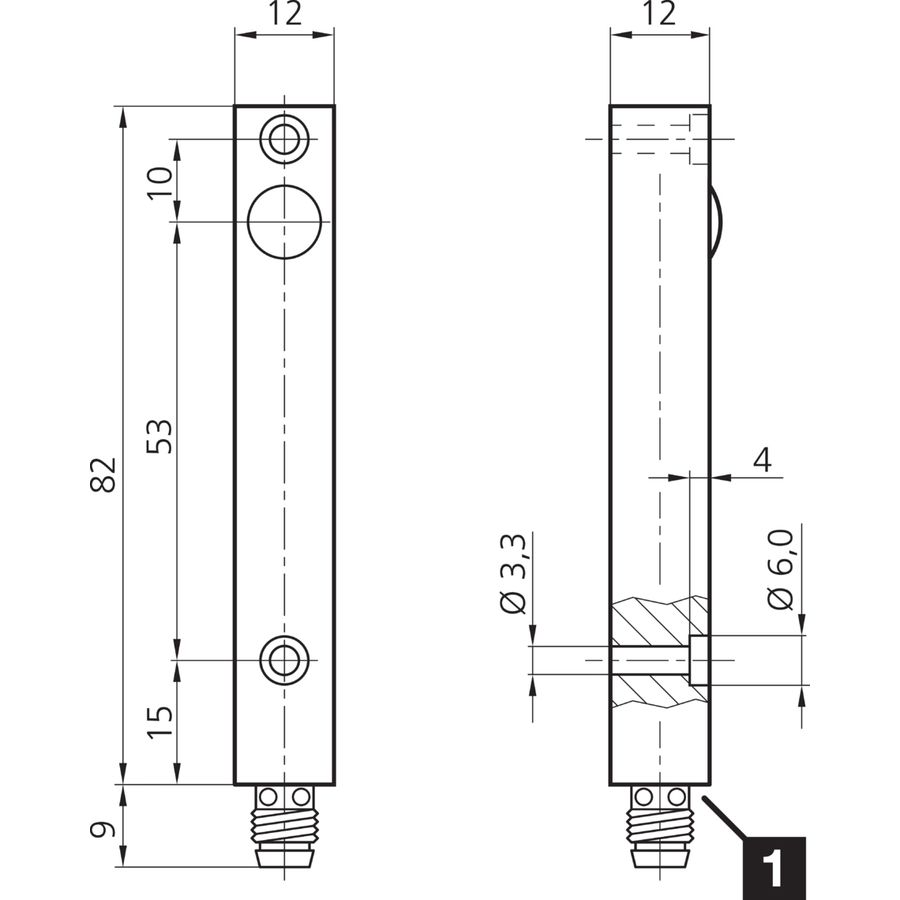

Housing Dimensions	82 x 12 x 12 mm
Housing length	82.0 mm
Housing Material	Aluminum Anodized
Illumination Time Pulse	1.0
No Load Current (max.)	40.0 mA
Operating Principle	Through-beam sensor, receiver
Protection Class	III, operation on protective low voltage
Protection Type	IP 67
Range	0.0 ... 20000.0mm (dependent on the transmitter)
Sensitivity Adjustment	no setting elements
Service Voltage	10 ... 35.0V DC
Shock Vibration Load	30 g, 11 ms / 10 ... 55 Hz, 2.0 mm
Switching Frequency	150.0 Hz
Switching Output	Push-pull 200.0 mA NO
