OH21-50NS-2C

Ambient Temperature During Operation	-25.0 ... 60.0°C
Background Suppression	1.0
Color	Red

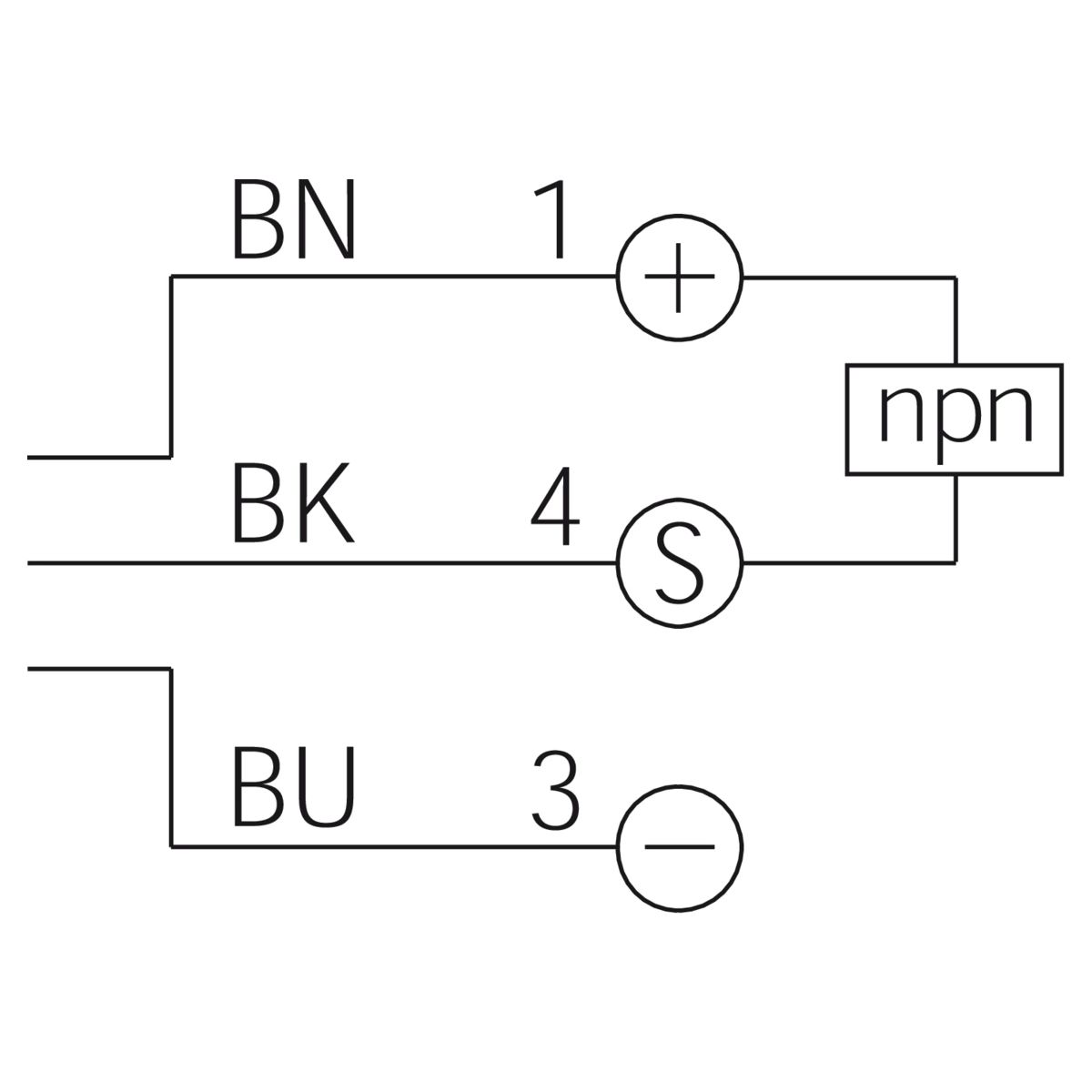

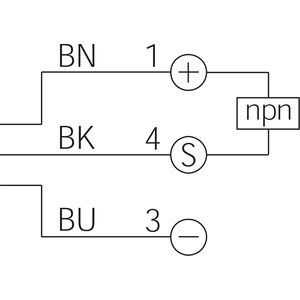

Connection	Cable 2.0 m 3-pin
Design	Cuboid design
Evaluation	digital
Green	Status

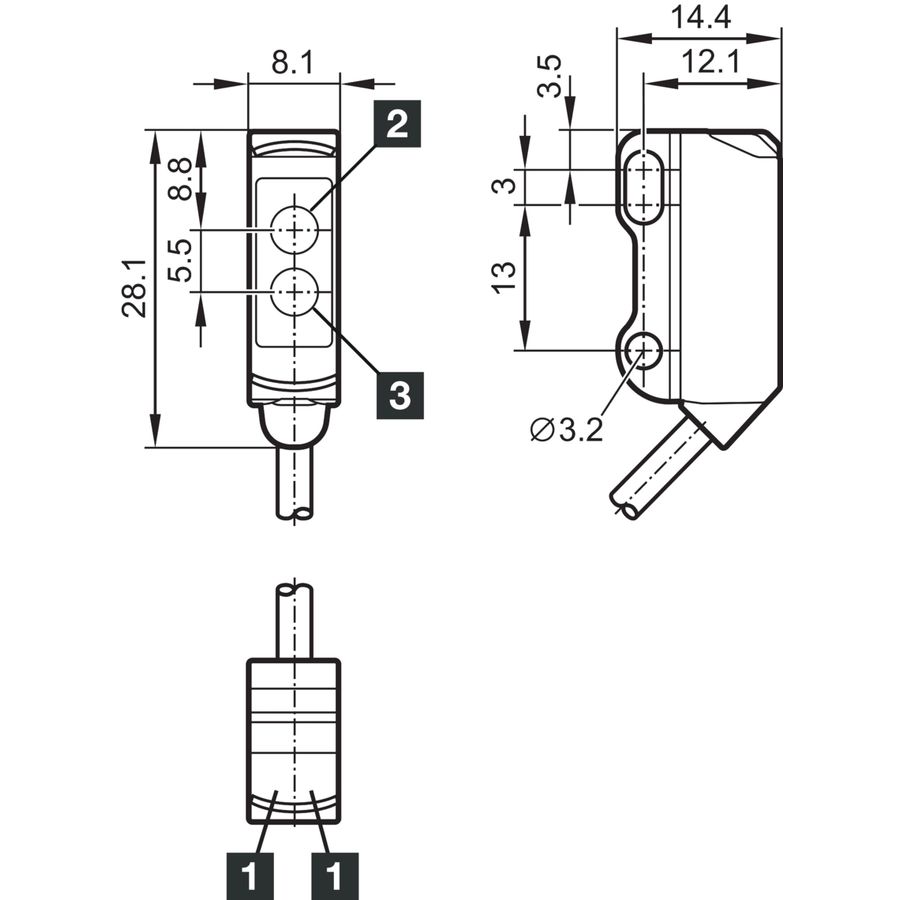

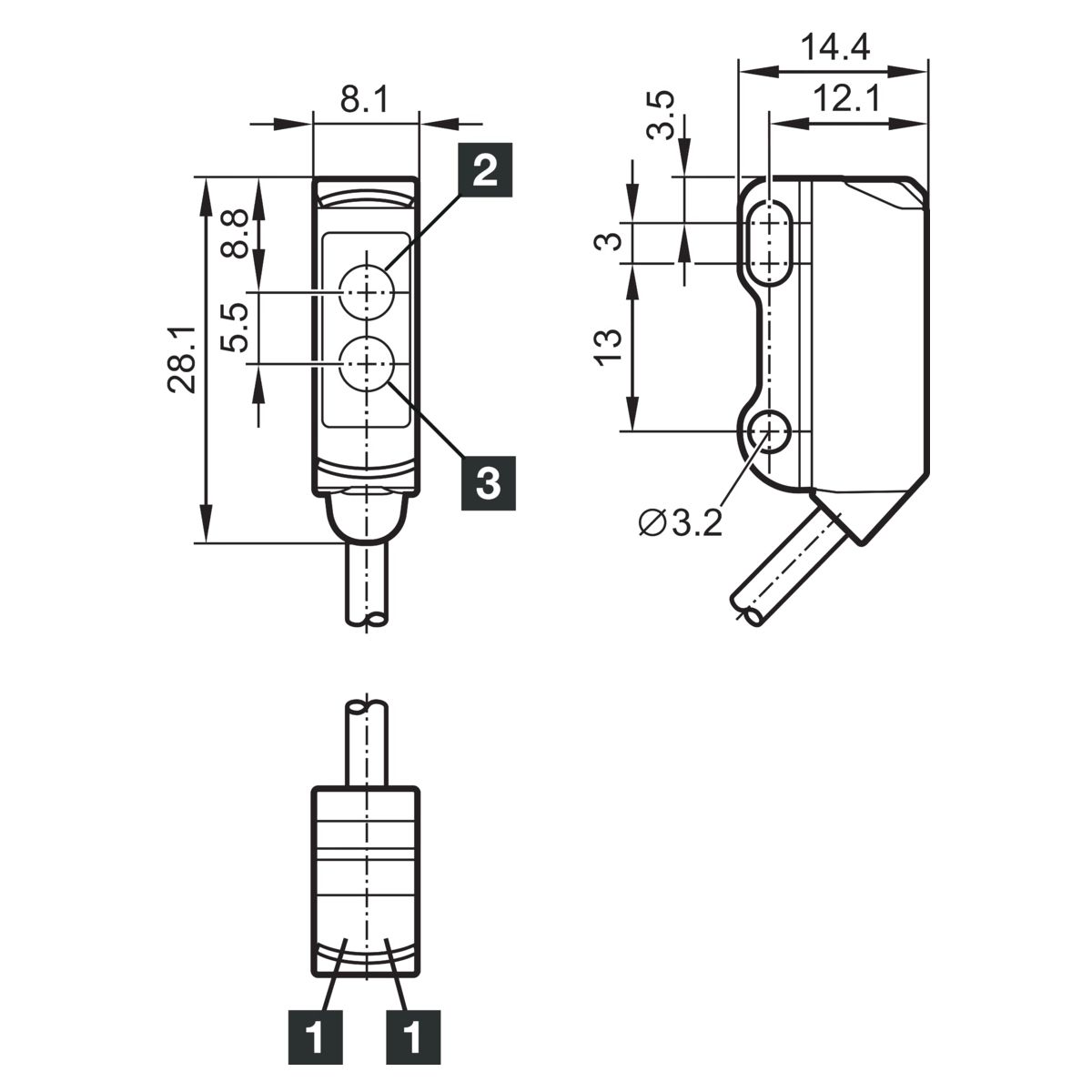

Housing Dimensions	28.1 x 8.1 x 14.4 mm
Housing length	8.1 mm
Housing Material	Stainless steel;Plastic
Illumination Time Pulse	1.0
Inverse Polarity Protection	Yes
Light Source	LED Clocked
Light Spot Size	> Ø 4 mm
Material	Plastic Window / optics
Material Of Cable	PVC
No Load Current (max.)	20.0 mA
Operating Principle	Diffuse sensor with background suppression
Protection Class	III, operation on protective low voltage
Protection Type	IP 65;IP 67
Scanning Range	1.0 mm 50.0 mm
Sensitivity Adjustment	no setting elements
Service Voltage	10.0 ... 30.0V DC
Short Circuit Protection	Yes
Standardized Measuring Plate	200 x 200 mm white
Switching Frequency	1000 Hz
Switching Output	npn 100.0 mA NO
Voltage Drop (max.)	2.5 V
Wavelength	633 nm
Weight	37.0 g
Yellow	Switching output
