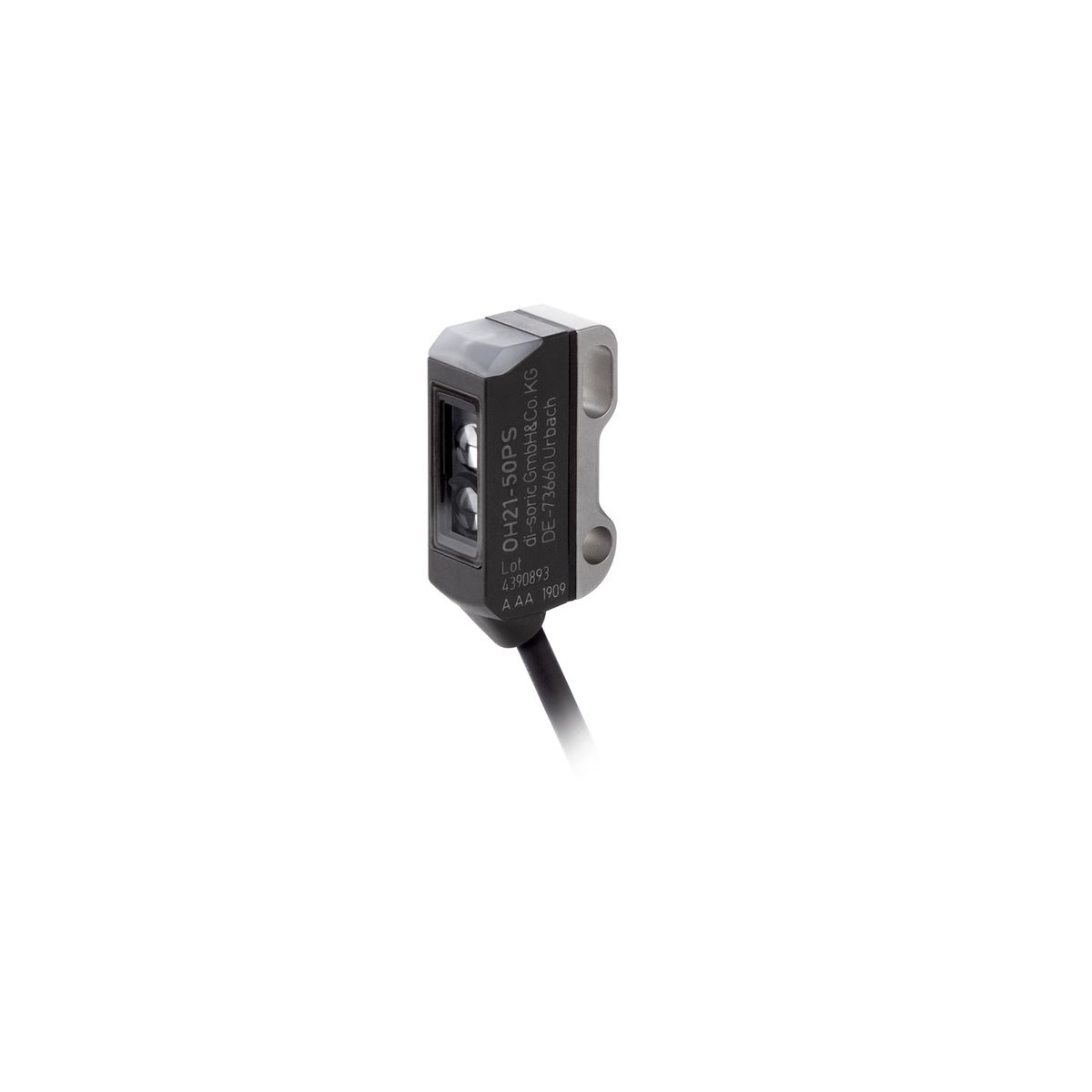

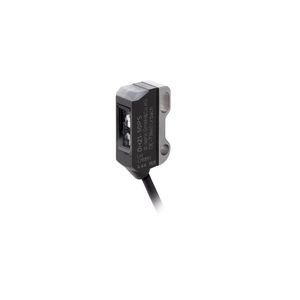

OH21-50PS-0.3T3
Part Number: OH21-50PS-0.3T3
Article Number: 212975
Technical Details
| Ambient Temperature During Operation | -25.0 ... 60.0°C |
|---|---|
| Background Suppression | 1.0 |
| Color | Red |
| Connection | Pigtail 0.3 m M8 3-pin |
| Connection Cable | TK ... |
| Design | Cuboid design |
| Evaluation | digital |
| Green | Status |

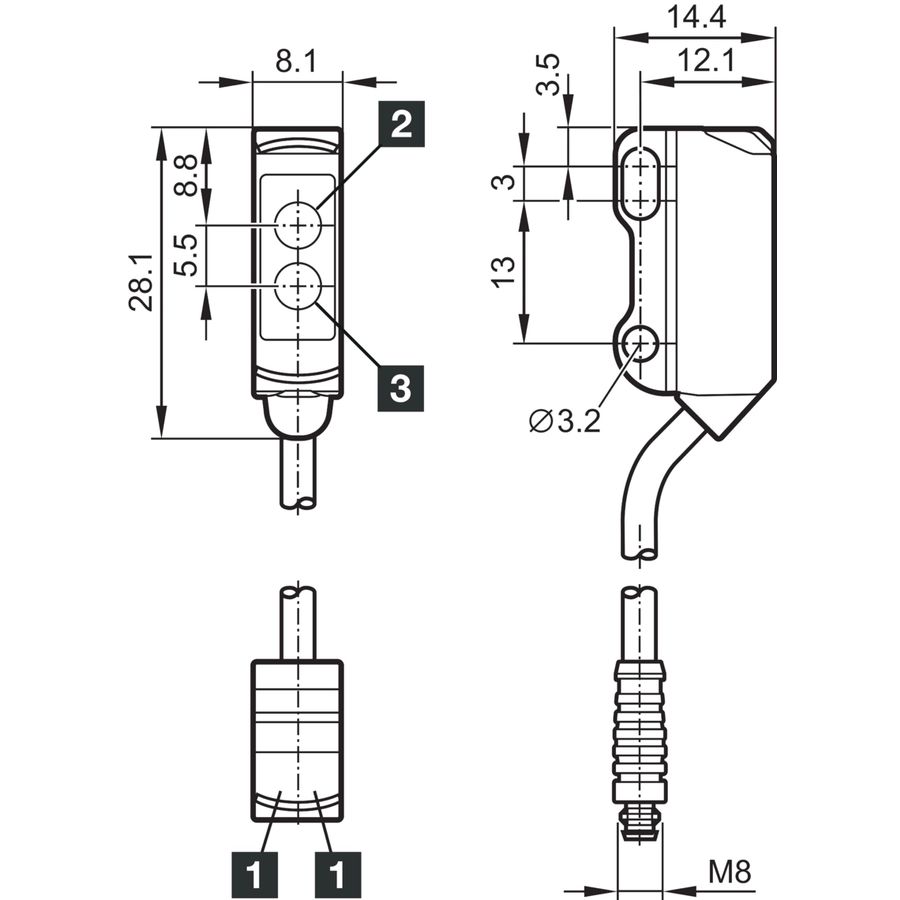

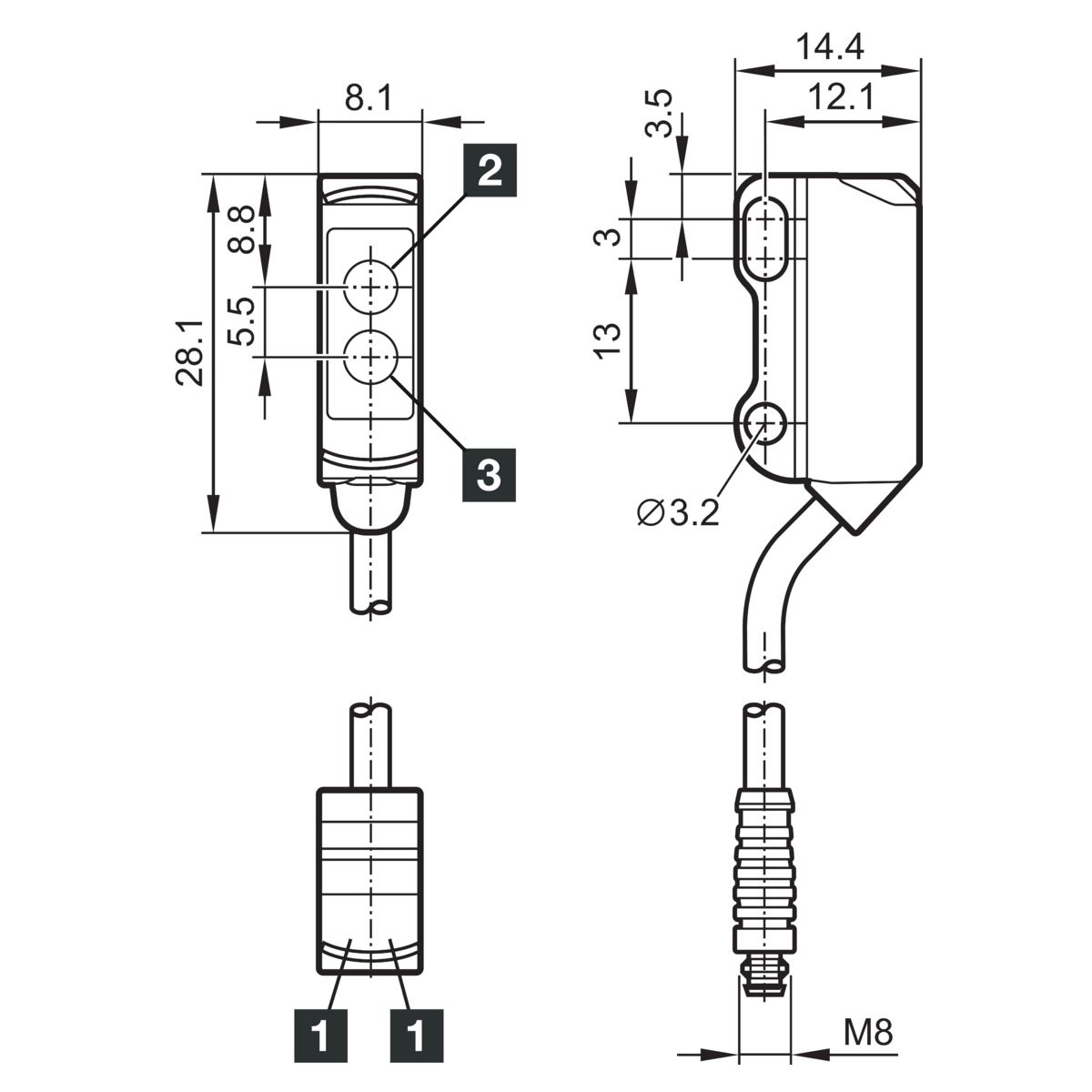

| Housing Dimensions | 28.1 x 8.1 x 14.4 mm |
| Housing length | 8.1 mm |
| Housing Material | Stainless steel;Plastic |
| Illumination Time Pulse | 1.0 |
| Interface | IO-Link V1.1, COM2 38.4 kBd, Smart Sensor Profile |
| Inverse Polarity Protection | Yes |
| Light Source | LED Clocked |
| Light Spot Size | > Ø 4 mm |
| Material | Plastic Window / optics |
| Material Of Cable | PVC |
| No Load Current (max.) | 20.0 mA |
| Operating Principle | Diffuse sensor with background suppression |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 65;IP 67 |
| Scanning Range | 1.0 mm 50.0 mm configurable |
| Sensitivity Adjustment | IO-Link |
| Service Voltage | 10.0 ... 30.0V DC |
| Standardized Measuring Plate | 200 x 200 mm white |
| Switching Frequency | 1000 Hz |
| Switching Output | pnp 100.0 mA NO/NC configurable |
| Voltage Drop (max.) | 2.5 V |
| Wavelength | 633 nm |
| Weight | 21.0 g |
| Yellow | Switching output |
