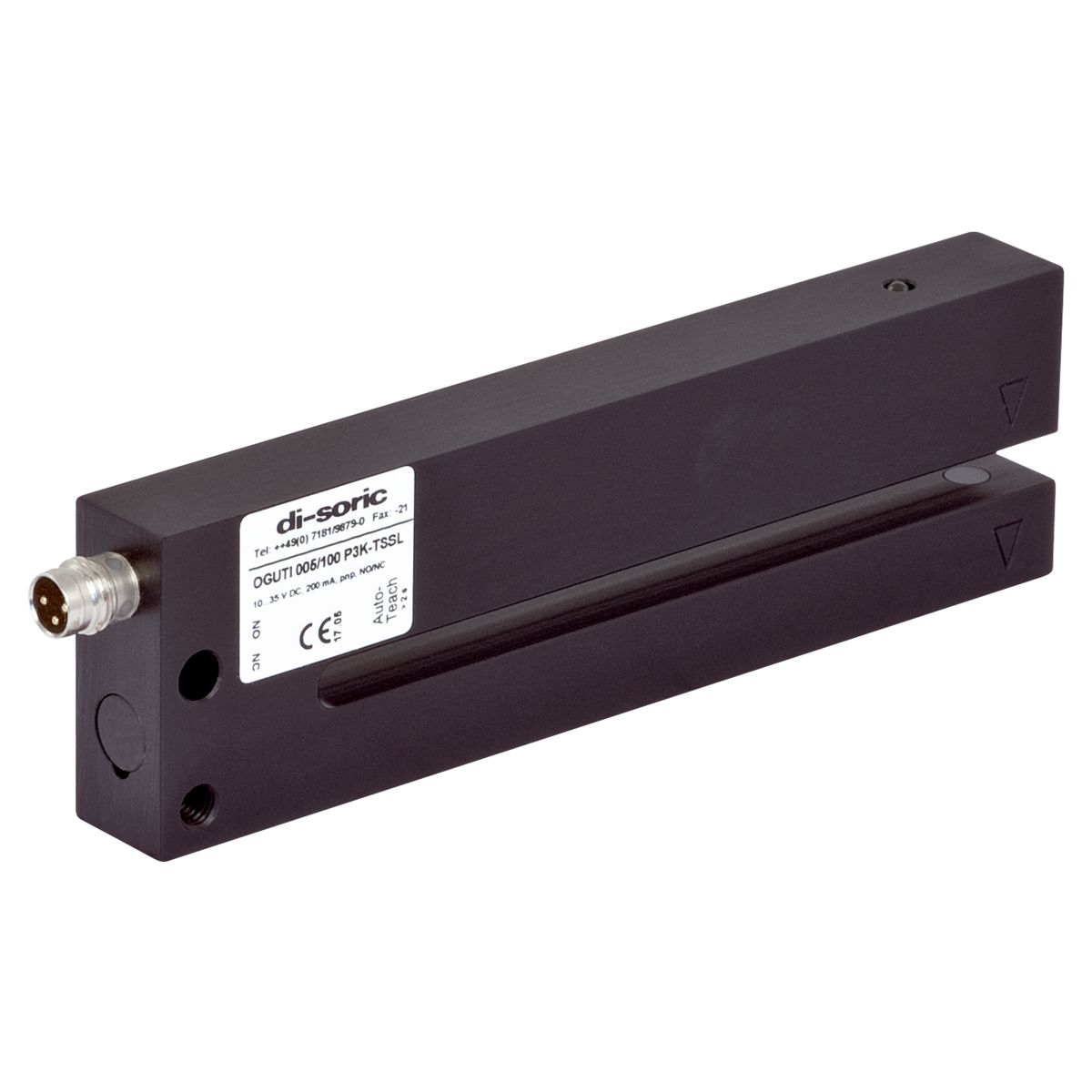

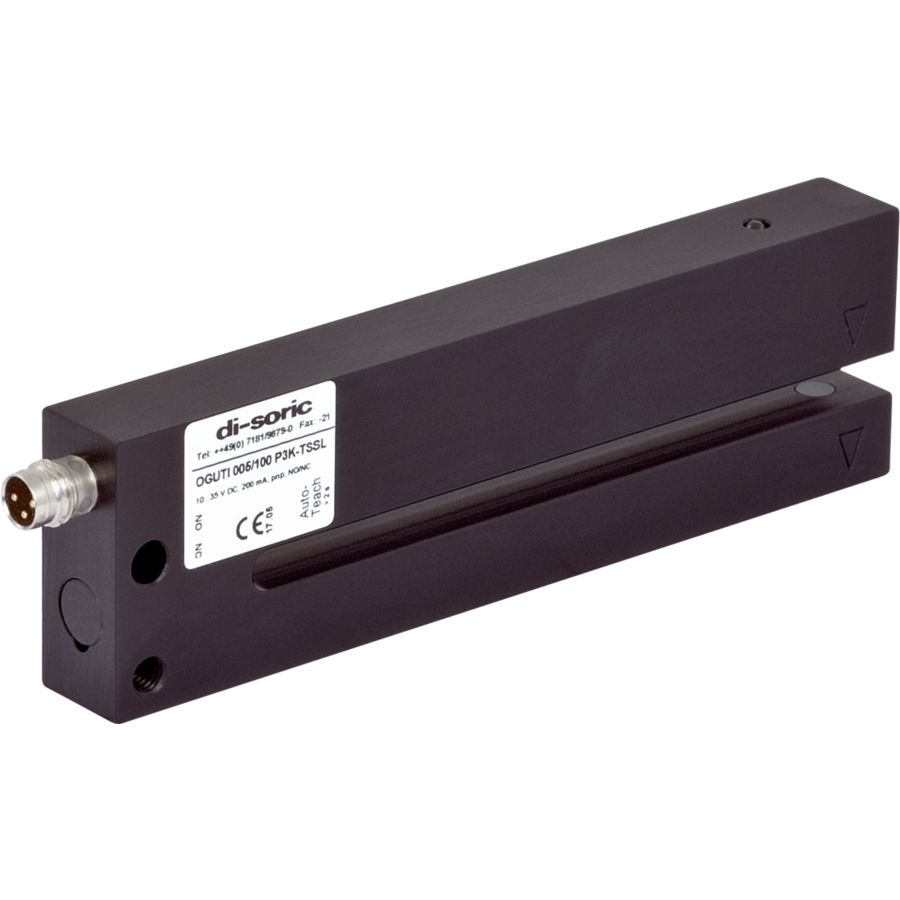

Optical Label Sensor - OGUTI 005/100 P3K-TSSL
Part Number: OGUTI 005/100 P3K-TSSL
Article Number: 202706
Technical Details
| Ambient Light Immunity | 40 kLx |
|---|---|
| Ambient Temperature During Operation | -10.0 ... 60.0°C |
| Color | Infrared |
| Connection | Connector M8 3-pin |
| Connection Cable | TK ... |
| Design | Fork |
| Evaluation | digital |
| Fork Opening | 5.0 mm |

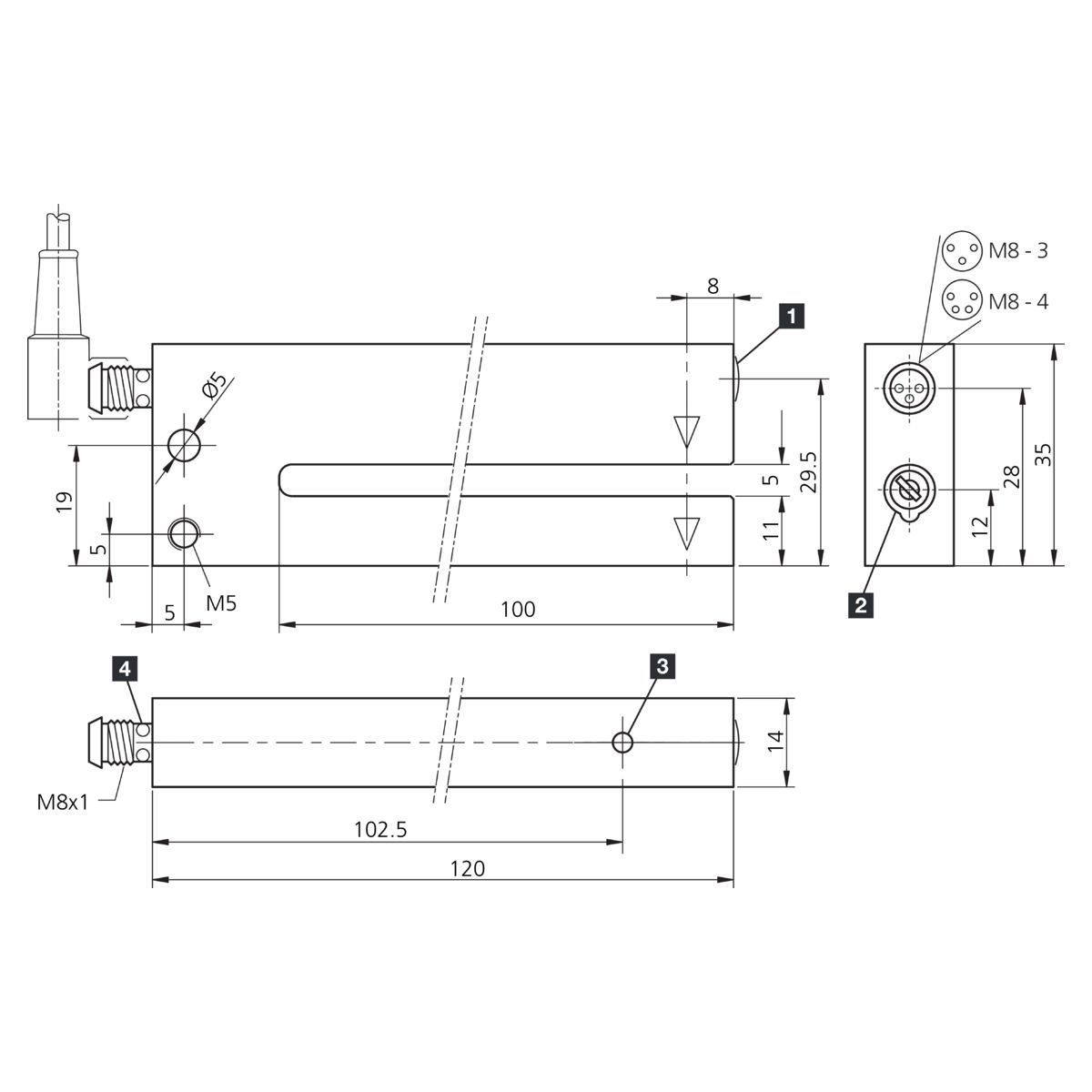

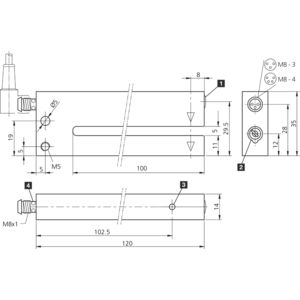

| Housing Dimensions | 35 x 120 x 14 mm |
| Housing length | 120.0 mm |
| Housing Material | Die-cast zinc Black painted |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Leg Length Internal | 100 mm |
| Light Source | LED |
| Modulation | Clocked |
| No Load Current (max.) | 35.0 mA |
| Operating Principle | Optical |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Reproducibility | < 0.03 mm |
| Resolution | 0.5 mm |
| Sensitivity Adjustment | Teach button |
| Service Voltage | 10 ... 35.0V DC |
| Switching Frequency | 3000.0 Hz |
| Switching Hysteresis (max.) | 0.1 mm |
| Switching Output | pnp 200.0 mA NO/NC switchable |
| Voltage Drop (max.) | 2.0 V |
| Wavelength | 880.0 nm |
