OS21-0.3T3
Part Number: OS21-0.3T3
Article Number: 212990
Technical Details
| Ambient Temperature During Operation | -25.0 ... 60.0°C |
|---|---|
| Color | Red |

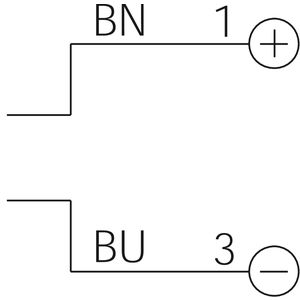

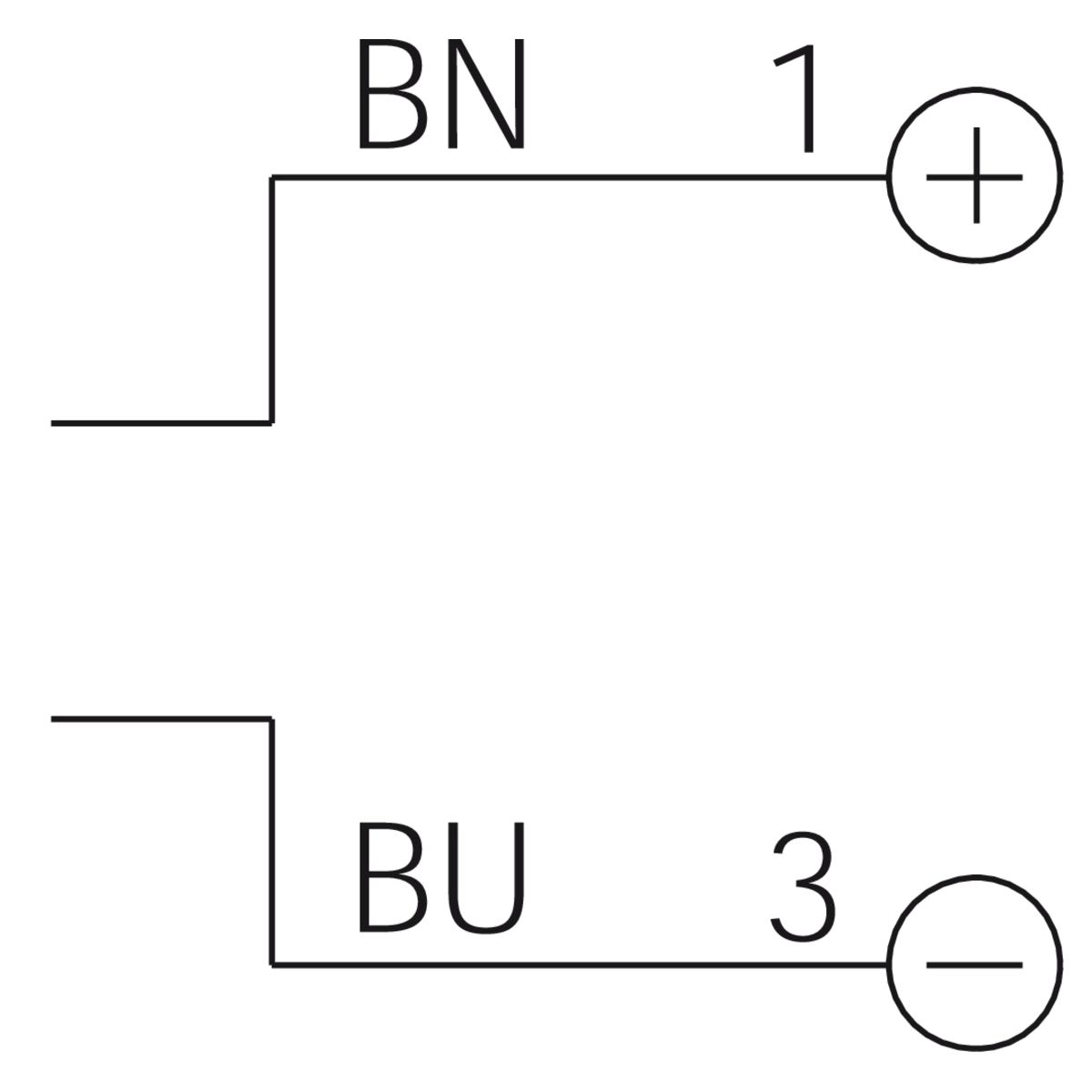

| Connection | Pigtail 0.3 m M8 3-pin |
| Connection Cable | TK ... |
| Consisting Of | Transmitter |
| Design | Cuboid design |
| Evaluation | digital |
| Green | Status |

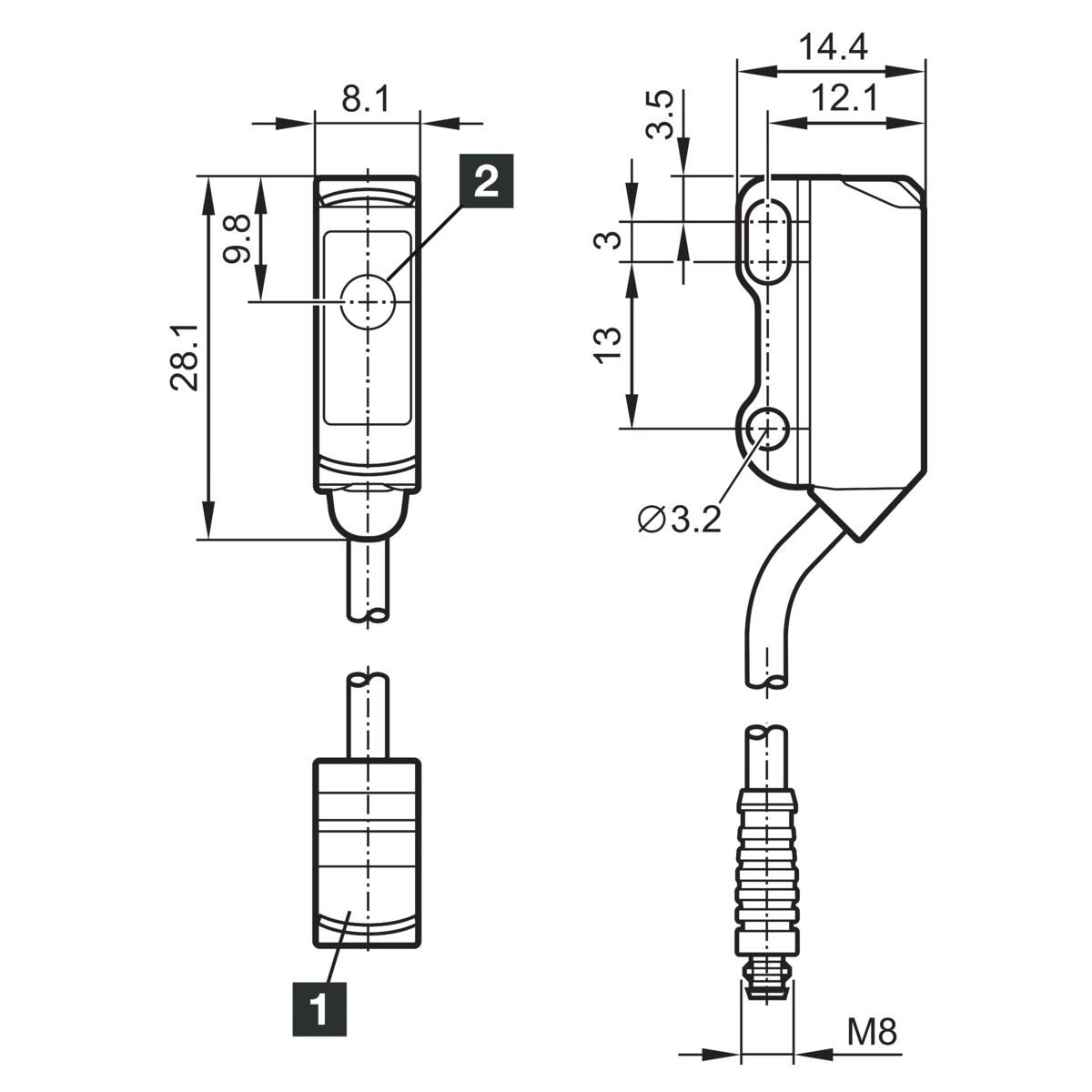

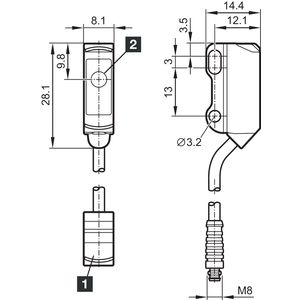

| Housing Dimensions | 28.1 x 8.1 x 14.4 mm |
| Housing length | 8.1 mm |
| Housing Material | Stainless steel;Plastic |
| Illumination Time Pulse | 1.0 |
| Inverse Polarity Protection | Yes |
| Light Source | LED |
| Light Spot Size | Ø 200 mm (at distance of 3000 mm) |
| Material | Plastic Window / optics |
| Material Of Cable | PVC |
| Modulation | Clocked |
| No Load Current (max.) | 15.0 mA |
| Operating Principle | Through-beam sensor |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 65;IP 67 |
| Range | 3000.0mm |
| Sensitivity Adjustment | no setting elements |
| Service Voltage | 10.0 ... 30.0V DC |
| Standardized Measuring Plate | 200 x 200 mm white |
| Wavelength | 633 nm |
| Weight | 21.0 g |
