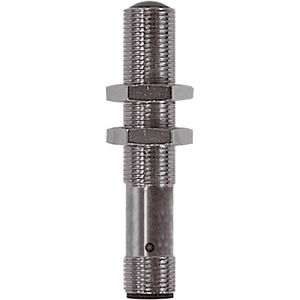

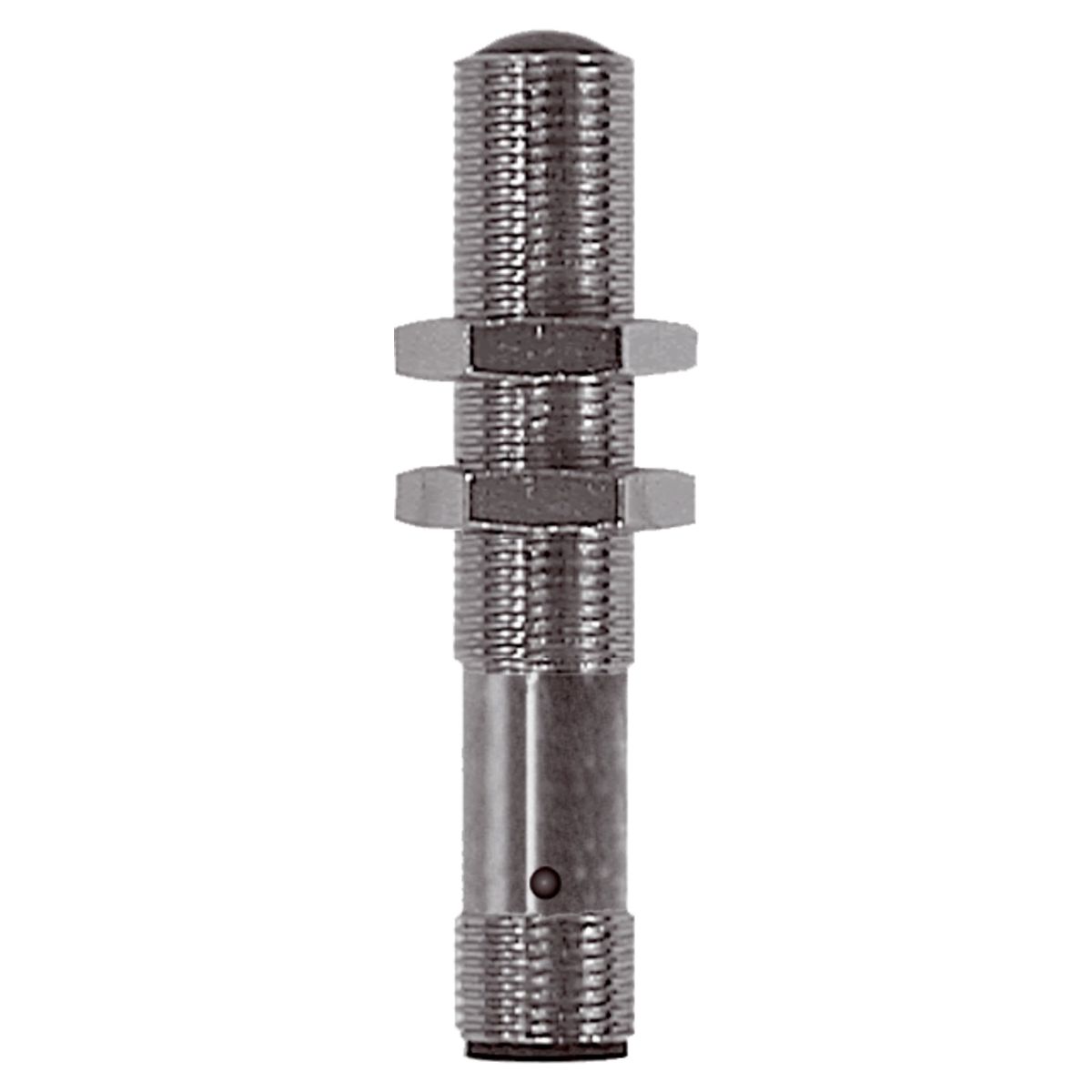

OSP 12 VHF-IBSL

Ambient Temperature During Operation	-20.0 ... 60.0°C
Characteristics	High transmit power and dirt penetration
Color	Infrared

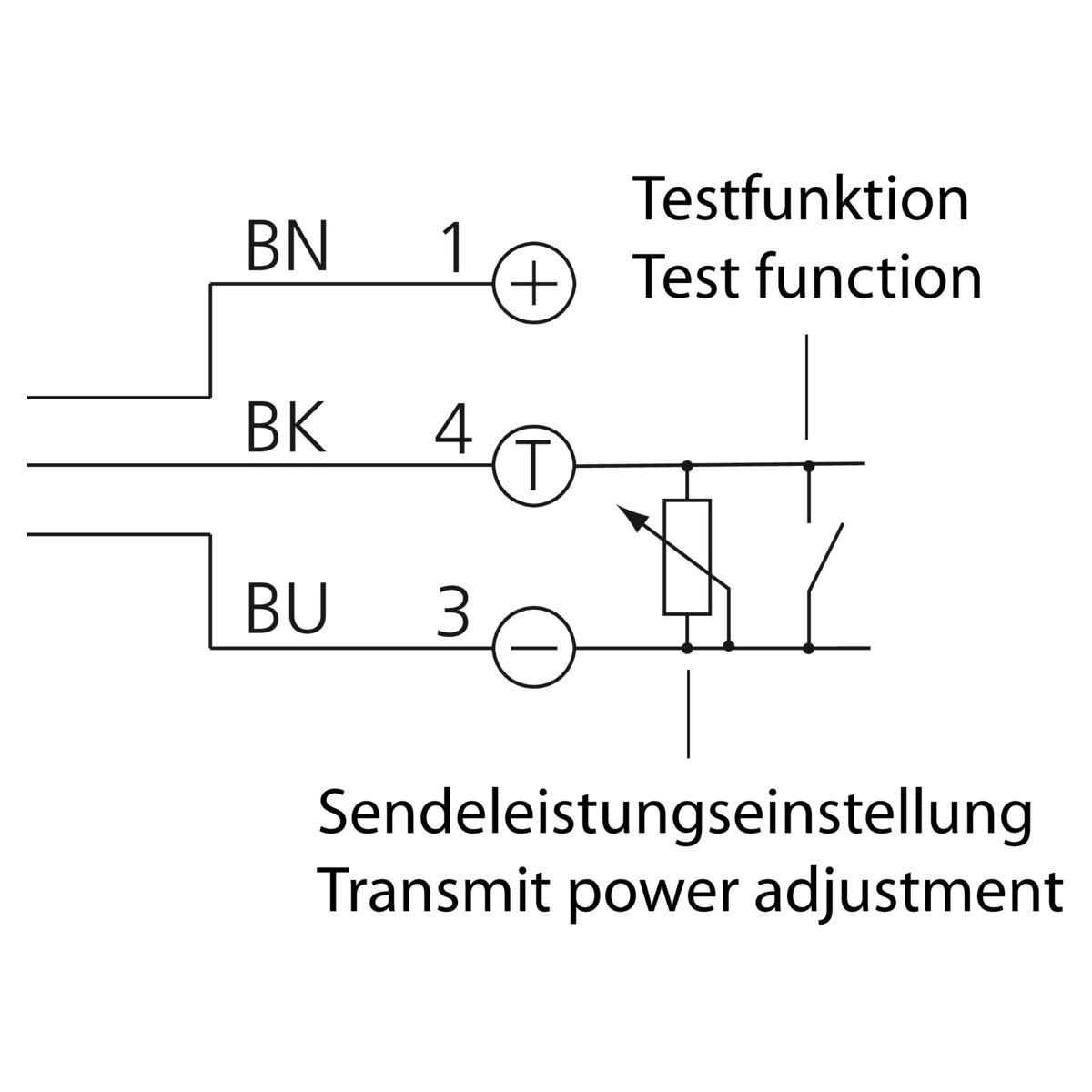

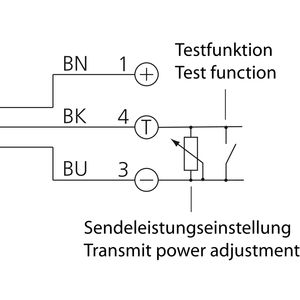

Connection	Connector M12 3-pin
Consisting Of	Transmitter
Deflection Angle FWHM	6.0 °
Design	Thread
Evaluation	digital

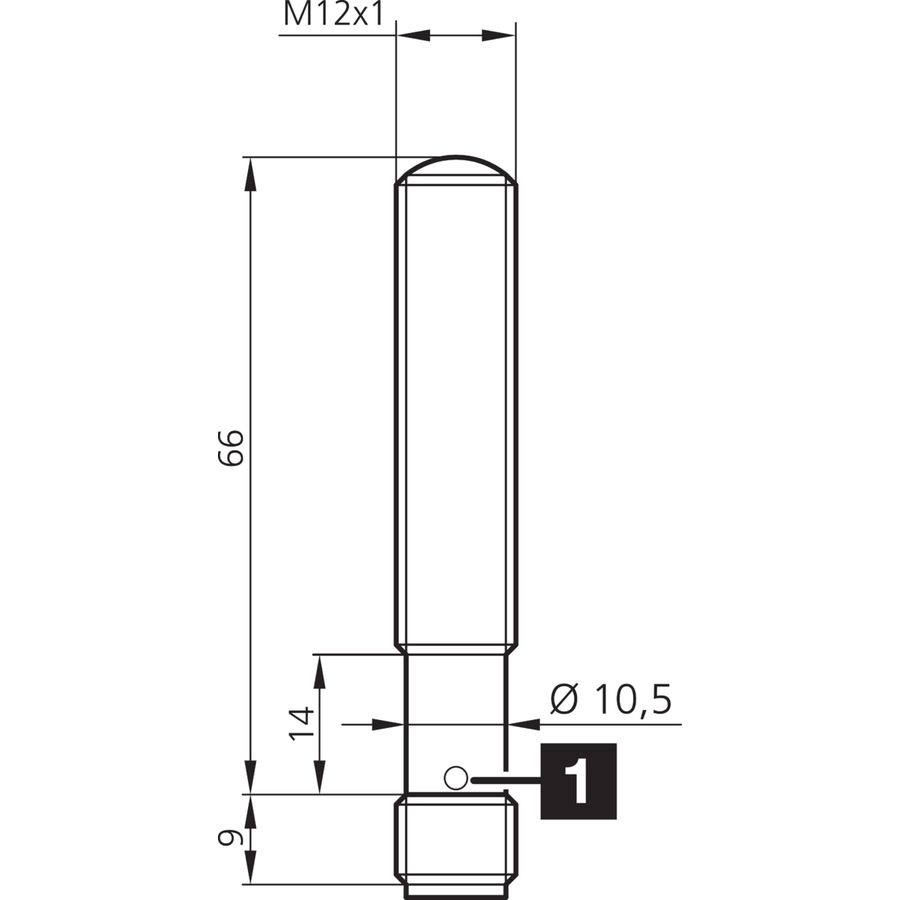

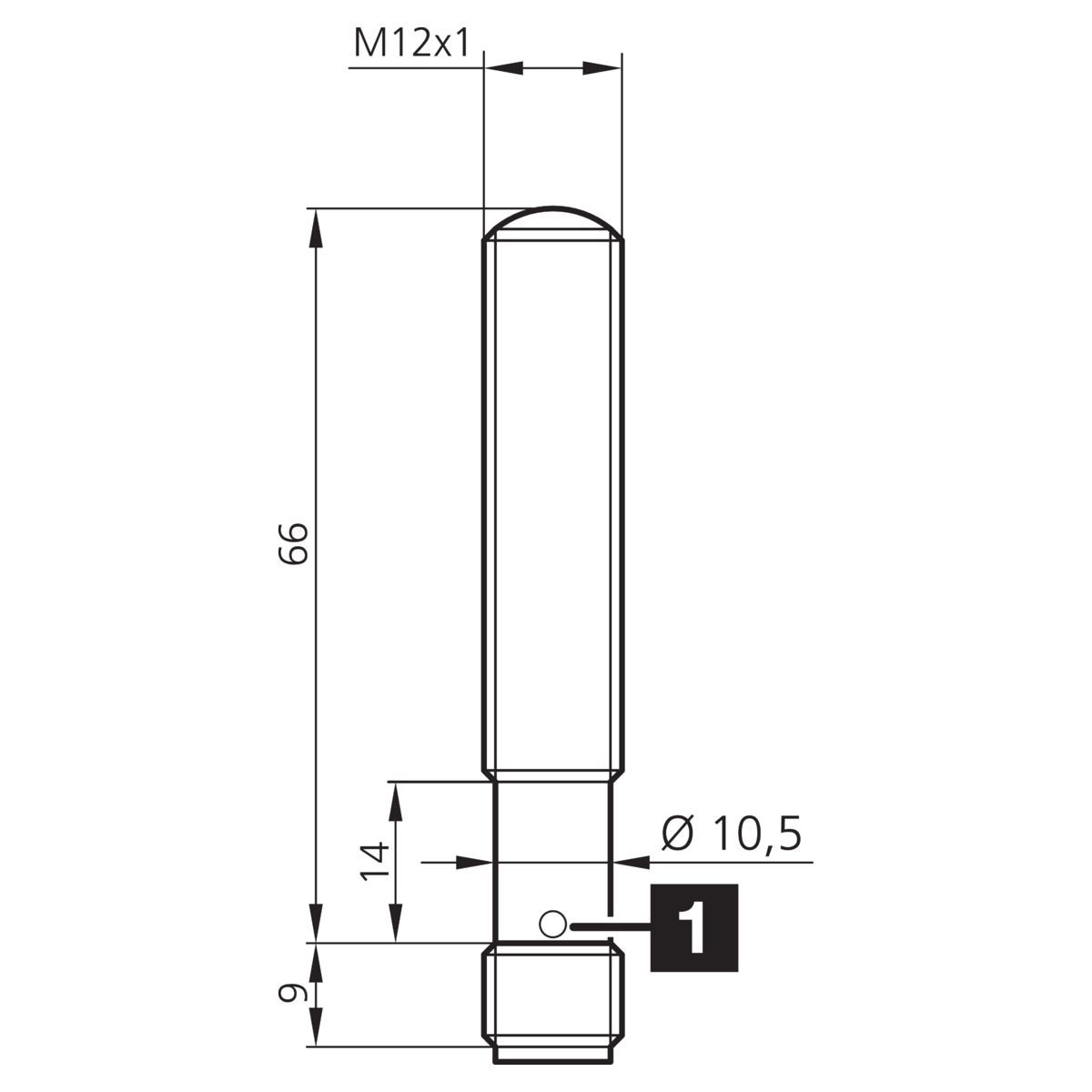

Housing length	66.0 mm
Housing Material	Stainless steel V2A 1.4301 / AISI 304
Illumination Time Pulse	1.0
Light Source	LED
Modulation	Clocked
No Load Current (max.)	55.0 mA
Operating Principle	Through-beam sensor, transmitter
Protection Class	III, operation on protective low voltage
Protection Type	IP 67;IP 68;IP 69K
Range	0.0 ... 50000.0mm (dependent on the receiver)
Sensitivity Adjustment	no setting elements
Service Voltage	10 ... 35.0V DC
Shock Vibration Load	30 g, 11 ms / 10 ... 55 Hz, 2.0 mm
Thread	M12 x 1
Wavelength	870.0 nm
