OSPQ 12 MHFL-5M

Ambient Temperature During Operation	-20.0 ... 60.0°C
Characteristics	High transmit power and dirt penetration
Color	Infrared
Connection	Cable 5.0 m
Consisting Of	Transmitter
Deflection Angle FWHM	6.0 °
Design	Cuboid design
Evaluation	digital

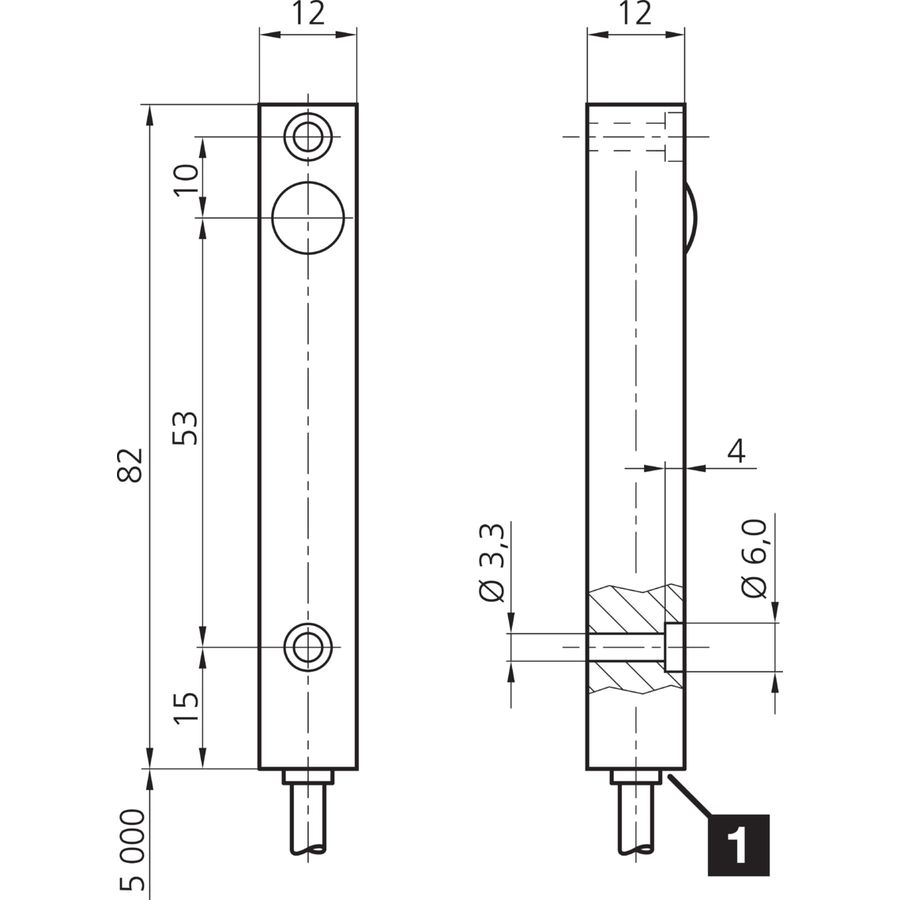

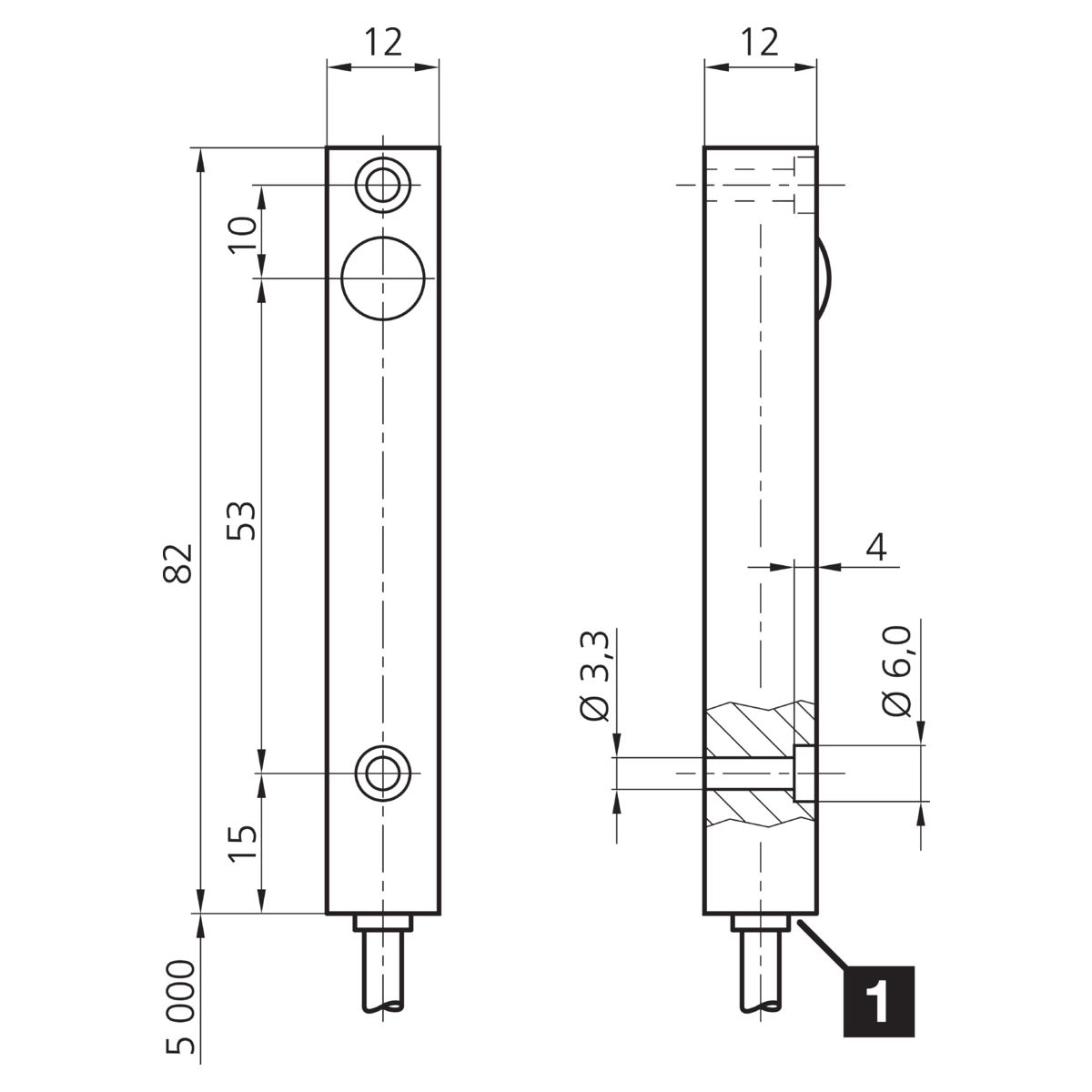

Housing Dimensions	82 x 12 x 12 mm
Housing length	82.0 mm
Housing Material	Aluminum Anodized
Illumination Time Pulse	1.0
Light Source	LED
Material Of Cable	PVC
Modulation	Clocked
No Load Current (max.)	55.0 mA
Operating Principle	Through-beam sensor, transmitter
Protection Class	III, operation on protective low voltage
Protection Type	IP 67
Range	0.0 ... 50000.0mm (dependent on the receiver)
Sensitivity Adjustment	no setting elements
Service Voltage	10 ... 35.0V DC
Shock Vibration Load	30 g, 11 ms / 10 ... 55 Hz, 2.0 mm
Wavelength	870.0 nm
