OSPQ 12 MLF-TSSL

Ambient Temperature During Operation	-20.0 ... 60.0°C
Characteristics	High transmit power and dirt penetration
Color	Infrared

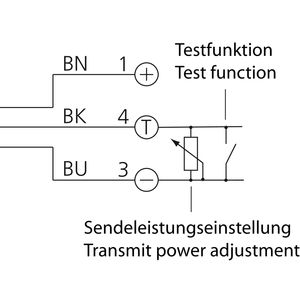

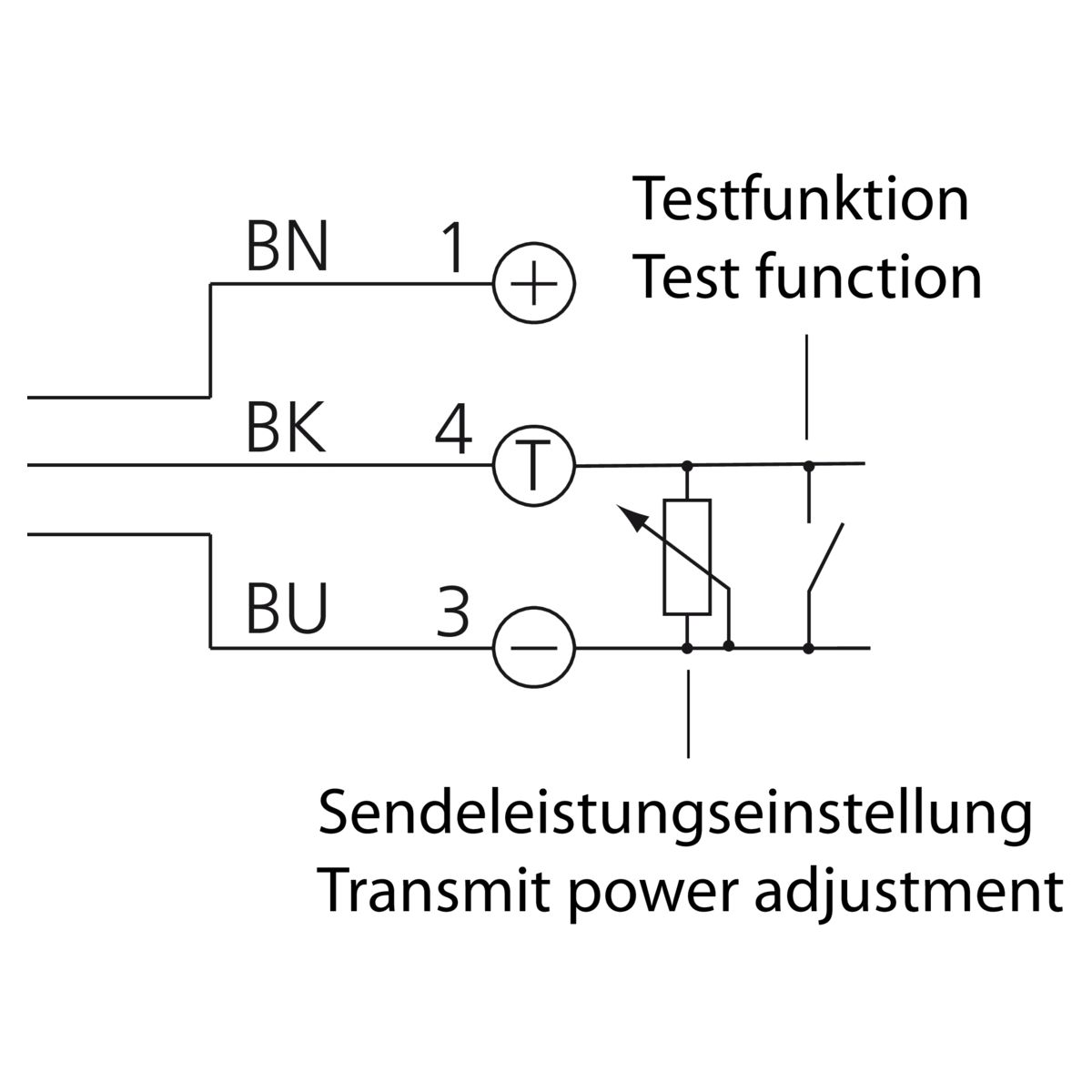

Connection	Connector M8 3-pin
Consisting Of	Transmitter
Deflection Angle FWHM	15.0 °
Design	Cuboid design
Evaluation	digital

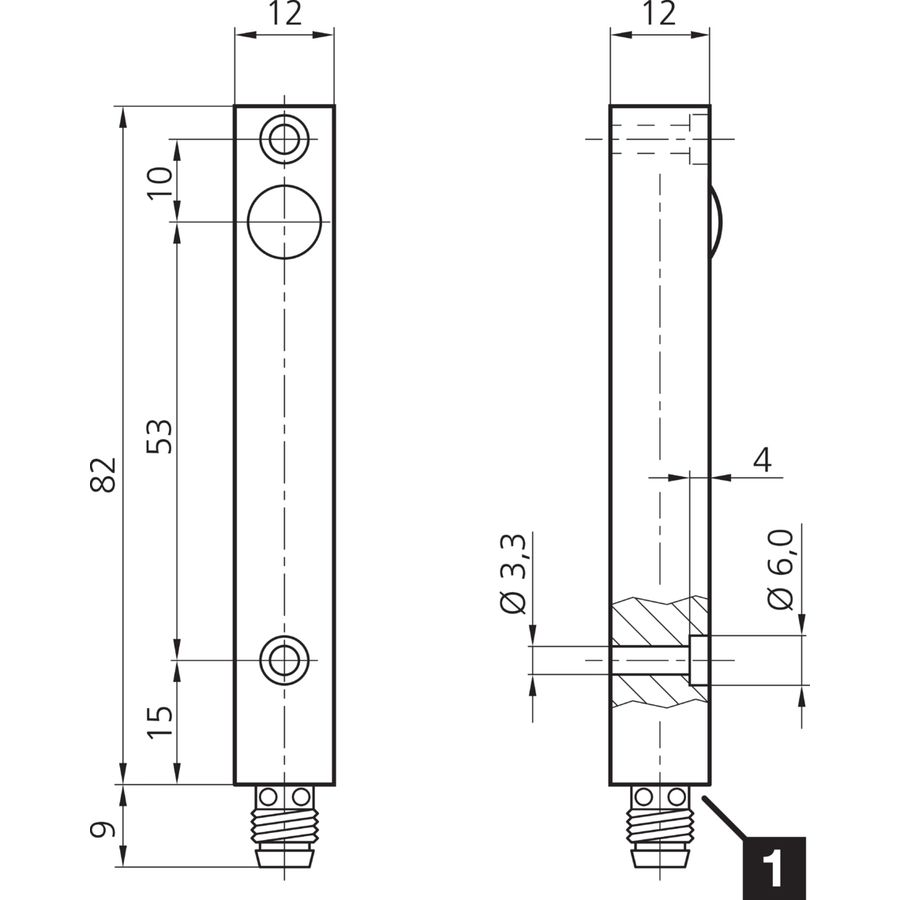

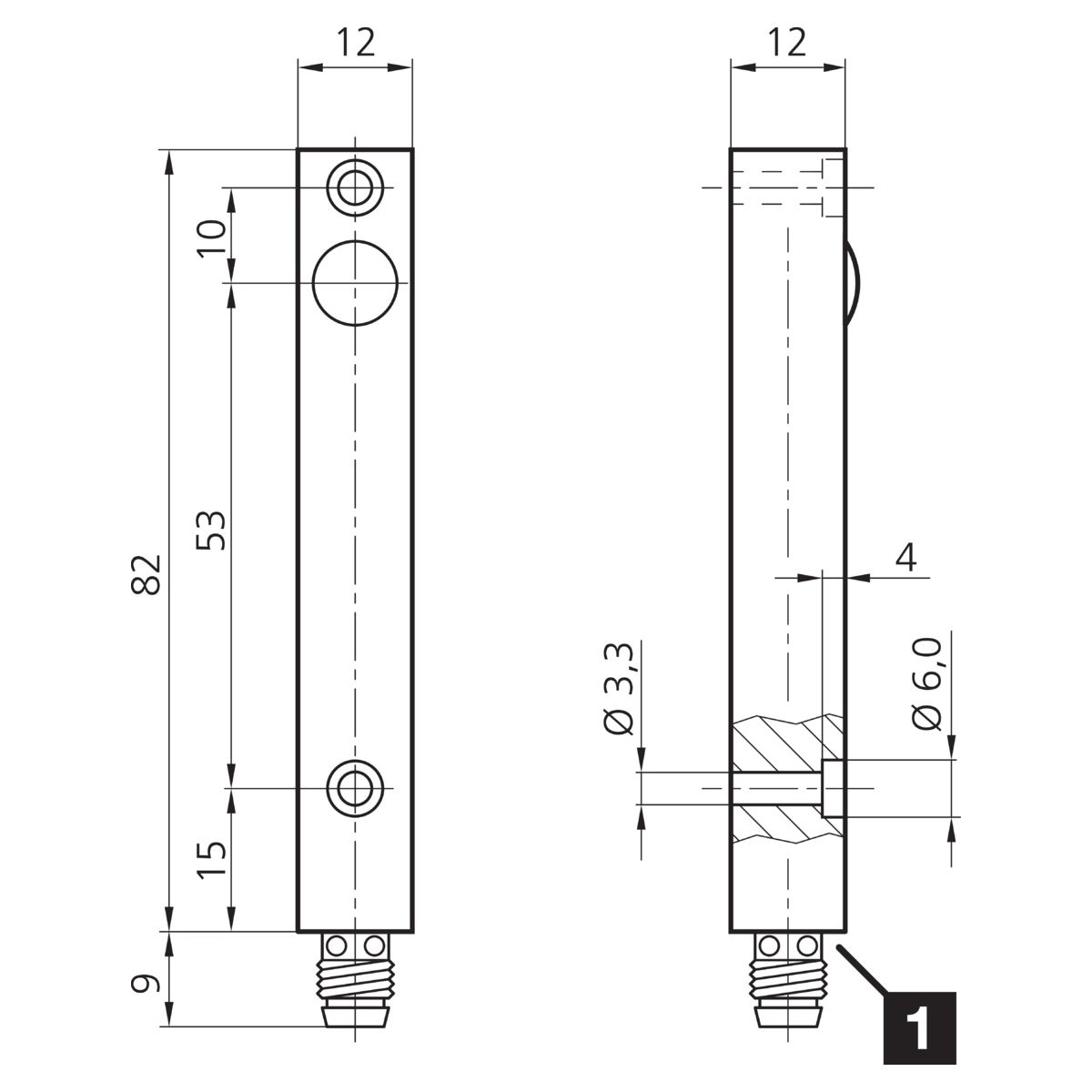

Housing Dimensions	82 x 12 x 12 mm
Housing length	82.0 mm
Housing Material	Aluminum Anodized
Illumination Time Pulse	1.0
Light Source	LED
Modulation	Clocked
No Load Current (max.)	55.0 mA
Operating Principle	Through-beam sensor, transmitter
Protection Class	III, operation on protective low voltage
Protection Type	IP 67
Range	0.0 ... 20000.0mm (dependent on the receiver)
Sensitivity Adjustment	no setting elements
Service Voltage	10 ... 35.0V DC
Shock Vibration Load	30 g, 11 ms / 10 ... 55 Hz, 2.0 mm
Wavelength	870.0 nm
