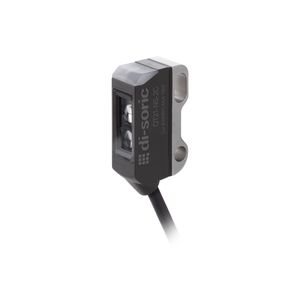

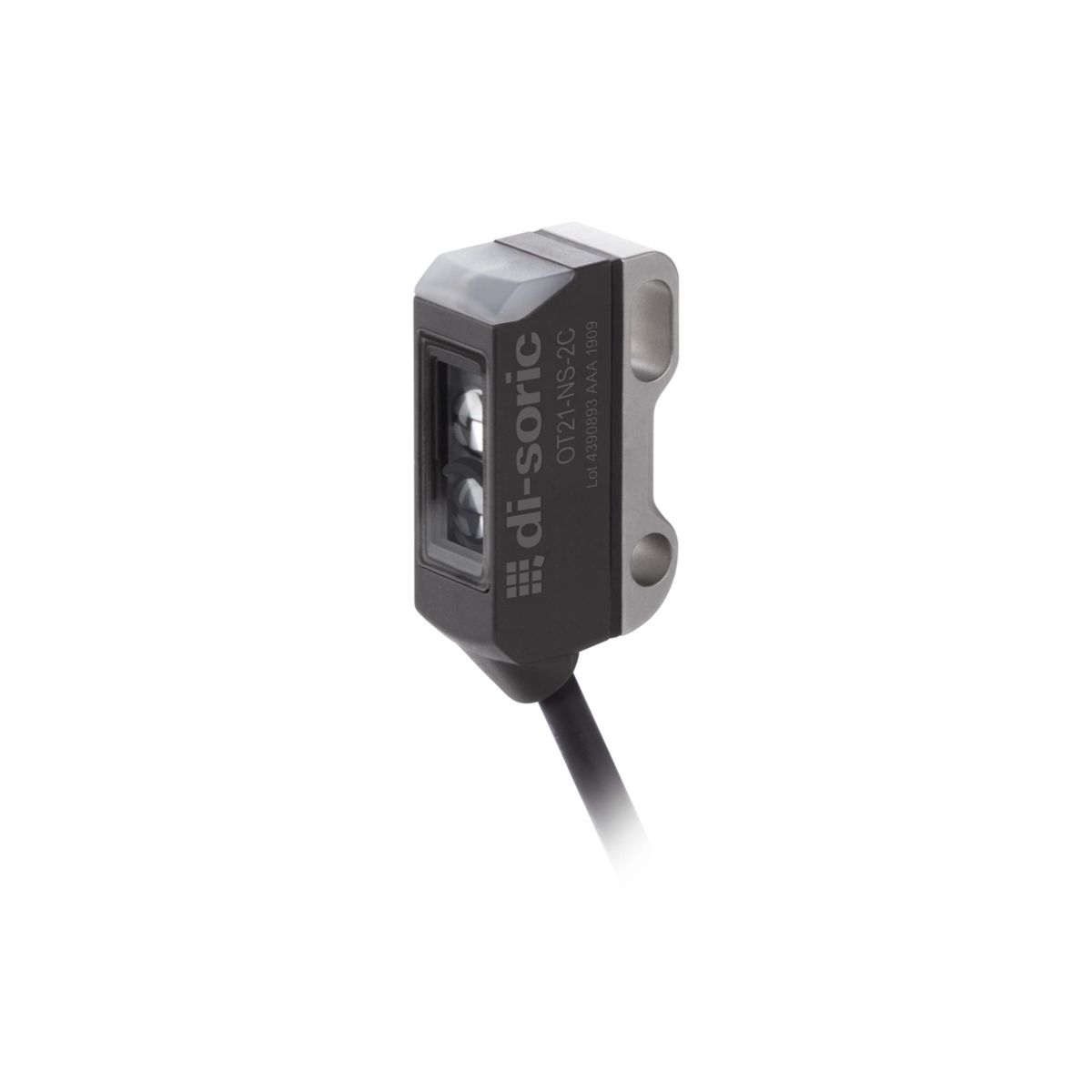

OT21-NS-2C
Part Number: OT21-NS-2C
Article Number: 212982
Technical Details
| Ambient Temperature During Operation | -25.0 ... 60.0°C |
|---|---|
| Color | Red |
| Connection | Cable 2.0 m 3-pin |
| Design | Cuboid design |
| Evaluation | digital |
| Green | Status |

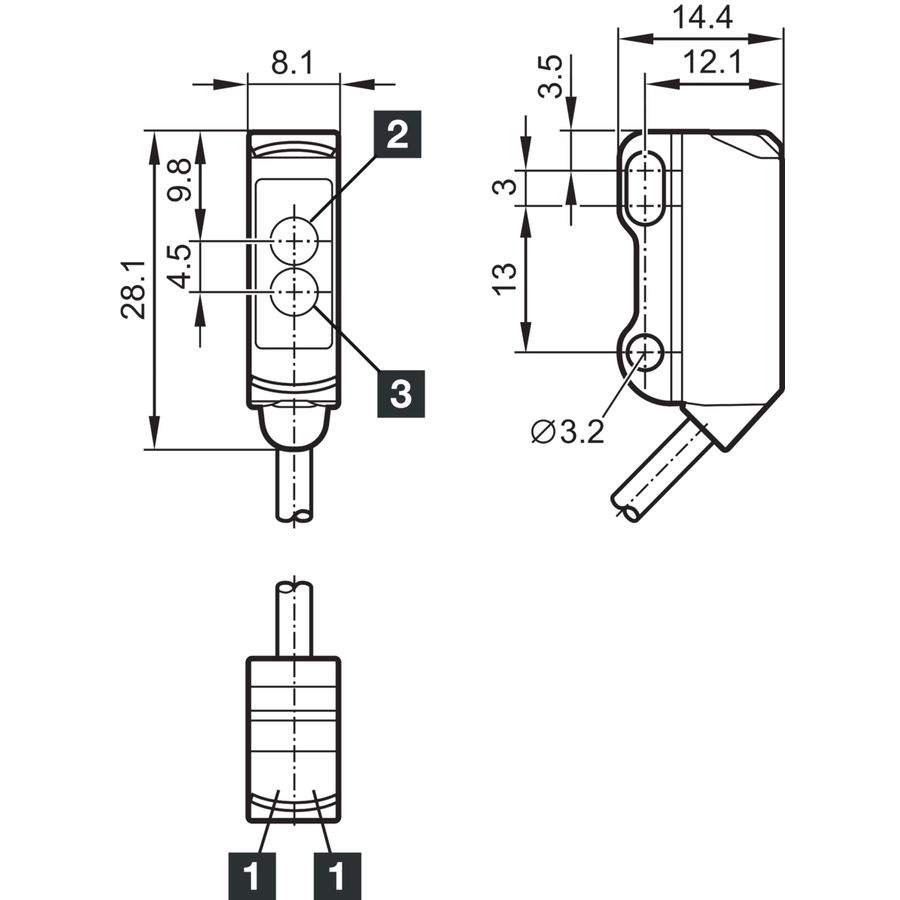

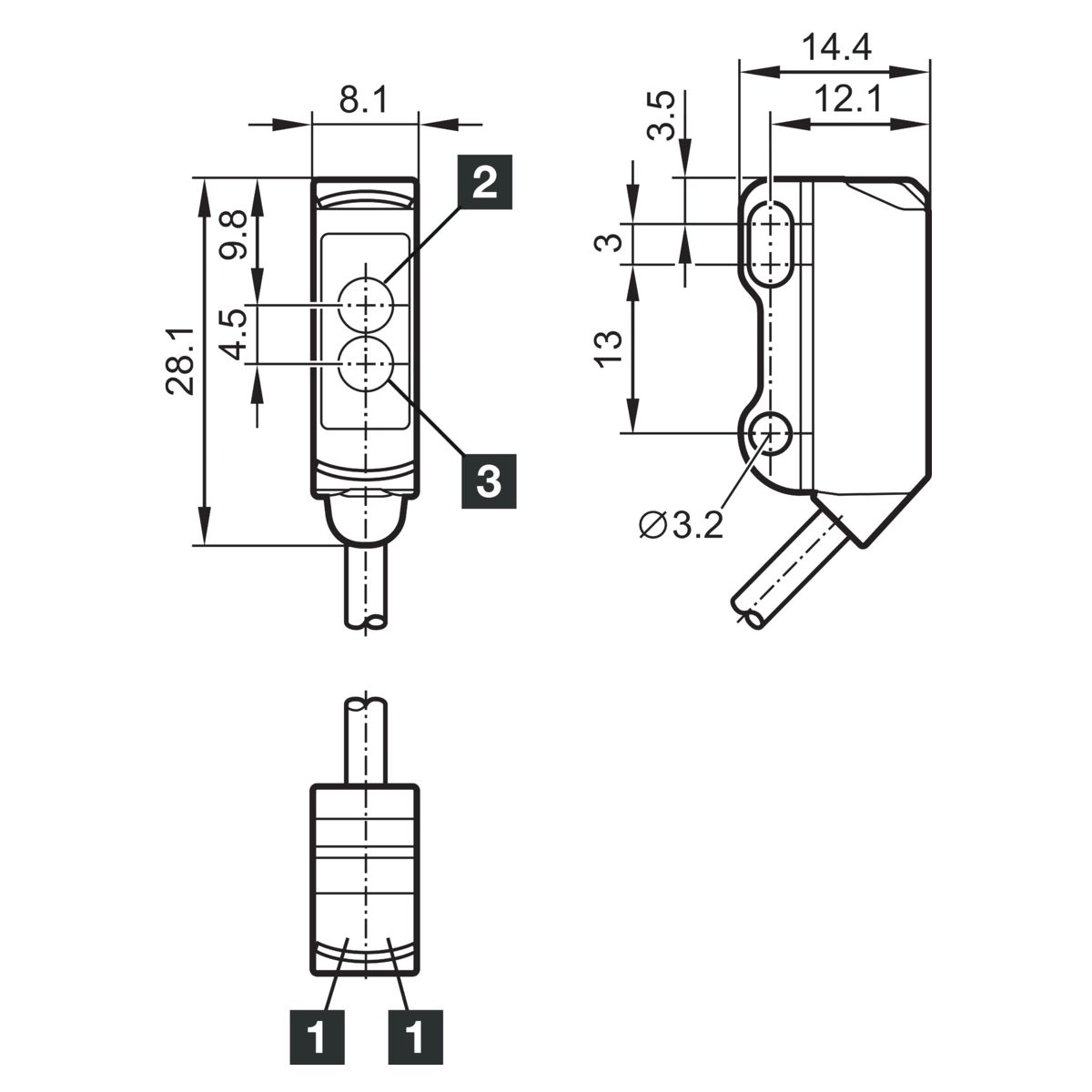

| Housing Dimensions | 28.1 x 8.1 x 14.4 mm |
| Housing length | 8.1 mm |
| Housing Material | Stainless steel;Plastic |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Inverse Polarity Protection | Yes |
| Light Source | LED |
| Light Spot Size | Ø 18 mm (at distance of 180 mm) |
| Material | Plastic Window / optics |
| Material Of Cable | PVC |
| Modulation | Clocked |
| No Load Current (max.) | 20.0 mA |
| Operating Principle | Retroreflective diffuse sensor |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 65;IP 67 |
| Scanning Range | 0.0 mm 180.0 mm |
| Sensitivity Adjustment | no setting elements |
| Service Voltage | 10.0 ... 30.0V DC |
| Short Circuit Protection | Yes |
| Standardized Measuring Plate | 200 x 200 mm white |
| Switching Frequency | 1000 Hz |
| Switching Output | npn 100.0 mA NO |
| Voltage Drop (max.) | 2.5 V |
| Wavelength | 633 nm |
| Weight | 37.0 g |
| Yellow | Switching output |
