OT21-PS-2C

Ambient Temperature During Operation	-25.0 ... 60.0°C
Color	Red

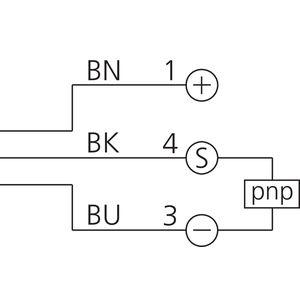

Connection	Cable 2.0 m 3-pin
Design	Cuboid design
Evaluation	digital
Green	Status

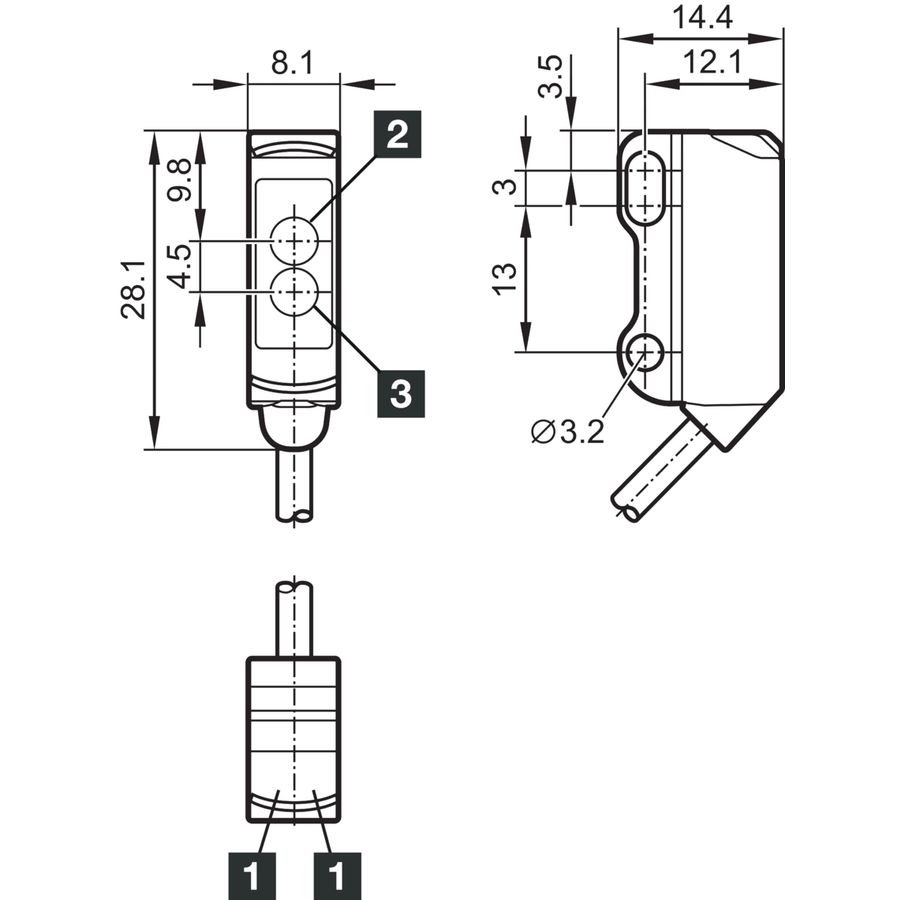

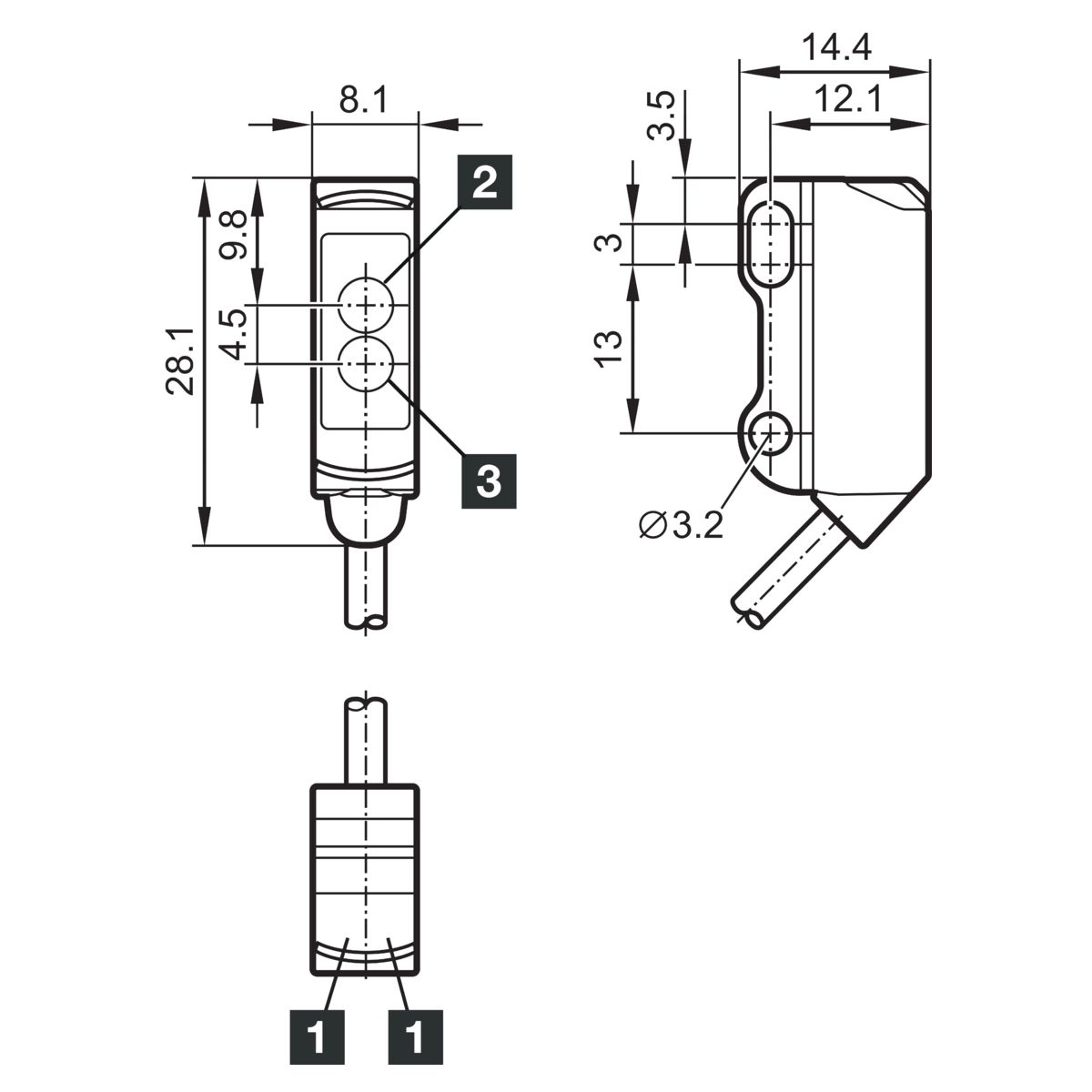

Housing Dimensions	28.1 x 8.1 x 14.4 mm
Housing length	8.1 mm
Housing Material	Stainless steel;Plastic
Illumination Time Pulse	1.0
Insulation Voltage Endurance	500.0 V
Interface	IO-Link V1.1, COM2 38.4 kBd, Smart Sensor Profile
Inverse Polarity Protection	Yes
Light Source	LED
Light Spot Size	Ø 18 mm (at distance of 180 mm)
Material	Plastic Window / optics
Material Of Cable	PVC
Modulation	Clocked
No Load Current (max.)	20.0 mA
Operating Principle	Retroreflective diffuse sensor
Protection Class	III, operation on protective low voltage
Protection Type	IP 65;IP 67
Scanning Range	0.0 mm 180.0 mm configurable
Sensitivity Adjustment	IO-Link
Service Voltage	10.0 ... 30.0V DC
Short Circuit Protection	Yes
Standardized Measuring Plate	200 x 200 mm white
Switching Frequency	1000 Hz
Switching Output	pnp 100.0 mA NO/NC configurable
Voltage Drop (max.)	2.5 V
Wavelength	633 nm
Weight	37.0 g
Yellow	Switching output
