OTD04-50PS-2R
Part Number: OTD04-50PS-2R
Article Number: 213031
Technical Details
| Ambient Temperature During Operation | -25.0 ... 65.0°C |
|---|---|
| Color | Red |
| Connection | Cable 2.0 m 3-pin |

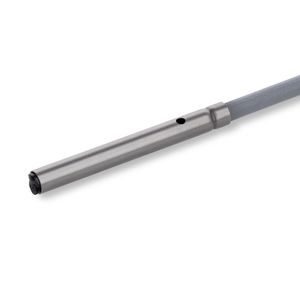

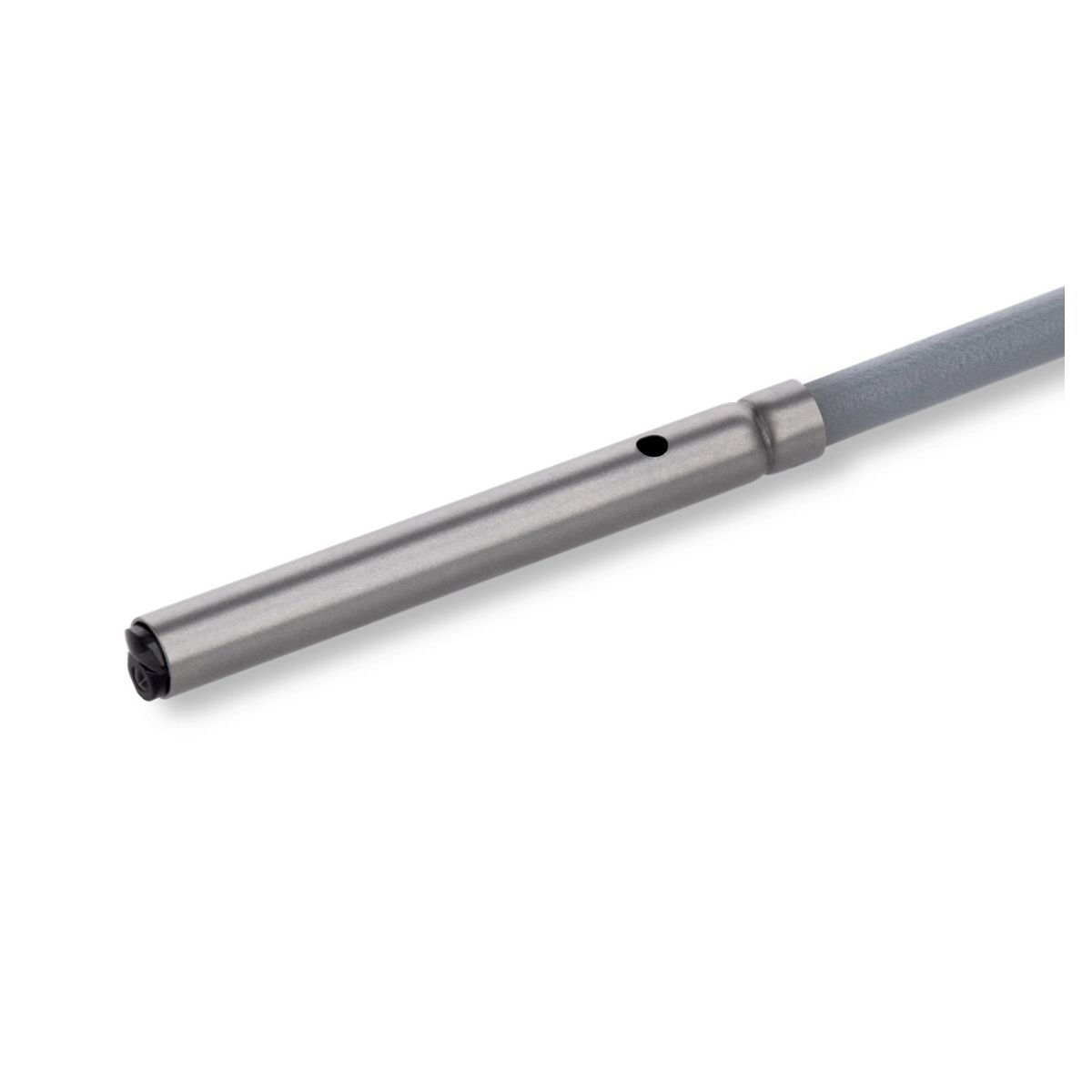

| Design | Cylinder |

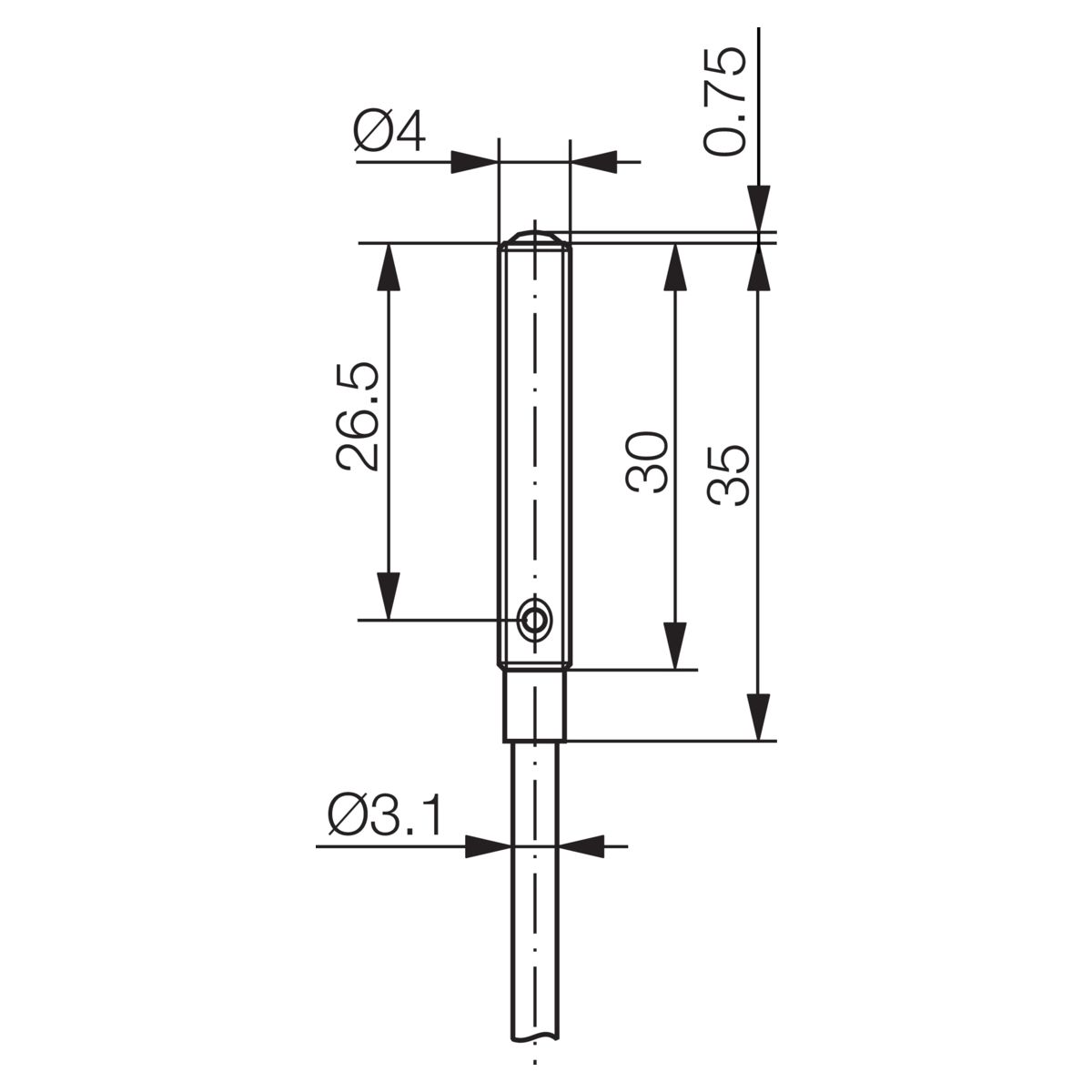

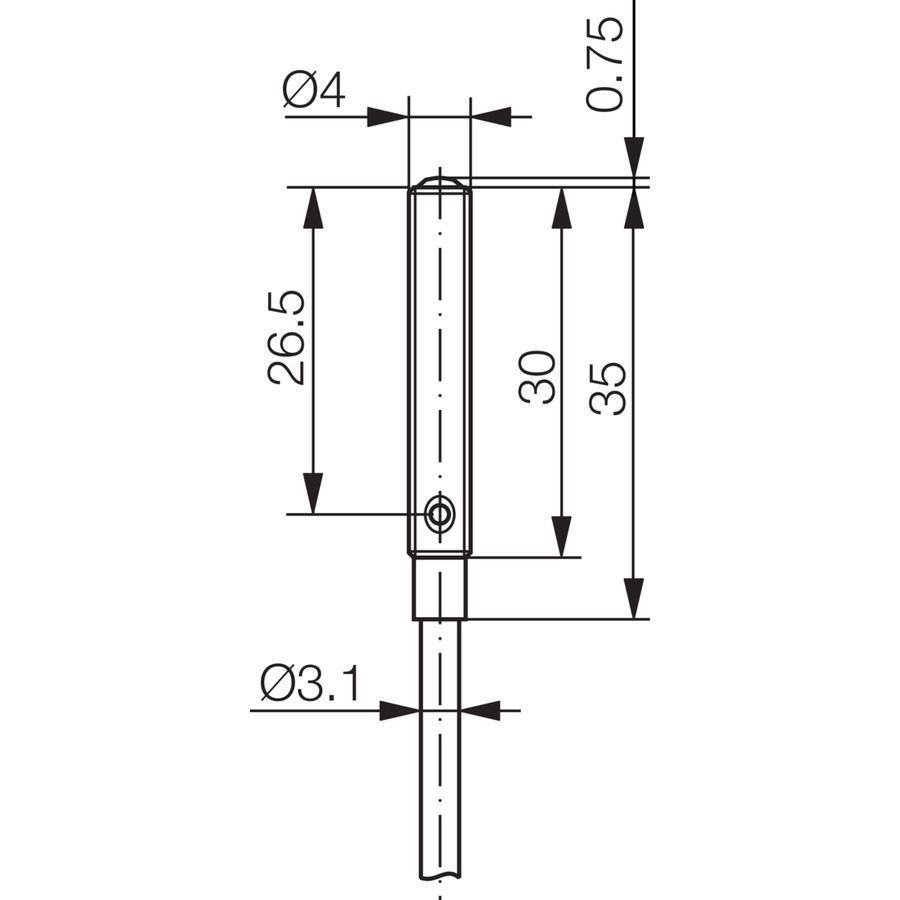

| Diameter | 4 mm |
| Evaluation | digital |
| Housing length | 35.8 mm |
| Housing Material | Stainless steel V2A |
| Illumination Time Pulse | 1.0 |
| Inverse Polarity Protection | Yes |
| Light Spot Size | 18 x 20 mm (at 50 mm distance) |
| Material | Plastic Window / optics |
| Material Of Cable | Polyurethane |
| No Load Current (max.) | 15.0 mA |
| Operating Principle | Retroreflective diffuse sensor |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Scanning Range | 50.0 mm |
| Sensitivity Adjustment | no setting elements |
| Service Voltage | 10.0 ... 30.0V DC |
| Standardized Measuring Plate | 200 x 200 mm white |
| Switching Frequency | 1000 Hz |
| Switching Output | pnp 100.0 mA NO |
| Voltage Drop (max.) | 2.0 V |
| Wavelength | 630 nm |
| Weight | 30.0 g |
| Yellow | Switching output |
